Technical specifications for 6AV3617-1JC20-0AX1
-
Product Model6AV3617-1JC20-0AX1
-
Product ParametersOP17 Operator Panel - DP Interface
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size24x20.5x5.3cm
-
ManufacturerSiemens
-
Weight0.8 kg
-
Design of displayLC display
-
Color typeBlack/white
-
Number of lines8
-
Number of characters per line40
-
MTBF backlighting (at 25 °C)200 000 h
-
Control elementsKeys
-
Type of supply voltage24 V DC
-
Current consumption (rated value)0.34 A
-
Active power input, typ.10 W
-
Type of memoryFlash / RAM
-
Memory available for user data256 kbyte
Description

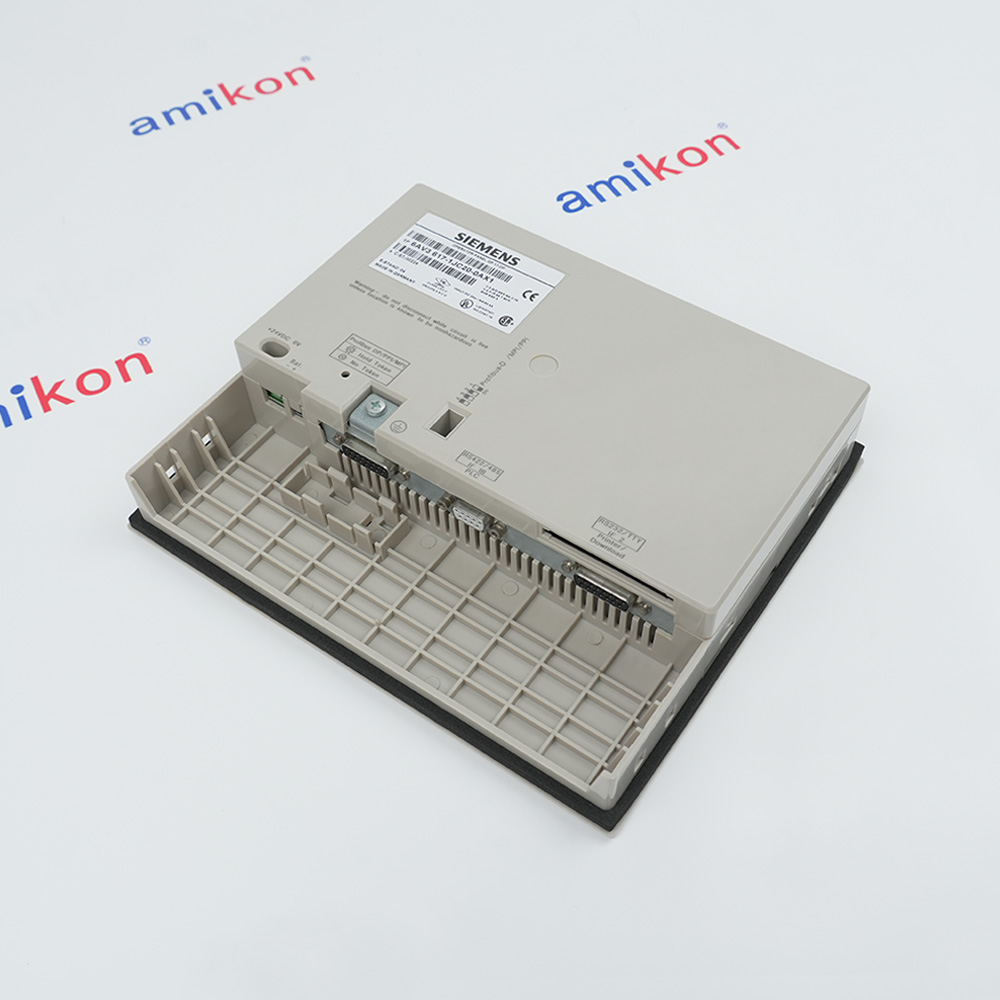

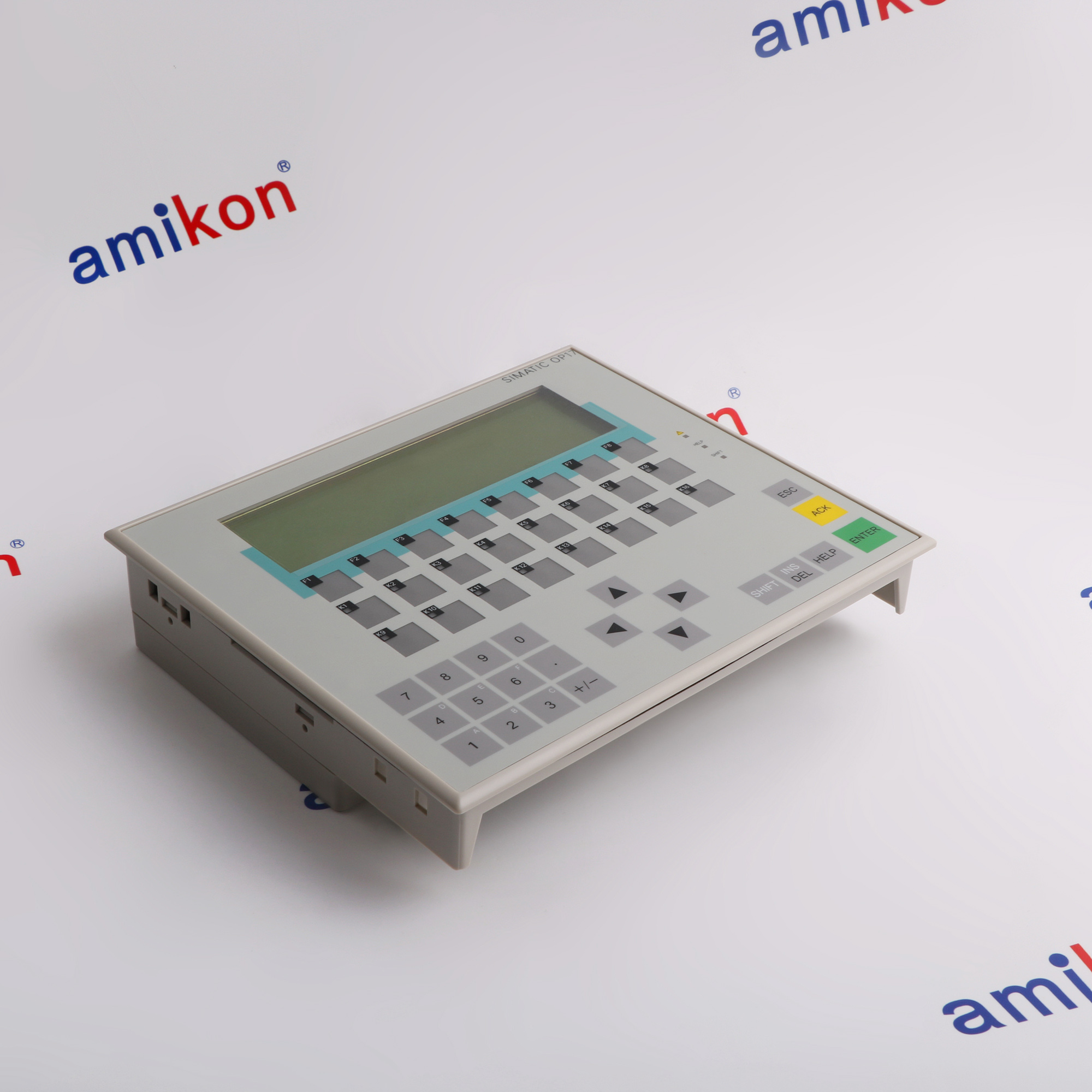

The 6AV3617-1JC20-0AX1 is an Operator Panel OP17/DP with LC Display manufactured by Siemens for industrial automation applications. The 6AV3617-1JC20-0AX1 is designated as a spare part, providing replacement and maintenance support for existing SIMATIC OP17 installations in industrial environments. The 6AV3617-1JC20-0AX1 serves as a human-machine interface (HMI) device that enables operators to monitor and control automated processes through a text-based display and membrane keyboard interface.
The 6AV3617-1JC20-0AX1 features an LC display with LED backlight technology. The display of the 6AV3617-1JC20-0AX1 supports two configurable text formats: 4 lines × 20 characters for compact information display, or 8 lines × 40 characters for more detailed process data presentation. The character height on the 6AV3617-1JC20-0AX1 can be configured to 6 mm or 11 mm, allowing operators to optimize readability based on viewing distance and application requirements. The LED backlight of the 6AV3617-1JC20-0AX1 ensures clear visibility in various industrial lighting conditions.
The 6AV3617-1JC20-0AX1 features an LC display with LED backlight technology. The display of the 6AV3617-1JC20-0AX1 supports two configurable text formats: 4 lines × 20 characters for compact information display, or 8 lines × 40 characters for more detailed process data presentation. The character height on the 6AV3617-1JC20-0AX1 can be configured to 6 mm or 11 mm, allowing operators to optimize readability based on viewing distance and application requirements. The LED backlight of the 6AV3617-1JC20-0AX1 ensures clear visibility in various industrial lighting conditions.
Information
Overview
Manuals
Application Notes
Product Applications
Connection & Wiring
Features:
- LC Display with LED Backlight
- 4×20 or 8×40 Lines × Characters Display Format
- Membrane Keyboard with 24 System Keys
- PROFIBUS-DP Interface up to 1.5 Mbaud
- UL/CSA Listed for North American Compliance
The panel is equipped with a monochrome LC display featuring LED backlighting and supports two display formats: 4 lines × 20 characters or 8 lines × 40 characters. The LED backlight has an average service life of approximately 200,000 hours under standard operating conditions, providing clear visibility in industrial environments.
Operation is performed through a durable membrane keypad that includes 24 programmable function keys, 16 LED status keys, 22 system keys, and an integrated numeric keypad with hexadecimal input capability. User-definable key labels allow the panel to be configured for different machine functions and operating requirements.
The 6AV3617-1JC20-0AX1 Siemens OPERATOR PANEL OP17/DP LC DISPLAY may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV3617-1JC20-0AX1 OPERATOR PANEL OP17/DP LC DISPLAY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

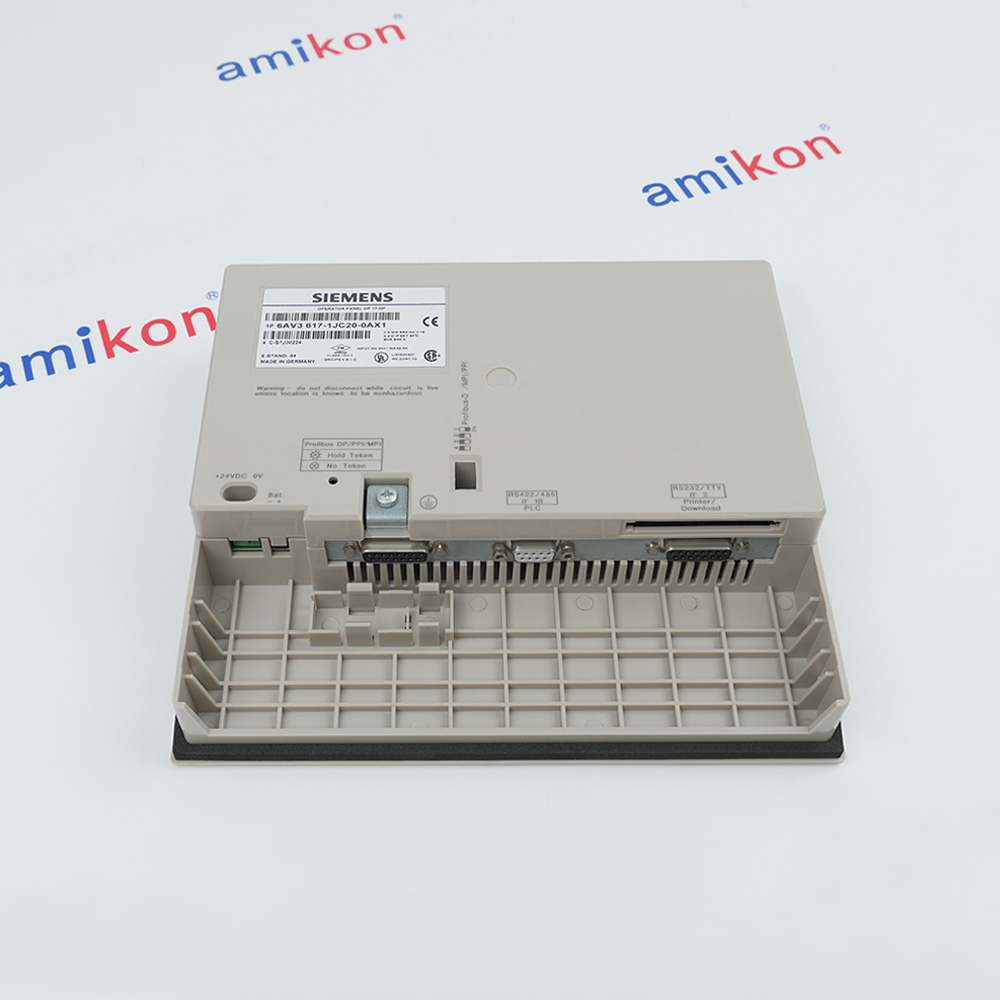

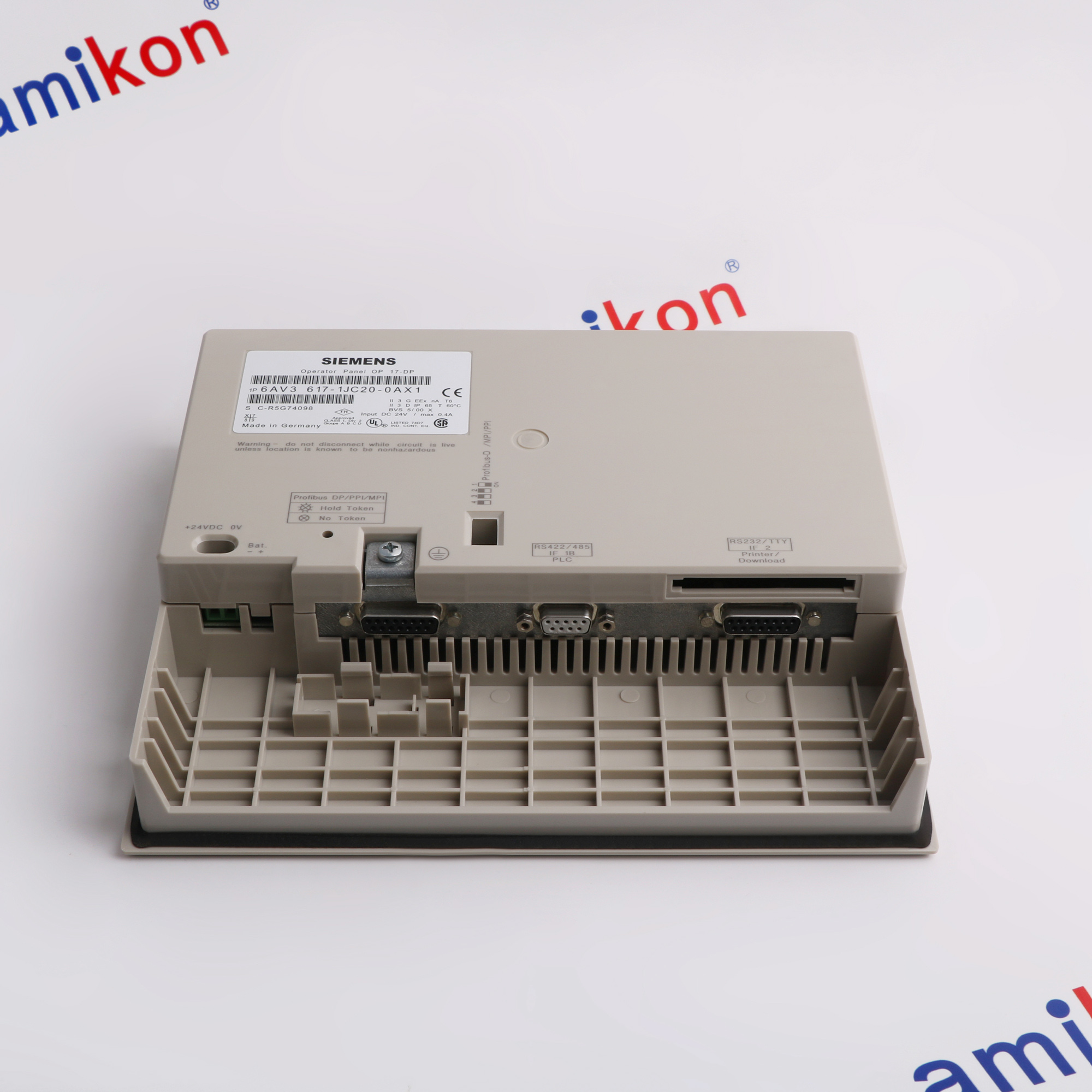

The OP17/DP version includes three communication interfaces: one active RS-232/TTY interface (IF 1A) for PLC/PC/printer connection, one RS-422/RS-485 interface (IF 1B) supporting MPI, PPI, and PROFIBUS DP up to 1.5 Mbaud for PLC/PC connection, and one passive RS-232/TTY interface (IF 2) for PLC/PC/printer connection. The panel is compatible with SIMATIC S5 (AS511, FAP), SIMATIC S7/M7 (PPI, MPI, PROFIBUS DP), SIMATIC 505 (RS232, RS422/RS485), and other PLCs via RS232/TTY or RS422/RS485.
The device operates on 24 V DC power with a maintenance-free electronic fuse. Operating data is retained in non-volatile flash memory, making the panel battery-free and maintenance-free. An optional backup battery (W79084-E1001-B2) is available for extended data retention requirements.
- Factory Automation: Centralized console coordinating PLCs like SIMATIC S7 for machine-level control
- Automotive Production: Handles recipe management, visualization, and diagnostics on assembly lines
- Packaging/Logistics: Drives conveyors and sorters via PROFIBUS/PROFINET/MPI for rapid data exchange
- Water/Wastewater: IP65-protected for pumping stations and treatment facilities against dust/water
- Food/Beverage: Manages mixing, pasteurization, and filling with recipe/logging execution
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Connect a 24V DC power supply to the designated terminals. Ensure the correct polarity and wire gauge (typically 1.5 mm² / 16 AWG).
Communication Ports:Active RS-232/TTY port: Used primarily for connecting a PC (for configuration via ProTool or WinCC) or a printer.
Passive RS-232/TTY port: Can also be used for PC, programmer, or specific automation devices.
RS-422/RS-485 Interface: The primary port for connecting to SIMATIC S7 controllers, PROFIBUS DP (up to 1.5 Mbaud), or MPI/PPI networks.
Alternative Names
6AV3617-1JC20-0AXI
6AV3617-1JC20-OAX1
6AV3617-1JC2O-0AX1
6AV3617-1JCZ0-0AX1
6AV3617-IJC20-0AX1
6AV36I7-1JC20-0AX1
6AV3617 1JC20 0AX1
6AV3617 1JC20 0AXI
6AV3617 1JC20 OAX1
6AV3617 1JC2O 0AX1
6AV3617 1JCZ0 0AX1
6AV3617 IJC20 0AX1
6AV36I7 1JC20 0AX1
6AV36171JC200AX1
6AV36171JC20OAXI
6AV36171JCZO0AX1
6AV3617IJC200AX1
6AV36I71JC200AX1
Technical notes
The 6AV3617-1JC20-0AX1 is designed for reliable operation in industrial environments. The 6AV3617-1JC20-0AX1 operates from a 24 V DC power supply, which is standard in industrial automation systems. The compact design of the 6AV3617-1JC20-0AX1 optimizes panel space while providing a comprehensive operator interface. The 6AV3617-1JC20-0AX1 is designed for panel mounting in control cabinets and operator consoles, with IP65 protection rating at the front panel when properly installed.
FAQs
-
What is the 6AV3617-1JC20-0AX1?
+The Siemens 6AV3617-1JC20-0AX1 is a classic text-based SIMATIC OP 17/DP operator panel from Siemens. -
What type of display does it have?
+It features a large, LED-backlit LC display that provides visibility in industrial settings. Display formats include 4 lines by 20 characters or 8 lines by 40 characters. -
What are the communication and power requirements?
+It requires a 24 V DC power supply. For communication, it supports PROFIBUS DP at speeds up to 1.5 Mbit/s, and features standard interfaces including RS232, RS422, and RS485. -
What software is used to configure the OP 17/DP?
+Configuration is typically done using legacy Siemens software like ProTool.
