PRODUCT DESCRIPTION

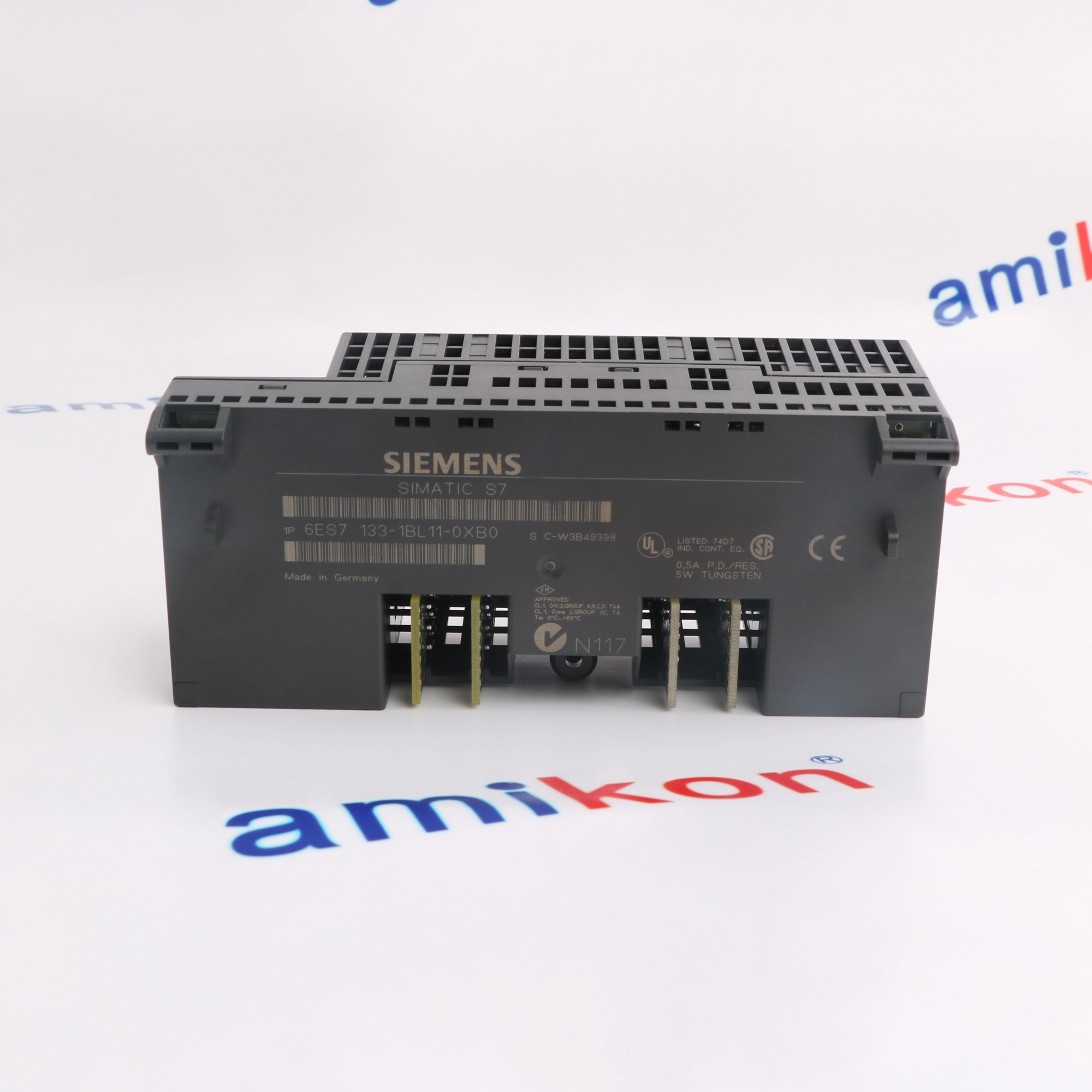

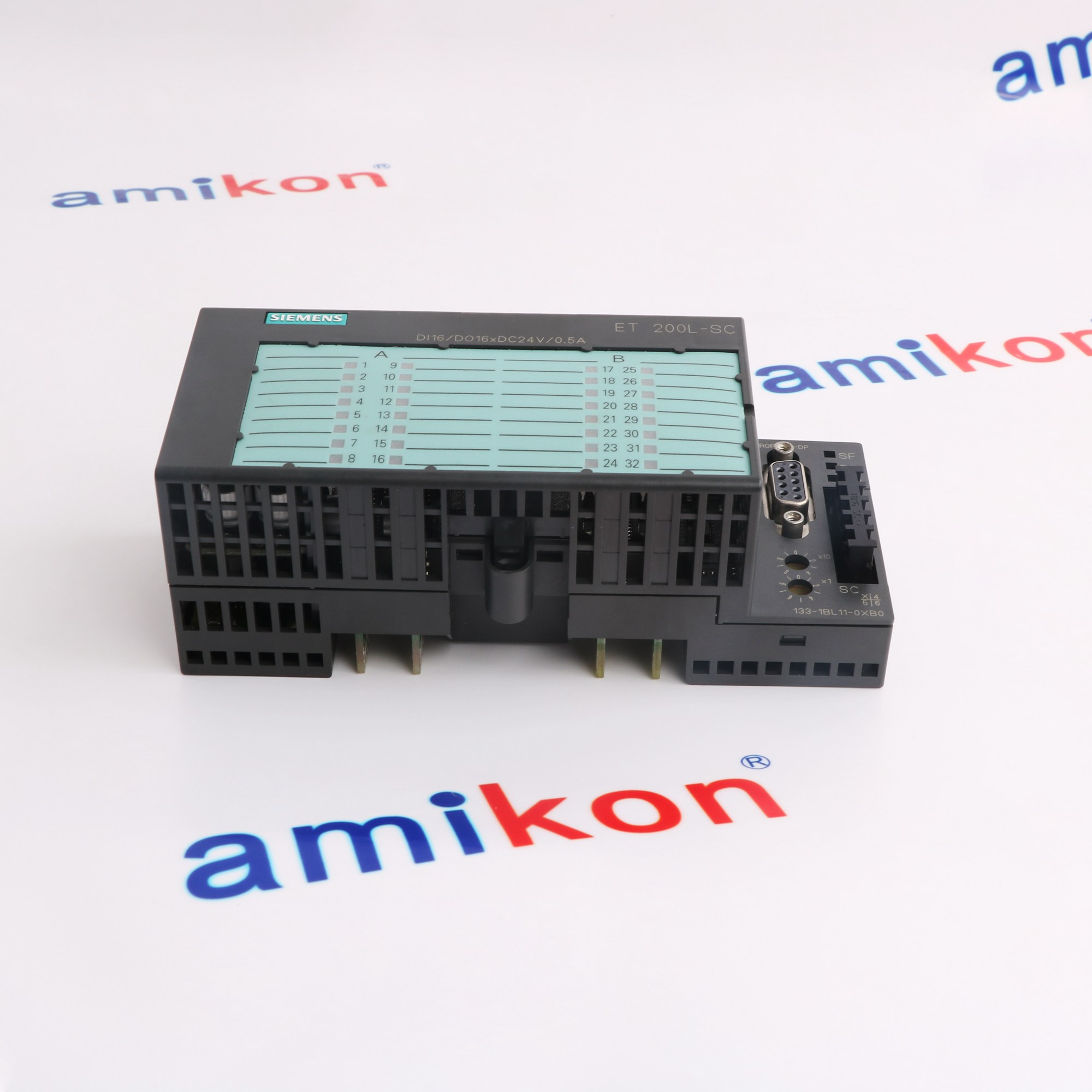

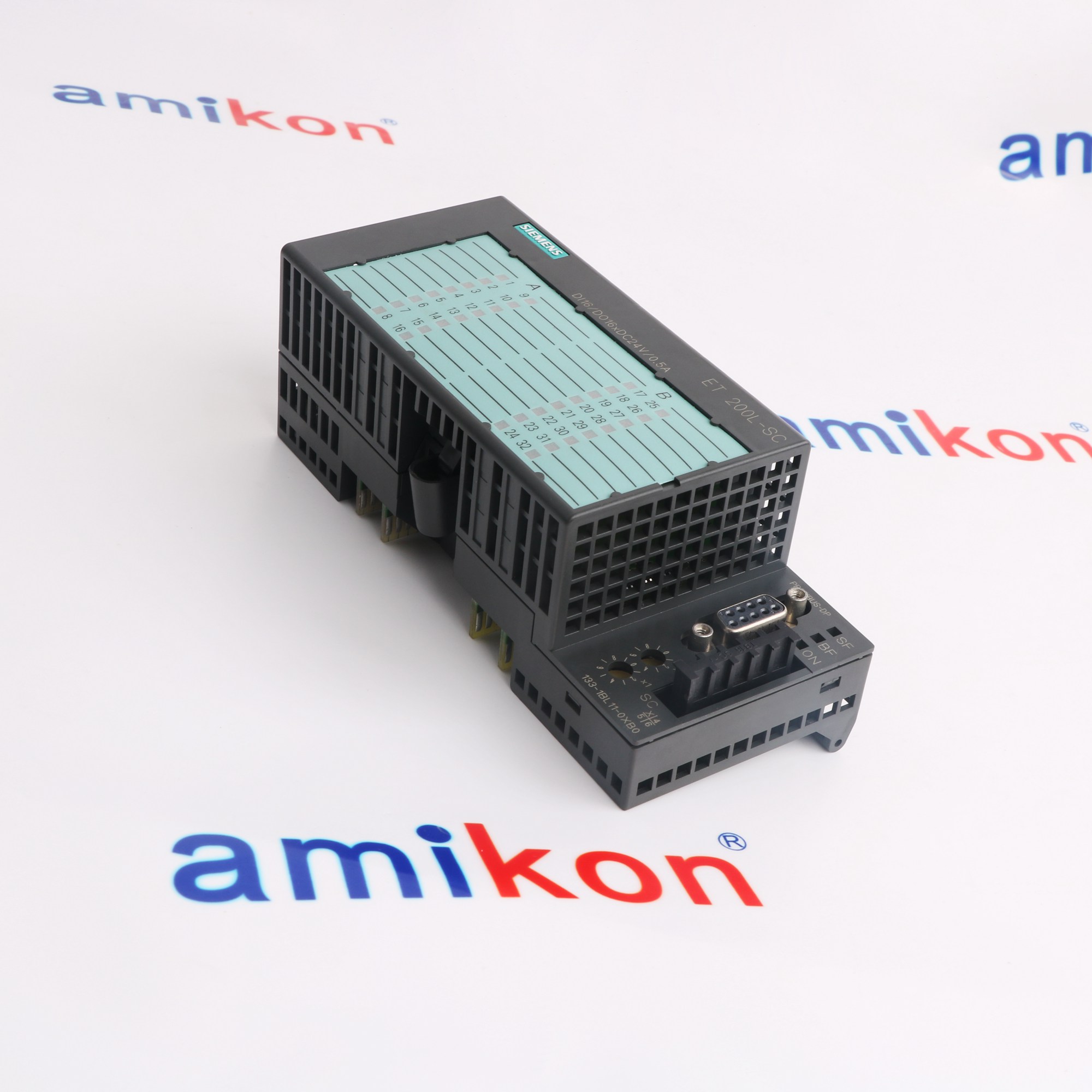

6ES7133-1BL11-0XB0 16DI/16DO electronic block
Siemens 6ES7133-1BL11-0XB0 is a SIMATIC ET 200L-SC electronic block combining 16 digital inputs and 16 digital outputs. It connects 24 V DC field signals to distributed automation stations through PROFIBUS DP, serving compact machine and production-line control.
The block plugs onto a TB 32L terminal block and provides transistor outputs rated at 0.5 A per channel. Its inputs recognize defined low and high voltage levels with a typical 2 to 4.5 ms delay. Separate switching limits apply to resistive, inductive and lamp loads, while the IP20 housing requires a suitable protective enclosure.
The block plugs onto a TB 32L terminal block and provides transistor outputs rated at 0.5 A per channel. Its inputs recognize defined low and high voltage levels with a typical 2 to 4.5 ms delay. Separate switching limits apply to resistive, inductive and lamp loads, while the IP20 housing requires a suitable protective enclosure.
BEFORE YOU BUY
Confirm the complete 16di/16do electronic block
ACTUAL APPLICATIONS
Application context for 6ES7133-1BL11-0XB0
Siemens 6ES7133-1BL11-0XB0 is a SIMATIC ET 200L-SC electronic block combining 16 digital inputs and 16 digital outputs. It supports compatible industrial automation in the industries shown below. Suitability depends on the connected field circuits, host equipment and approved configuration.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Production
Discrete Parts ManufacturingAutomated Assembly Line Production -
02 · FOOD & BEVERAGE
Food and Beverage Manufacturing
Food Production and PackagingBeverage Processing and Bottling -
03 · WATER & WASTEWATER
Water Treatment and Distribution
Municipal Water TreatmentIndustrial Wastewater Treatment
Technical specifications for 6ES7133-1BL11-0XB0
-
Product Model6ES7133-1BL11-0XB0
-
Product Parameters16DI/16DO electronic block
-
In stock7 units
-
ManufacturerSiemens
-
Digital inputs16, 24 V DC
-
Digital outputs16, 0.5 A per channel
-
Terminal blockTB 32L
-
Input low level-30 to +5 V
-
Input high level13 to 30 V
-
Input current5 mA typical
-
Input delay2 to 4.5 ms
-
Shielded signal cable1000 m maximum
-
Output high levelSupply voltage minus 3 V minimum
-
Output off-state leakage1 mA maximum
-
Resistive switching frequency100 Hz maximum
-
Inductive switching frequency0.5 Hz maximum
-
Lamp switching frequency8 Hz maximum
-
Insulation test voltage500 V DC
-
Protection ratingIP20
View all additional
Alternative Names
6ES7133-1BL11-0XB0
SIMATIC ET 200L-SC 16DI/16DO electronic block
ET 200L-SC 16, 24 V DC digital inputs
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7133-1BL11-0XB0 16di/16do electronic block
6ES7133-1BL11-0XB0 is the 16di/16do electronic block for SIMATIC ET 200L-SC. Match the documented interface and installed companion equipment before configuring the assembly.
Engineering should compare digital inputs (16, 24 V DC), digital outputs (16, 0.5 A per channel) and terminal block (TB 32L) with the installation requirements. Follow the manufacturer connection allocation and supply limits.
Use the applicable manufacturer instructions for wiring and configuration. Validate affected signal or communication paths, then record the accepted settings and measured results with the equipment documentation.
Features:
- Digital inputs: 16, 24 V DC
- Digital outputs: 16, 0.5 A per channel
- Terminal block: TB 32L
The 6ES7133-1BL11-0XB0 16di/16do electronic block requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7133-1BL11-0XB0 16di/16do electronic block
Replace 6ES7133-1BL11-0XB0 only after checking its complete article code, SIMATIC ET 200L-SC role and documented hardware or software compatibility. Related family numbers and similar housings do not establish interchangeability.
Record the existing connector allocation, terminal numbering and configured addresses before removal. Preserve the applicable controller or network project and diagnostic information needed to restore this 16di/16do electronic block.
After fitting the verified article, restore its controlled configuration and test the affected functions at a safe operating point. Retain the supplied label and the final acceptance record with the asset documentation.
Features:
- Digital inputs: 16, 24 V DC
- Digital outputs: 16, 0.5 A per channel
- Terminal block: TB 32L
The 6ES7133-1BL11-0XB0 16di/16do electronic block requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7133-1BL11-0XB0 16di/16do electronic block must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size14.5 × 6 × 6.05 cm
-
Shipping weight0.13kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference85389091
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7133-1BL11-0XB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What signal count does the BL11 block provide?
It combines 16 digital inputs with 16 digital outputs. -
Which terminal block accepts this electronic block?
The applicable terminal block is TB 32L. -
What voltage defines an active BL11 input?
The specified high-level range is 13 to 30 V. -
How quickly does its digital input respond?
The documented input delay is 2 to 4.5 ms. -
Can BL11 outputs switch inductive loads at 100 Hz?
No. The inductive-load limit is 0.5 Hz; 100 Hz applies to resistive loads. -
What enclosure protection does the electronic block provide?
It is rated IP20 and needs protection appropriate to its installation environment. -
What should a BL11 purchase request identify?
State the complete 6ES7133-1BL11-0XB0 code and whether a TB 32L terminal block is required. -
How is a supplied BL11 block checked before dispatch?
Match the article label, terminal-block compatibility and physical connector condition to the order.
