PRODUCT DESCRIPTION

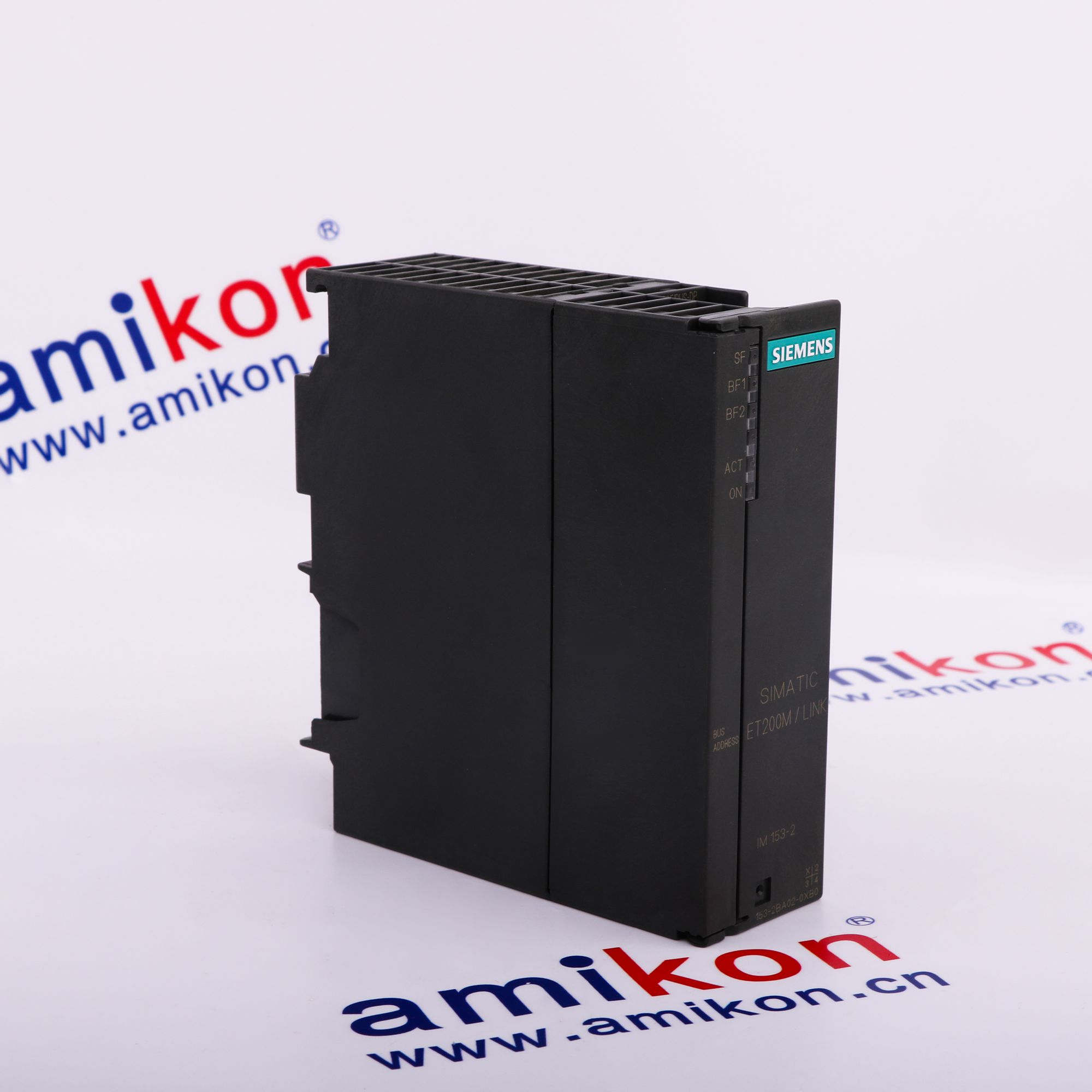

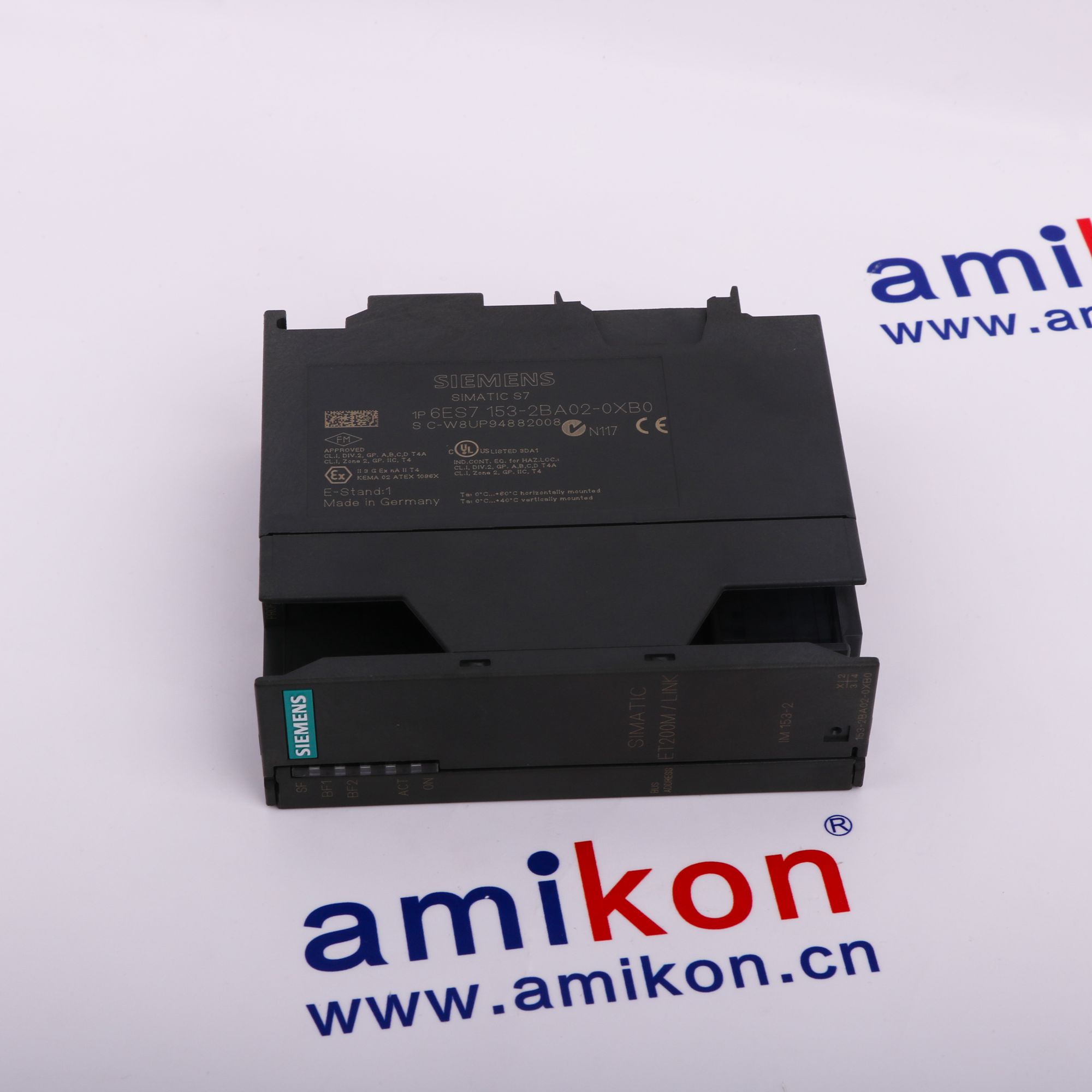

6ES7153-2BA02-0XB0 PROFIBUS DP Station Interface Module

Siemens 6ES7153-2BA02-0XB0 is a SIMATIC ET 200M IM 153-2 High Feature PROFIBUS DP interface module. It links a distributed station of up to twelve compatible S7-300 modules to the controller network for process and production automation.

The interface provides an RS485 PROFIBUS DP connection, a 5 V backplane supply and up to 244 input bytes and 244 output bytes. Supported configurations include redundant interfaces, isochronous operation and timestamped digital signals. The published timestamp accuracy is 1 ms for up to eight modules and 10 ms for up to twelve; the station configuration and installed hardware determine the available functions.
ACTUAL APPLICATIONS

Application context for 6ES7153-2BA02-0XB0

6ES7153-2BA02-0XB0 links ET 200M I/O to PROFIBUS DP in chemical, water and power processes. It supports compatible station configurations with redundancy and timestamping. Suitability depends on the selected modules, bus arrangement, addressing and operating environment.
  • 01 · CHEMICAL PROCESSING

    Chemical Manufacturing and Process Production

    Chemical Production Process AutomationPetrochemical Process Data Handling
  • 02 · WATER & WASTEWATER

    Water Treatment and Wastewater Process Control

    Water Supply Process ControlWastewater Treatment Process Automation
  • 03 · POWER GENERATION

    Power Production and Energy Process Control

    Electricity Production Process AutomationIndustrial Energy Process Control

Technical specifications for 6ES7153-2BA02-0XB0

  • Product Model
    6ES7153-2BA02-0XB0
  • Product Parameters
    PROFIBUS DP Station Interface Module
  • In stock
    8 units
  • Manufacturer
    Siemens
  • Nominal input supply
    24 V DC
  • Permitted supply range
    20.4–28.8 V DC
  • Maximum input current
    600 mA
  • Typical input inrush
    3 A
  • Backplane supply capability
    5 V DC; 1.5 A maximum
  • Typical power dissipation
    5.5 W
  • Maximum connected I/O modules
    12 S7-300 modules
  • Process address capacity
    244 input bytes; 244 output bytes
  • Timestamp accuracy by configuration
    1 ms with up to 8 modules; 10 ms with up to 12
  • Timestamped signal capacity
    128 per station; 32 per slot
  • PROFIBUS node address range
    1–125
  • PROFIBUS physical connection
    RS485; 9-pin D-sub
  • Maximum PROFIBUS transmission
    12 Mbit/s; automatic baud-rate detection
  • Isolation test rating
    500 V
  • Operating conditions
    IP20; 0–60 ℃; altitude up to 3,000 m
View all additional

Alternative Names

6ES7153-2BA02-0XB0 SIMATIC ET 200M IM 153-2 DP interface IM 153-2 High Feature PROFIBUS station module
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7153-2BA02-0XB0 profibus dp station interface module

Integrate 6ES7153-2BA02-0XB0 as the configured PROFIBUS DP slave interface for a compatible ET 200M station. Check the twelve-module and 244-byte addressing limits against the hardware project.
Compare the 20.4–28.8 V DC supply and 5 V backplane-current requirement with the actual power design. Timestamping and redundant operation require the documented I/O and bus-module arrangement.
Apply the complete ET 200M commissioning instructions. Validate node address, bus communication, module diagnostics and the configured signal behaviour, retaining the tested hardware project and acceptance record.
