PRODUCT DESCRIPTION

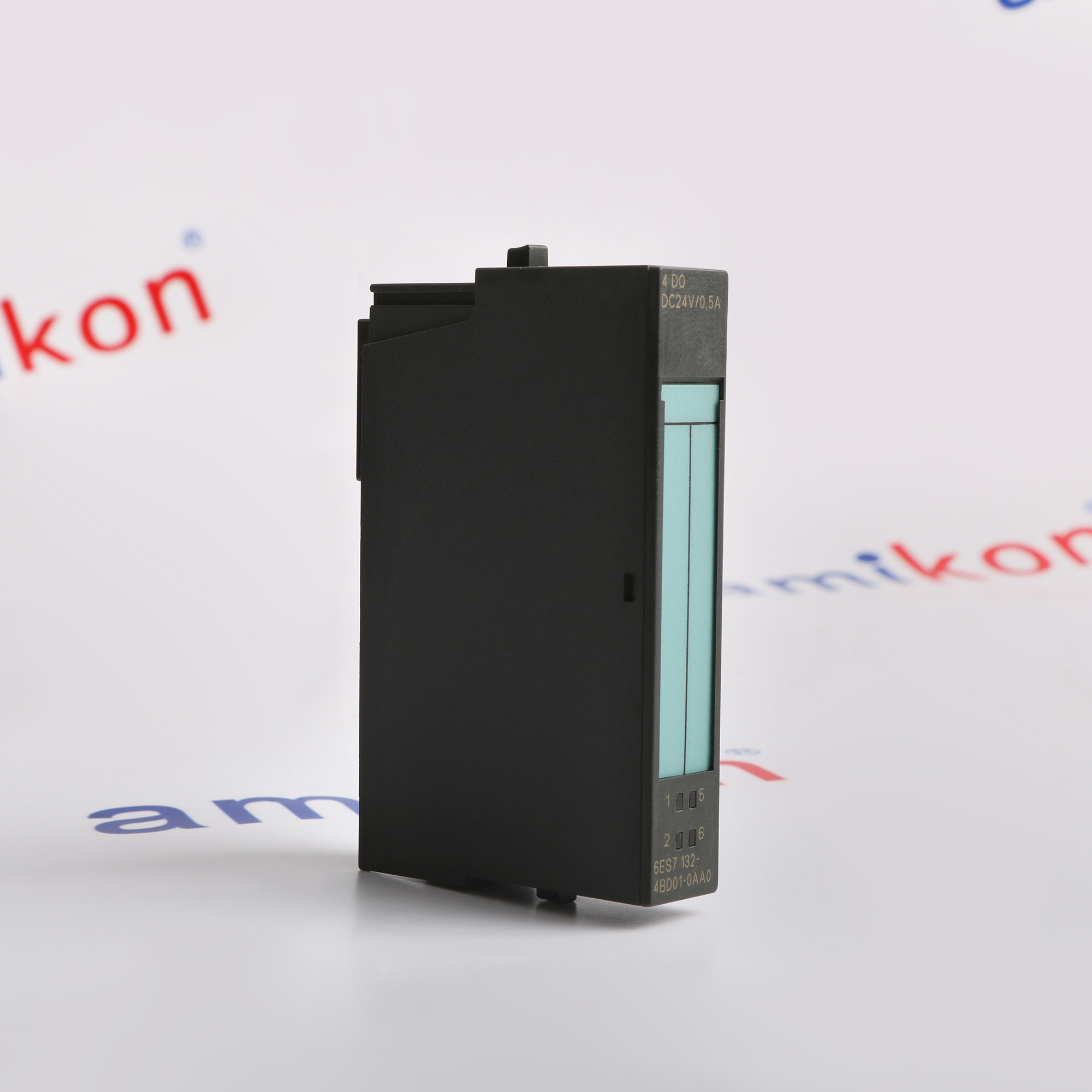

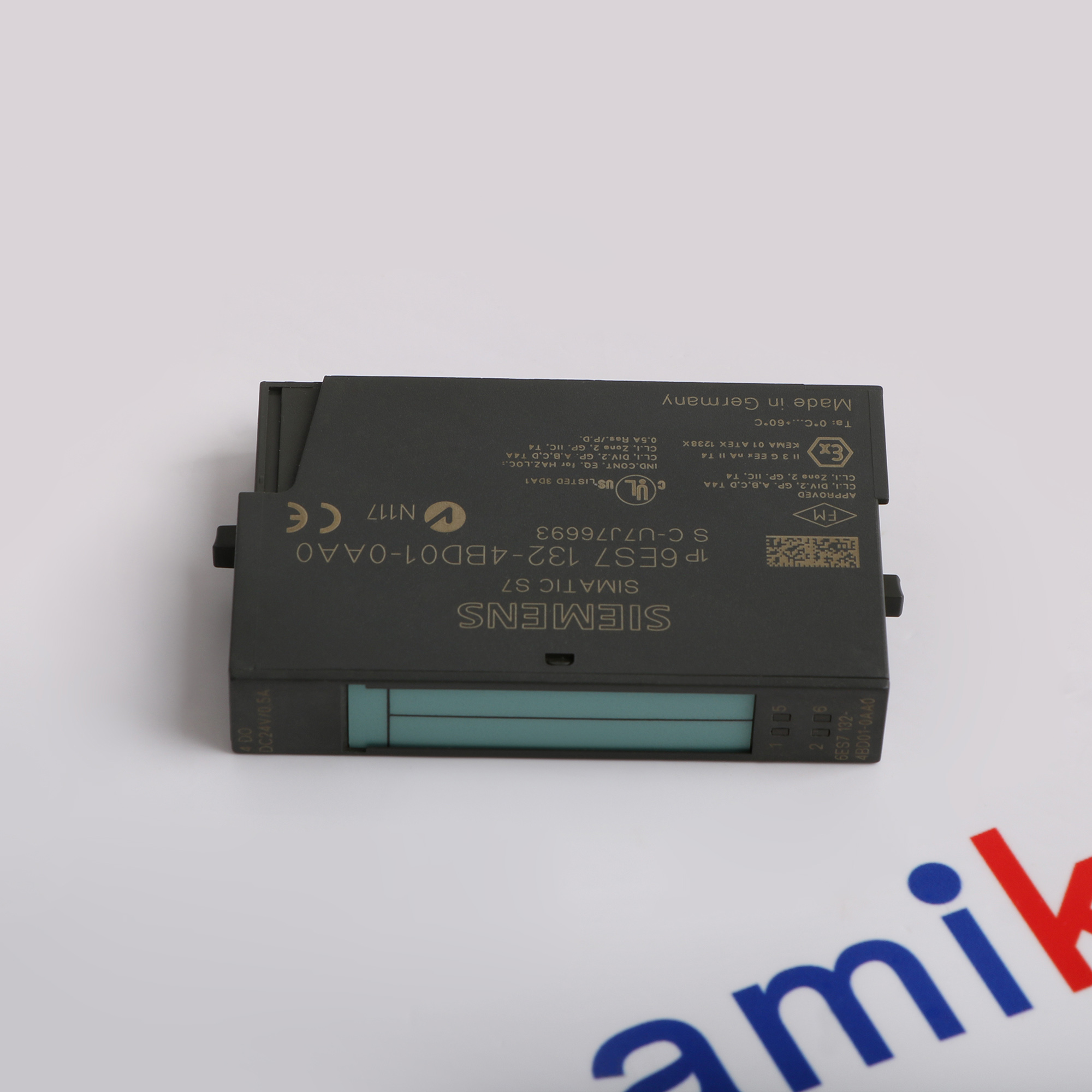

6ES7132-4BD01-0AA0 Four Channel Digital Output
Siemens 6ES7132-4BD01-0AA0 is a four channel digital output in the SIMATIC ET 200S 4DO Standard range. It supports the documented automation configuration in industrial equipment.
Four transistor output channels switch 24 V DC loads at a rated 0.5 A per channel. The 4BD01 execution permits resistive switching up to 100 Hz and provides channel short-circuit protection. Field wiring remains on the matching ET 200S terminal module; polarity, total group loading and the selected address packing must be checked before replacement.
Four transistor output channels switch 24 V DC loads at a rated 0.5 A per channel. The 4BD01 execution permits resistive switching up to 100 Hz and provides channel short-circuit protection. Field wiring remains on the matching ET 200S terminal module; polarity, total group loading and the selected address packing must be checked before replacement.
BEFORE YOU BUY
Confirm the complete four channel digital output
ACTUAL APPLICATIONS
Application context for 6ES7132-4BD01-0AA0
6ES7132-4BD01-0AA0 is a four channel digital output for ET 200S 4DO Standard. Its use in compatible automation systems covers automotive, packaging, metalworking. The connected equipment and electrical ratings determine suitability.
-
01 · AUTOMOTIVE
Automotive Manufacturing and Vehicle Component Production
Vehicle Component ManufacturingAutomotive Assembly Production -
02 · PACKAGING
Packaging Manufacturing and Industrial Filling Production
Industrial Packaging ProductionContainer Filling and Sealing -
03 · METALWORKING
Metalworking and Precision Metal Component Production
Precision Metal Parts ProductionMetal Cutting and Forming
Technical specifications for 6ES7132-4BD01-0AA0
-
Product Model6ES7132-4BD01-0AA0
-
Product ParametersFour Channel Digital Output
-
In stock1 unit
-
ManufacturerSiemens
-
Digital output count4
-
Rated load voltage24 V DC from power module
-
Unloaded load current5 mA maximum per channel
-
Backplane consumption10 mA maximum at 3.3 V DC
-
Typical dissipation0.8 W
-
Output address allocation4 bits packed, 1 byte unpacked
-
Rated output current0.5 A per channel
-
Permissible output current7–600 mA at 0–60 ℃
-
Off-state leakage0.3 mA maximum
-
Resistive output delays100 µs on, 300 µs off, maximum
-
Switching frequency ceilings100 Hz resistive, 2 Hz inductive, 10 Hz lamp
-
Total group current2 A maximum up to 60 ℃
-
Load resistance interval48–3400 Ω
-
Lamp load5 W maximum
-
Output isolation test500 V DC
View all additional
Alternative Names
6ES7132-4BD01-0AA0
SIMATIC ET 200S 4DO Standard
Four Channel Digital Output for ET 200S 4DO Standard
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7132-4BD01-0AA0 four channel digital output
Match 6ES7132-4BD01-0AA0 to the accepted SIMATIC ET 200S 4DO Standard configuration and associated parts before integration.
Four transistor output channels switch 24 V DC loads at a rated 0.5 A per channel. The 4BD01 execution permits resistive switching up to 100 Hz and provides channel short-circuit protection. Field wiring remains on the matching ET 200S terminal module; polarity, total group loading and the selected address packing must be checked before replacement.
Follow the applicable manufacturer instructions for 6ES7132-4BD01-0AA0. Compare connection assignments, retain the accepted wiring record and test the affected signals before returning the equipment to service.
Features:
- Digital output count: 4
- Rated load voltage: 24 V DC from power module
- Unloaded load current: 5 mA maximum per channel
The 6ES7132-4BD01-0AA0 four channel digital output requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6ES7132-4BD01-0AA0 four channel digital output
Confirm the complete 6ES7132-4BD01-0AA0 identity and SIMATIC ET 200S 4DO Standard execution before replacement. Match the documented connection and electrical ratings.
Record the existing four channel digital output connections, companion modules and configuration. Isolate the affected circuits according to the site procedure before removing the installed part.
After fitting 6ES7132-4BD01-0AA0, restore the accepted arrangement and test the affected signals. Retain the component identity and final functional test results with the equipment record.
Features:
- Digital output count: 4
- Rated load voltage: 24 V DC from power module
- Unloaded load current: 5 mA maximum per channel
The 6ES7132-4BD01-0AA0 four channel digital output requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7132-4BD01-0AA0 four channel digital output must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size1.4 × 5.5 × 8.4cm
-
Shipping weight0.04kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7132-4BD01-0AA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What output count identifies the BD01 standard module?
6ES7132-4BD01-0AA0: digital output count is 4. Apply the documented limits of this execution. -
Which voltage supplies the BD01 output circuits?
6ES7132-4BD01-0AA0: rated load voltage is 24 V DC from power module. Apply the documented limits of this execution. -
What unloaded channel current belongs to the BD01 execution?
6ES7132-4BD01-0AA0: unloaded load current is 5 mA maximum per channel. Apply the documented limits of this execution. -
What backplane current is needed by BD01 electronics?
6ES7132-4BD01-0AA0: backplane consumption is 10 mA maximum at 3.3 V DC. Apply the documented limits of this execution. -
How much power is dissipated by the BD01 output module?
6ES7132-4BD01-0AA0: typical dissipation is 0.8 W. Apply the documented limits of this execution. -
How does BD01 use packed and unpacked addresses?
6ES7132-4BD01-0AA0: output address allocation is 4 bits packed, 1 byte unpacked. Apply the documented limits of this execution. -
Which load details identify the older standard output module for a quote?
For 6ES7132-4BD01-0AA0, provide the complete article and quantity, the installed SIMATIC ET 200S 4DO Standard identity and a connector photograph. Verify digital output count (4) and rated load voltage (24 V DC from power module) against the requested execution. -
Which arrival checks identify the four channel digital output 6ES7132-4BD01-0AA0?
Compare the complete 6ES7132-4BD01-0AA0 label with the ordered SIMATIC ET 200S 4DO Standard execution. Inspect the connectors and enclosure and verify the listed accessories before replacement.
