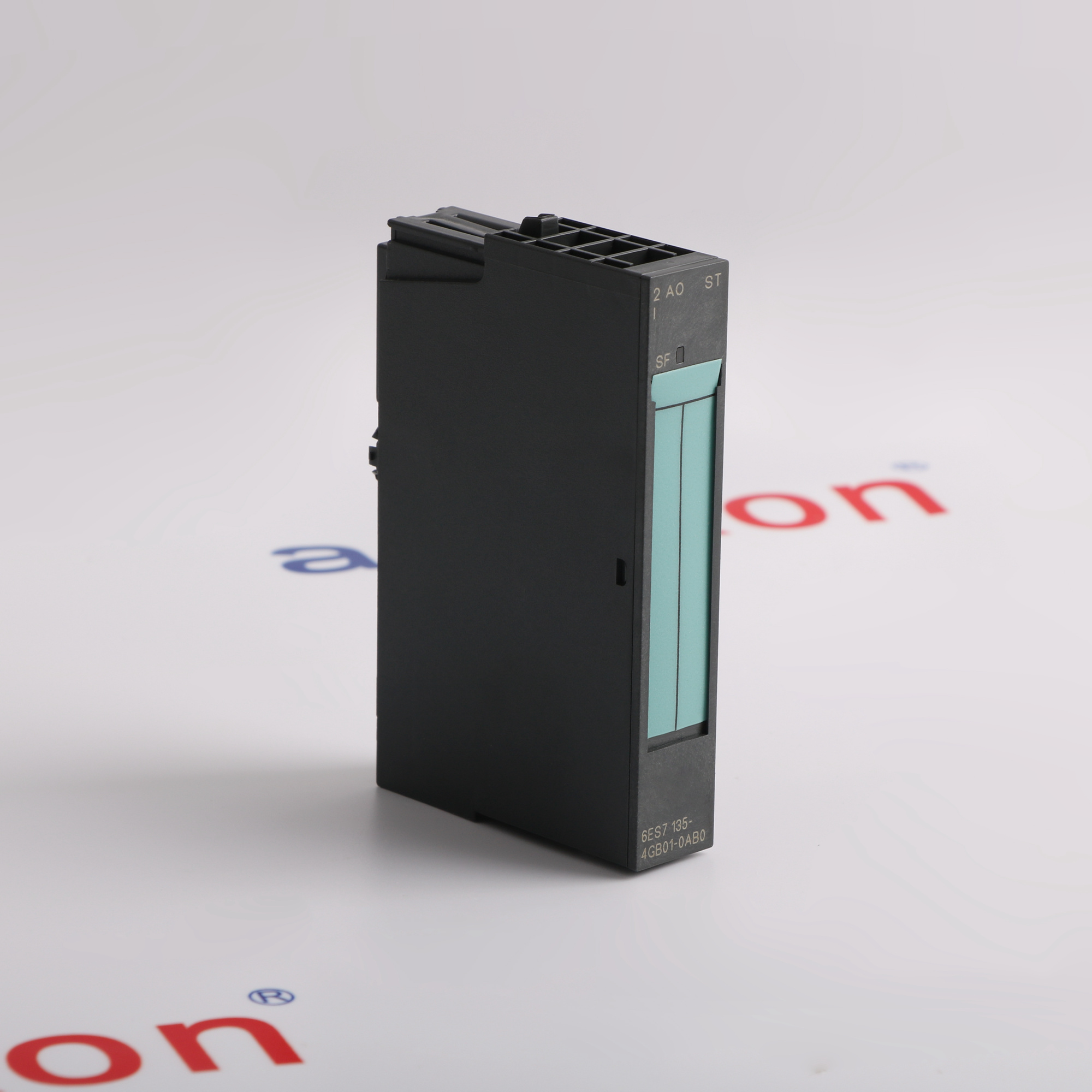

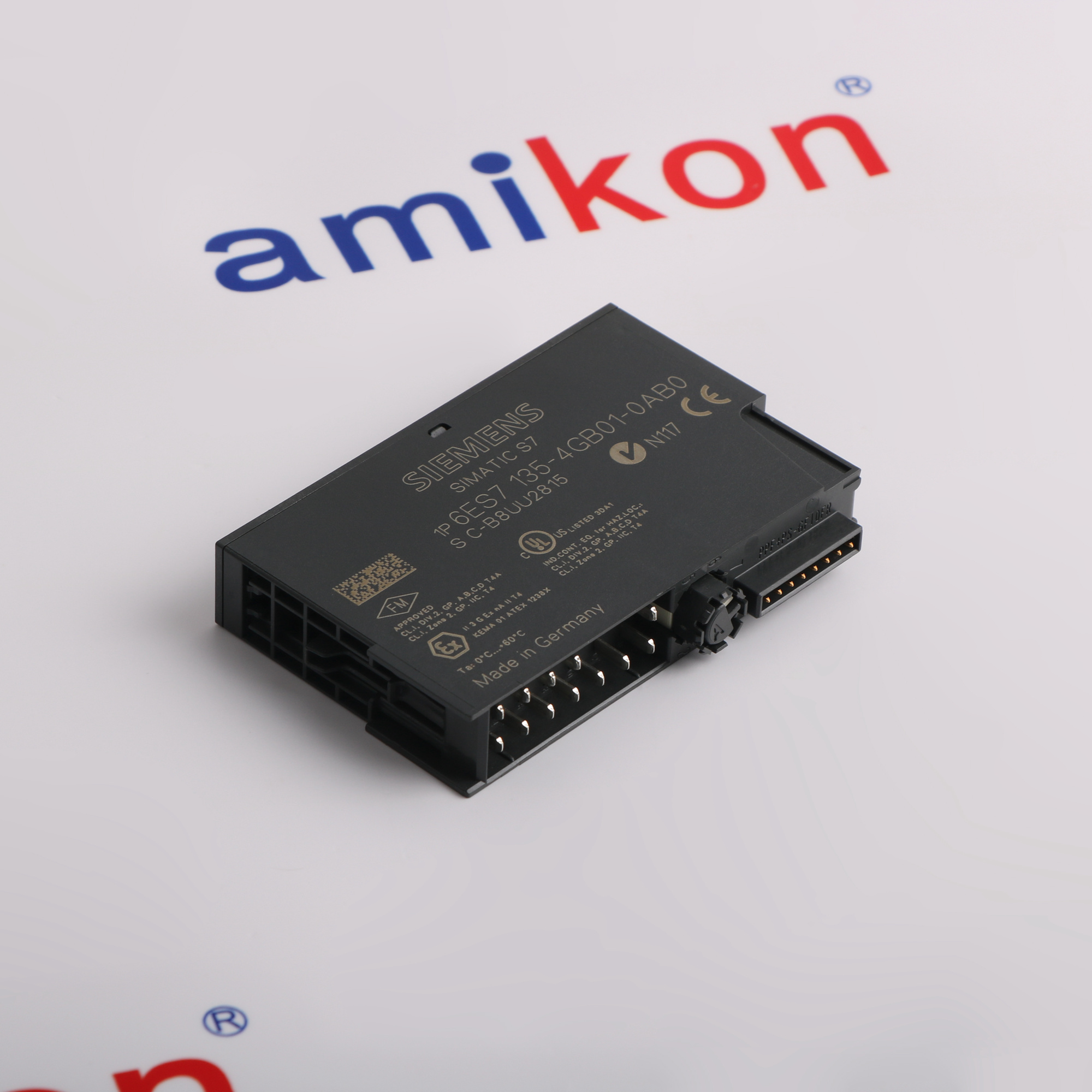

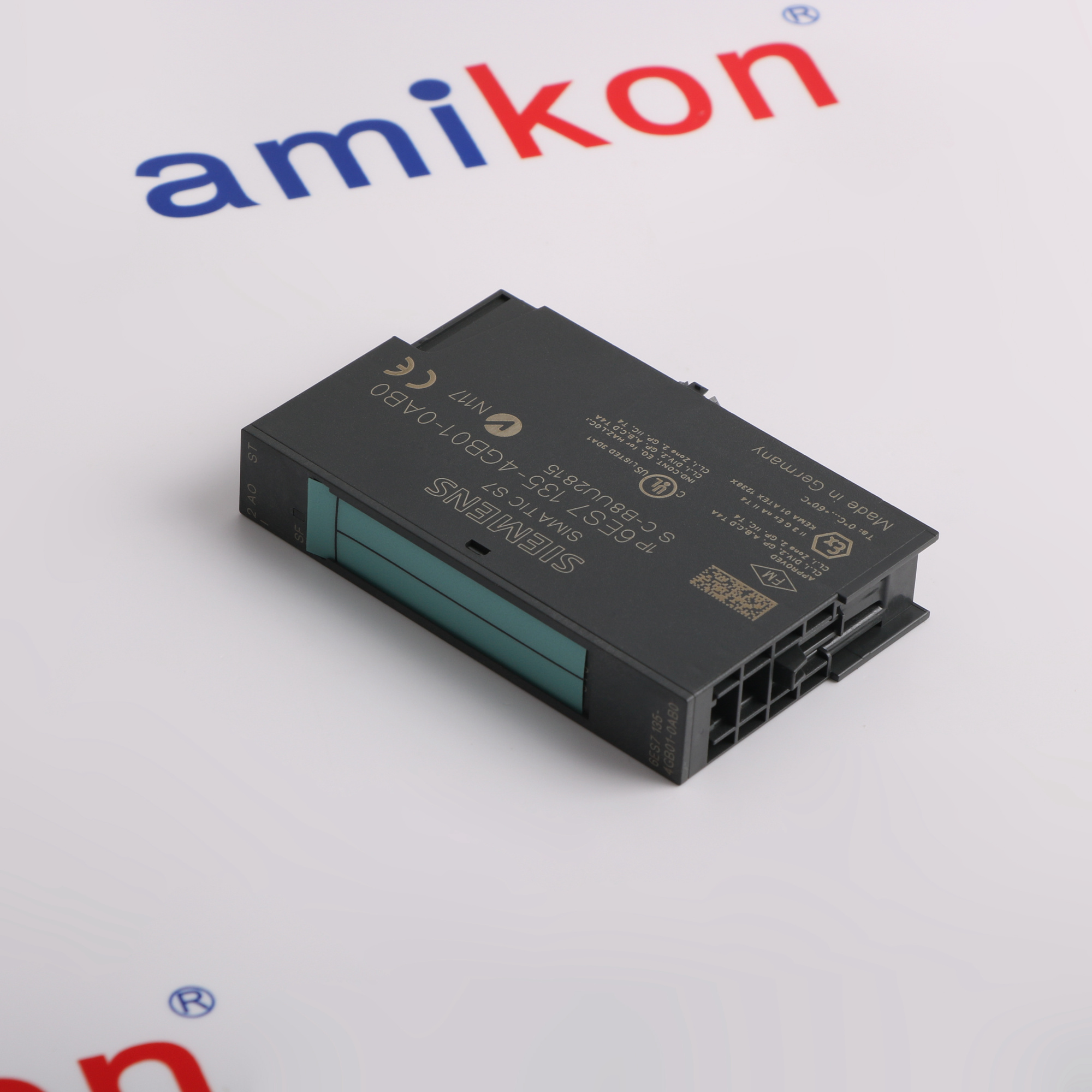

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
Two current channels with documented loop and diagnostic limits
Siemens 6ES7135-4GB01-0AB0 is a SIMATIC ET 200S Standard analog electronic module with two current outputs. Each channel supports either bipolar ±20 mA or 4-20 mA operation. It uses a 24 V DC load supply and two-conductor connections to the receiving equipment.
The module occupies four output bytes and provides configurable wire-break reporting, group diagnostics and controller-STOP behavior. Its channels are isolated from the backplane bus and load supply, but not from each other. The manufacturer specifies a maximum loop load of 500 ohm.
The module occupies four output bytes and provides configurable wire-break reporting, group diagnostics and controller-STOP behavior. Its channels are isolated from the backplane bus and load supply, but not from each other. The manufacturer specifies a maximum loop load of 500 ohm.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · FOOD & BEVERAGE
Beer and Soft Drink Production
Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry. -
02 · PACKAGING
Pharmaceutical and Non-food Packaging
Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets. -
03 · WATER & WASTEWATER
Desalination and Wastewater Treatment
Seawater desalination for additional freshwater supply within water utilities.Wastewater treatment serving households, communities and industrial water users.
Technical specifications for 6ES7135-4GB01-0AB0
-
Product Model6ES7135-4GB01-0AB0
-
Product ParametersET 200S Standard Current Output
-
ManufacturerSiemens
-
Analog outputs2 current channels
-
Output ranges±20 mA and 4-20 mA
-
Resolution13 bits plus sign for ±20 mA; 13 bits for 4-20 mA
-
Rated load supply24 V DC from the power module; reverse-polarity protection
-
Maximum supply current150 mA from L+
-
Maximum power dissipation2 W
-
Address and parameter allocation4 output bytes; 7 parameter bytes
-
Maximum cycle time1.5 ms
-
Output load limitsMaximum 500 ohm resistance; maximum 1 mH inductance
-
No-load output voltage18 V
-
Shielded cable lengthMaximum 200 m
-
Actuator connectionTwo-wire supported; four-wire not supported
-
Operational error limit±0.5% of output range; basic error ±0.3% at 25°C
-
Electrical isolationFrom backplane bus and load supply; not between channels
-
Isochronous operationNot supported
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S CURRENT OUTPUT INTEGRATION
Coordinate current scaling, loop wiring and fault response
Build the loop around the terminal module actually installed in the station. The exact manual shows current outputs at terminals 1 and 5 with analog returns at 3 and 7, while auxiliary terminals depend on the base variant. The actuator uses a two-wire connection, not remote voltage sensing. Check the complete load against 500 ohm and 1 mH before relying on the separate cable-length allowance.
Allocate the four-byte output area and select the current range for each channel before checking controller scaling. In the 4-20 mA range, a decimal command of zero corresponds to 4 mA and 27648 corresponds to 20 mA. Bipolar operation uses signed values instead. Confirm the receiving equipment's expected range and do not interpret an ordinary zero command as the same condition as a deenergized output.
Configure wire-break reporting and the module-wide STOP response as distinct decisions. The diagnostic function has a documented detection gap around zero current, while STOP can remove output current, apply a valid substitute or retain the previous command. If the interface loses power while the output module remains supplied, configured substitutes are produced. Include that supply arrangement in the commissioning checks instead of testing only a normal running command.
Features:
- Terminal-specific two-wire loops
- Range-matched four-byte scaling
- Diagnostic and STOP-state review
The Siemens 6ES7135-4GB01-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the complete order number, product version and installed terminal-module type before selecting a spare. The manufacturer ties wiring to the exact 2AO I ST module and lists the permitted base arrangements; a similar 15 mm enclosure is not sufficient evidence of interchangeability. Qualified personnel should use the ET 200S system operating instructions alongside this module manual for the station's physical replacement procedure.
Preserve the channel ranges, controller scaling, wire-break options and STOP settings together. Product version 1 requires particular attention: an invalid substitute value can raise the SF indication while the DP master's commands are still applied to the outputs. Record the existing version and validate every substitute against its nominal range, rather than treating a diagnostic light as assurance that the connected actuator is no longer being driven.
After the approved exchange, check the L+ supply and actual loop current under controlled commands, then review diagnostics before returning the process to service. A parameter fault calls for configuration review, whereas an open-circuit diagnostic calls for checking the actuator wiring. Preserve the shield and reference-potential arrangement, including the manual's warning about equalizing current when shields connect points at different potentials.
Features:
- Exact-code and version confirmation
- Valid substitute-value restoration
- Load-side and diagnostic verification
The Siemens 6ES7135-4GB01-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7135-4GB01-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7135-4GB01-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can this module output a voltage signal?
No. The exact model supports ±20 mA and 4-20 mA current outputs. Generic voltage wording elsewhere in the manual does not establish a voltage-output capability. -
Does a zero controller word mean zero current?
Not in the 4-20 mA nominal range. Decimal 0 represents 4 mA, and 27648 represents 20 mA. Match the controller scaling to the configured range rather than assuming a zero word means a deenergized channel. -
Is wire-break detection active at every commanded current?
No. The parameter table excludes diagnostic detection between -1.1852 mA and +1.1852 mA. Consider that limitation when testing a bipolar channel near zero; an absent wire-break indication there is not proof of circuit continuity. -
What load can the output drive?
The specified maximum resistance is 500 ohm, with an inductive-load limit of 1 mH. Check the complete connected loop against both conditions; the separate 200 m shielded-cable limit does not override them. -
What should be checked when the SF LED is on?
Review the actual versus configured module, load supply and diagnostic details. The manual distinguishes parameter-assignment faults, internal module errors and an interrupted actuator circuit, so an SF indication alone does not identify the failed component. -
Will an invalid substitute value always leave the output off?
Do not assume that. For product version 1, an out-of-range substitute causes a parameter error and SF indication, but commands from the DP master are still output. Confirm the product version and keep substitute values inside the configured nominal range.
