PRODUCT DESCRIPTION

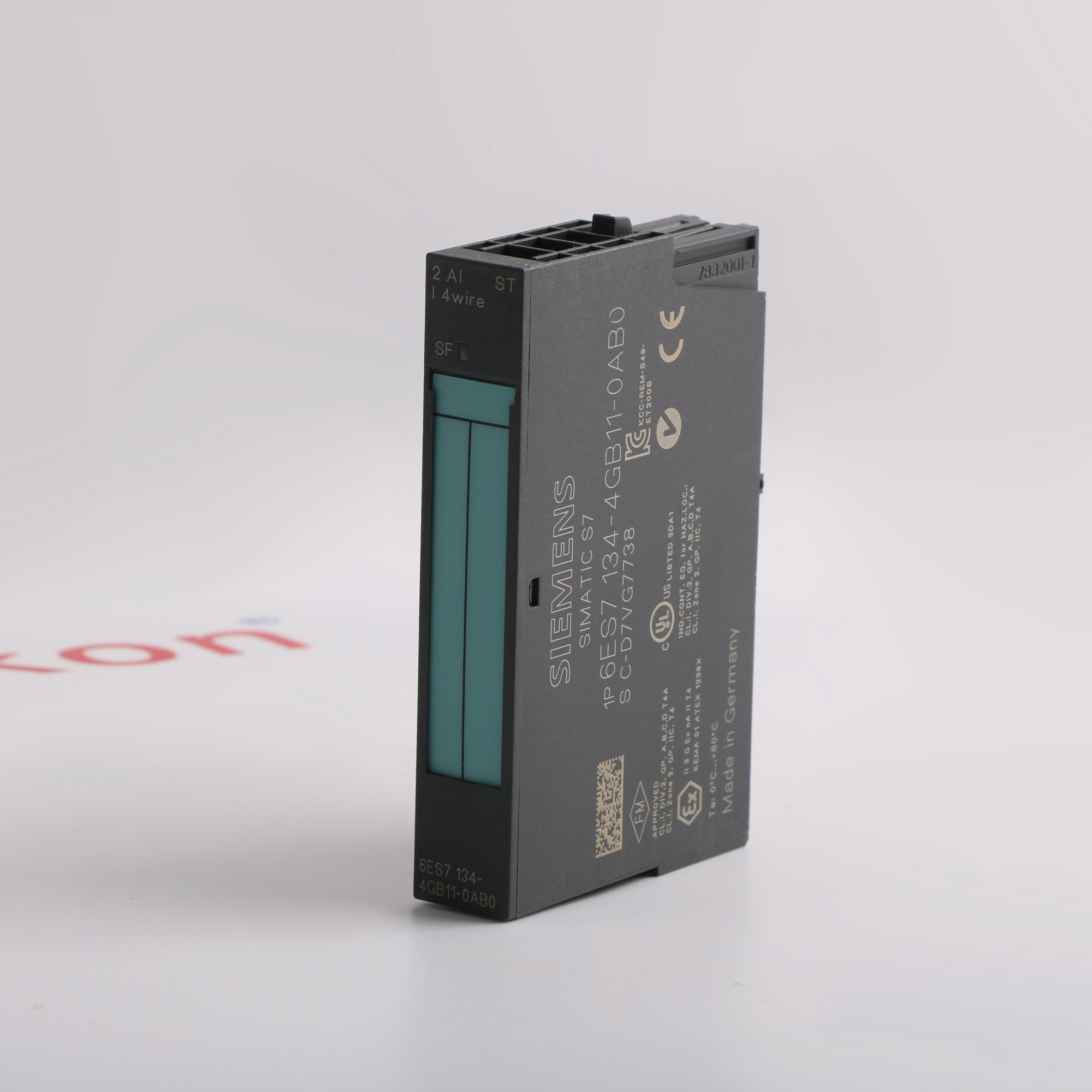

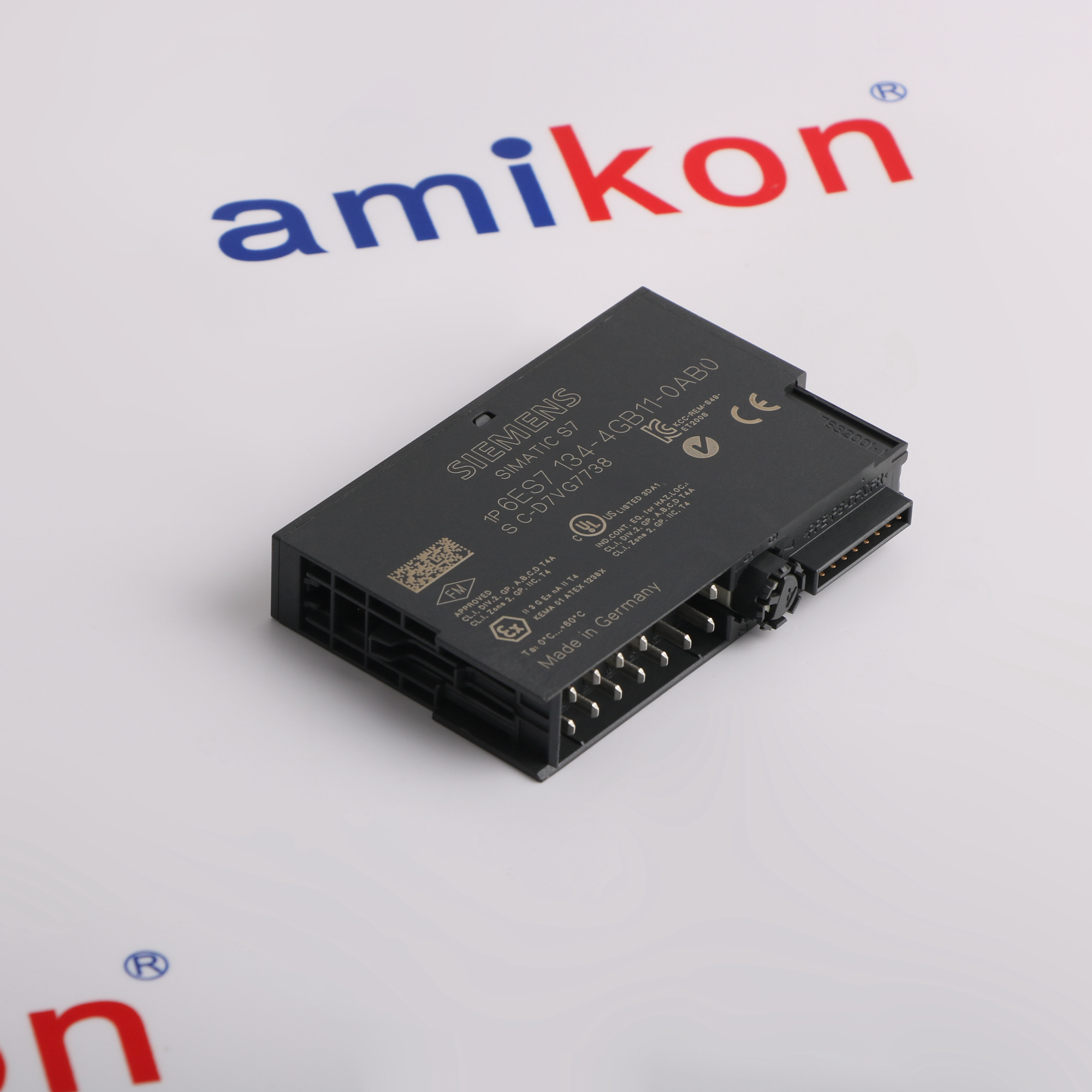

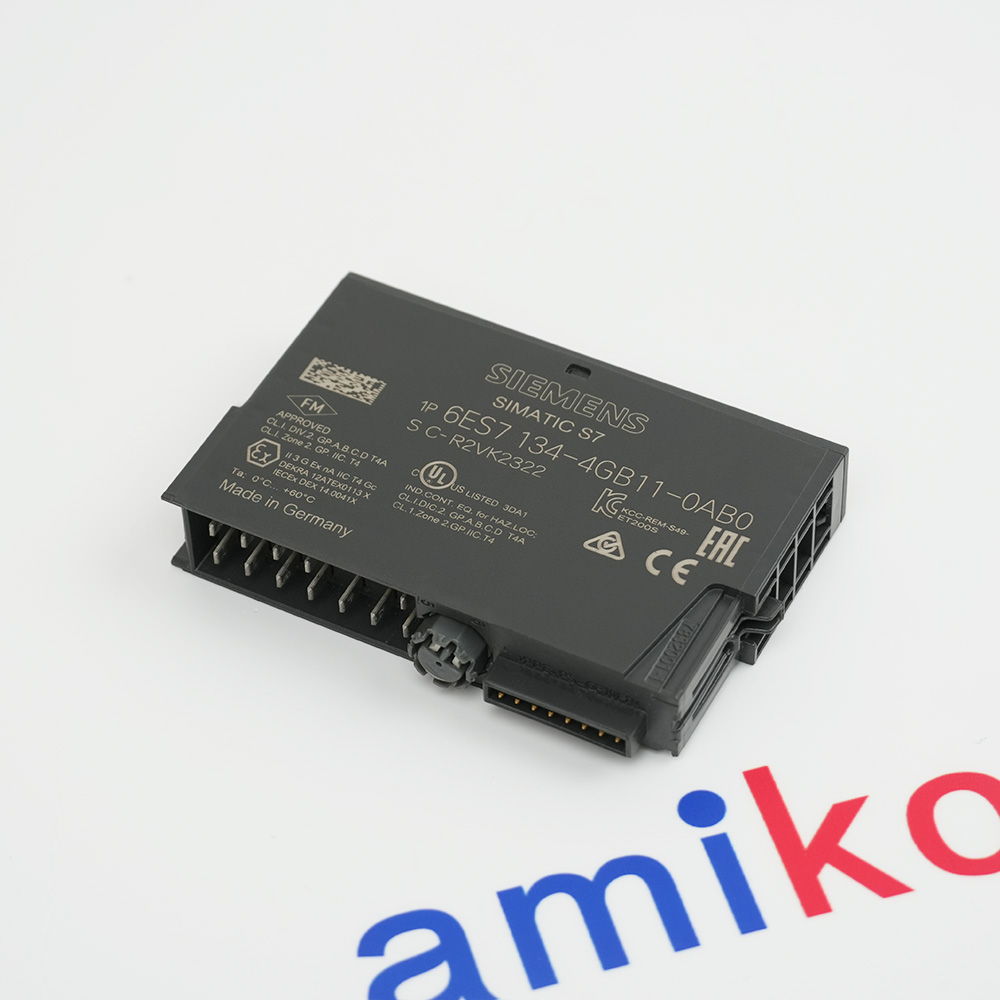

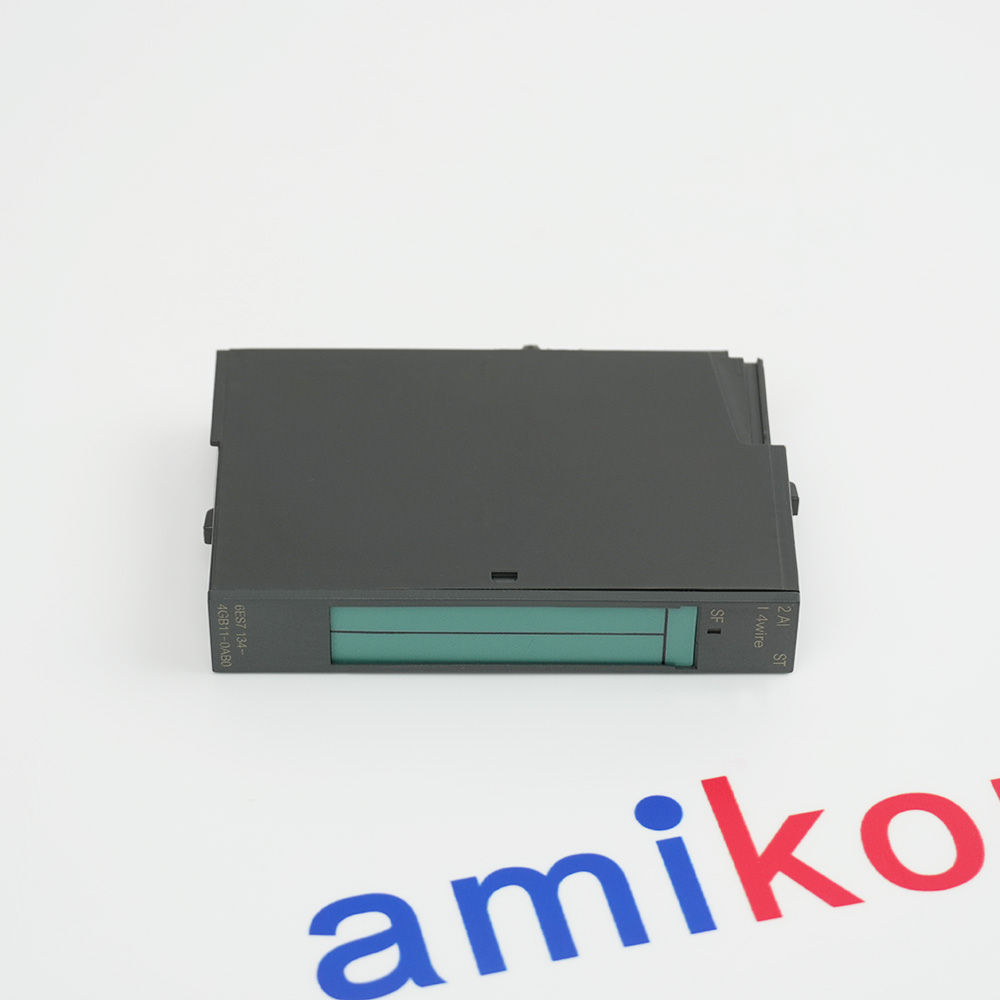

Two-channel current input module
Siemens 6ES7134-4GB11-0AB0 is a two-channel Standard analog current-input module in the SIMATIC ET 200S distributed I/O series. It is designed to acquire current signals from four-wire process transmitters for industrial process measurement and monitoring.
The 15 mm-wide electronics module uses integrating analog conversion and accepts -20 to +20 mA or 4 to 20 mA signals. It occupies four input bytes and provides configurable digital smoothing, a red SF group-fault indicator and selectable wire-break diagnostics for the 4 to 20 mA range. The inputs are isolated from the backplane bus but share their potential with one another.
The 15 mm-wide electronics module uses integrating analog conversion and accepts -20 to +20 mA or 4 to 20 mA signals. It occupies four input bytes and provides configurable digital smoothing, a red SF group-fault indicator and selectable wire-break diagnostics for the 4 to 20 mA range. The inputs are isolated from the backplane bus but share their potential with one another.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Application context for 6ES7134-4GB11-0AB0
6ES7134-4GB11-0AB0 is an ET 200S current-input module for four-wire process transmitters. Relevant uses include chemical production, food processing and automated manufacturing. Its suitability depends on transmitter signals, terminal-module selection and configured current ranges within the existing distributed I/O station.
-
01 · CHEMICAL PROCESSING
Industrial Chemical Manufacturing and Processing
Continuous Chemical ProductionChemical Blending and Processing -
02 · FOOD & BEVERAGE
Food Ingredient Production and Beverage Processing
Liquid Ingredient ProcessingBeverage Preparation and Production -
03 · INDUSTRIAL MANUFACTURING
Automated Manufacturing and Industrial Production
Automated Industrial ProductionManufacturing Process Automation
Technical specifications for 6ES7134-4GB11-0AB0
-
Product Model6ES7134-4GB11-0AB0
-
Product ParametersTwo-channel current input module
-
In stock4 units
-
ManufacturerSiemens
-
Analog inputs2
-
Current measuring ranges-20 to +20 mA; 4 to 20 mA
-
Input resistance50 ohm
-
Rated load voltage24 V DC from power module
-
Maximum load-supply current30 mA, without load
-
Maximum backplane current10 mA at 3.3 V DC
-
Typical power loss0.6 W
-
Input address area4 byte
-
Maximum permissible input current40 mA destruction limit
-
Shielded cable length200 m maximum
-
Resolution including sign14 bit for +/-20 mA; 13 bit for 4-20 mA
-
Integration time16.7 / 20 ms
-
Conversion time per channel55 / 65 ms
-
Digital smoothing factors1, 4, 32 or 64 times cycle time
-
Isolation test voltage500 V DC
View all additional
Alternative Names
6ES7134-4GB11-0AB0
SIMATIC ET 200S two-channel current input module
2AI I-4DMU Standard
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6ES7134-4GB11-0AB0 with its documented SIMATIC ET 200S
Configure the two current channels of 6ES7134-4GB11-0AB0 in an ET 200S station with the documented terminal and power modules. Match each four-wire transmitter to its selected bipolar or 4 to 20 mA range and reserve four input bytes.
The power module supplies 24 V DC; the electronics draw up to 30 mA from L+ without load and 10 mA from the 3.3 V backplane. Keep the 50-ohm input burden and 200 m shielded-cable limit within the field-circuit design.
Set the measurement range, smoothing and enabled diagnostics in the station configuration. Verify analog scaling at representative current values and test the 4 to 20 mA wire-break response before releasing the measurement loop.
Features:
- Analog inputs: 2
- Current measuring ranges: -20 to +20 mA; 4 to 20 mA
- Preserve the documented field configuration
The 6ES7134-4GB11-0AB0 two-channel current input module requires appropriate configuration before system integration and commissioning.
REPLACEMENT CONTROL
Verify 6ES7134-4GB11-0AB0 before changing the installed configuration
For 6ES7134-4GB11-0AB0, compare the complete order number, terminal-module allocation, transmitter wiring and configured current ranges. A related ET 200S analog module can have different input circuitry, resolution or conversion timing.
Record the four-byte address assignment, channel parameters and enabled diagnostic options before removal. Keep the existing current-loop wiring and shielding identifiable; channels do not provide individual galvanic isolation.
After fitting the matching module, restore the configuration and compare indicated values at known loop currents. Confirm SF indication and enabled wire-break diagnostics without applying more than the documented 40 mA destruction limit.
Features:
- Analog inputs: 2
- Current measuring ranges: -20 to +20 mA; 4 to 20 mA
- Preserve the documented field configuration
The 6ES7134-4GB11-0AB0 two-channel current input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6ES7134-4GB11-0AB0 two-channel current input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Product dimensions1.5 × 8.1 × 5.2 cm
-
Net weight0.04kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginChina
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-4GB11-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can this input accept bipolar transmitter current?
6ES7134-4GB11-0AB0 supports -20 to +20 mA as well as 4 to 20 mA. Select the range separately in the ET 200S configuration. -
Does the current module isolate its two measurement channels?
The channels of 6ES7134-4GB11-0AB0 are not isolated from one another. Isolation exists between the analog inputs and the backplane bus. -
Why is a broken wire not reported on every current range?
Wire-break diagnostics on 6ES7134-4GB11-0AB0 apply only to 4 to 20 mA and must be enabled in the channel parameters. -
How much input address space should the station reserve?
6ES7134-4GB11-0AB0 occupies four input bytes for its two analog channels. Preserve the configured addresses when replacing the module. -
Which conversion setting affects slowly changing process signals?
6ES7134-4GB11-0AB0 supports smoothing factors of 1, 4, 32 and 64 cycle times. Stronger smoothing increases settling time. -
What measurements verify the module after a current-loop repair?
Apply known currents within the selected range to 6ES7134-4GB11-0AB0, compare scaled values and verify the enabled diagnostics and SF indicator. -
What transmitter information belongs in a spare-module enquiry?
For 6ES7134-4GB11-0AB0, provide quantity, the installed order-number photograph, transmitter wiring type and required bipolar or 4-20 mA range. -
Which physical details distinguish the delivered current-input spare?
Inspect the 6ES7134-4GB11-0AB0 label, connector condition and terminal-module fit. Confirm the two current channels before substituting for a voltage or RTD input.
