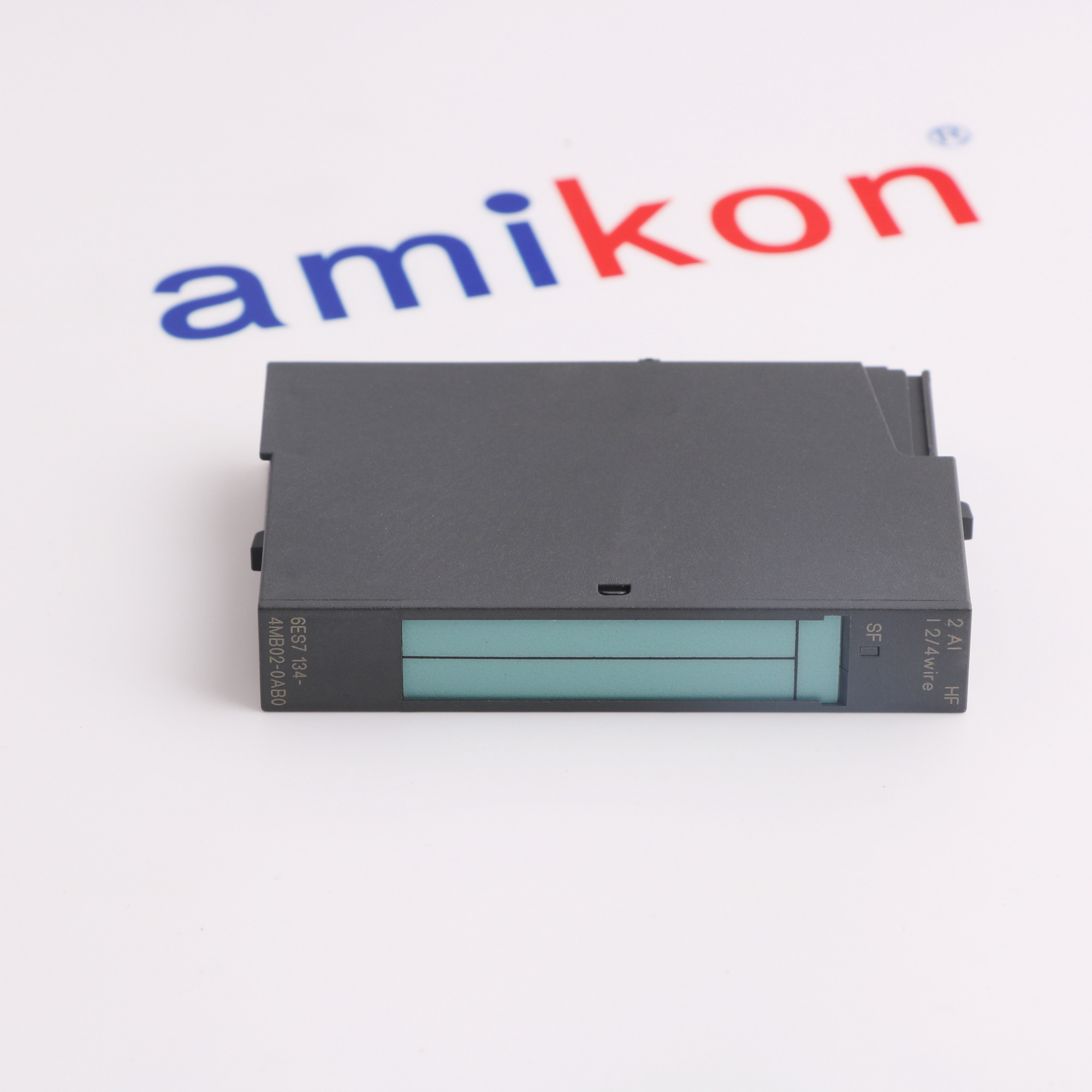

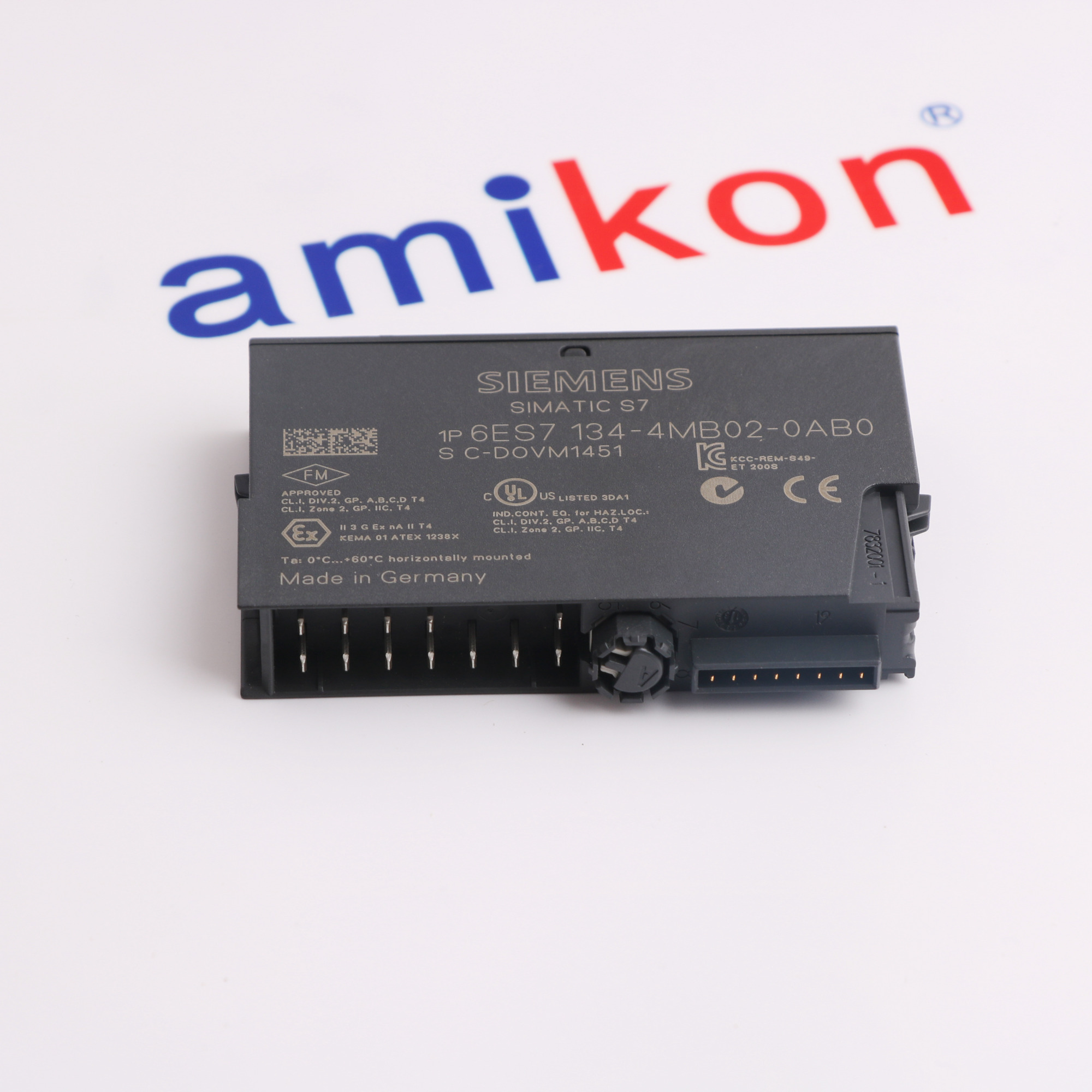

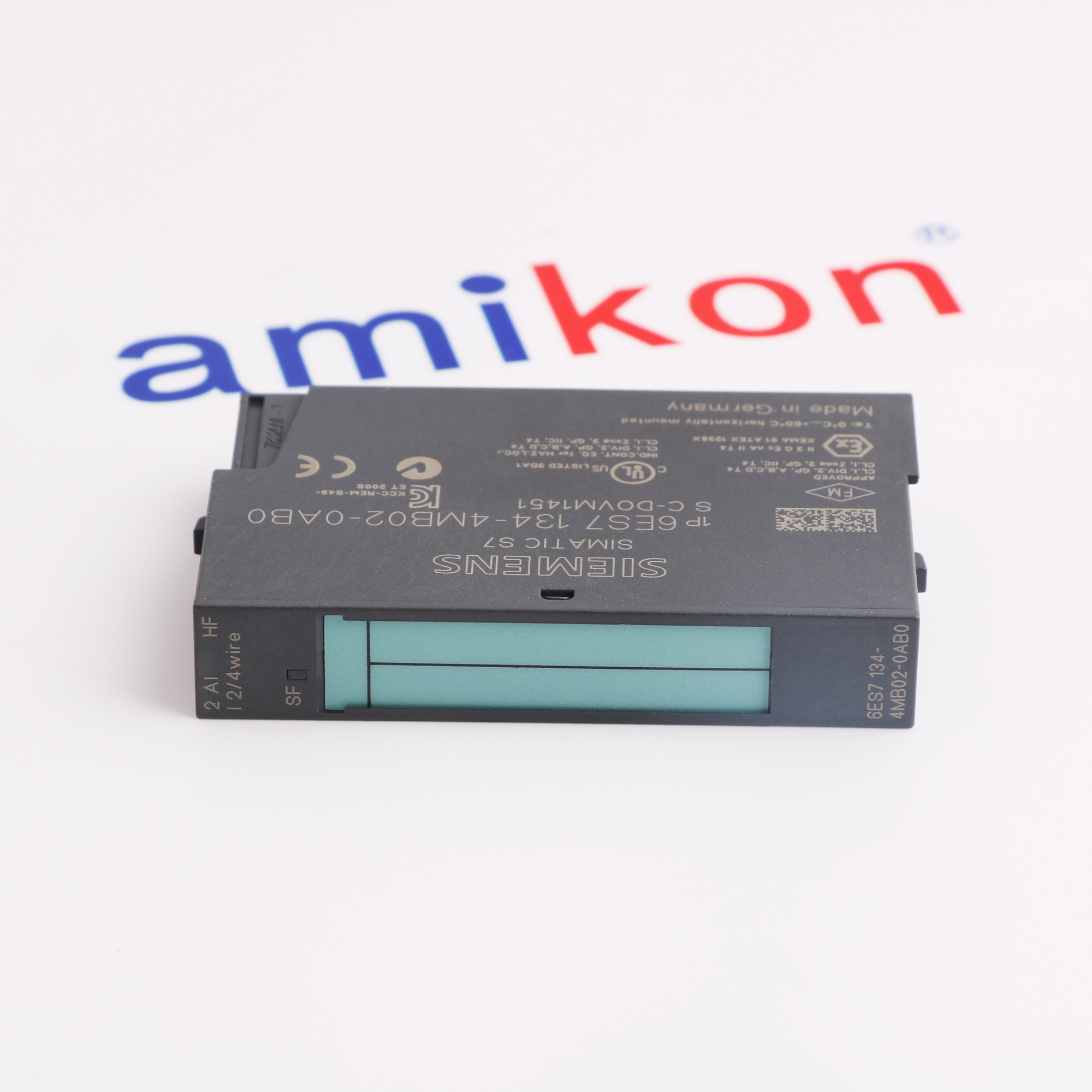

Siemens 6ES7134-4MB02-0AB0 is a 15 mm SIMATIC ET 200S high-feature analog electronic module with two current inputs. It accepts ±20 mA and 4–20 mA signals from two-wire or four-wire transmitters with 16-bit maximum resolution and configurable diagnostics.
The module supports isochronous acquisition with a maximum 0.5 ms cycle time and four-stage digital smoothing. Before replacement, confirm the complete order number, terminal module, power module, transmitter wiring, channel range, shielding and engineering parameters in the installed ET 200S station.
The module supports isochronous acquisition with a maximum 0.5 ms cycle time and four-stage digital smoothing. Before replacement, confirm the complete order number, terminal module, power module, transmitter wiring, channel range, shielding and engineering parameters in the installed ET 200S station.
Technical specifications for 6ES7134-4MB02-0AB0
-
Product Model6ES7134-4MB02-0AB0
-
Product ParametersET 200S Current Input
-
Tariff Code85389091
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6.20 × 9.20 × 2.20 cm
-
ManufacturerSiemens
-
Weight0.045 kg
-
Analog input channels2 current inputs
-
Input ranges±20 mA and 4–20 mA
-
Maximum resolution16 bit including sign
-
Maximum cycle time0.5 ms for both channels
-
Rated load voltage24 V DC
-
Current from L+48 mA maximum without load
-
Power loss1.2 W typical
-
Address space4 bytes maximum
-
Shielded cable length200 m maximum
-
Two-wire transmitter burden750 ohm maximum
View all additional
Alternative Names
6ES7134-4MB02-0AB0
SIMATIC ET 200S 2AI I HF
Two-Channel Current Input Module
Technical notes
Confirm the complete 6ES7134-4MB02-0AB0 order number, ET 200S terminal and power modules, transmitter wiring, selected current range, shielding, smoothing, diagnostics and engineering configuration before commissioning or replacement.
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Product Applications
Compatibility
Lifecycle & Replacement
Features:
- Two analog current input channels
- Two-wire and four-wire transmitter support
- Plus-or-minus 20 mA and 4–20 mA ranges
- Sixteen-bit maximum resolution including sign
- Isochronous operation and four-stage smoothing
It measures ±20 mA and 4–20 mA signals with up to 16-bit resolution, isochronous operation, configurable smoothing and channel diagnostics for ET 200S process measurement.
Verify the ET 200S terminal module, transmitter wiring, channel range, shielding and parameter assignment before installation or replacement.
Siemens 6ES7134-4MB02-0AB0 SIMATIC ET 200S manuals and technical documentation.
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.
- 4–20 mA acquisition from two-wire current transmitters
- 4–20 mA acquisition from four-wire current transmitters
- Bipolar ±20 mA current measurement
- Isochronous analog acquisition in ET 200S stations
- Shielded current-signal monitoring in high-interference installations
The module belongs to SIMATIC ET 200S and requires a suitable 15 mm ET 200S terminal module, power module and engineering configuration for the selected two-wire, four-wire or bipolar-current range. It is not mechanically interchangeable with ET 200SP modules.
Siemens lists 6ES7134-4MB02-0AB0 as a cancelled PM410 spare part, with product cancellation effective 2023-10-01. Before replacement, confirm the complete order number, terminal module, transmitter wiring, measurement range, project parameters and current Siemens lifecycle documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-4MB02-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 6ES7134-4MB02-0AB0 suitable for my ET 200S station?
Check the ET 200S terminal and power modules, 15 mm slot, transmitter type, ±20 mA or 4–20 mA range, wiring, shielding and project configuration before ordering. -
Can 6ES7134-4MB02-0AB0 directly replace my installed analog module?
Do not decide from appearance or the ET 200S family name alone. Compare the complete order number, terminal module, channel count, current range, transmitter wiring, diagnostics and parameters. -
What information should I provide for a quotation?
Provide the complete model, quantity, label and terminal photos, ET 200S interface and terminal modules, transmitter type, measuring range, project version and destination country. -
What should I inspect when the module arrives?
Check the exact Siemens label, 15 mm housing, coding, terminals, dimensions and supplied items. Confirm the two-channel current-input function and 24 V load requirements before removing the installed module. -
What should be tested after installation?
Verify module recognition, both channel values, selected ranges, smoothing, diagnostics, SF indication, wire-break behavior and isochronous operation before returning the ET 200S station to service.
