Technical specifications for 6ES7132-4BD02-0AA0
-
Product Model6ES7132-4BD02-0AA0
-
Product ParametersSIMATIC DP,5 MODULI DI ELETTRONICA PER ET 200S
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.5x5.7x8.5cm
-
ManufacturerSiemens
-
Weight0.04 kg
-
Rated value (DC)24 V
-
from load voltage L+ (without load), max.10 mA; Per channel
-
from backplane bus 3.3 V DC, max.10 mA
-
Power loss, typ0.8 W
-
with packing4 bit
-
without packing1 byte
-
Response threshold, typ.1 to 1.5 A
-
Limitation of inductive shutdown voltage to (L+)-55 to -60 V
-
on lamp load, max.5 W
-
Current per module, max2 A
-
Isolation tested with500 V DC
Description

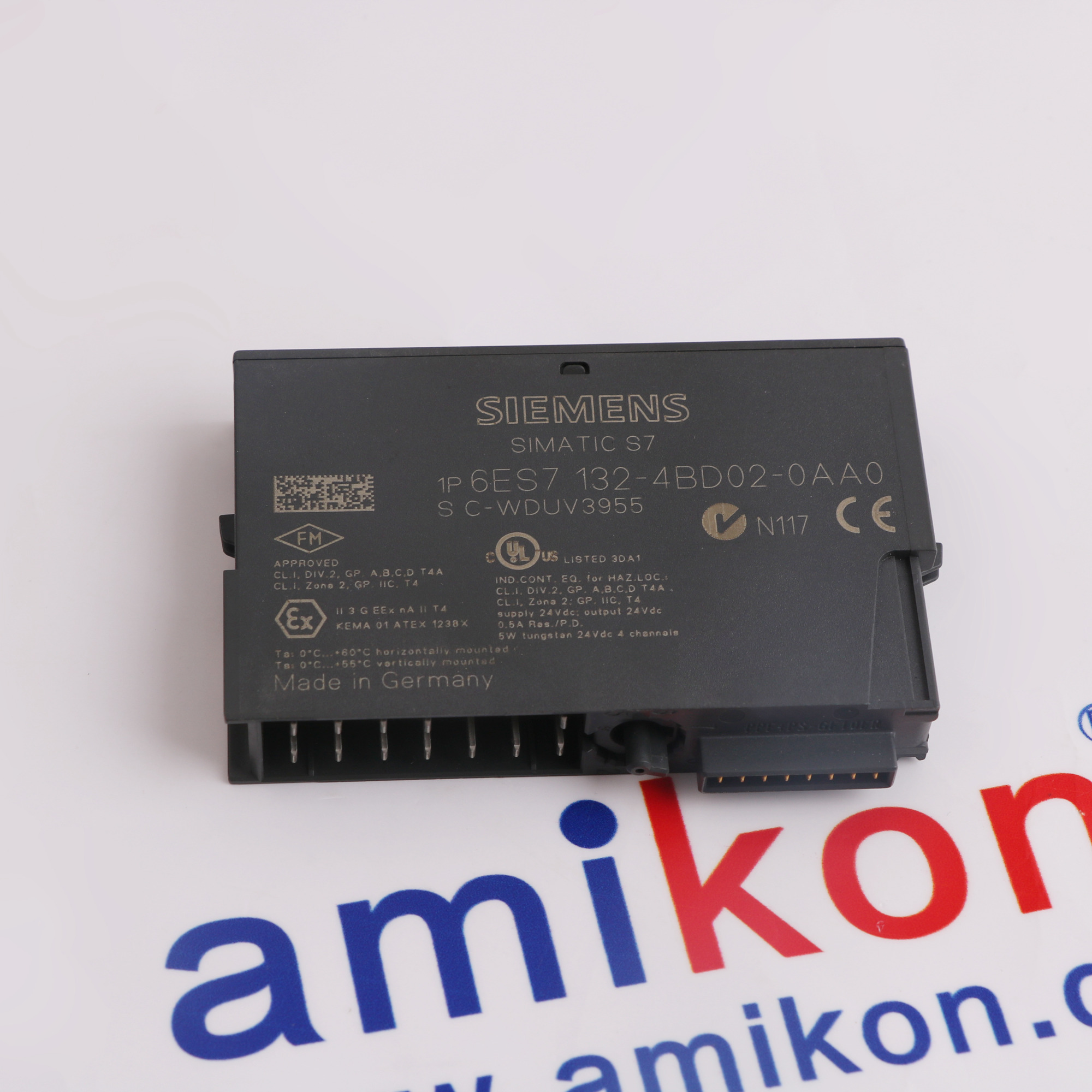

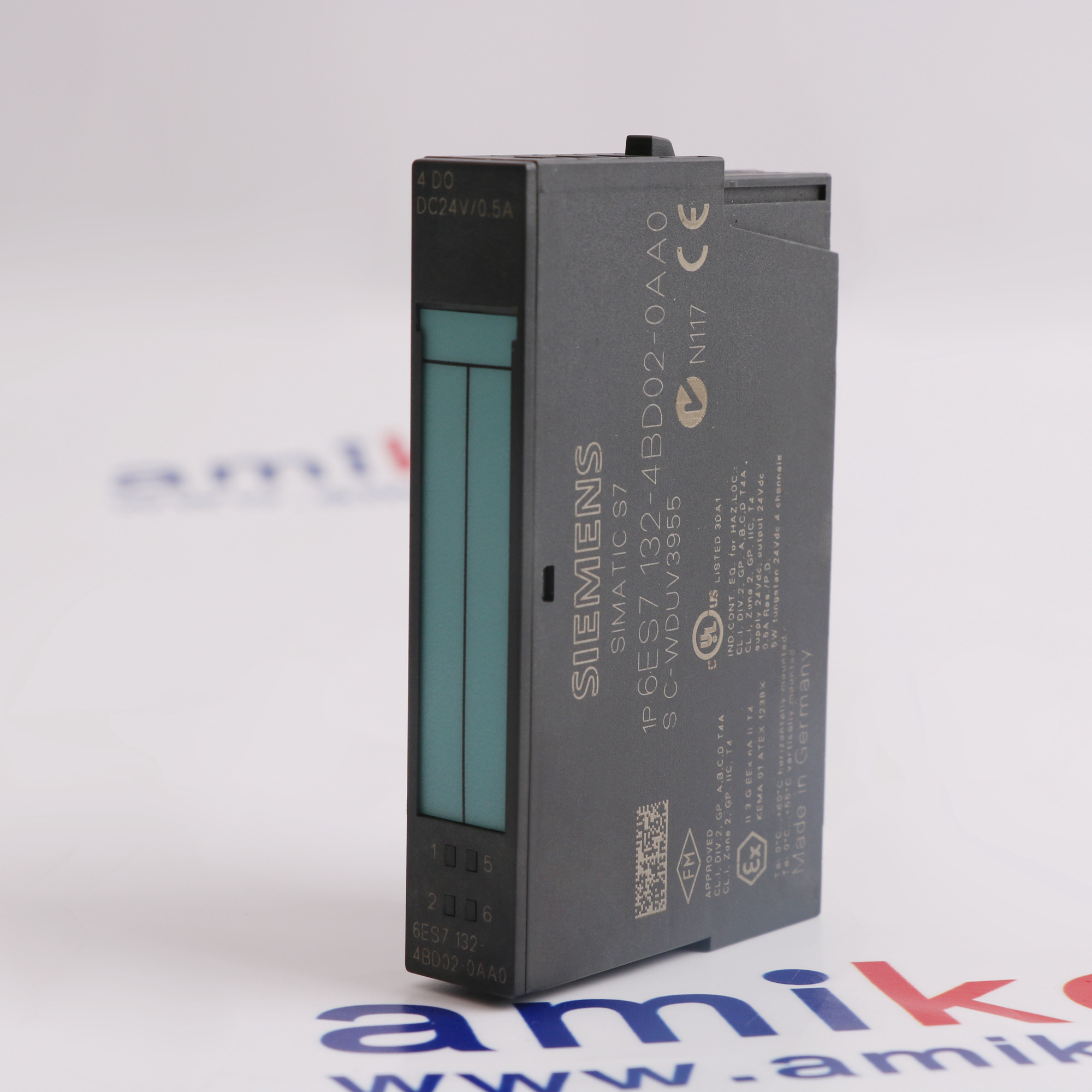

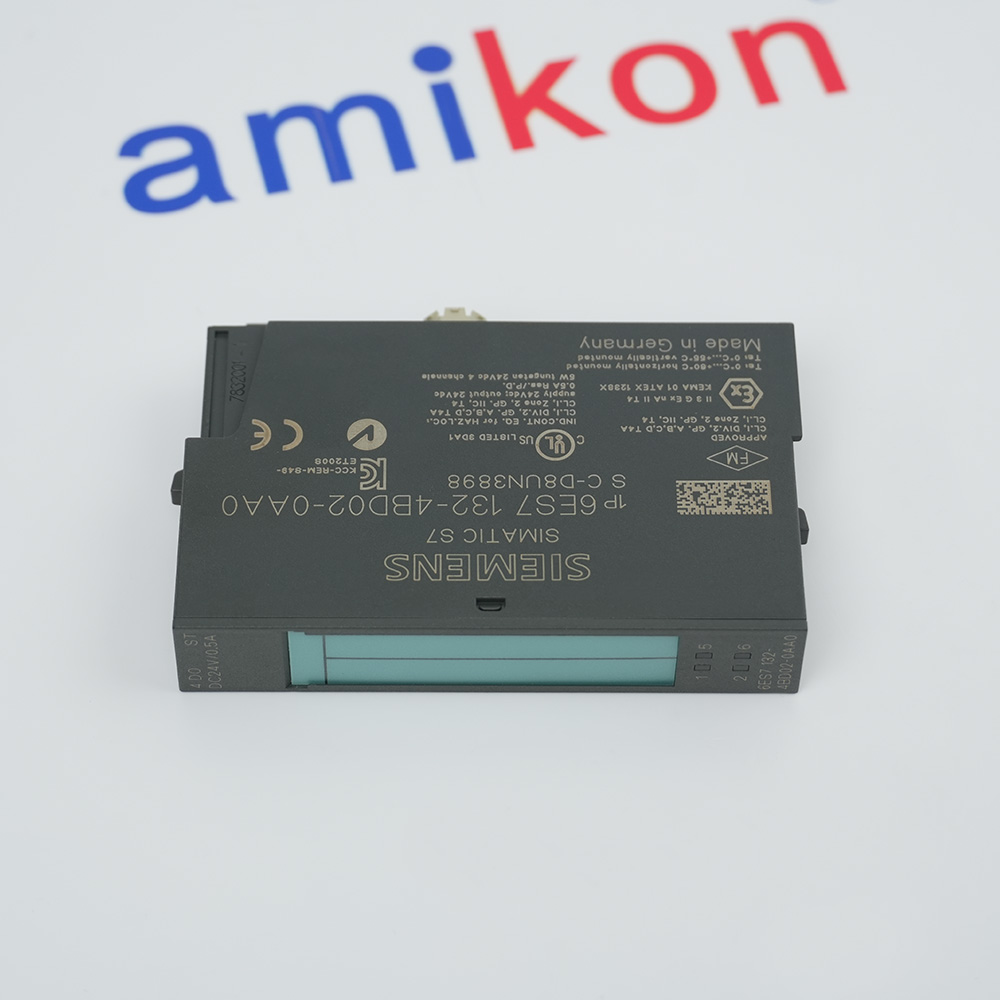

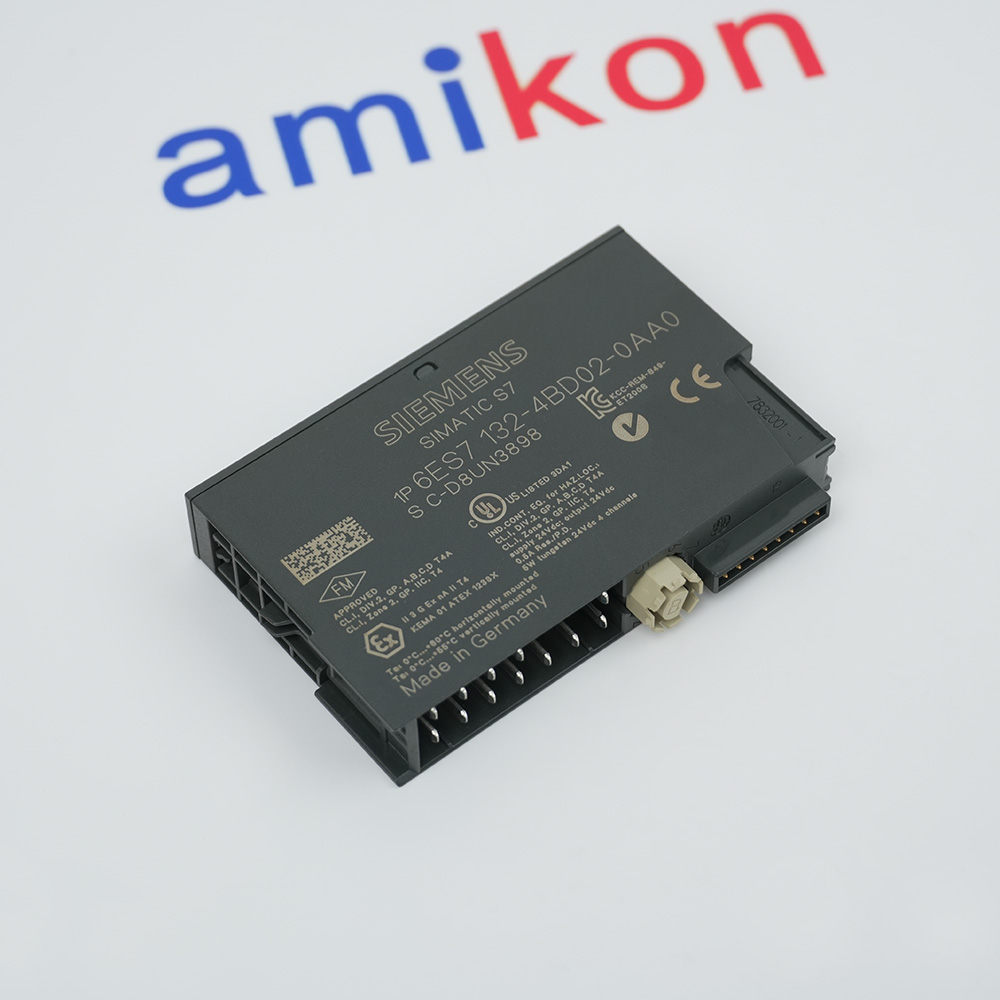

6ES7132-4BD02-0AA0 is a SIMATIC DP electronic module for ET 200S, providing 4 DO standard 24 V DC/0.5 A outputs in a compact 15 mm width design for the SIMATIC ET 200S distributed I/O system.
6ES7132-4BD02-0AA0 features four digital output channels with source output (PNP, current-sourcing) configuration, each rated for 0.5 A at 24 VDC with a permissible output current range from 7 mA to 600 mA, and a residual current of maximum 0.3 mA at signal "0".
6ES7132-4BD02-0AA0 incorporates short-circuit protection with a typical response threshold of 1 to 1.5 A, reverse polarity protection when using the same load voltage as the power module, and inductive shutdown voltage limitation to L+ minus 55 V to minus 60 V for protection against inductive kickback.
6ES7132-4BD02-0AA0 features four digital output channels with source output (PNP, current-sourcing) configuration, each rated for 0.5 A at 24 VDC with a permissible output current range from 7 mA to 600 mA, and a residual current of maximum 0.3 mA at signal "0".
6ES7132-4BD02-0AA0 incorporates short-circuit protection with a typical response threshold of 1 to 1.5 A, reverse polarity protection when using the same load voltage as the power module, and inductive shutdown voltage limitation to L+ minus 55 V to minus 60 V for protection against inductive kickback.
Alternative Names
6ES7132-4BDO2-OAAO
6ES7 I32-4BD02-0AA0
6ES7 I32-4BDO2-OAAO
6ES7132 4BD02 0AA0
6ES7132 4BDO2 OAAO
6ES7I32 4BD02 0AA0
Information
Overview
Manuals
Application Notes
Product Applications
Inserting the CPU Module
Features:
- 4-channel digital output module for ET 200S
- 24 VDC / 0.5 A per channel output
- Short-circuit protection with 1-1.5 A response threshold
- High-speed switching up to 800 Hz
- Isochronous operation support
Each module provides four digital output channels, delivering a total of twenty output channels across the five-module package. The outputs are transistor-based, operating at 24 VDC with a standard current rating of 2 A per channel. Each channel supports resistive, inductive, and lamp loads, making the modules suitable for driving a wide range of industrial field devices including solenoid valves, contactors, relays, indicator lamps, and motor starters.
The 6ES7132-4BD02-0AA0 Siemens SIMATIC DP,5 MODULI DI ELETTRONICA PER ET 200S may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7132-4BD02-0AA0 SIMATIC DP,5 MODULI DI ELETTRONICA PER ET 200S Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each module plugs onto a corresponding terminal module mounted on a standard DIN rail per EN 60715. The terminal module provides the screw or spring-clamp connection interface to field wiring. The electronic module connects to the ET 200S backplane bus, communicating with the interface module (IM 151-1 for PROFIBUS or IM 151-3 for PROFINET) and the host controller.
The modules are compatible with SIMATIC S7-300, S7-400, S7-1500, and PC-based controllers connected via PROFIBUS or PROFINET networks. The ET 200S station configuration allows flexible mixing of digital input, digital output, analog input, analog output, and technology modules within the same station.
- Manufacturing & Assembly:Deterministic timing for complex lines/discrete processes
- Automotive Industry:Conveyors, robots & testing stations
- Energy & Power Distribution:High-availability substations & power mgmt
- Process Control (Chemical/Water):PCS 7 interfaces: safe continuous processes
- Packaging and Material Handling:High-speed isochrone for packing/sorting/palletizing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Slot Placement: The CPU can only be installed in the central rack (UR1, UR2, or CR3). Note that in a standard S7-400 configuration, it occupies Slot 4 (the first slot to the right of the Power Supply module).
Alignment: Carefully slide the CPU module into the guide rails of the rack and push it straight back until the module rear connects with the backplane bus.Securing: Tighten the locking screws at the top and bottom of the module front to secure it firmly into the rack.
Technical notes
6ES7132-4BD02-0AA0 delivers fast output response with maximum delay of 50 µs from "0" to "1" and 120 µs from "1" to "0" for resistive loads, supporting switching frequencies up to 800 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads.
