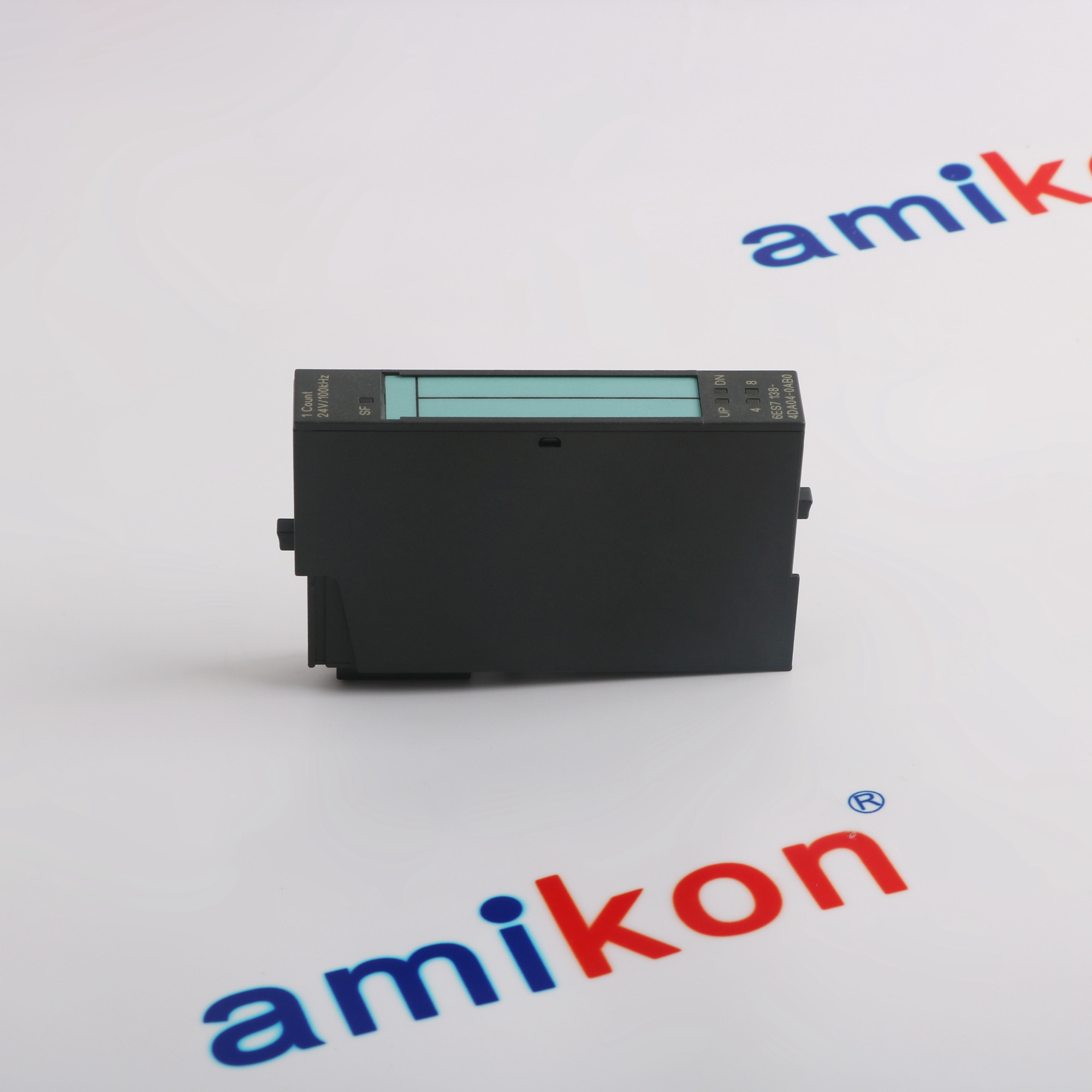

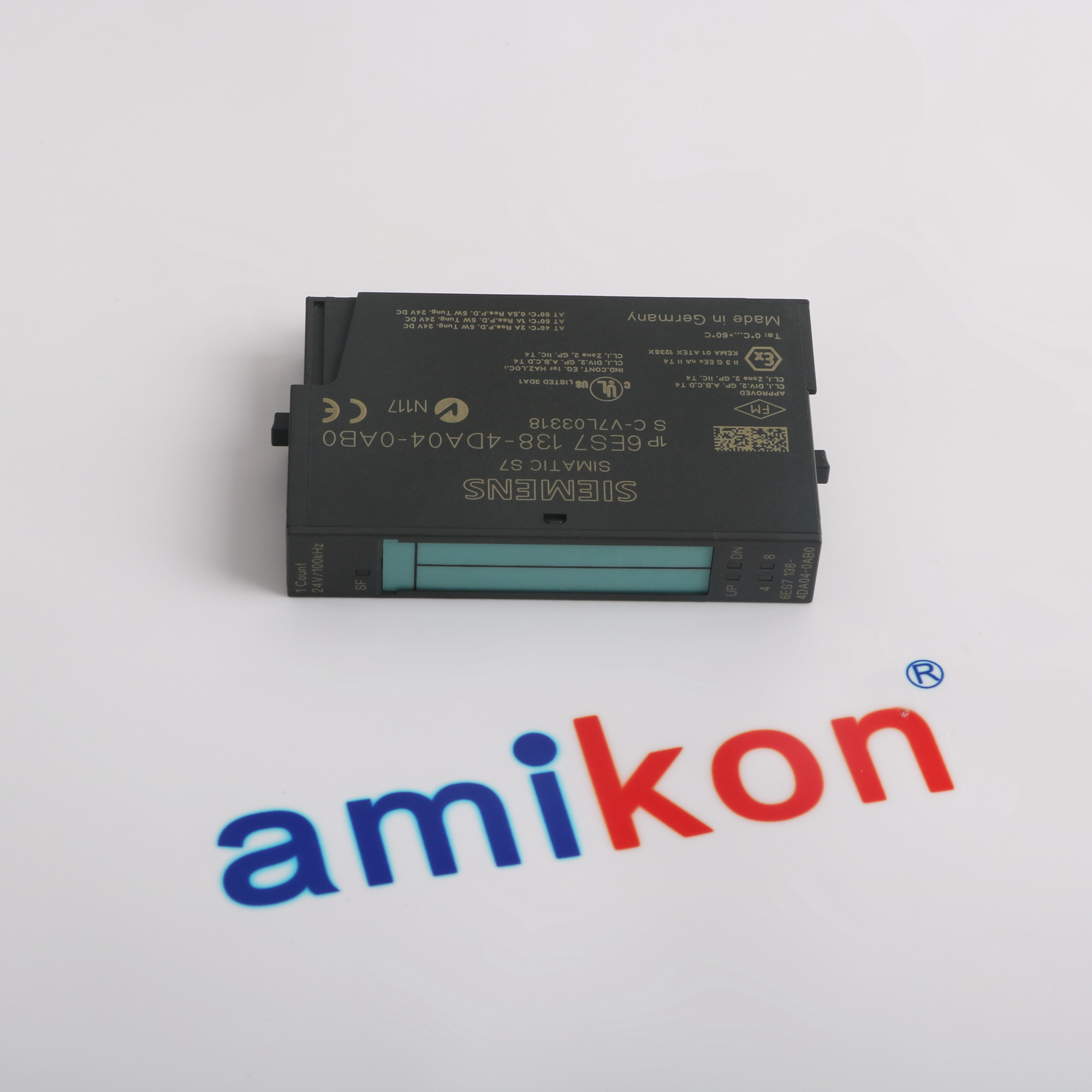

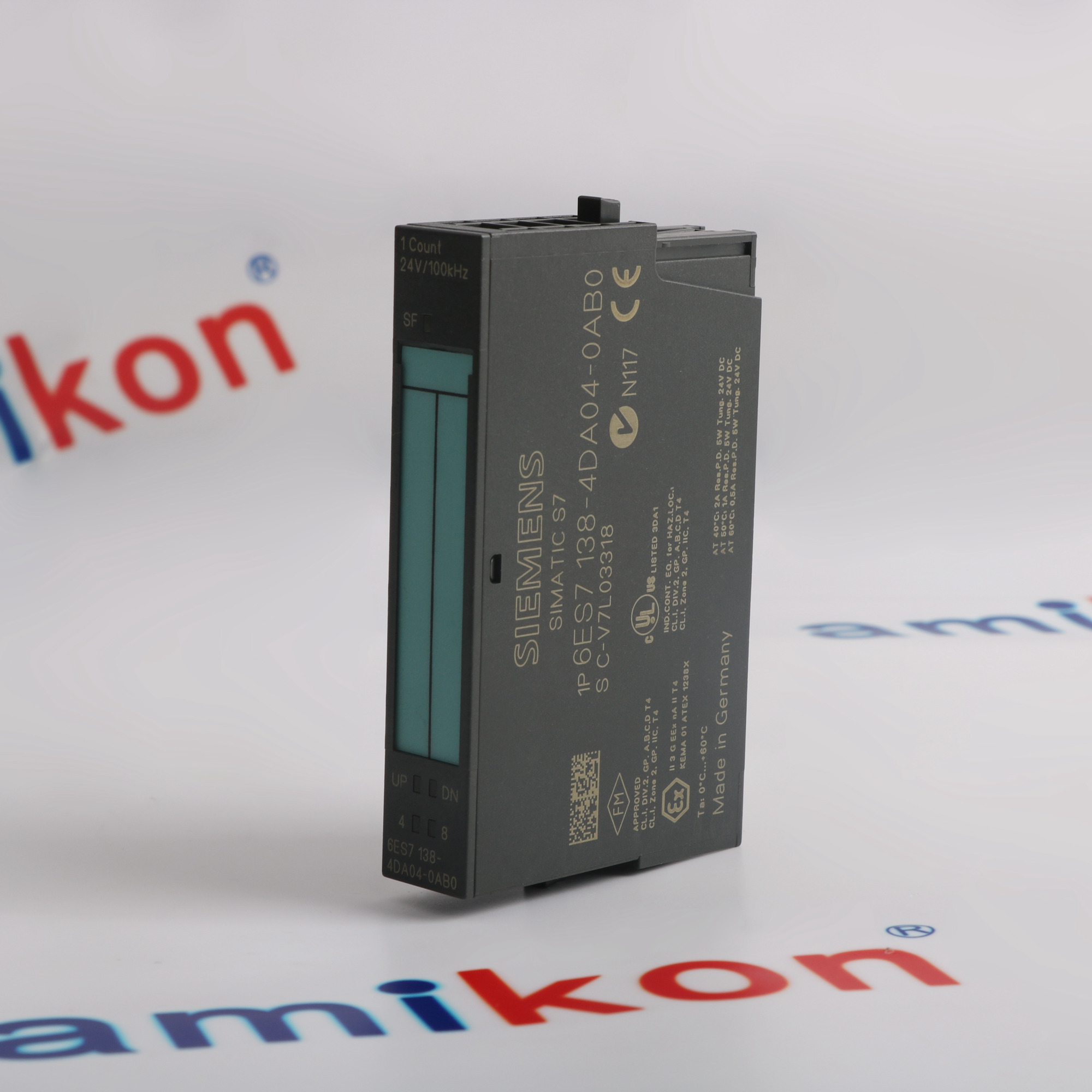

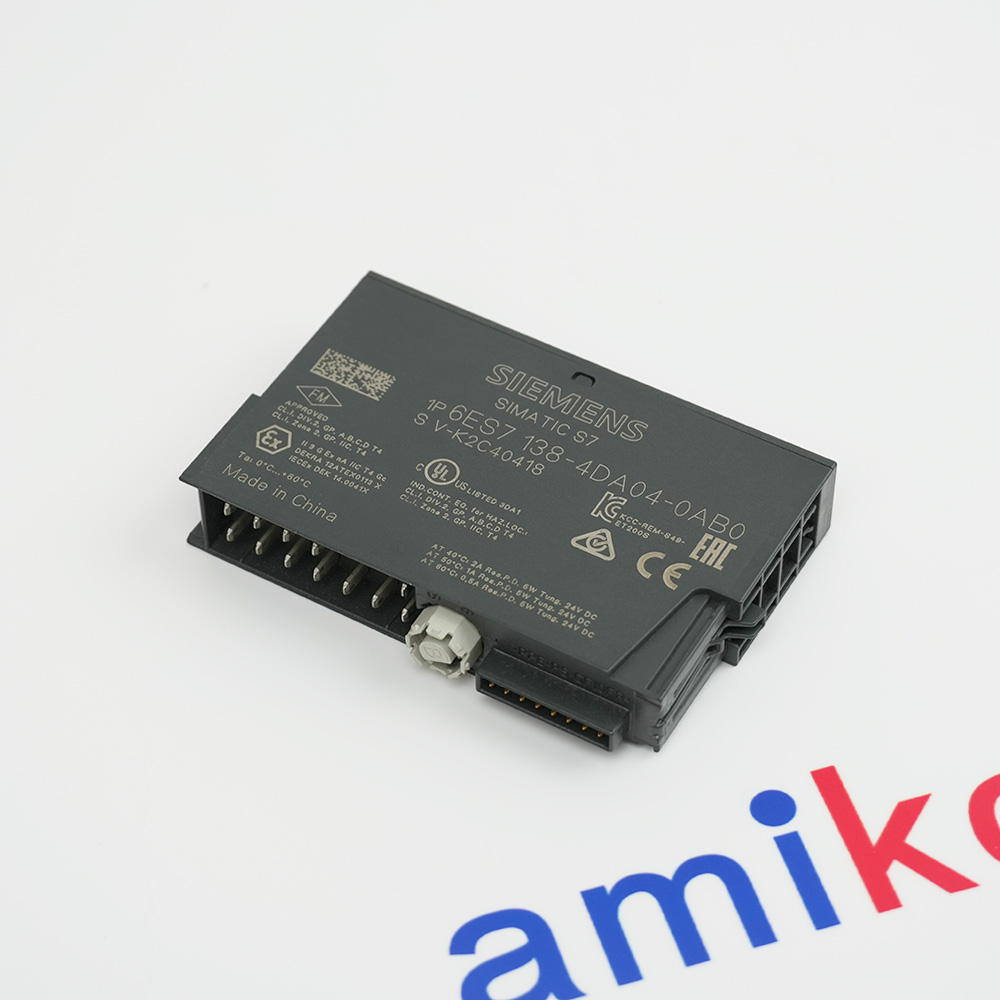

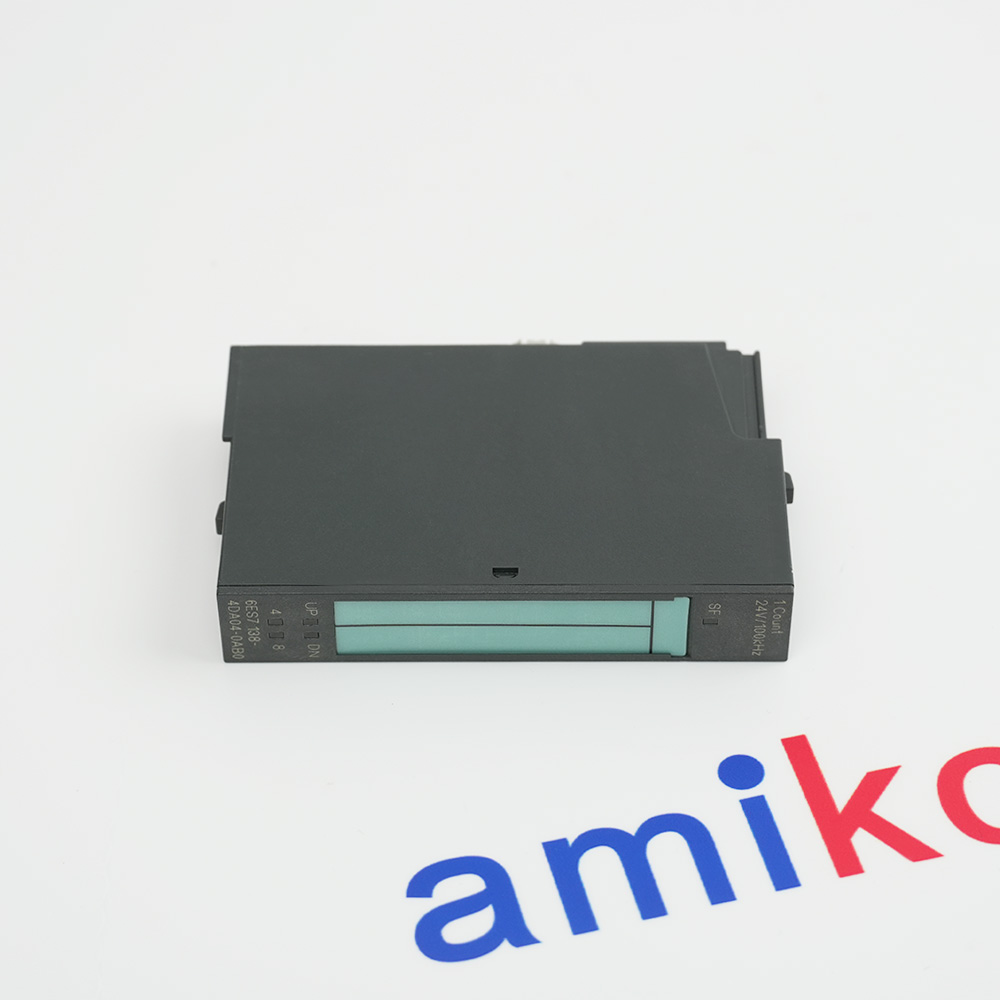

- 6ES7138-4DA04-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7138-4DA04-0AB0
-
Product Model6ES7138-4DA04-0AB0
-
Product ParametersElectronics module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.4x5.5x8.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
from load voltage L+ (without load), max.42 m
-
for signal-30 to +5 V
-
for signal+11 to +30V
Description
SIMATIC DP
Electronics module for ET 200S
1 count 24 V/100 kHz 15 mminstallation width
operating modes: Count, Measure
(cycle duration measurement,high-resolution)
with clock synchronization
Electronics module for ET 200S
1 count 24 V/100 kHz 15 mminstallation width
operating modes: Count, Measure
(cycle duration measurement,high-resolution)
with clock synchronization
Information
Overview
Manuals
Technical notes
Product Applications
Configuration and Setup
Features:
- High-Speed 24 V / 100 kHz Pulse Counting & Measurement
- Isochronous Mode with Clock Synchronization
- High-Resolution Cycle Duration Measurement
- Gate Control, Latch & Synchronization via Digital Input
- Ultra-Compact 15 mm Form Factor with Low Power Consumption
- Integrated Sensor Supply & Comprehensive Diagnostics
The 6ES7138-4DA04-0AB0 Siemens ELECTRONICS MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7138-4DA04-0AB0 ELECTRONICS MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7138-4DA04-0AB0 is distinguished by its ultra-compact 15 mm width, allowing maximum I/O density in ET 200S installations. It operates from 24 V DC load voltage (20.4 V to 28.8 V) and includes reverse polarity protection. The module consumes a maximum of 42 mA from the load voltage (L+) and 10 mA from the 3.3 V backplane bus, with a typical power loss of only 1 W. An integrated 24 V DC sensor supply with a maximum output of 500 mA and short-circuit protection powers connected encoders and sensors directly from the module, simplifying wiring and reducing external component requirements.
- Water and Wastewater Treatment:Pump pressure & chemical dosing levels
- Chemical and Petrochemical Processing:Remote input tracking in certified enclosures
- Marine & Maritime Equipment:ClassNK certified auxiliary monitoring
- Pressure Monitoring:Hydrostatic, differential & pipeline load cells
- Level Measurement:Ultrasonic/radar/guided-wave for chemical/water tanks
- Flow Tracking:Electromagnetic/vortex flow meters
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Module Setup: The module can be configured within the TIA Portal using the hardware configuration for the IM151 interface module.
Operating Modes: Configure as count, measure (cycle duration), or position detection.
Compatibility: This module is generally a direct replacement for older versions without needing new hardware configuration changes.
Distance Restriction: Cable length to the encoder should ideally be less than 15 meters.
FAQs
-
What is the 6ES7138-4DA04-0AB0？
+The Siemens 6ES7138-4DA04-0AB0 (SIMATIC DP, Electronics module 1 Count 24 V/100 kHz) is a high-speed counter module used within the ET 200S distributed I/O system. -
Is it compatible with all ET 200S systems?
+Yes, it is designed for the SIMATIC ET 200S system and can be exchanged during operation (hot-swapping). -
Why doesn't the module react to control signals (HW Config Issue)?
+Modules with older parameterization (default values in STEP 7 before version V5.1+SP3) might not respond. To fix this, you must edit the "Object Properties > Parameters" in the hardware configuration to re-initialize the settings. -
What is the maximum signal frequency?
+The module handles counting frequencies up to 100 kHz.
