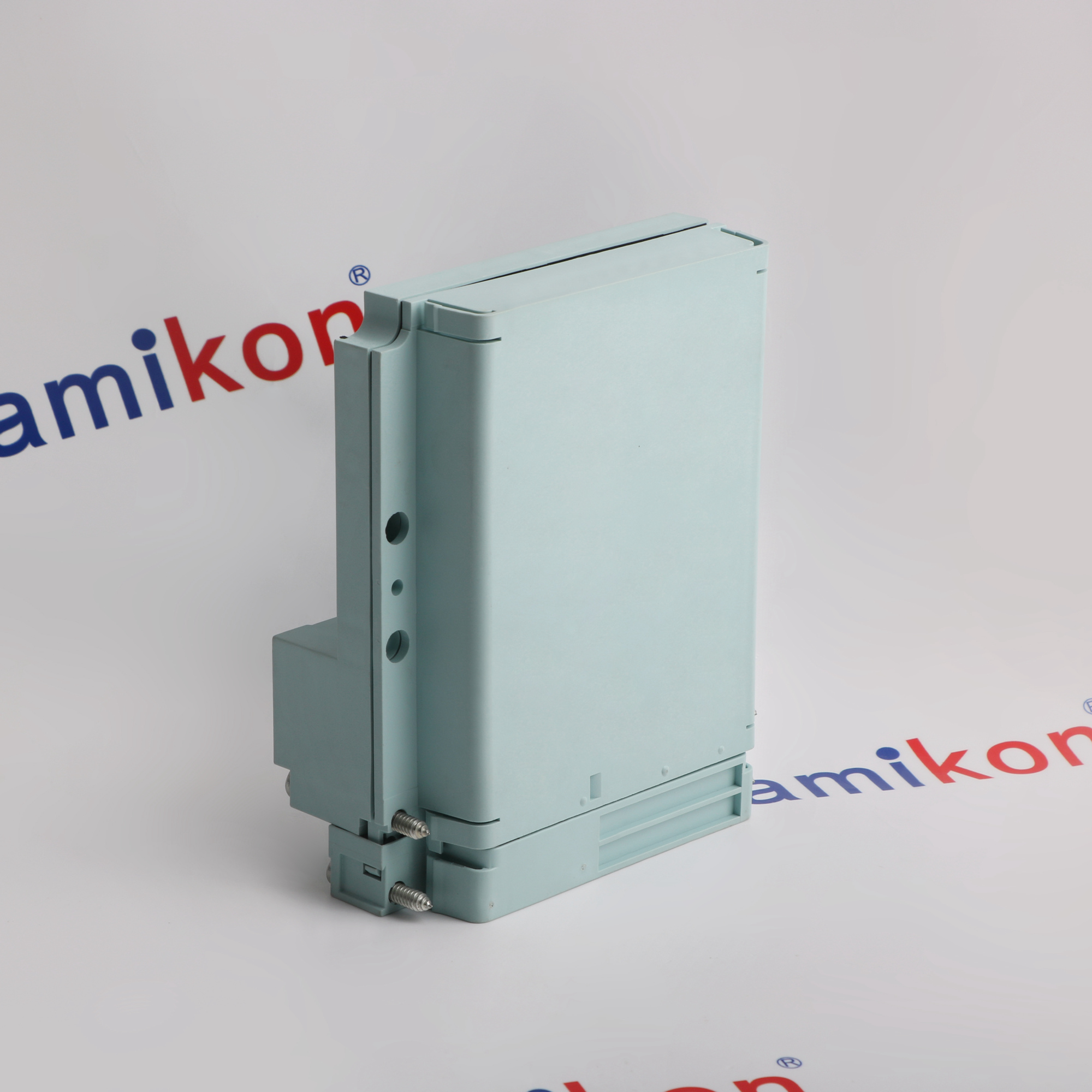

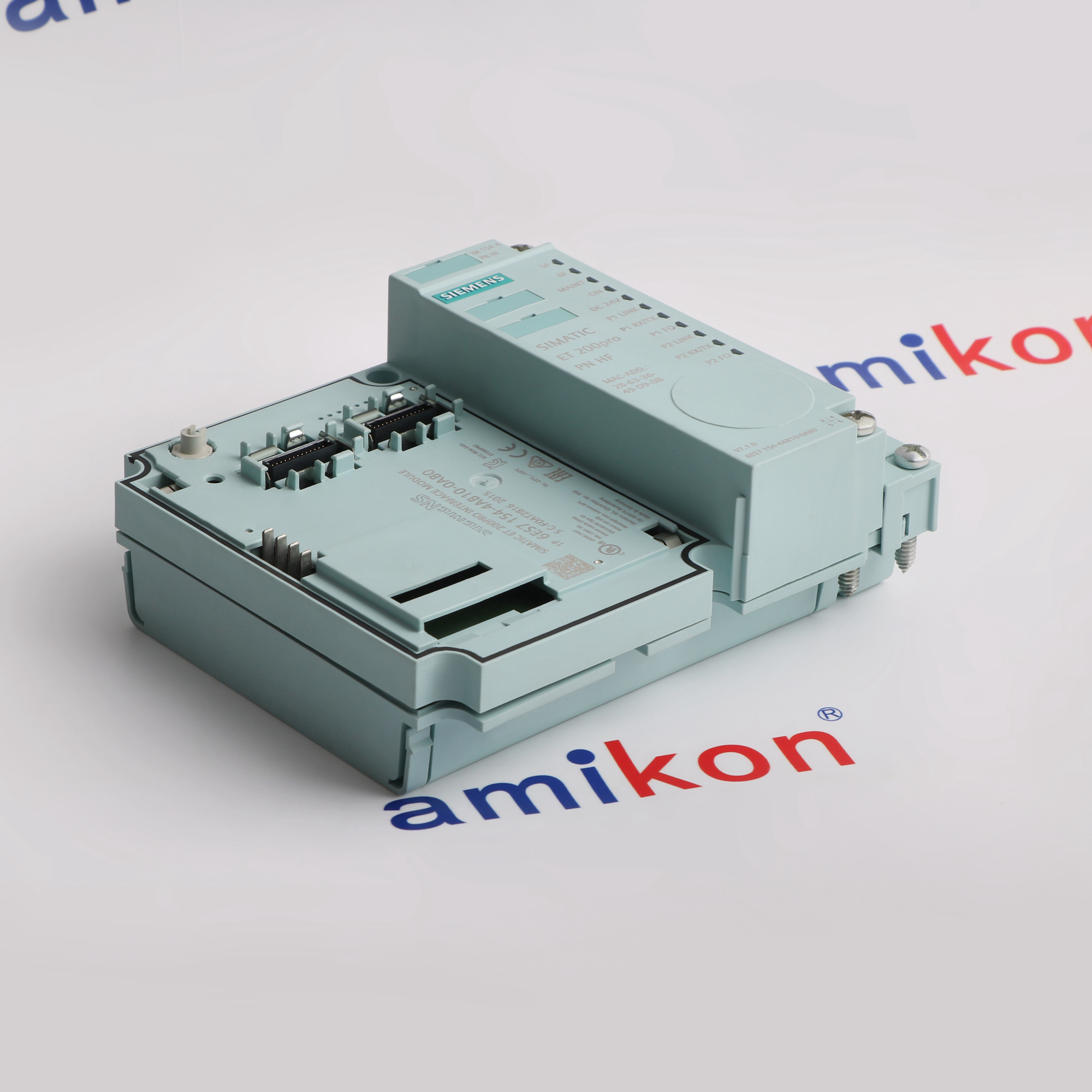

      Siemens 6ES7154-4AB10-0AB0
      Siemens 6ES7154-4AB10-0AB0
      Siemens 6ES7154-4AB10-0AB0
      Siemens 6ES7154-4AB10-0AB0
      Siemens 6ES7154-4AB10-0AB0
      Siemens 6ES7154-4AB10-0AB0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7154-4AB10-0AB0

      ET 200pro PROFINET Interface

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          High Feature communication for the ET 200pro field station

          The Siemens 6ES7154-4AB10-0AB0 is an IM 154-4 PN High Feature interface for SIMATIC ET 200pro. Its integrated switch supports PROFINET communication, while the terminating module is included. The required IM PN connection module is ordered separately.

          The interface combines process-data exchange with configurable diagnostic and hardware interrupts. It uses internal memory rather than a Micro Memory Card, provides equal input and output address capacity, and supports module hot swapping within the documented ET 200pro station arrangement.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Industrial Production and Service Sectors

          These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
          • 01 · PLASTICS PROCESSING

            Extrusion and Injection Molding

            Plastic extrusion for material production within the plastics industry.Injection molding for plastic product manufacturing across industrial markets.
          • 02 · FOOD & BEVERAGE

            Dairy and Soft Drink Production

            Dairy production and processing within the commercial food industry.Soft drink manufacturing for the wider commercial beverage industry.
          • 03 · WATER & WASTEWATER

            Drinking Water and Wastewater Services

            Drinking water production for public and community supply services.Wastewater treatment serving households, communities and industrial water users.

          Technical specifications for 6ES7154-4AB10-0AB0

          • Product Model
            6ES7154-4AB10-0AB0
          • Product Parameters
            ET 200pro PROFINET Interface
          • Manufacturer
            Siemens
          • Interface function
            IM 154-4 PN High Feature for ET 200pro
          • Supply voltage 1L+
            24 V DC
          • Load voltage 2L+
            24 V DC
          • Reverse-polarity protection
            Protection against destruction on supply and load voltage
          • Input current
            Maximum 400 mA from 1L+ under the stated optical-connection/full-backplane-load condition
          • Typical power loss
            6 W for the stated copper-connection condition; optical connection approximately 0.7 W higher
          • Parameter storage
            Internal memory medium; no Micro Memory Card
          • Input address area
            256 bytes
          • Output address area
            256 bytes
          • PROFINET transmission rate
            Maximum 100 Mbit/s; automatic rate detection
          • Diagnostic alarm
            Supported and parameterizable
          • Hardware interrupt
            Supported and parameterizable
          • Module hot swapping
            Supported in the documented station arrangement
          • Protection ratings
            IP65, IP66 and IP67 according to EN 60529
          • Operating temperature
            -25 to +55 degrees Celsius
          View all additional
          View as PDF Ask for Quote
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          ET 200PRO FIELD INTERFACE

          Coordinate network, connection module and field-station resources

          The IM 154-4 PN High Feature combines the PROFINET interface and an integrated switch for an ET 200pro station. Its ordering description separates the supplied terminating module from the IM PN connection module. Establish the required connection variant before completing the station bill of materials; the interface order number alone does not describe every connection component.
          Plan the station with independent 1L+ supply and 2L+ load-voltage requirements. Both are rated at 24 V DC, but current consumption and power loss are qualified by connection method and backplane loading. In particular, the manufacturer's copper and optical dissipation conditions should remain visible in a thermal and supply-budget review.
          The process-data interface reserves 256 bytes for inputs and the same capacity for outputs. Parameterizable diagnostic alarms, hardware interrupts and station status indicators provide different kinds of operating information. Configure those mechanisms with the selected modules and engineering software, instead of treating a healthy network link as proof that the complete station configuration is correct.

          Features:

          • Separate connection-module selection
          • Condition-dependent supply and thermal budget
          • Configurable alarms and process-data areas
          The Siemens 6ES7154-4AB10-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
          INTERCHANGEABILITY

          Verify the complete replacement identity before commissioning

          Confirm the complete 6ES7154-4AB10-0AB0 code and the attached connection module before ordering a replacement. The IM 154 family includes different interface arrangements, while this part is the PROFINET High Feature version. Preserve the distinction between the communication module, connection assembly and terminating module when checking what the replacement package contains.
          Record the project configuration, device name and connected module arrangement before the exchange. This interface uses internal memory, so an assumption that an existing Micro Memory Card will transfer the setup is inappropriate. Verify the configured input and output allocation and the diagnostic settings against the station's engineering records.
          Compatibility with a newer peripheral function may depend on firmware rather than the housing designation. For example, the cited ET 200pro IO-Link master documentation requires this interface at firmware V7.1 or later for its specified combination. Review the installed revision and support package before approving that use; no universal drop-in successor is asserted here.

          Features:

          • Connection assembly and supplied-parts check
          • Internal-memory configuration review
          • Firmware-dependent peripheral compatibility
          The Siemens 6ES7154-4AB10-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

          Features:

          • Exact-model manufacturer data and relevant original manual pages
          • Verified manufacturer product reference; separate installation document not supplied
          • Accessories and supplied documentation follow the written quotation
          Documentation for the Siemens 6ES7154-4AB10-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

          Also searched as

          3RK1304-5KS40-4AA0 6ES7145-4GF00-0AB0 6ES7144-4JF00-0AB0 6ES7194-4AJ00-0AA0 6ES7194-4BC00-0AA0

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            Confirm final packed dimensions
            Shipping weight
            Confirm final packed weight
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8517623790
            Origin
            Confirm supplied-unit origin
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7154-4AB10-0AB0

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Is the required connection module included?

            The datasheet includes the terminating module but states that the IM PN connection module 6ES7194-4A.00-0AA0 must be ordered separately. Select the exact connection variant for the installation.

          • Does the interface require a Micro Memory Card?

            No. Siemens specifies an internal memory medium for this interface rather than a Micro Memory Card.

          • How much process-data space is available?

            The interface provides a 256-byte input address area and a 256-byte output address area. The connected modules determine how that capacity is used.

          • Which engineering software can configure this exact interface?

            The official ET 200pro operating-instructions table lists all STEP 7 TIA Portal versions and STEP 7 V5.4 SP4 with the required hardware support package for IM 154-4 PN High Feature.

          • Are the copper and optical versions electrically identical?

            The datasheet qualifies current and dissipation by connection method. Its typical copper-condition loss is 6 W; the optical condition is approximately 0.7 W higher. Retain those conditions when planning the station.

          • Can any firmware operate the ET 200pro IO-Link master?

            The cited IO-Link master manual lists this interface with firmware V7.1 and higher for that combination. That requirement must be checked for the intended master and project rather than assumed from the interface name alone.
