In Stock
Fast Shipping Available

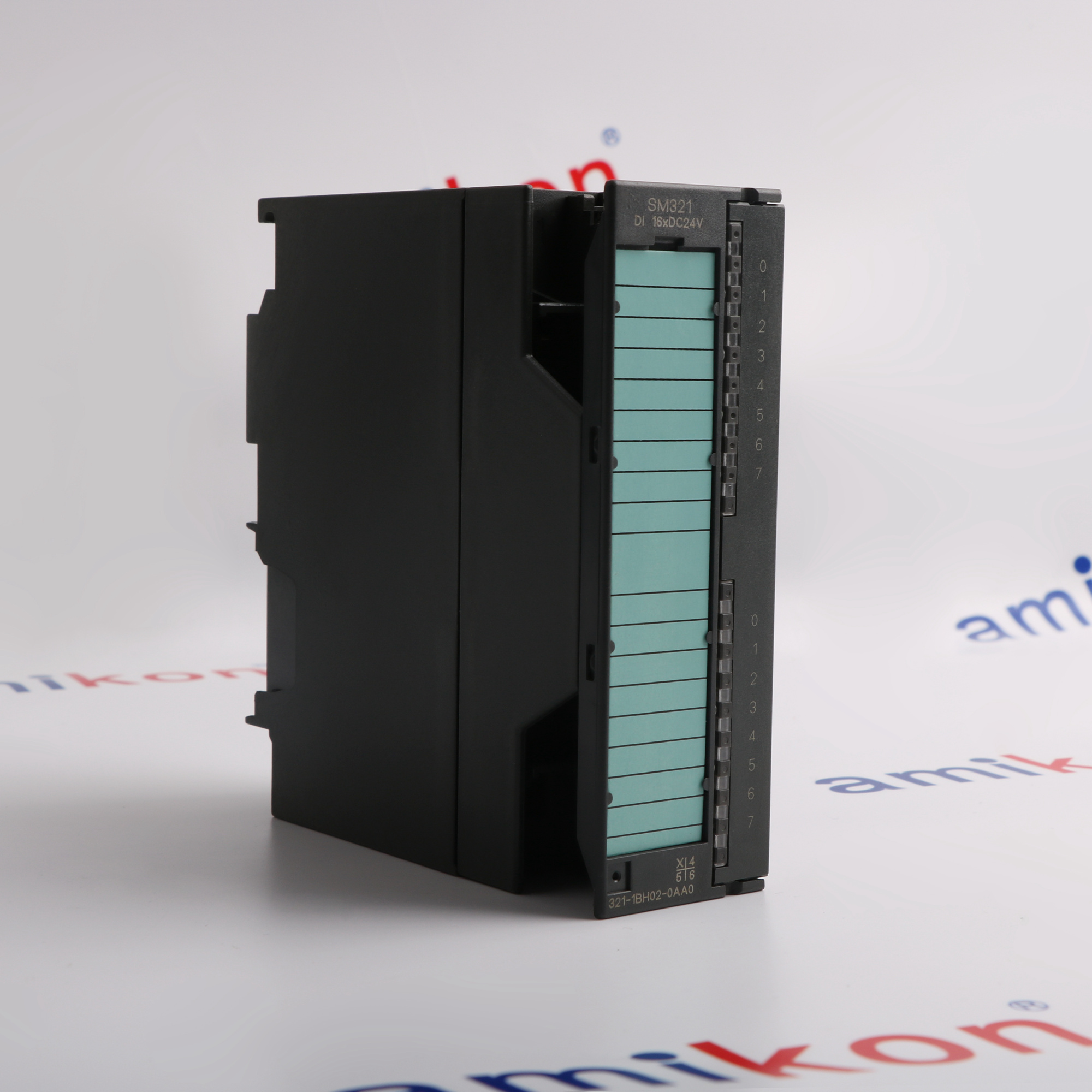

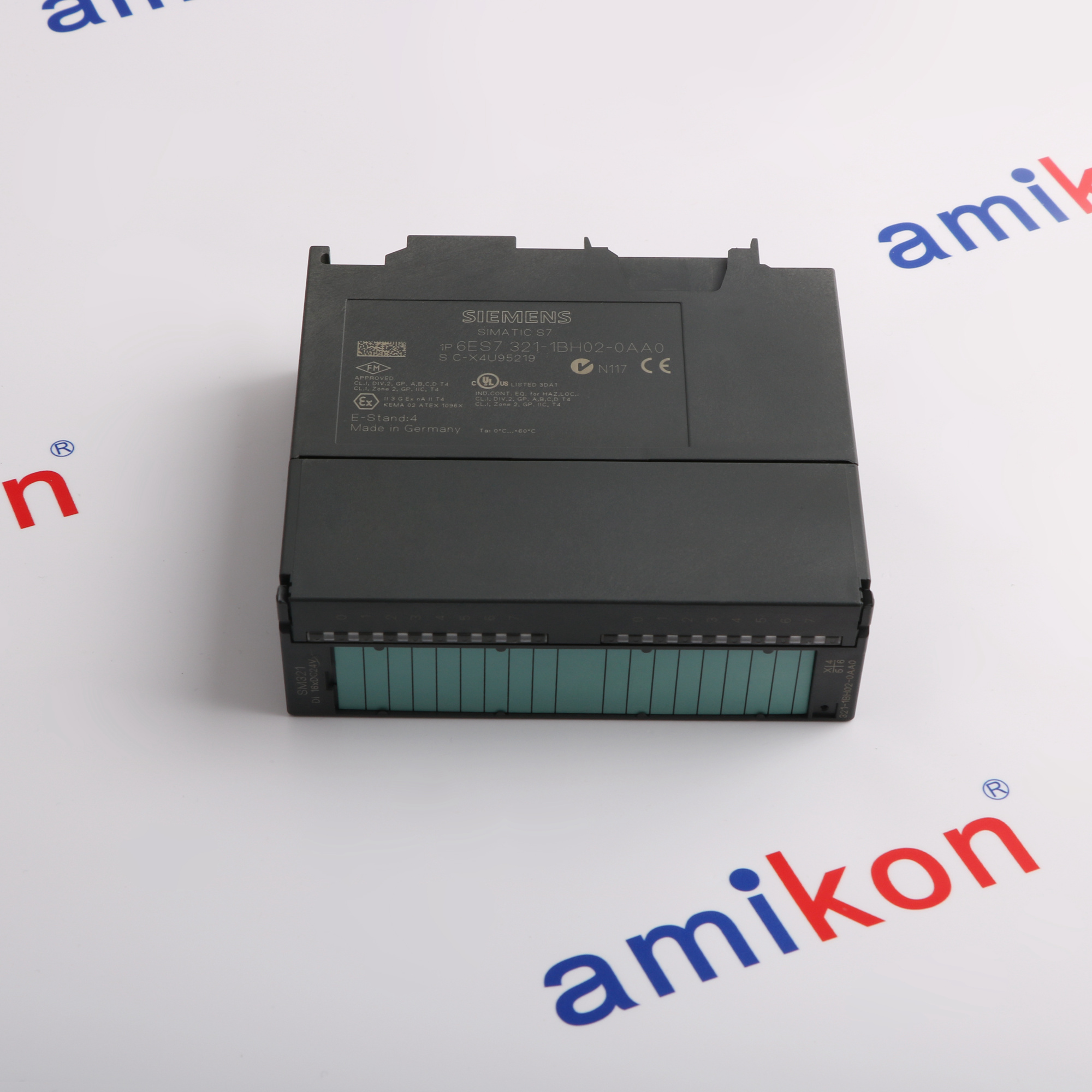

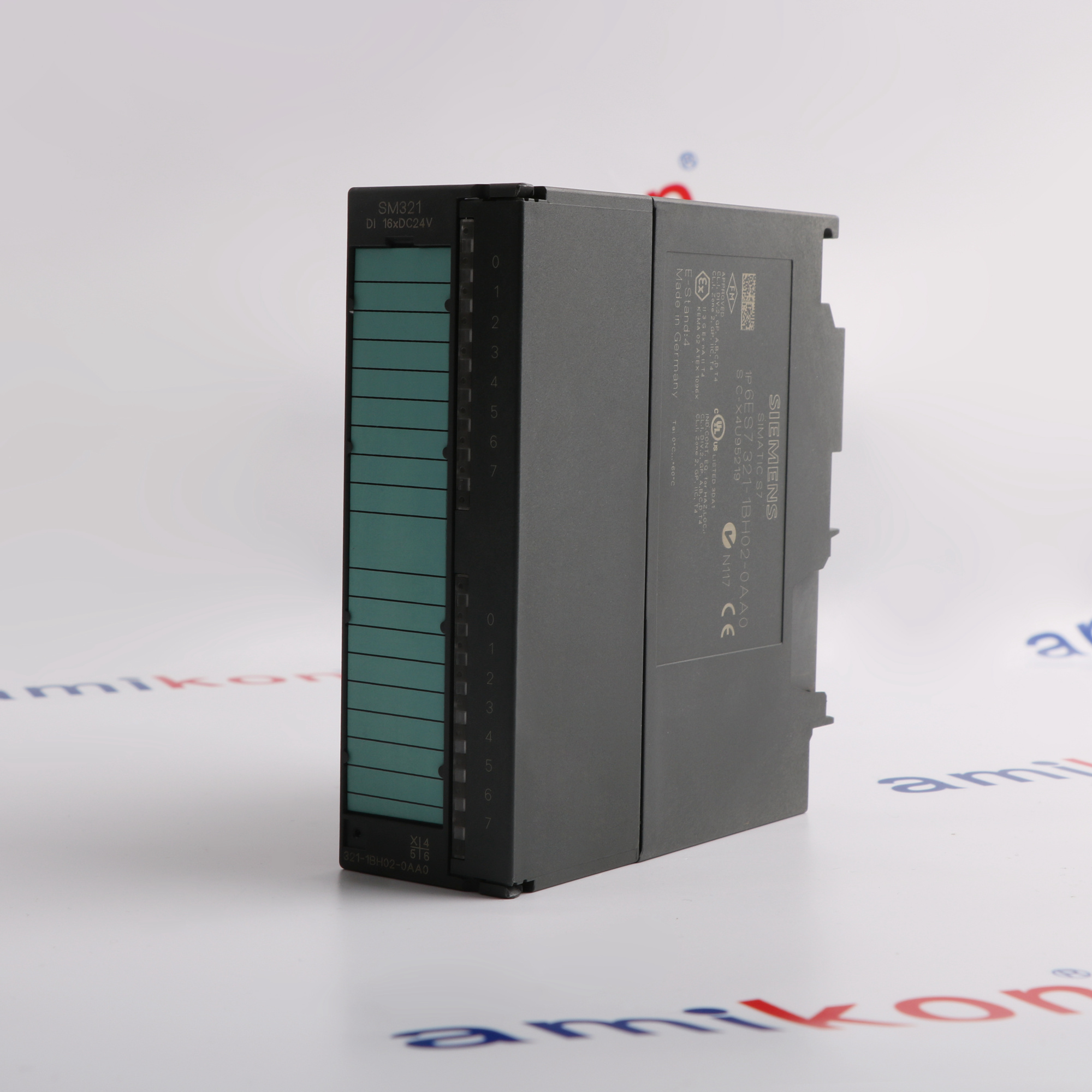

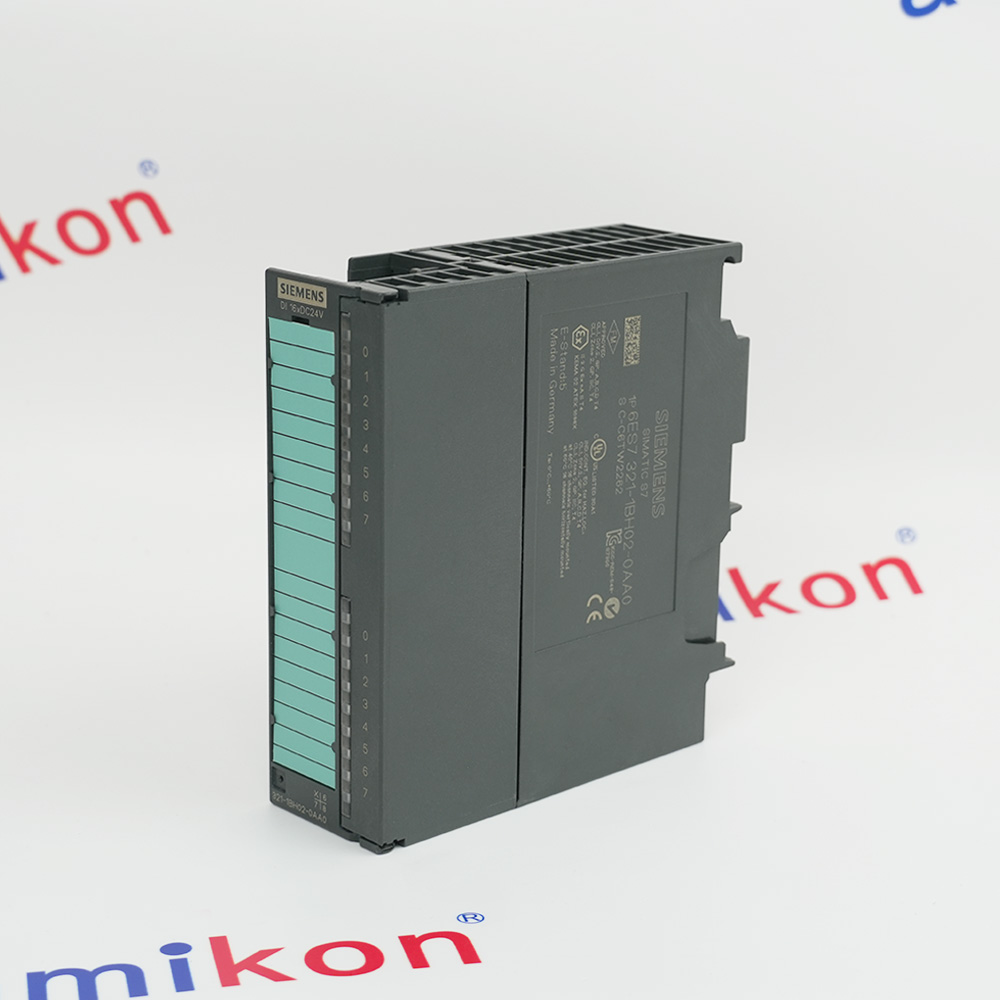

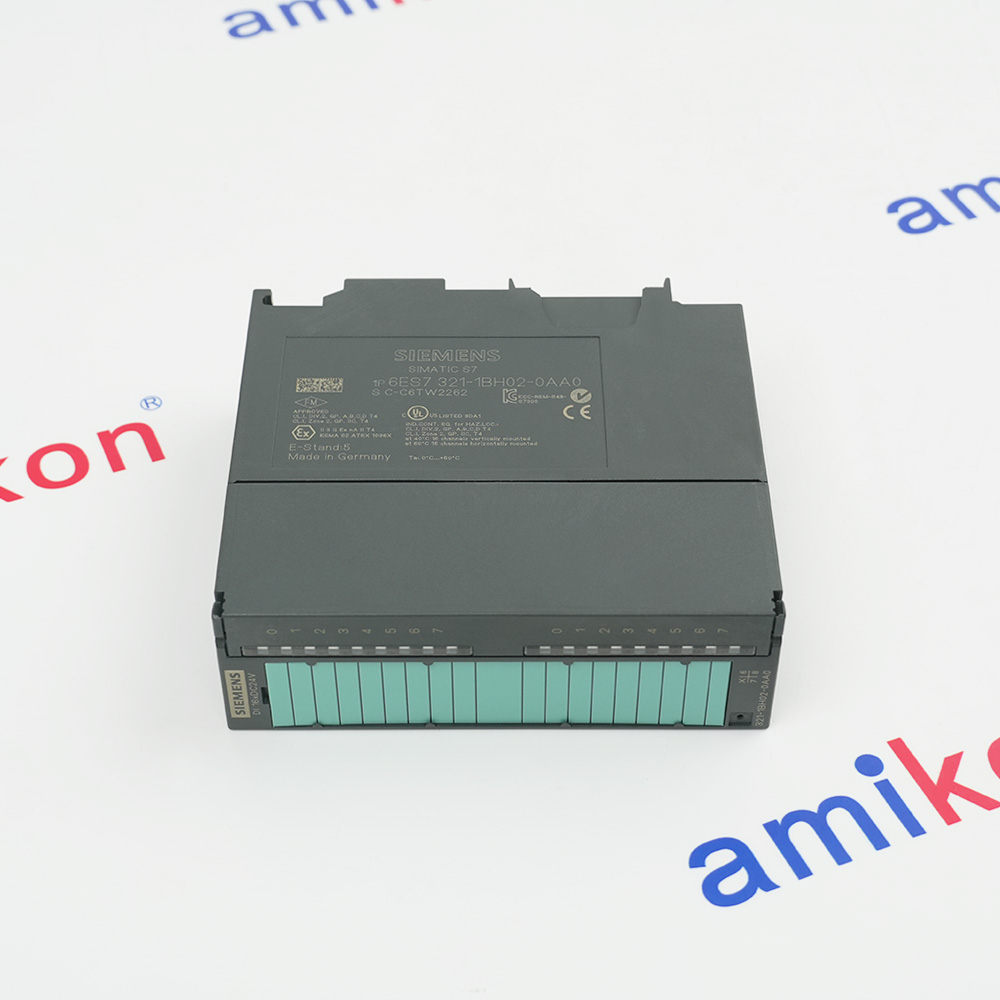

Siemens 6ES7321-1BH02-0AA0
Siemens 6ES7321-1BH02-0AA0
Siemens 6ES7321-1BH02-0AA0
Siemens 6ES7321-1BH02-0AA0
Siemens 6ES7321-1BH02-0AA0
Siemens 6ES7321-1BH02-0AA0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7321-1BH02-0AA0

SIMATIC S7-300 SM 321 digital input module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

6ES7321-1BH02-0AA0 SIMATIC S7-300 SM 321 digital input module

Siemens 6ES7321-1BH02-0AA0 is a SIMATIC S7-300 SM 321 digital input module designed for SIMATIC S7-300 automation equipment. It provides the documented interfaces, electrical characteristics and installation format associated with this exact order number.

Use the applicable Siemens data for wiring, configuration and replacement. Match the complete suffix, terminal arrangement and operating limits, then perform controlled functional checks before returning the connected process or machine to service.
ACTUAL APPLICATIONS

Application context for 6ES7321-1BH02-0AA0

6ES7321-1BH02-0AA0 supports industry applications that use the documented simatic s7-300 sm 321 digital input module within SIMATIC S7-300. Its digital inputs is 16 channels, and its rated input voltage is 24 V DC. These characteristics are used in industrial automation, utility process control and facility automation where the installed system and complete order code have been confirmed.
  • 01 · AEROSPACE

    Aerospace, Defense and Aviation Manufacturing Industries

    Aircraft manufacturing and aviation technology industry facility infrastructureAerospace components and defense manufacturing industry facility campuses
  • 02 · METALS & MINING

    Mining, Metals and Mineral Industry Facilities

    Surface and underground mining industry facilities and infrastructureSteel, aluminum and nonferrous metals industry facility infrastructure
  • 03 · BUILDING INFRASTRUCTURE

    Commercial Buildings and Public Infrastructure Facilities

    Commercial building services and institutional facility infrastructure networksCampus, retail and public building infrastructure facility networks

Technical specifications for 6ES7321-1BH02-0AA0

  • Product Model
    6ES7321-1BH02-0AA0
  • Product Parameters
    SIMATIC S7-300 SM 321 digital input module
  • In stock
    2 units
  • Manufacturer
    Siemens
  • Module Type
    SIMATIC S7-300 SM 321 digital input module
  • Digital Inputs
    16
  • Rated Input Voltage
    24 V DC
  • Permissible Voltage Range
    20.4–28.8 V DC
  • Backplane Bus Current
    10 mA max. at 5 V DC
  • Power Loss
    3.5 W typical
  • Input Standard
    IEC 61131 Type 1
  • Signal 0 Voltage
    -30 to +5 V
  • Signal 1 Voltage
    13–30 V
  • Signal 1 Current
    7 mA typical
  • Input Delay 0 to 1
    1.2–4.8 ms
  • Input Delay 1 to 0
    1.2–4.8 ms
  • Shielded Cable Length
    1,000 m max.
  • Unshielded Cable Length
    600 m max.
  • Isolation
    Optocoupler to backplane; tested at 500 V DC
View all additional

Alternative Names

6ES7321-1BH02-0AA0 SIMATIC S7-300 SIMATIC S7-300 SM 321 digital input module S7-300 16 channels digital inputs
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7321-1BH02-0AA0 simatic s7-300 sm 321 digital input module

6ES7321-1BH02-0AA0 is a SIMATIC S7-300 SM 321 digital input module in the SIMATIC S7-300 family. Confirm the complete order code, installed position and documented digital inputs of 16 channels before wiring or mechanical installation.
Integrate the unit according to its documented rated input voltage of 24 V DC. Match terminal allocation, supply, addressing and adjacent hardware to the accepted system drawing, and preserve the configured signal or drive relationships.
Commission 6ES7321-1BH02-0AA0 by checking the specified module designation of SM 321, status indications and diagnostics. Test every affected channel, communication path or controlled load, then record the final configuration and results.

Features:

  • Digital inputs: 16 channels
  • Rated input voltage: 24 V DC
  • Module designation: SM 321
The 6ES7321-1BH02-0AA0 simatic s7-300 sm 321 digital input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY

Verify 6ES7321-1BH02-0AA0 simatic s7-300 sm 321 digital input module

Select a replacement using the full 6ES7321-1BH02-0AA0 order code and the SIMATIC S7-300 equipment definition. Verify the documented digital inputs of 16 channels; a related family number does not establish interchangeability.
Before removal, photograph the label, terminals, connector orientation and adjacent module arrangement. Compare the rated input voltage of 24 V DC, retain the installed project settings and identify any separately ordered terminal or mounting accessories.
After fitting the verified replacement, restore the approved configuration and validate the module designation of SM 321. Check power-up diagnostics and all affected functions before returning the equipment to service.

Features:

  • Input grouping: Isolated channel groups
  • Compatible system: SIMATIC S7-300
  • Width: 40 mm
The 6ES7321-1BH02-0AA0 simatic s7-300 sm 321 digital input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

Features:

  • Verify document identity before procurement or installation
  • Match the complete order to the manufacturer document scope
  • Accessories are supplied only when listed in the quotation
Documentation for the 6ES7321-1BH02-0AA0 simatic s7-300 sm 321 digital input module must be checked for document applicability before installation or commissioning.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    4 × 12.5 × 12 cm
    Shipping weight
    0.20 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Germany
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7321-1BH02-0AA0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Which S7-300 slot and connector must be checked for 6ES7321-1BH02-0AA0?

    The 6ES7321-1BH02-0AA0 is an SM 321 input module requiring a 20-pin front connector. Verify the rack assignment and existing connector wiring in the STEP 7 project.
  • Can the current two-wire sensors stay with 6ES7321-1BH02-0AA0?

    Siemens permits two-wire sensors on 6ES7321-1BH02-0AA0, subject to the documented quiescent-current limit. Check each sensor's leakage current and 24 V DC signaling.
  • How should a stuck-off input on 6ES7321-1BH02-0AA0 be investigated?

    Measure the signal at the relevant 6ES7321-1BH02-0AA0 terminal and compare it with the PLC input status. Inspect sensor supply and cable continuity before removing the module.
  • What should be recorded before changing 6ES7321-1BH02-0AA0?

    Capture the 6ES7321-1BH02-0AA0 suffix, 20-pin connector position, 16-point channel map and current project configuration. Label field conductors if the connector must be rewired.
  • Which post-change checks matter for 6ES7321-1BH02-0AA0?

    Operate representative sensors across the 6ES7321-1BH02-0AA0 input group, verify PLC status and confirm no channels changed assignment. Record the results in the maintenance log.
  • Can a different SM 321 unit be treated as equivalent to 6ES7321-1BH02-0AA0?

    The SM 321 family contains variants. Compare the 6ES7321-1BH02-0AA0 suffix, 16-input 24 V DC configuration and connector requirement before selecting a substitute.
  • What should a buyer send to source 6ES7321-1BH02-0AA0?

    Provide the exact 6ES7321-1BH02-0AA0 model, quantity, S7-300 rack details and whether a 20-pin front connector is needed in the shipment.
  • What should be inspected on receipt of 6ES7321-1BH02-0AA0?

    Match the 6ES7321-1BH02-0AA0 nameplate and inspect connector pins, housing and status indicators. Check any included front connector against the written order.
