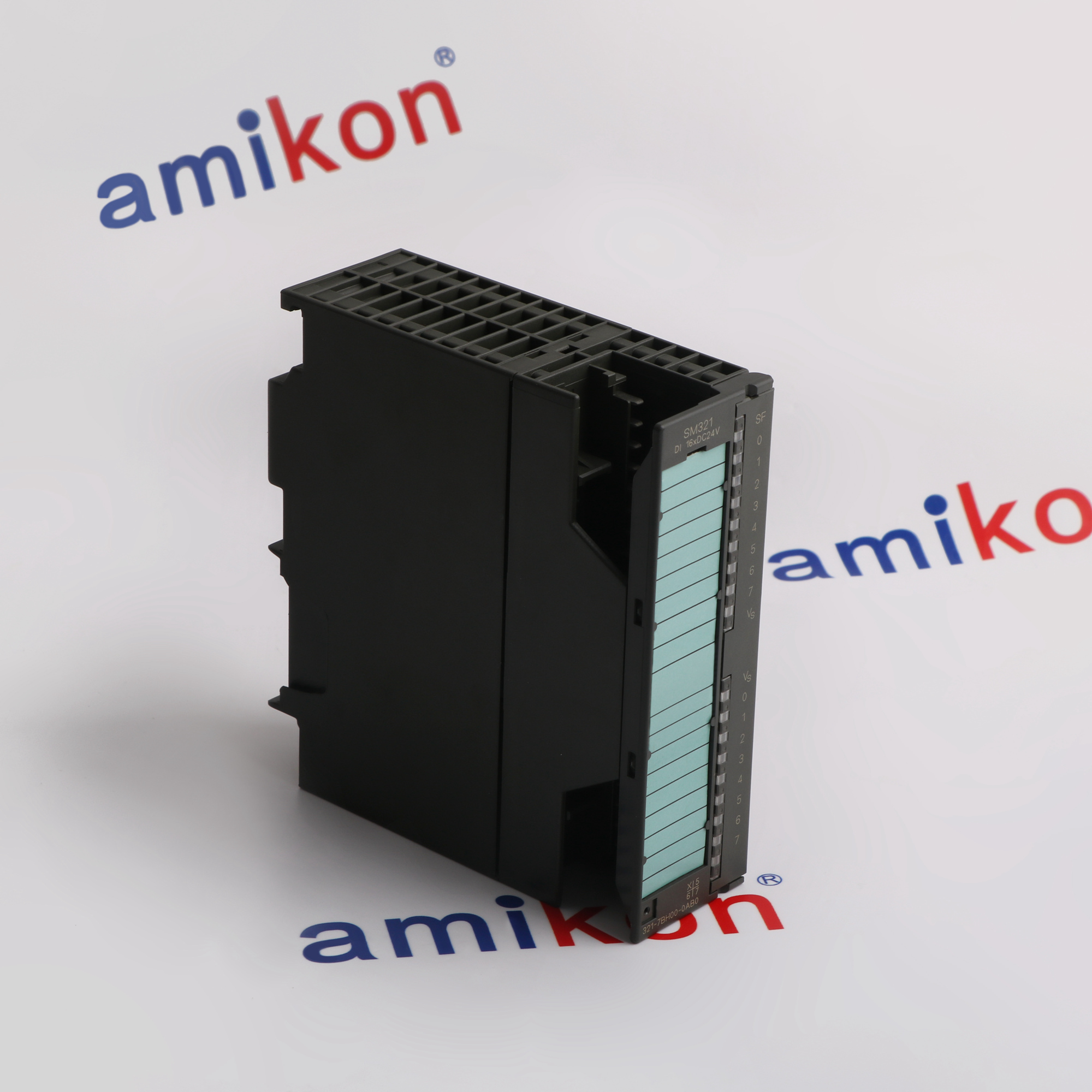

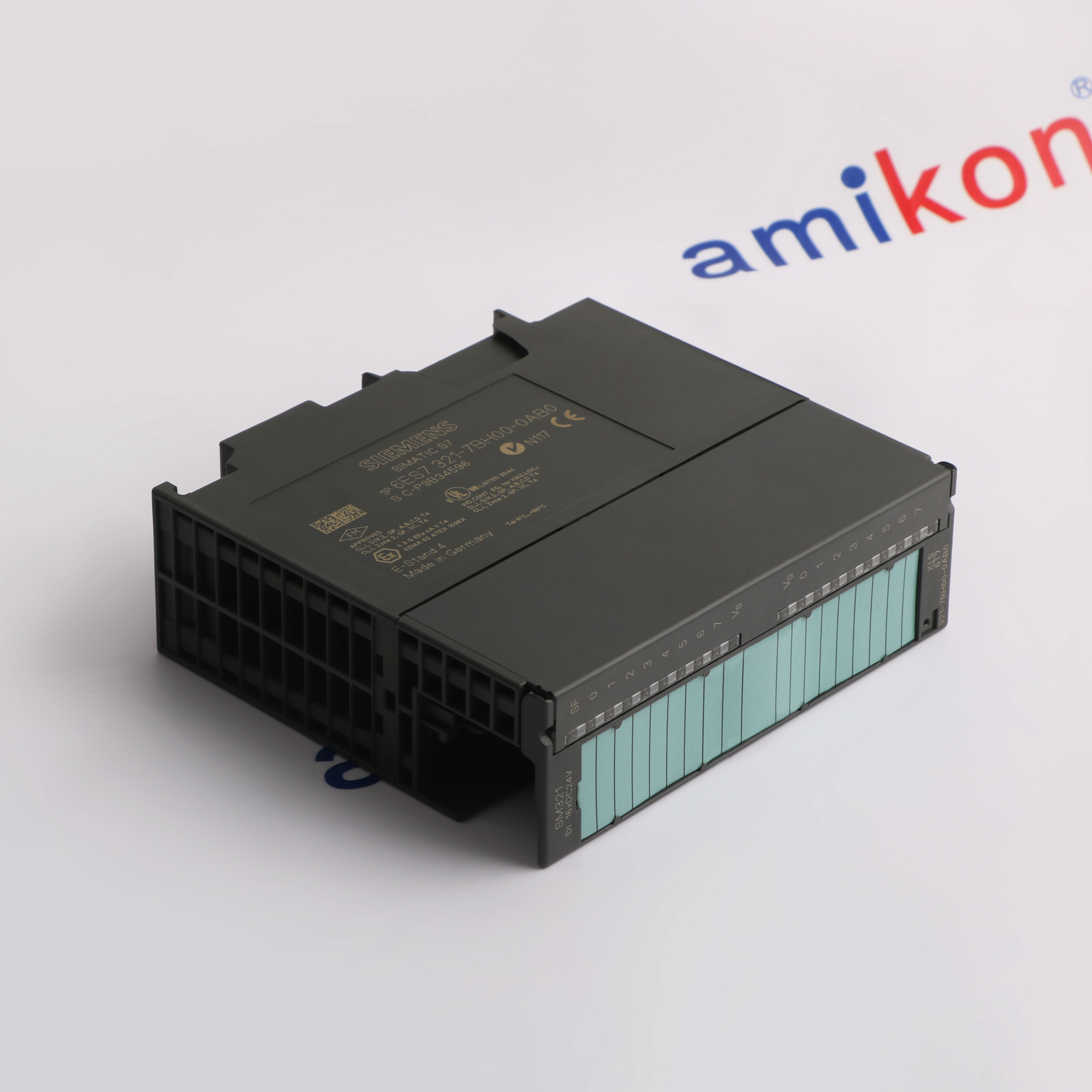

Siemens 6ES7321-7BH00-0AB0
Siemens 6ES7321-7BH00-0AB0
Siemens 6ES7321-7BH00-0AB0
Siemens 6ES7321-7BH00-0AB0
Siemens 6ES7321-7BH00-0AB0
Siemens 6ES7321-7BH00-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7321-7BH00-0AB0

Sixteen-Channel Digital Input Module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

Sixteen digital inputs with configurable delay and interrupt processing

Siemens 6ES7321-7BH00-0AB0 is an SM 321 digital input module for SIMATIC S7-300 installations. It acquires sixteen 24 V DC input signals in one isolated group and provides two protected sensor supplies serving eight input channels each.

Input filtering, diagnostics and process interrupts can be configured for the installation. Channel indicators show input states, while separate sensor-supply and group-fault indicators support status checking. An external redundant sensor supply is supported using the manufacturer's specified connection arrangement.
ACTUAL APPLICATIONS

Where 6ES7321-7BH00-0AB0 Fits Across Industrial Sectors

Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
  • 01 · WATER & WASTEWATER

    Water Supply Services and Municipal Wastewater Treatment

    Public drinking water production for municipal and commercial distribution.Wastewater treatment and processing for municipal and industrial services.
  • 02 · PACKAGING

    Food Packaging and Manufactured Goods Packing Operations

    Packaging of food and beverage products for consumer markets.Packing manufactured goods for commercial supply and onward distribution.
  • 03 · FOOD & BEVERAGE

    Food Processing and Beverage Production for Consumer Markets

    Food preparation and processing for packaged consumer product supply.Commercial beverage manufacturing for retail and hospitality market distribution.

Technical specifications for 6ES7321-7BH00-0AB0

  • Product Model
    6ES7321-7BH00-0AB0
  • Product Parameters
    Sixteen-Channel Digital Input Module
  • Manufacturer
    Siemens
  • Digital input channels
    16, in one electrically isolated group of 16
  • Rated supply/input voltage
    24 V DC
  • Signal voltage levels
    Signal 1: 13 to 30 V; signal 0: -3 to +5 V
  • Signal-1 input current
    Typically 7 mA
  • Input characteristic
    IEC 1131 Type 2
  • Selectable input delays
    0.1, 0.5, 3, 15 or 20 ms; default 3 ms
  • Signal cable limits
    600 m unshielded; 1,000 m shielded
  • Sensor-supply outputs
    2; one for channels 0-7 and one for channels 8-15
  • Sensor-supply current
    120 mA rated per output; permitted range 0-150 mA
  • Sensor-supply voltage
    At least L+ minus 2.5 V under load
  • Backplane consumption
    55 mA maximum
  • L+ consumption
    40 mA maximum, excluding sensor supply
  • Typical power loss
    4 W
  • Isolation test voltage
    500 V DC
  • Interrupt and diagnosis functions
    Programmable process and diagnostic interrupts; red SF group-fault indicator
View all additional
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SIMATIC S7-300 DIGITAL INPUT

Grouped acquisition with adjustable filtering and interrupt reporting

Sixteen 24 V DC inputs connect through the twenty-terminal front connection. The original diagram distinguishes the module supply, the two sensor-supply branches and their common return. The channels form a single isolated group; no channel-to-channel isolation should be implied.
The input delay is selected for the module. Interrupt edge settings are assigned by channel pair, while missing sensor-supply diagnosis follows the two groups of eight. Confirm the CPU or ET 200M interface revision against the explicit compatibility table in the historical manual.
Process interrupts are handled through OB40 and diagnostic interrupts through OB82. One process interrupt can be buffered per channel. Repeated events before acknowledgment can produce a lost-interrupt diagnostic, so the application program must service the configured events appropriately.

Features:

  • Twenty-terminal field connection
  • Two eight-channel sensor branches
  • CPU interrupt processing
The Siemens 6ES7321-7BH00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY

Verify the complete replacement identity before commissioning

Match 6ES7321-7BH00-0AB0 exactly when maintaining a historical installation. The similar 7BH01 designation is not sufficient evidence of identical current consumption, signal thresholds, wire-break functions or software behavior.
Record the existing input-delay selection, channel-pair edge settings, diagnostic settings and redundant sensor wiring. Check the host CPU or remote-interface revision against the manufacturer's compatibility table before exchanging hardware.
After replacement, check channel indications, both sensor-supply indicators and the SF indication. Confirm that the required OB40 and OB82 processing remains present. The reviewed historical document does not establish a current replacement recommendation or lifecycle status.

Features:

  • Exact historical order identity
  • Configuration and wiring capture
  • Host revision verification
The Siemens 6ES7321-7BH00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

Features:

  • Exact-model manufacturer data and relevant original manual pages
  • Twenty-terminal wiring, redundant sensor supplies, host revision, input-delay settings and interrupt/diagnostic configuration.
  • Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7321-7BH00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    Confirm final packed dimensions
    Shipping weight
    Confirm final packed weight
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Confirm supplied-unit origin
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7321-7BH00-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Does the 7BH00 have the same specifications as 7BH01?

    The reviewed original manual explicitly identifies 6ES7321-7BH00-0AB0. Later 7BH01 data must not be transferred automatically: compare the exact order number, electrical characteristics, supported functions and host requirements before selecting a replacement.
  • How are the two sensor supplies assigned?

    One supply serves inputs 0-7 and the other serves inputs 8-15. Each has a rated output of 120 mA and a permitted range of 0-150 mA, with electronic short-circuit protection.
  • Which input-delay settings are available?

    The manual provides 0.1, 0.5, 3, 15 and 20 ms settings. The default is 3 ms, and the setting applies to the module. Actual delay tolerances are specified separately in the original table.
  • Are interrupts enabled automatically?

    No. Process and diagnostic interrupts are disabled by default. Configure the required events and provide the associated CPU processing: OB40 for process interrupts and OB82 for diagnostic interrupts.
  • Can an external redundant sensor supply be connected?

    Yes, using the original redundant-supply diagram. If L+ fails while an external supply is connected in parallel with Vs, the reported fault can concern the internal or external auxiliary voltage or fuse rather than a missing sensor supply.
  • What happens when the module supply fails?

    The input value is retained for approximately 20-40 ms before a zero signal is sent to the CPU. Supply dips shorter than 20 ms do not change the process value. Fault indication and interrupt behavior also depend on the configuration.
