In Stock
Fast Shipping Available

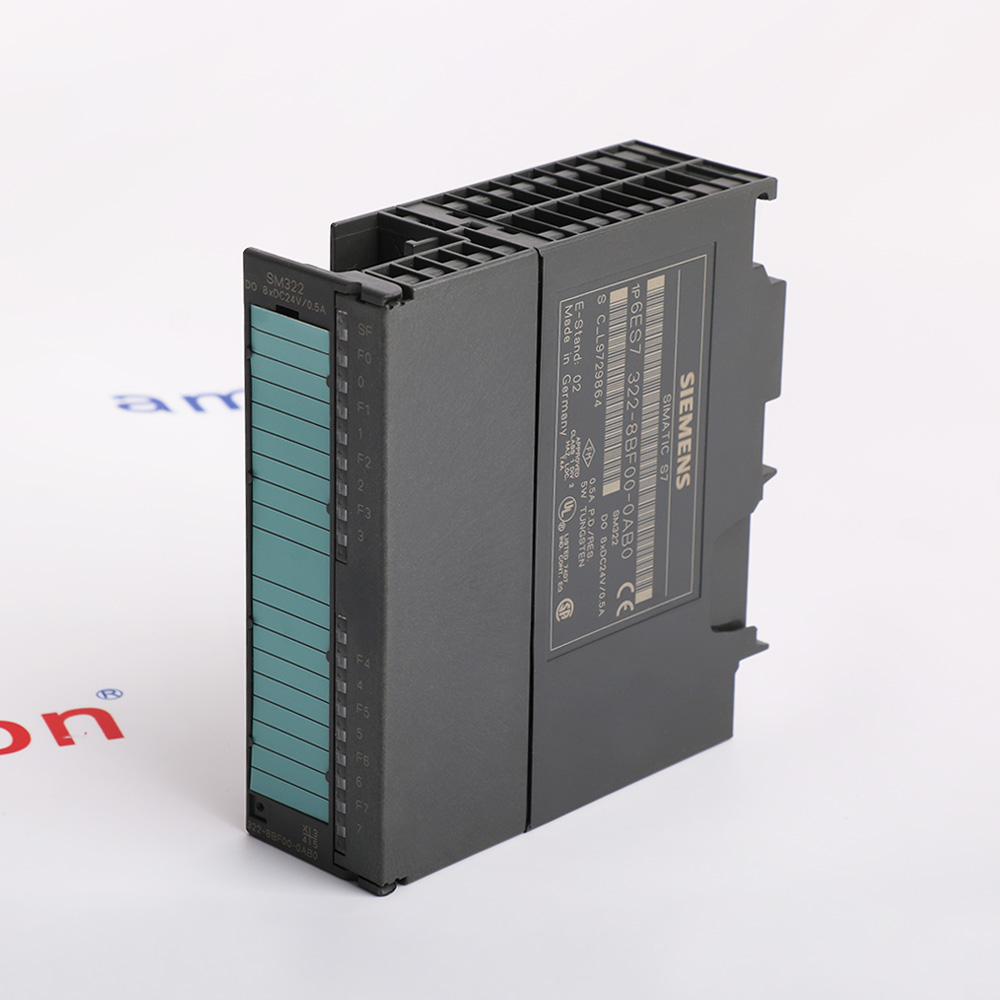

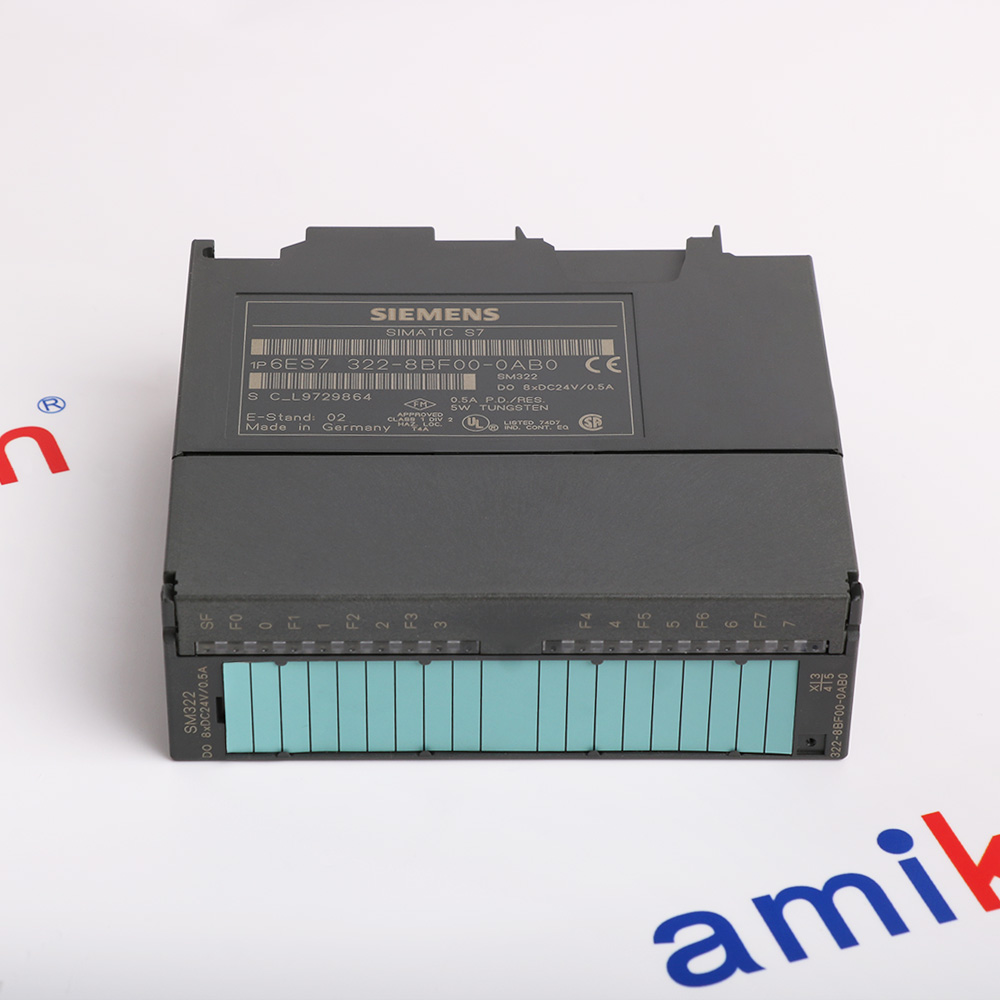

Siemens 6ES7322-8BF00-0AB0
Siemens 6ES7322-8BF00-0AB0
Siemens 6ES7322-8BF00-0AB0
Siemens 6ES7322-8BF00-0AB0
Siemens 6ES7322-8BF00-0AB0
Siemens 6ES7322-8BF00-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7322-8BF00-0AB0

SM 322 Eight-Channel DC Output Module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

6ES7322-8BF00-0AB0 SM 322 Eight-Channel DC Output Module

Siemens 6ES7322-8BF00-0AB0 is the SM 322 Eight-Channel DC Output Module for SIMATIC S7-300. The SM 322 provides eight isolated 24 V DC outputs with short-circuit diagnostics.

Digital outputs is specified as 8. The published data also lists 24 V DC for nominal load supply and 20.4–28.8 V DC for load supply range.
ACTUAL APPLICATIONS

Application fields for 6ES7322-8BF00-0AB0

These broad application fields reflect the documented function and technical characteristics of 6ES7322-8BF00-0AB0.
  • 01 · INDUSTRIAL MANUFACTURING

    Discrete Manufacturing and Industrial Assembly

    Industrial packaging and materials conversionGeneral fabrication and consumer industries
  • 02 · METALS & MINING

    Metallurgy and Mineral Processing

    Steelmaking and ferrous metal industriesBase metals and mineral industries
  • 03 · CHEMICAL PROCESSING

    Bulk Chemicals and Industrial Chemistry

    Chemical materials and polymer industriesSpecialty chemicals and industrial additives

Technical specifications for 6ES7322-8BF00-0AB0

  • Product Model
    6ES7322-8BF00-0AB0
  • Product Parameters
    SM 322 Eight-Channel DC Output Module
  • In stock
    8 units
  • Manufacturer
    Siemens
  • Digital outputs
    8
  • Nominal load supply
    24 V DC
  • Load supply range
    20.4–28.8 V DC
  • Rated output current
    0.5 A per channel
  • Minimum load current
    10 mA
  • Maximum off-state current
    0.5 mA
  • Maximum load-side draw without load
    90 mA
  • Maximum 5 V backplane draw
    70 mA
  • Typical power loss
    5 W
  • Maximum resistive switching rate
    100 Hz
  • Maximum inductive switching rate
    2 Hz
  • Maximum lamp load
    5 W
  • Front connector
    20-pole
View all additional

Alternative Names

6ES73228BF000AB0 6ES7322-8BF00-0AB0 SM 322 Eight-Channel DC Output Module SIMATIC S7-300 6ES7322-8BF00-0AB0
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7322-8BF00-0AB0 within SIMATIC S7-300

The SM 322 provides eight isolated 24 V DC outputs with short-circuit diagnostics. Review the host documentation for the installed SIMATIC S7-300 configuration.
Budget load current and switching frequency by load type and use the documented 20-pole connector assignment. Compare the project settings with the corresponding product ratings.
Use 8 and 24 V DC as documented reference values when reviewing the project. Verify the configured function under the site acceptance procedure.

Features:

  • Digital outputs · 8
  • Nominal load supply · 24 V DC
  • SIMATIC S7-300 configuration
Use 6ES7322-8BF00-0AB0 only within the documented SIMATIC S7-300 arrangement and applicable installation instructions.
INTERCHANGEABILITY

Replace 6ES7322-8BF00-0AB0 within SIMATIC S7-300

Record the complete 6ES7322-8BF00-0AB0 order code and photograph the fitted unit. Identify the connected equipment and any separately fitted accessories.
Retain the front connector mapping and check diagnostic and commanded output behavior after installation.
Record the final configuration and test the affected functions against the pre-change baseline. Resolve any unexpected indications before returning the assembly to operation.

Features:

  • Complete 6ES7322-8BF00-0AB0 order code
  • Installed wiring and supplied scope
  • Functional verification after exchange
Use 6ES7322-8BF00-0AB0 only within the documented SIMATIC S7-300 arrangement and applicable installation instructions.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

Features:

  • Exact-model technical data for 6ES7322-8BF00-0AB0
  • Document applicability checked against the complete identity
  • Directory links by subcategory and brand
Documentation for 6ES7322-8BF00-0AB0 must match the installed product identity and supplied configuration.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Product size
    3.80 x 11.60 x 12.40 cm
    Net weight
    0.20 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Germany
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7322-8BF00-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • What current can each eight-channel SM 322 output switch?

    The rated output is 0.5 A per channel. The documented minimum load current is 10 mA.
  • Can the SM 322 switch an inductive load at 100 Hz?

    The documented maximum is 2 Hz for inductive loads. The 100 Hz figure applies to resistive loads.
  • What output leakage matters with sensitive loads?

    The maximum off-state current is 0.5 mA. Check that the connected load remains off at that current.
  • What lamp load can the -8BF00 drive?

    The documented maximum lamp load is 5 W.
  • Which supply window applies at the SM 322 load terminals?

    Use 24 V DC nominal within the 20.4–28.8 V DC load supply range.
  • What verifies output wiring after an SM 322 exchange?

    Exercise each mapped output and check short-circuit diagnostics under the site's approved test procedure.
  • What load information should accompany the eight-point SM 322 enquiry?

    State the load type and current, plus whether a replacement 20-pole front connector is required.
  • How should a distributor identify the diagnostic SM 322 variant?

    Use the -8BF00 suffix, eight outputs and the 0.5 A per-channel rating on the order.
