- 6ES7392-1AJ00-0AA0
In Stock
Ships by Thursday, July 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7392-1AJ00-0AA0
-
Product Model6ES7392-1AJ00-0AA0
-
Product ParametersFront Connector 20-pin
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size13.1x2.4x3.6cm
-
ManufacturerSiemens
-
Weight0.06 kg
-
Product type designationFront connector
-
belongs to productS7-300
-
Connection methodScrew terminals
-
Operating Temperature-20°C to +60°C
-
Storage Temperature-40°C to +85°C
Description

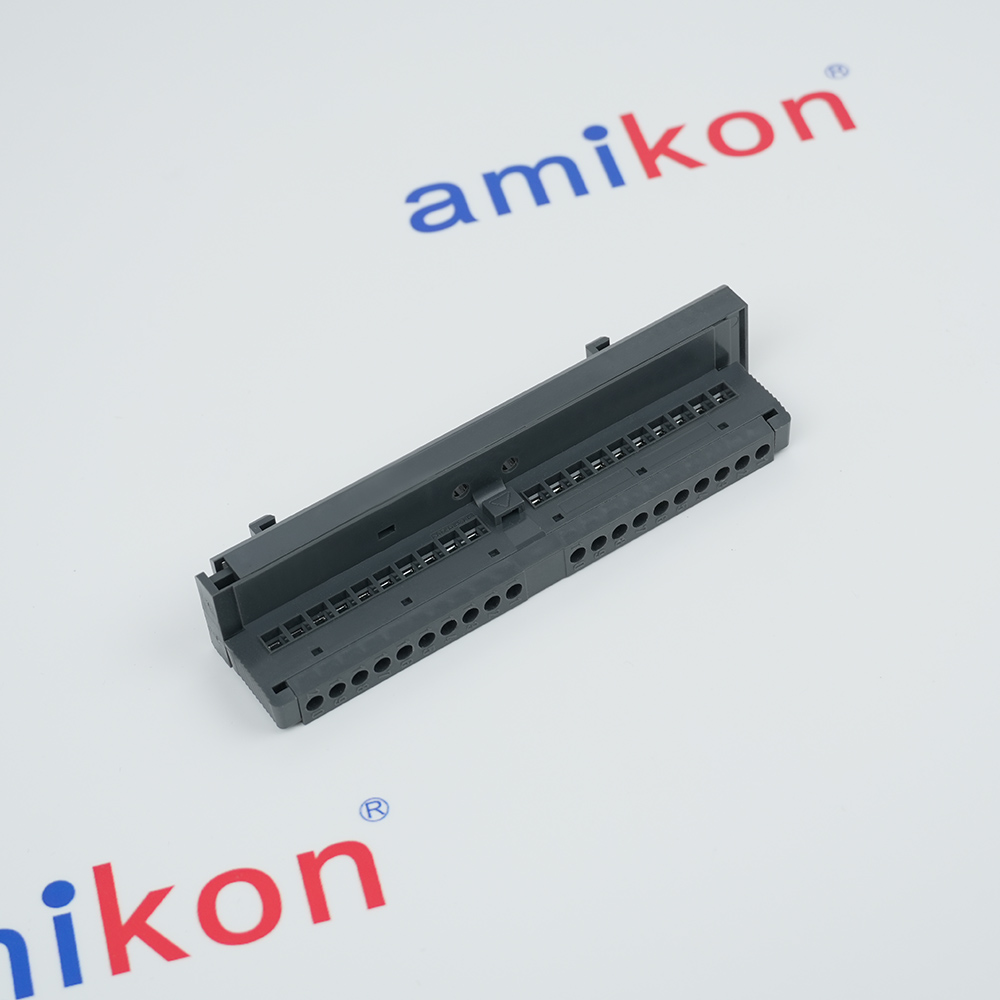

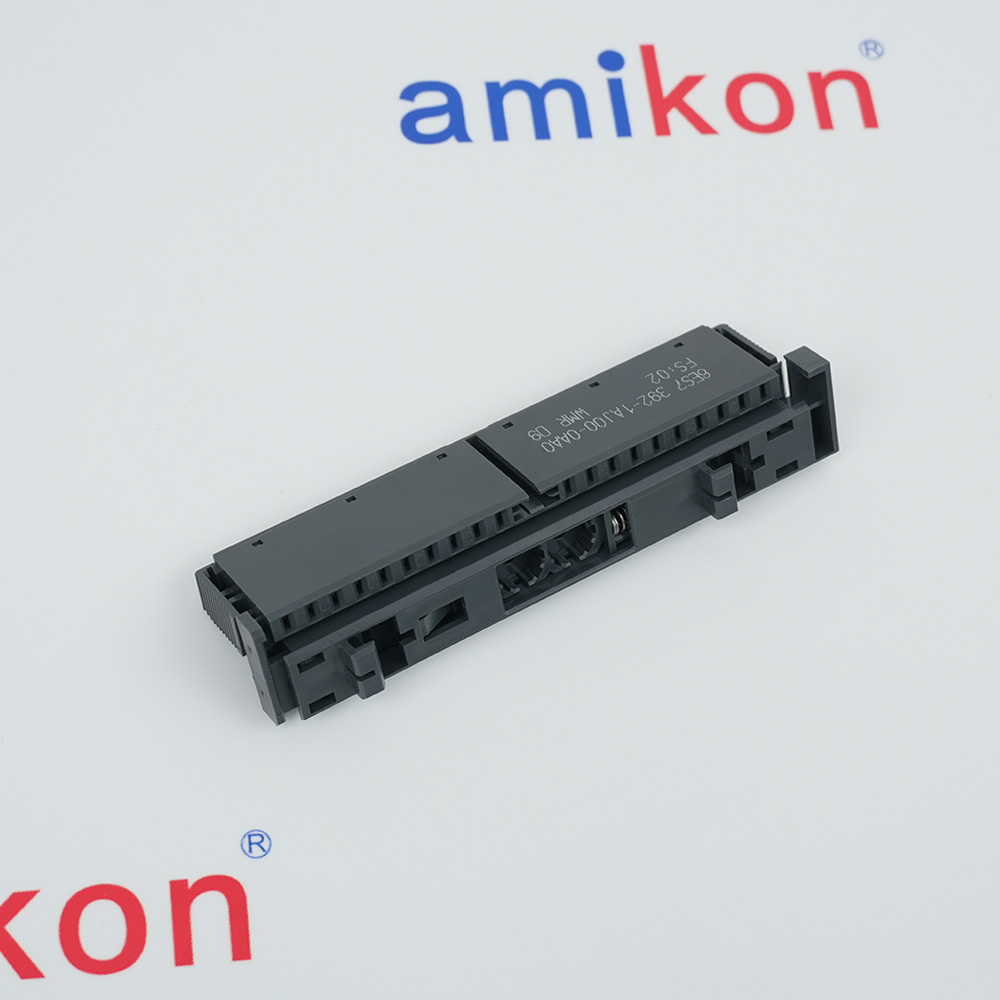

The 6ES7392-1AJ00-0AA0 is a Siemens SIMATIC S7-300 front connector designed for signal modules with screw contacts. The 6ES7392-1AJ00-0AA0 provides 20 poles for connecting I/O signals to S7-300 signal modules, including digital input, digital output, analog input, and analog output modules.
The 6ES7392-1AJ00-0AA0 features screw terminals that accept solid and flexible conductors from 0.25 mm² to 1.5 mm², with or without end sleeves, providing flexibility for various wire sizes and installation practices. The 6ES7392-1AJ00-0AA0 supports 1 conductor per terminal, or 2 conductors up to 1.5 mm² total in a shared ferrule, enabling compact wiring configurations for space-constrained installations.
The 6ES7392-1AJ00-0AA0 requires a tightening torque of 0.4 to 0.7 Nm using a conical screwdriver with 3 to 3.5 mm blade width, ensuring secure and consistent electrical connections. The 6ES7392-1AJ00-0AA0 requires a stripped conductor length of 6 mm, with end sleeves according to DIN 46228 (Design A 5-7 mm long without plastic sleeve, or Design E up to 6 mm long with plastic sleeve), ensuring proper wire preparation and reliable termination.
The 6ES7392-1AJ00-0AA0 features screw terminals that accept solid and flexible conductors from 0.25 mm² to 1.5 mm², with or without end sleeves, providing flexibility for various wire sizes and installation practices. The 6ES7392-1AJ00-0AA0 supports 1 conductor per terminal, or 2 conductors up to 1.5 mm² total in a shared ferrule, enabling compact wiring configurations for space-constrained installations.
The 6ES7392-1AJ00-0AA0 requires a tightening torque of 0.4 to 0.7 Nm using a conical screwdriver with 3 to 3.5 mm blade width, ensuring secure and consistent electrical connections. The 6ES7392-1AJ00-0AA0 requires a stripped conductor length of 6 mm, with end sleeves according to DIN 46228 (Design A 5-7 mm long without plastic sleeve, or Design E up to 6 mm long with plastic sleeve), ensuring proper wire preparation and reliable termination.
Alternative Names
6ES7392-1AJ00-0AAO
6ES7392-1AJ00-OAA0
6ES7392-1AJOO-0AA0
6ES7392-IAJ00-0AA0
6ES7392-1AJOO-OAAO
6ES7392-IAJOO-OAAO
Information
Overview
Manuals
Application Notes
Product Applications
Wiring the Connector
Features:
- 20-pole front connector
- Screw-terminal wiring
- Quick plug-in installation
- Front-access wiring for simplified maintenance
Its plug-in construction allows maintenance personnel to disconnect and reconnect field wiring quickly during module replacement, minimizing downtime. The connector is widely used in manufacturing automation, process control, power generation, water treatment, and machine control systems utilizing the SIMATIC S7-300 platform.
The 6ES7392-1AJ00-0AA0 Siemens Front connector may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7392-1AJ00-0AA0 Front connector Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens 6ES7392-1AJ00-0AA0 is a 20-pole front connector for SIMATIC S7-300 signal modules, featuring screw-terminal connections for digital and analog I/O wiring. Supporting conductor sizes from 0.25 to 1.5 mm², it provides a reliable, front-access interface that simplifies installation, maintenance, and module replacement in industrial automation systems.
- Manufacturing Automation: Used on assembly lines, automotive production, packaging, and material handling conveyors
- Process Engineering: Applied in water/wastewater treatment, chemical dosing, and food/beverage processing
- Building Technologies: Used in large-scale HVAC, BMS, and environmental control units
- Water & Waste Treatment: Automating pumps, flow meters, and chemical dosing systems/span>
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Open Terminals: Use a small flat-head screwdriver to open the screw clamps on the connector.Insert Wires: Insert each stripped wire into its corresponding numbered terminal (1 through 20) based on your module's wiring diagram.
Tighten Screws: Tighten the screws to a maximum torque of 0.5 Nm to ensure a secure connection without stripping the plastic threads.
Apply Strain Relief: Lay the wire bundle along the bottom of the connector and secure it tightly using the integrated plastic zip-tie strap.
Technical notes
The 6ES7392-1AJ00-0AA0 is compatible with all S7-300 modules that use a 20-pin front connector, including analog input modules (SM 331), analog output modules (SM 332), analog input/output modules (SM 334), and fast analog modules (SM 335).
The connector operates in temperatures from 0 to 60°C. Typical applications include field wiring termination for S7-300 I/O modules in industrial automation, process control, and manufacturing systems.
FAQs
-
Does this connector have a coding mechanism to prevent inserting it into the wrong module?
+Yes, it comes with mechanical coding. The connector features two coding elements on the module side, which physically prevents you from plugging a wired connector into an incorrect or incompatible module type during replacement. -
Is the S7-300 front connector system obsolete?
+The S7-300 family itself reached its official end of production, and specific connector variants (like the spring-loaded systems) are marked for discontinuation. However, the 6ES7392-1AJ00-0AA0 screw-type model remains an active and commonly used part, functioning as the go-to substitute for discontinued versions. -
Can I replace a faulty S7-300 module without rewiring?
+Yes. The front connector is designed so that you can simply unclip and remove it from the module. You can plug the same wired connector directly into your replacement module, saving time and preventing wiring errors -
+
