- 6ES7412-2XJ05-0AB0
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7412-2XJ05-0AB0
-
Product Model6ES7412-2XJ05-0AB0
-
Spare ModelCPU412-2
-
Product ParametersCPU412-2 Central Processor Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size22.9x2.5x30.5cm
-
ManufacturerSiemens
-
Weight0.4 kg
-
CiR synchronization time, basic load100 ms
-
CiR synchronization time, time per I/O byte200 µs
-
from backplane bus 5 V DC, typ.0.9 A
-
from backplane bus 5 V DC, max.1.1 A
-
from backplane bus 24 V DC, max300 mA; 150 mA per DP interface
-
from interface 5 V DC, max90 mA; At each DP interface
Description

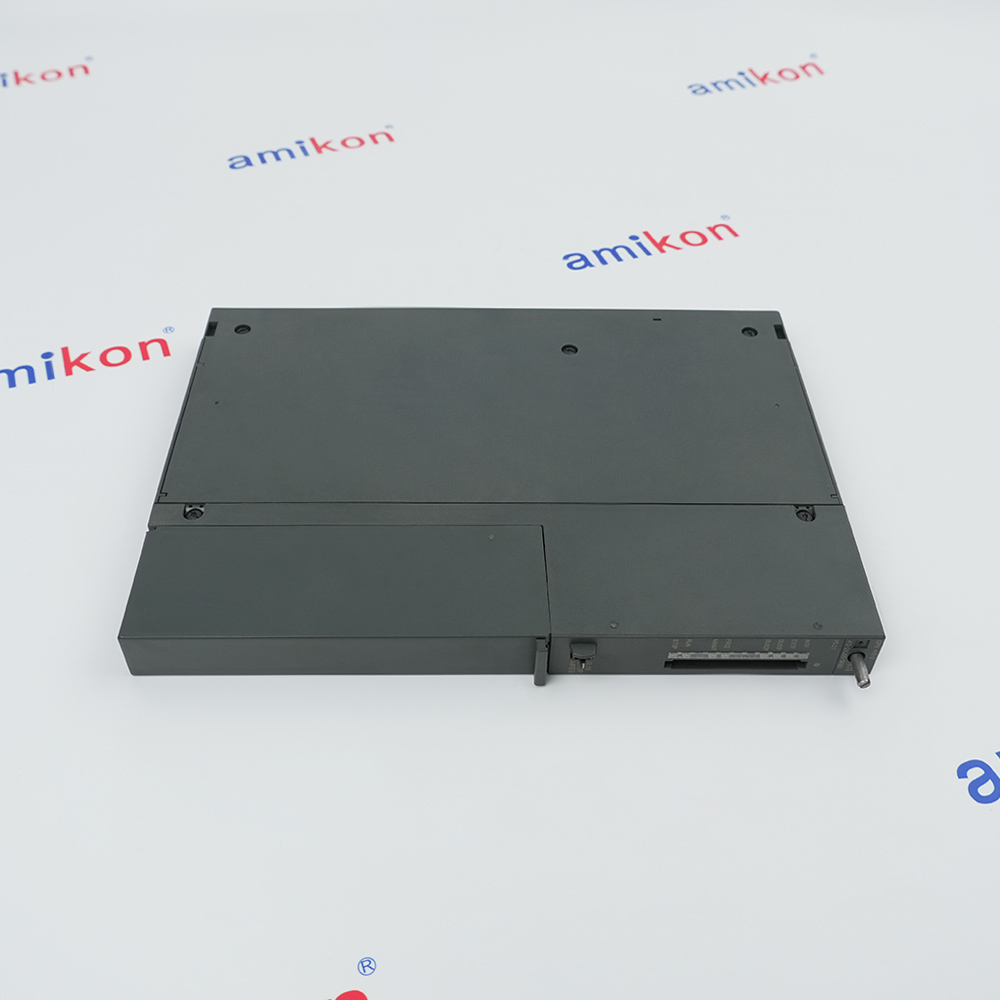

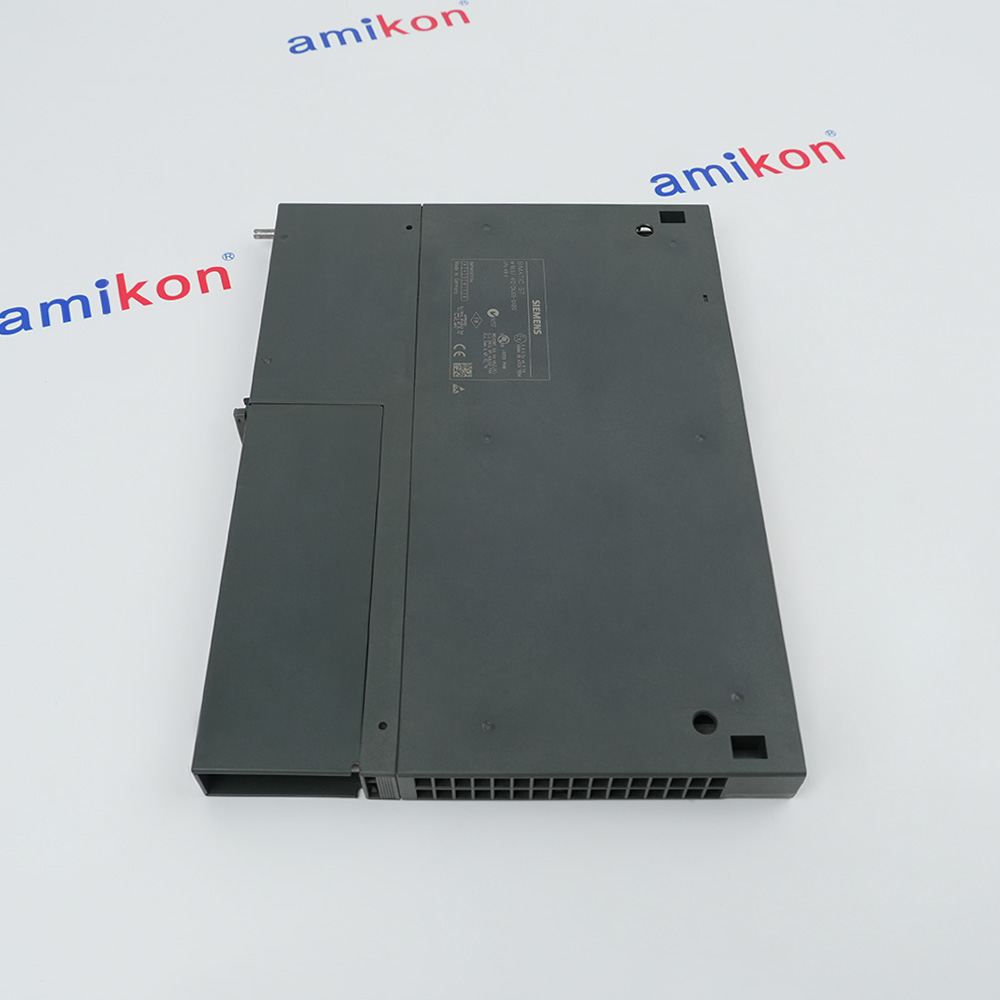

The Siemens 6ES7412-2XJ05-0AB0 is a SIMATIC S7-400 CPU 412-2 Central Processing Unit designed for medium to large-scale industrial automation systems requiring high processing performance, extensive communication capabilities, and reliable operation in demanding environments. The CPU serves as the central controller within the S7-400 platform, executing user programs, managing process data, and coordinating communication with distributed I/O systems and field devices.
The processor is equipped with 512 KB of working memory, divided into 256 KB for program code and 256 KB for data storage. This memory capacity enables the controller to manage complex automation tasks involving large process databases, advanced control algorithms, and distributed plant architectures.
The processor is equipped with 512 KB of working memory, divided into 256 KB for program code and 256 KB for data storage. This memory capacity enables the controller to manage complex automation tasks involving large process databases, advanced control algorithms, and distributed plant architectures.
Alternative Names
6ES7412 2XJ05 0AB0
6ES7 412-2XJ05-0AB0
6ES7412 2XJO5 OABO
6ES7 4I2-2XJ05-0AB0
6ES7 4I2 2XJ05 0AB0
Information
Overview
Manuals
Application Notes
Product Application
Wiring and Shielding Guidelines
Features:
- 512 KB working memory
- Dual interface configuration
- CiR Configuration in RUN capability
- Comprehensive communication functions
Siemens 6ES7412-2XJ05-0AB0 incorporates a powerful processor with fast execution times of 75 ns for bit operations, 75 ns for word operations, and 225 ns for integer arithmetic, enabling responsive control of small to medium-sized automation systems with up to 32 DP slaves per interface.
Siemens 6ES7412-2XJ05-0AB0 features two integrated interfaces: the 1st interface as MPI/DP with RS 485 hardware supporting up to 12 Mbit/s transmission rate for programming device connection and PROFIBUS DP master/slave operation, and the 2nd interface as PROFIBUS DP master for distributed I/O control..
The 6ES7412-2XJ05-0AB0 Siemens SIMATIC S7-400 CPU 412-2 Central Processing Unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7412-2XJ05-0AB0 SIMATIC S7-400 CPU 412-2 Central Processing Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The CPU supports extensive communication functions including PG/OP communication, global data communication, S7 basic communication, S7 communication (as server and client), and S5-compatible communication via FC AG_SEND and AG_RECV. A total of 32 communication connections are available, with 10 reserved for PG communication and 31 for OP communication. Open IE communication via ISO-on-TCP is supported through CP 443-1 Advanced with loadable function blocks.
Configuration in RUN (CiR) is supported with a base synchronization time of 100 ms and an additional 30 µs per I/O byte. The I/O address area provides 4 KB each for inputs and outputs, with process images adjustable to 4 KB. The CPU can address up to 32768 digital inputs/outputs and 2048 analog inputs/outputs.
- Manufacturing & Assembly:Deterministic timing for complex lines/discrete processes
- Automotive Industry:Conveyors, robots & testing stations
- Energy & Power Distribution:High-availability substations & power mgmt
- Process Control (Chemical/Water):PCS 7 interfaces: safe continuous processes
- Packaging and Material Handling:High-speed isochrone for packing/sorting/palletizing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Bus Topography: Run network cables perpendicular to power cords. Maintain at least a 50 cm clearance from high-voltage lines to eliminate EM crosstalk.
Grounding: Connect the main rack housing to your facility’s building ground network using a low-resistance copper conductor of at least 10 mm².
Interface Connections: Ensure standard PROFIBUS DB9 connectors are securely fastened to prevent communication drops on the built-in MPI/DP and DP ports
Technical notes
The unit provides two integrated communication interfaces. Interface 1 operates as an MPI/DP port at 12 Mbit/s over RS 485, supporting up to 32 DP slaves in master mode. Interface 2 is a dedicated PROFIBUS DP port at 12 Mbit/s, supporting up to 125 DP slaves with DPV1 functionality and direct data exchange between slaves. Isochronous mode is supported on the PROFIBUS DP interface with a minimum clock cycle of 1.5 ms.
FAQs
-
What is the 6ES7412-2XJ05-0AB0?
+It is the standard replacement part for older S7-400 CPUs (such as the 6ES7 412-2XG04-0AB0). It features integrated RAM and provides robust functionality for process management -
What are the primary differences between the CPU 412-1 and this CPU 412-2 model?
+The CPU 412-2 (6ES7412-2XJ05-0AB0) features 512 KB of work memory compared to the 288 KB found on the CPU 412-1. Additionally, the 412-2 includes a second dedicated PROFIBUS DP interface, whereas the 412-1 relies solely on a single combined MPI/DP port. -
Does this unit support system modifications during active operations?
+Yes, this hardware generation supports Configuration in RUN (CiR). This allows users to add or modify certain digital, analog, or communication modules without putting the PLC into a stopped state, minimizing active system downtime.
