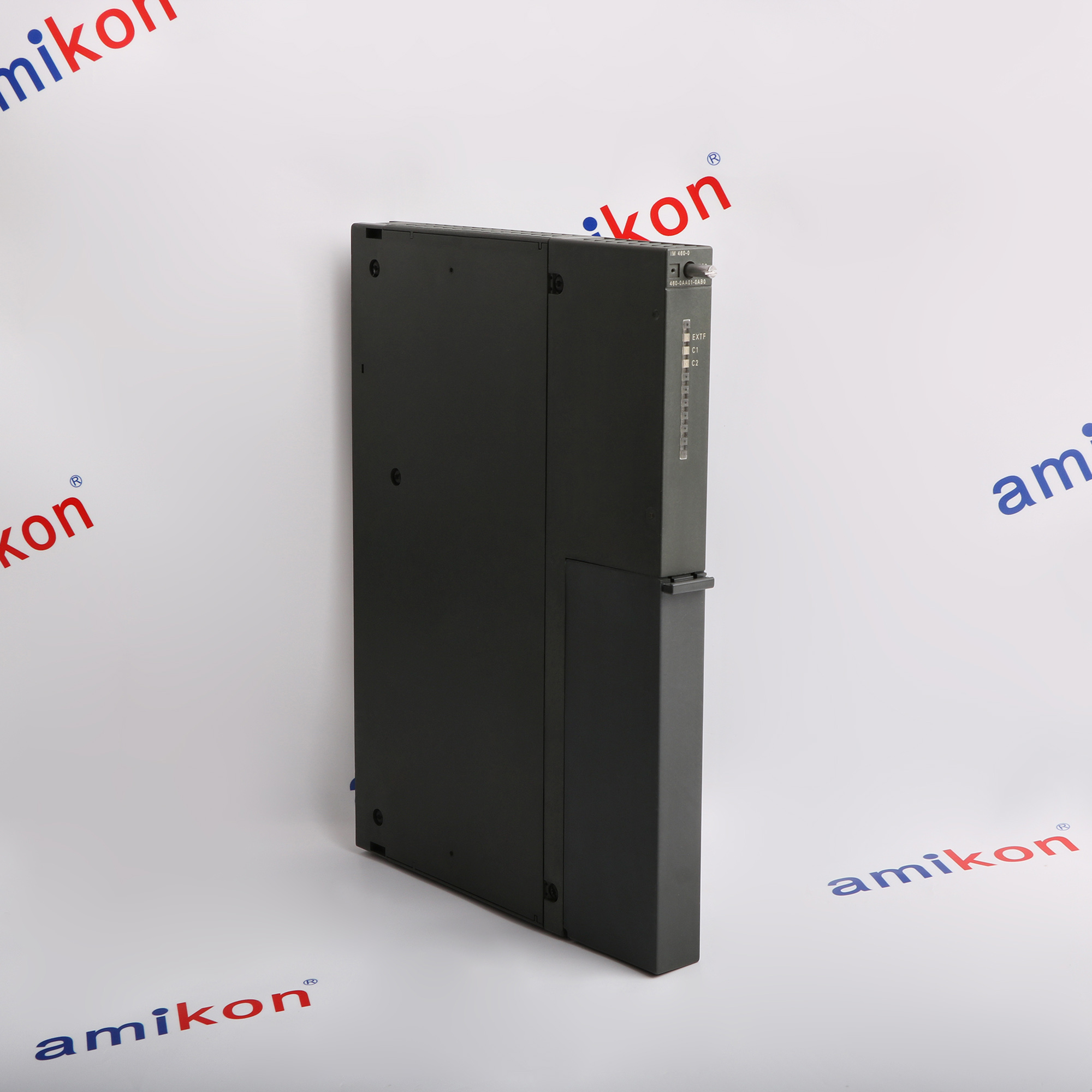

      Siemens 6ES7460-0AA01-0AB0
      Siemens 6ES7460-0AA01-0AB0
      Siemens 6ES7460-0AA01-0AB0
      Siemens 6ES7460-0AA01-0AB0
      Siemens 6ES7460-0AA01-0AB0
      Siemens 6ES7460-0AA01-0AB0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Thursday, November 12

      6ES7460-0AA01-0AB0

      Siemens 6ES7460-0AA01-0AB0 is the S7-400 IM 460-0 send interface for local expansion-rack links up to 5 m, with communication-bus transfer and without 5 V power transfer

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          Local rack expansion with communication-bus transfer

          The Siemens 6ES7460-0AA01-0AB0 IM 460-0 is the central-rack send interface paired with IM 461-0 receivers in expansion racks. It provides two outgoing lines for local connections, supporting up to four expansion racks per line within a maximum total cable length of 5 m.

          The interface pair transfers the P bus and communication bus, but not the expansion-rack 5 V supply. Each receiving chain requires the specified final terminator; unused send connectors do not. Line indicators support connection checks, with their meaning dependent on startup and rack-readiness conditions.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Industrial Production and Service Sectors

          These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
          • 01 · TEXTILE MANUFACTURING

            Manufactured Fibers and Textile Finishing

            Manufactured fiber production for the wider textile manufacturing sector.Textile finishing for materials within the commercial fabric industry.
          • 02 · PLASTICS PROCESSING

            Blow Molding and Thermoforming

            Blow molding within the wider plastic product manufacturing industry.Thermoforming as a manufacturing route for shaped plastic products.
          • 03 · WATER & WASTEWATER

            Desalination and Wastewater Treatment

            Seawater desalination for additional freshwater supply within water utilities.Wastewater treatment serving households, communities and industrial water users.

          Technical specifications for 6ES7460-0AA01-0AB0

          • Product Model
            6ES7460-0AA01-0AB0
          • Product Parameters
            Siemens 6ES7460-0AA01-0AB0 is the S7-400 IM 460-0 send interface for local expansion-rack links up to 5 m, with communication-bus transfer and without 5 V power transfer
          • Manufacturer
            Siemens
          • Interface role
            Send interface in central rack
          • Corresponding receive interface
            IM 461-0, 6ES7461-0AA01-0AA0
          • Outgoing lines
            Two: X1 and X2
          • Maximum total line length
            5 m
          • Expansion racks per line
            Maximum four
          • 5 V supply transfer
            No
          • Communication-bus transfer
            Yes
          • Interconnection cable family
            6ES7468-1...; P bus and communication bus
          • Final receive-side terminator
            6ES7461-0AA00-7AA0 at final IM 461-0
          • Unused send-side termination
            Not required
          • Maximum communication-bus rack scope
            Seven racks: central rack plus expansion-rack numbers 1 to 6
          • Send-module bus current
            Typical 130 mA; maximum 140 mA from 5 V DC
          • Send-module power loss
            Typical 650 mW; maximum 700 mW
          • Backup current
            None
          • Send-side line indicators
            EXTF red; C1 and C2 green, including flashing initialization/readiness states
          View all additional
          View as PDF Ask for Quote
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          LOCAL RACK CONNECTION

          Plan the bus path separately from expansion-rack power

          Place the IM 460-0 send interface in the central rack and match it with the documented IM 461-0 receive interfaces. Its two outgoing lines support local expansion, with up to four expansion racks on a line. Keep the complete cable path within the 5 m total length rather than treating each individual segment as a separate allowance.
          The pair transfers the P bus and communication bus without transferring the 5 V expansion supply. Review the expansion-rack power arrangement separately and use the specified cable family. Communication-bus exchange is limited to the central rack and expansion-rack numbers one through six, even though the wider system permits additional expansion rack addresses.
          Terminate each used line at its final IM 461-0 receive interface and leave unused send connectors unterminated. Interpret C1, C2 and EXTF in the documented startup context: a missing line at power-on can appear as an unoccupied interface. Check the intended topology and rack readiness instead of relying only on an absence of red indication.

          Features:

          • Central-rack send position
          • Separate power and bus planning
          • Startup-aware line diagnosis
          The Siemens 6ES7460-0AA01-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
          INTERCHANGEABILITY

          Verify the complete replacement identity before commissioning

          Confirm the complete 6ES7460-0AA01-0AB0 marking and record the central-rack slot, the two cable destinations and the paired receive interfaces. Do not substitute IM 460-1 based on a similar housing: it changes the line length, power transfer and communication-bus capabilities that the existing expansion arrangement depends on.
          Inspect the cables and final receive-side terminator against the documented topology before the exchange. Preserve receive-rack numbering and the independent power arrangement in each expansion rack. The receive module current consumption and DIP-switch settings are not properties of this send module, so keep those records separate during verification.
          Siemens requires the relevant central and expansion-rack supplies to be switched off before interface modules or their cables are changed. Follow the prescribed CPU and supply sequence, fit the correct module and connections, then restore power in the documented order. Confirm rack initialization and the intended link operation before accepting the replacement.

          Features:

          • Exact send-interface type
          • Receive termination preserved
          • Power-off interface maintenance
          The Siemens 6ES7460-0AA01-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

          Features:

          • Exact-model manufacturer data and relevant original manual pages
          • Verified manufacturer product reference; separate installation document not supplied
          • Accessories and supplied documentation follow the written quotation
          Documentation for the Siemens 6ES7460-0AA01-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

          Also searched as

          6ES7412-5HK06-0AB0 6ES7414-2XG04-0AB0 6ES7971-0BA00 6ES7410-5HX08-0AB0 6ES7407-0KR00-0AA0

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            Confirm final packed dimensions
            Shipping weight
            Confirm final packed weight
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            85176200
            Origin
            Confirm supplied-unit origin
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7460-0AA01-0AB0

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Where is the IM 460-0 fitted?

            It is the send interface in the central rack. The corresponding IM 461-0 is fitted in the expansion rack; their send and receive specifications must not be interchanged.

          • Does the connection power the expansion rack?

            No 5 V power is transferred by this interface pair. Do not apply the powered-link behavior of IM 460-1 to IM 460-0.

          • How many expansion racks can one line serve?

            The manufacturer permits up to four expansion racks per line, within the 5 m total line-length limit. Communication-bus exchange has an additional system rack-number restriction.

          • Does every unused socket require a terminator?

            No. Unused send-side connectors do not require termination. The specified terminator belongs at the last IM 461-0 receive interface in the used line.

          • Why can a disconnected line show no EXTF indication at power-on?

            The manual says that a broken line or missing terminator at power-on can be recognized as an unoccupied interface, leaving the LEDs off. Dark LEDs alone do not prove that the intended link is healthy.

          • Where is the expansion-rack number set?

            The rack-number DIP switch is on the receive interface. It is not a feature of the IM 460-0 send module. Preserve unique valid receive-rack numbers within the configured system.

          • Can interface cables be removed with the rack powered?

            Siemens warns that removing interfaces or their cables under voltage can lose or corrupt data. Switch off the relevant central and expansion-rack supplies before making changes.
