PRODUCT DESCRIPTION
Two current channels for separately supplied transmitters

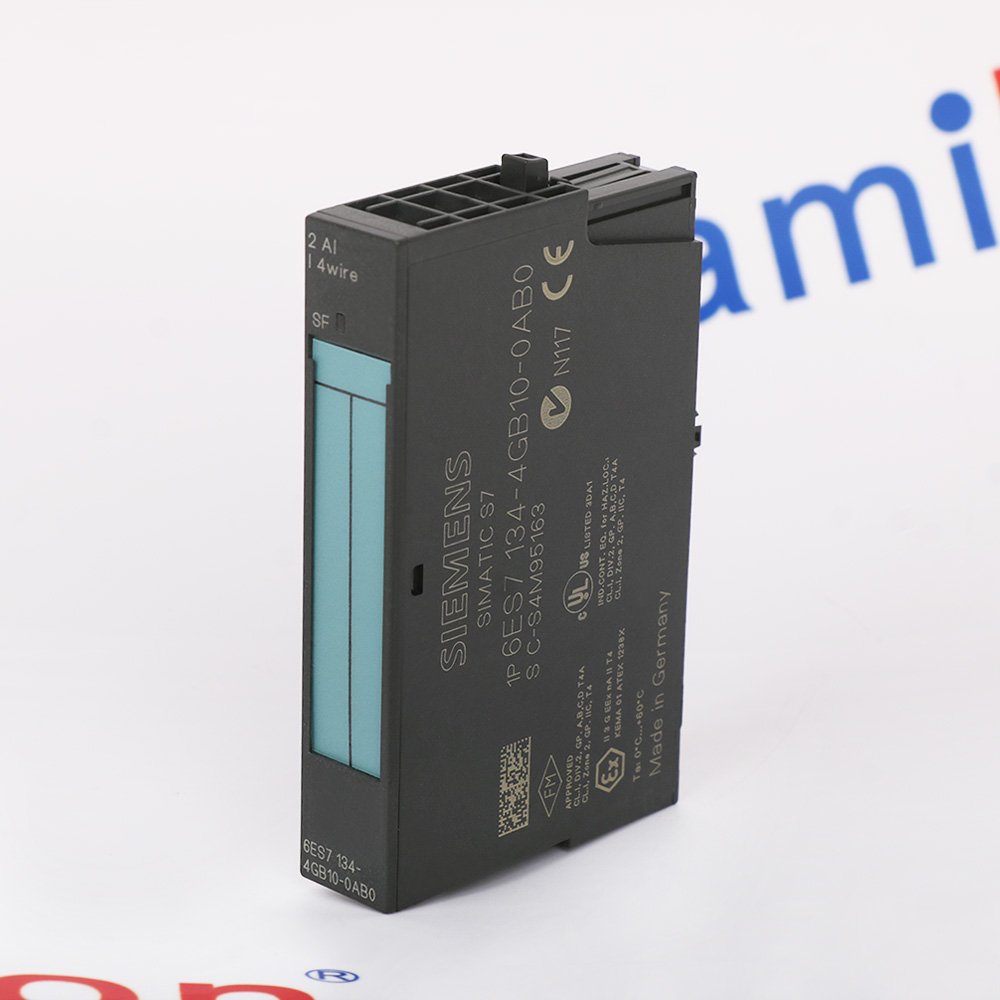

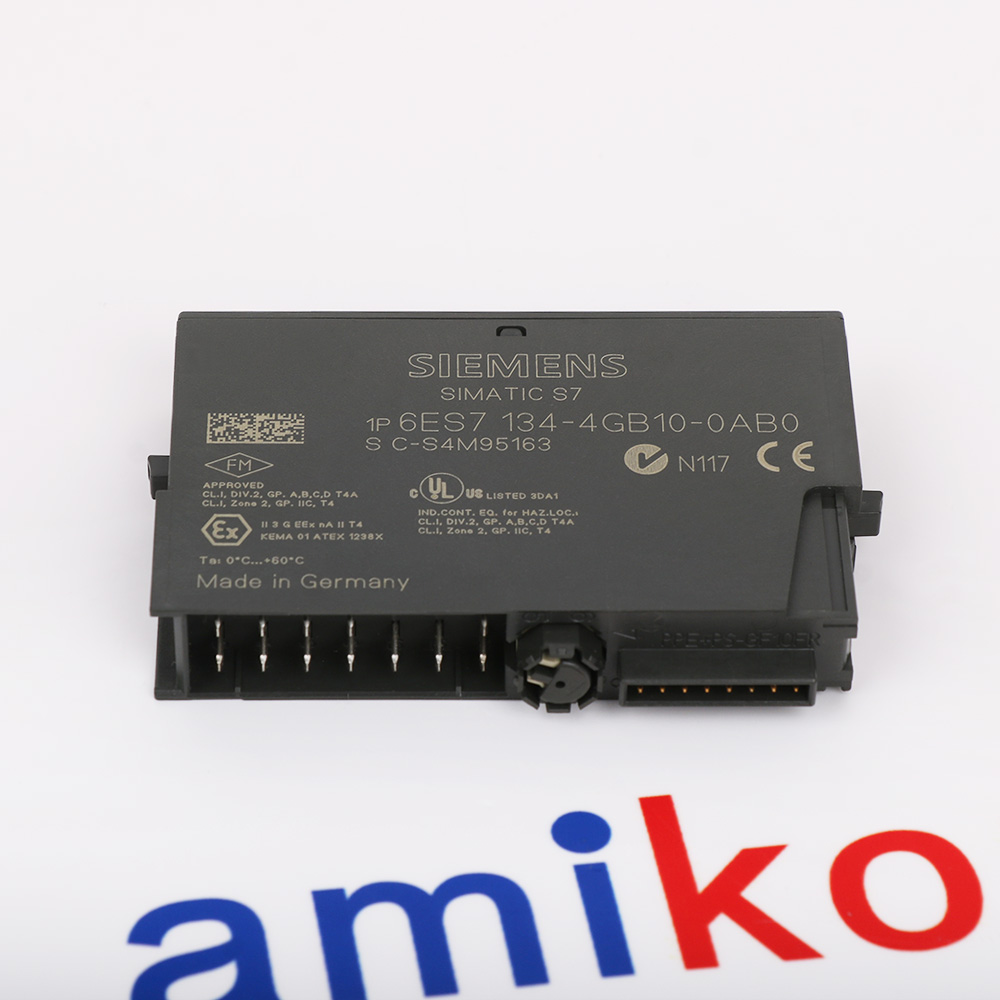

Siemens 6ES7134-4GB10-0AB0 is a Standard current-input module for SIMATIC ET 200S. Its two channels accept four-wire transmitters using either ±20 mA or 4 to 20 mA measurement. Integrating conversion and configurable digital smoothing provide measured values for the controller.
The module receives 24 V DC from its power module and provides a separate transmitter-supply connection. It occupies four input bytes, with readable diagnostics and a red SF indicator. Installation must account for the shared analog reference and the documented limits on external transmitter supplies.
The module receives 24 V DC from its power module and provides a separate transmitter-supply connection. It occupies four input bytes, with readable diagnostics and a red SF indicator. Installation must account for the shared analog reference and the documented limits on external transmitter supplies.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · TEXTILE MANUFACTURING
Fabric Production and Textile Finishing
Fabric production spanning the wider commercial textile manufacturing sector.Textile finishing for materials within the commercial fabric industry. -
02 · PLASTICS PROCESSING
Blow Molding and Thermoforming
Blow molding within the wider plastic product manufacturing industry.Thermoforming as a manufacturing route for shaped plastic products. -
03 · FOOD & BEVERAGE
Beer and Soft Drink Production
Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry.
Technical specifications for 6ES7134-4GB10-0AB0
-
Product Model6ES7134-4GB10-0AB0
-
Product ParametersFour-wire Analog Current Input
-
ManufacturerSiemens
-
Analog inputs2 current channels for four-wire transmitters
-
Measurement ranges and resolution±20 mA: 13 bits plus sign; 4-20 mA: 13 bits, including overrange
-
Input resistance50 ohm in both ranges
-
Input address allocation4 bytes
-
Rated load supply24 V DC from the ET 200S power module; reverse-polarity protected
-
Load-supply current consumptionMaximum 30 mA without transmitter load
-
Transmitter supply protectionShort-circuit protection 60 mA for both channels
-
Power dissipationTypically 0.6 W
-
Conversion time55 ms/channel at 60 Hz suppression; 65 ms/channel at 50 Hz
-
Module cycle timeActive-channel count multiplied by conversion time
-
Digital smoothingTime constants 1, 4, 32 or 64 module cycles
-
Common-mode limit2 V AC peak-to-peak
-
Electrical isolationIsolated from backplane bus; not between channels or from load supply
-
Measurement error limits±0.4% at 25 °C; ±0.6% over temperature range, relative to input range
-
Signal diagnosticsConfigurable group and range diagnostics; wire break only for 4-20 mA; red SF LED
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S FOUR-WIRE CURRENT ACQUISITION
Coordinate transmitter power, current ranges and reference potential
The 4GB10 supplies two current values in four input bytes and supports independently selected ±20 mA or 4-20 mA ranges. Its four-wire diagram provides separate measuring and 24 V transmitter-supply terminals. Match the terminal module to the exact diagram and preserve the existing analog reference arrangement; a two-wire loop-powered connection is not established by the similar ET 200S form factor.
A transmitter using an external power supply requires an isolation and reference review. Siemens permits the documented connection without additional measures when transmitter output and supply are isolated, but otherwise requires the 24 V supply reference potentials to be the same. The module's 2 V AC peak-to-peak common-mode limit remains relevant, and shield treatment depends on the actual ground-potential conditions.
At 50 Hz suppression, conversion requires 65 ms per active input; at 60 Hz it requires 55 ms. The module cycle follows the active-channel count, while digital smoothing applies time constants of one, four, 32 or 64 cycles. Set the response deliberately and interpret startup, missing-supply and diagnostic codes separately from process readings, particularly when commissioning a single active channel.
Features:
- Separate transmitter power connections
- Common-reference verification
- Conversion and smoothing coordination
The Siemens 6ES7134-4GB10-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm the complete 6ES7134-4GB10-0AB0 order code and the installed terminal module before selecting a spare. This Standard module uses four-wire current measurement, not two-wire loop power or High Speed conversion. For a different order number, compare the electrical interfaces, supported ranges and station configuration, and obtain a documented compatibility decision before treating it as an interchangeable replacement.
Retain the configured current ranges, active channels, smoothing and diagnostic choices. Wire-break monitoring is available only for the 4-20 mA range; a bipolar channel requires a different approach to interpreting its diagnostic response. Restore the approved project settings instead of relying on defaults, and verify that both channel values occupy the expected input addresses in the controller.
Use qualified personnel and the supported station removal procedure, retaining the coding arrangement for a same-type module. Check the separate transmitter supply and analog reference before reconnecting signals. After restoration, allow conversion to complete, inspect SF and readable diagnostics, and verify a known permitted current; a 7FFFH startup or missing-supply value must not be accepted as a real measurement.
Features:
- Exact four-wire spare identity
- Retained range and filtering setup
- Coding, supply and signal checks
The Siemens 6ES7134-4GB10-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7134-4GB10-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-4GB10-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this a loop-powered two-wire input?
No. The 4GB10 is a four-wire current-input module. Its terminal diagram separates current-measurement connections from the 24 V transmitter-supply connections. Match the installed transmitter and terminal module to that arrangement; do not wire it as a loop-powered two-wire input. -
Can an externally supplied transmitter be connected?
Yes, subject to the documented reference conditions. With isolated transmitter output and supply, no additional reference connection is required by the cited guidance. Without that isolation, the 24 V supply reference potentials must be the same. Review the analog common-mode limit and site wiring. -
Does wire-break monitoring work in the bipolar range?
No. Siemens limits wire-break diagnostics to 4-20 mA for the 2AI I 4WIRE Standard. The ±20 mA range is a valid measurement range, but enabling wire-break monitoring there does not establish valid open-circuit detection. -
What happens if only one channel is used?
Deactivate the unused input in the configuration. A deactivated channel returns 7FFFH and, for this Standard module, the cycle time is halved. Do not import the unused-input jumper table for voltage or temperature modules into the four-wire current circuit. -
Are the channels individually isolated?
No. The exact technical table states isolation from the backplane bus, but not between the channels or from load voltage L+. The two inputs therefore do not provide independent galvanically isolated measuring circuits. -
Can the module be exchanged during operation without checks?
No. The system manual makes removal during operation dependent on supported interface modules and parameter assignment. When replacing multiple modules, only one gap may result. Apply the approved station procedure and preserve the mechanical coding instead of assuming unrestricted hot swapping.
