PRODUCT DESCRIPTION
Four analog outputs with load-specific terminal coding

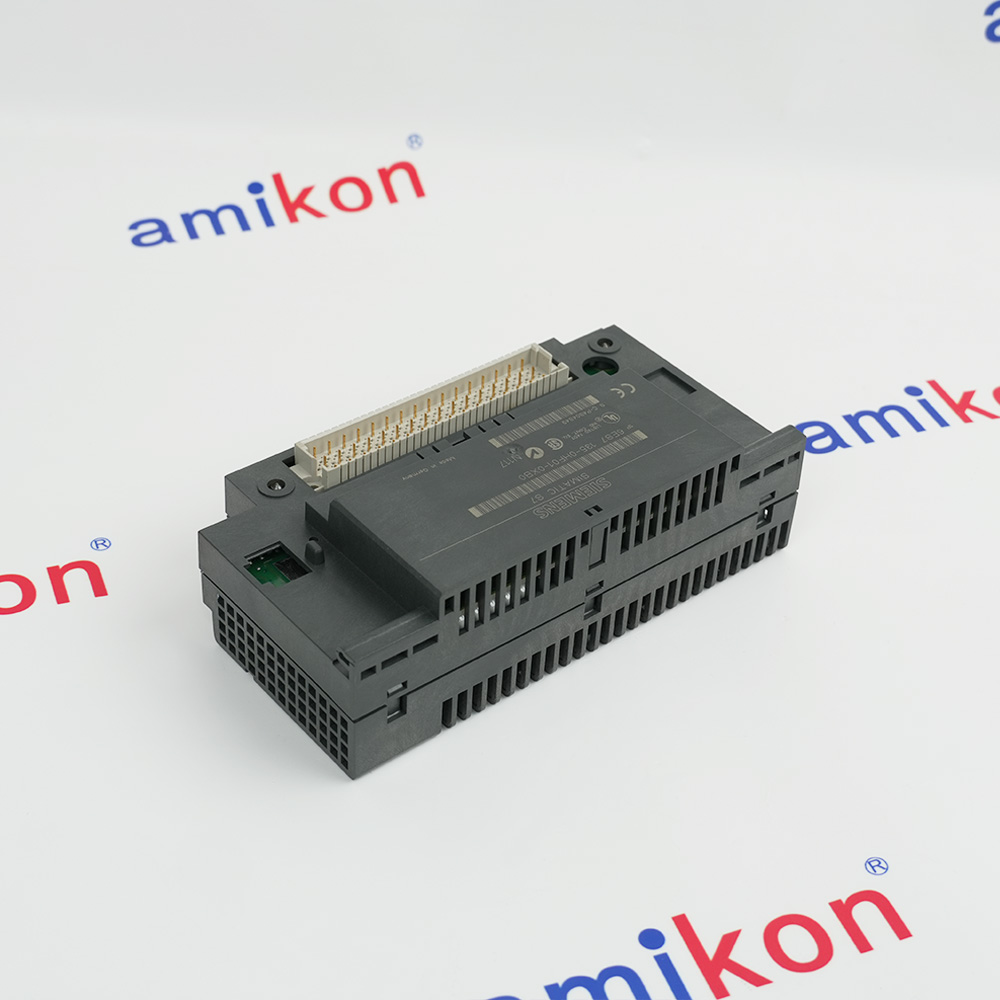

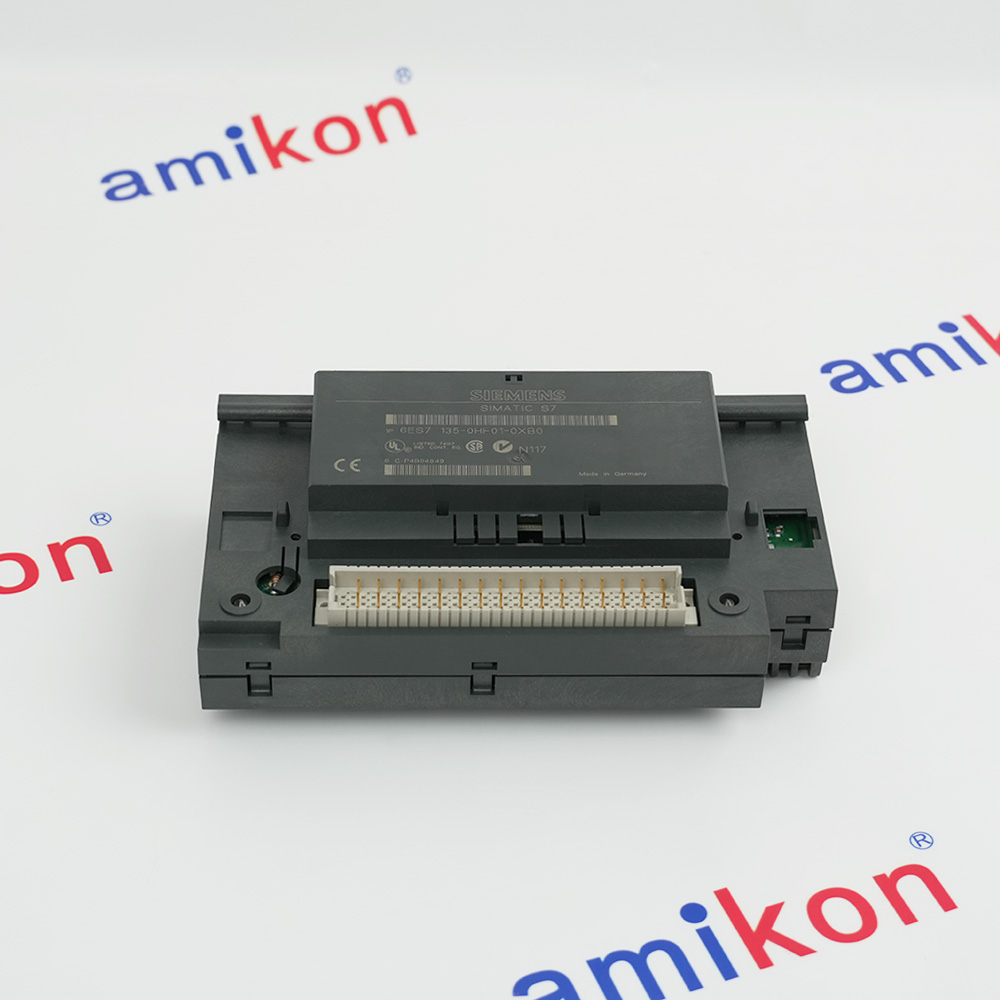

Siemens 6ES7135-0HF01-0XB0 is the ET 200B-4AO electronics block for PROFIBUS DP. It provides four configurable voltage or current outputs and operates with the TB8 terminal block. Output type and range depend on both terminal coding and the downloaded module parameters.
Voltage loads can use two-wire connections or four-wire sensing to compensate lead drops, while current loads use the documented two-wire circuit. Configurable diagnostics and communication-interruption output settings support maintenance of an existing installation, provided its addressing, analog representation and load connections are retained correctly.
Voltage loads can use two-wire connections or four-wire sensing to compensate lead drops, while current loads use the documented two-wire circuit. Configurable diagnostics and communication-interruption output settings support maintenance of an existing installation, provided its addressing, analog representation and load connections are retained correctly.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · TEXTILE MANUFACTURING
Natural Fibers and Fabric Production
Natural fiber production and processing within the textile industry.Fabric production spanning the wider commercial textile manufacturing sector. -
02 · FOOD & BEVERAGE
Edible Oil and Sugar Production
Edible oil production and processing across the food manufacturing sector.Sugar manufacturing and processing within the commercial food industry. -
03 · PACKAGING
Pharmaceutical and Non-food Packaging
Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets.
Technical specifications for 6ES7135-0HF01-0XB0
-
Product Model6ES7135-0HF01-0XB0
-
Product ParametersET 200B Analog Output Block
-
ManufacturerSiemens
-
Analog outputs4 configurable channels
-
Voltage ranges±10 V and 0-10 V
-
Current ranges±20 mA, 0-20 mA and 4-20 mA in the exact historical manual
-
Required terminal blockTB8 with circuit-specific coding plugs
-
Bus interfacePROFIBUS DP; up to 12 Mbit/s, limited to 1.5 Mbit/s with IM308-B
-
Rated supply24 V DC; permissible 18.5-30.2 V DC
-
Logic current consumptionMaximum 200 mA from L+
-
Typical power loss2.4 W
-
Output conversion11-bit two's-complement data; approximately 1 ms conversion
-
Voltage load resistanceMinimum 3.3 kohm
-
Current load impedanceMaximum 300 ohm
-
Reactive load limitsMaximum 1 microfarad capacitive and 1 millihenry inductive load
-
Voltage remote sensingFour-wire sensing compensates up to 3 V drop per line
-
Shielded cable lengthMaximum 100 m
-
Communication-interruption outputConfigurable substitute value or last value per channel with SI8018BE.200
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200B PROFIBUS ANALOG OUTPUTS
Coordinate TB8 coding with addressing and analog-value format
The ET 200B-4AO uses the TB8 terminal block, and its output circuit is selected through the coding plugs as well as the software parameters. Four-wire voltage wiring uses separate sensing leads at the load, whereas two-wire voltage and current circuits follow different drawings. Check every channel's circuit against the selected output range before interpreting a commanded value as the required actuator signal.
With the SI8018BE.200 type file, the output area can be configured as one four-word module or as separately addressed channels. The configuration determines which channels provide diagnostic information. The module also supports distinct SIMATIC S5 and S7 analog representations, so preserve the selected data format and controller scaling; an unchanged output word does not necessarily represent the same physical signal after a format change.
All channel return terminals have a fixed relationship to analog ground, so non-floating loads sharing a reference can create unwanted currents if their potentials differ. Follow the specified grounding and shielding arrangements and observe the voltage-load resistance, current-loop impedance and cable limits. The supply must remain within its operating tolerance because undervoltage can make the analog output depart from the commanded value.
Features:
- Hardware and software circuit selection
- Addressing and analog-format coordination
- Reference-potential and load checks
The Siemens 6ES7135-0HF01-0XB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Before removing the electronics block, preserve the exact order number, TB8 coding positions and configuration-file identity. Siemens requires the terminal block's STOP/RUN switch to be set to STOP before disengaging or fitting the block. This protects the electronics but does not replace the plant's safe isolation procedure, particularly where an analog output controls an actuator whose movement could create a hazard.
Restore the output ranges, channel addresses and S5 or S7 analog representation together. The manual identifies older and newer type-file versions with different supported functions, including individual channel addressing and substitute-output behavior. Replacing the electronics without checking the engineering-file choice can therefore leave the expected electrical output or fault response different even when the physical module identity is correct.
Before releasing the process, verify the configured response to a communication interruption and compare a controlled output command with the signal measured at the actual load. For a sensed voltage circuit, confirm that the sensing leads remain at the load; for current operation, check the documented loop impedance. Review the bus, supply and channel diagnostics and leave unused output terminals open as specified.
Features:
- STOP-position replacement procedure
- Type-file and output-format retention
- Load-side signal and fault-response checks
The Siemens 6ES7135-0HF01-0XB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7135-0HF01-0XB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7135-0HF01-0XB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 6ES7135-0HF01-0XB0 an analog input module?
No. The exact order number is the ET 200B-4AO output electronics block. Its detailed parameter and technical tables specify four outputs; the similarly numbered 6ES7134 input block must not be used as its specification source. -
Can software alone change a voltage circuit into a current circuit?
No. The manual requires both the appropriate TB8 coding-plug position and the corresponding software output type/range. Compare the original connection drawing before changing the circuit or restoring a spare. -
When is four-wire voltage sensing useful?
The two sensing lines connect directly at the load and allow compensation of up to 3 V drop per line. Two-wire voltage wiring is suitable only when signal-line resistance is negligible relative to load resistance. -
What should happen to unused outputs?
Leave the unused output connection terminals open, as required by the exact output section. Also verify the configured channel count because diagnostic messages and slave diagnostic data are returned only for configured channels. -
Does loss of communication always force every output to zero?
No. With the documented SI8018BE.200 type file, each channel can use a configured substitute value or its last value on communication interruption. Confirm the actual settings and the required process response; a default is not evidence of the installed behavior. -
Can the electronics block be removed while its STOP/RUN switch is at RUN?
The manual explicitly warns to put the terminal-block switch at STOP before removing, fitting or replacing the electronics block, to avoid electrical damage. Apply the complete plant isolation and commissioning procedure as well; this instruction is not a blanket hot-swap authorization.
