PRODUCT DESCRIPTION

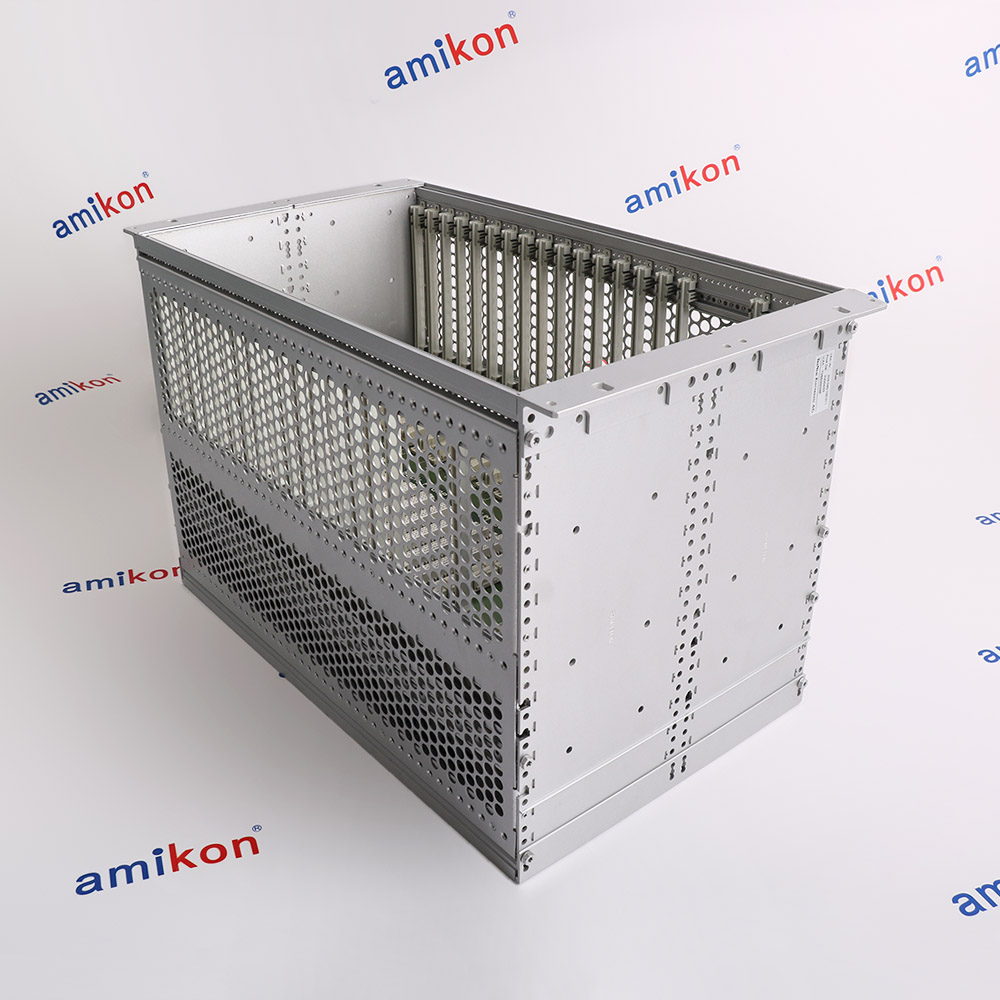

VM600 ABE040 204-040-100-011 Machinery monitoring system rack
Vibro-Meter VM600 ABE040 204-040-100-011 is a legacy system rack for VM600 machinery protection and condition monitoring. Its 19-inch, 6U architecture houses the processing, interface and power-supply components of the configured monitoring system.
The rack provides up to fifteen front single-width module positions, including twelve processing positions, two controller positions and one application-specific position. Its backplane distributes power and the VME, Tacho, Raw and open-collector buses. This early rack revision must retain the applicable legacy power limits when a later RPS6U supply is considered.
The rack provides up to fifteen front single-width module positions, including twelve processing positions, two controller positions and one application-specific position. Its backplane distributes power and the VME, Tacho, Raw and open-collector buses. This early rack revision must retain the applicable legacy power limits when a later RPS6U supply is considered.
BEFORE YOU BUY
Confirm the complete machinery monitoring system rack
ACTUAL APPLICATIONS
Application context for VM600 ABE040 204-040-100-011
VM600 ABE040 204-040-100-011 is used in the following application areas within compatible VM600 ABE040 configurations.
-
01 · POWER GENERATION
Thermal Electricity and Hydroelectric Power Generation
Combined-Cycle Power GenerationPumped-Storage Hydropower -
02 · OIL & GAS
Petroleum Exploration and Natural Gas Transmission
Offshore Petroleum DevelopmentCross-Regional Gas Transmission -
03 · CHEMICAL & PETROCHEMICAL
Basic Chemicals and Specialty Chemical Manufacturing
Petrochemical ManufacturingFine Chemical Manufacturing
Technical specifications for VM600 ABE040 204-040-100-011
-
Product ModelVM600 ABE040 204-040-100-011
-
Product ParametersMachinery monitoring system rack
-
In stock1 unit
-
ManufacturerVibro-Meter
-
Rack installation format19-inch cabinet or panel rack
-
Rack height class6U
-
Front single-width module positionsUp to 15
-
Processing-module positions12, slots 03 to 14
-
Controller-module positions2, slots 00 and 01
-
Application-specific positionSlot 02
-
Rack power-supply positionsOne or two RPS6U units
-
Distributed module supplies+5 V DC and +/-12 V DC
-
Backplane communicationVME bus
-
Shared signal busesTacho, Raw and open-collector buses
-
Slot-number coding range3 to 14, fixed in the rack
-
Module access arrangementProcessing modules at front; associated I/O at rear
-
Frame constructionExtruded aluminium with solid aluminium structural parts
-
Unused-slot protectionBlank panels required
-
Legacy rack power conditionEarlier rack revisions must retain their existing load when using a later 330 W RPS6U
View all additional
Alternative Names
VM600 ABE040 204-040-100-011
204-040-100-011
Vibro-Meter ABE040 rack
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate VM600 ABE040 204-040-100-011 machinery monitoring system rack
Assign processing modules to slots 03–14 and controller modules to slots 00–01 in the VM600 rack plan. Associated I/O modules are fitted from the rear. Fixed slot-number coding must agree with the configuration of the installed modules.
The configured RPS6U supplies provide the module rails through the backplane. One or two supply units may be present, but the supply count alone does not establish a redundant arrangement. For legacy ABE040 racks at revision -014 or earlier, the manufacturer hardware manual limits replacement with later 330 W supplies to cases where the rack load is not increased.
The rack provides up to fifteen front single-width module positions, including twelve processing positions, two controller positions and one application-specific position. Its backplane distributes power and the VME, Tacho, Raw and open-collector buses. This early rack revision must retain the applicable legacy power limits when a later RPS6U supply is considered.
Features:
- Fifteen front positions in 19-inch/6U architecture
- VME and shared monitoring signal buses
- Fixed coding for processing slots 03–14
The VM600 ABE040 204-040-100-011 machinery monitoring system rack requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify VM600 ABE040 204-040-100-011 machinery monitoring system rack
Retain the complete -011 rack ordering number and inventory every installed module and supply before replacement. Compare mounting brackets, front/rear access, backplane connections and slot coding with the existing rack.
Do not treat the newer 330 W supply rating as an increase in the allowable current of this older rack. Recheck the unchanged load plan and the manufacturer power constraints, then verify module seating, rack-supply indications and covered unused slots before returning the system to operation.
The manufacturer requires unused module slots to be covered with the appropriate blank panels.
Features:
- Preserve the legacy -011 rack identity
- Retain earlier-rack current constraints
- Check brackets, coding and unused-slot covers
The VM600 ABE040 204-040-100-011 machinery monitoring system rack requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the VM600 ABE040 204-040-100-011 machinery monitoring system rack must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size48.3 x 30.1 x 26.5 cm
-
Shipping weight6.36 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538909100
-
OriginSwitzerland
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about VM600 ABE040 204-040-100-011
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is 204-040-100-011 a vibration sensor or a system rack?
It is the ABE040 VM600 system rack; sensors and signal-processing modules are separate components. -
How are the fifteen front positions allocated?
The documented rack architecture provides twelve processing positions, two controller positions and one application-specific position. -
Are processing and associated I/O modules inserted from the same side?
No. Processing modules are installed at the front, while associated I/O modules are installed from the rear. -
Does fitting a newer 330 W RPS6U increase the capacity of a legacy -011 rack?
No. The manufacturer hardware manual permits such earlier-rack replacement only when the load does not increase and the applicable constraints are met. -
What does fixed slot-number coding require?
The installed module coding must match the rack position defined in the system configuration. -
May unused rack slots remain open after maintenance?
The manufacturer requires unused module slots to be covered with the appropriate blank panels. -
What should be identified when requesting a replacement ABE040 rack?
State 204-040-100-011 and provide the installed supply codes, module inventory, mounting arrangement and whether a bare rack or populated assembly is required. -
Are the RPS6U supplies and processing modules automatically supplied with the rack?
Only components listed in the quotation are included; specify the required rack, backplane, supplies, modules and blank panels individually.
