Technical specifications for CA202 144-202-000-205
-
Product ModelCA202 144-202-000-205
-
Product ParametersCA202 piezoelectricaccelerometer
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x12.5x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.25 kg
-
Signal transmission2-pin system
-
Signal processingCharge converter
-
Dynamic measurement range0.01 to 400 g peak
-
Overload capacity (spikes)Up to 500 g peak
-
0.01 to 20 g (peak)±1%
-
20 to 400 g (peak)±2%
-
Transverse sensitivity≤3%
-
Resonant frequency>22 kHz nominal
-
Internal insulation resistance109 Ω minimum
-
Sensor5000 pF pin to pin
Description

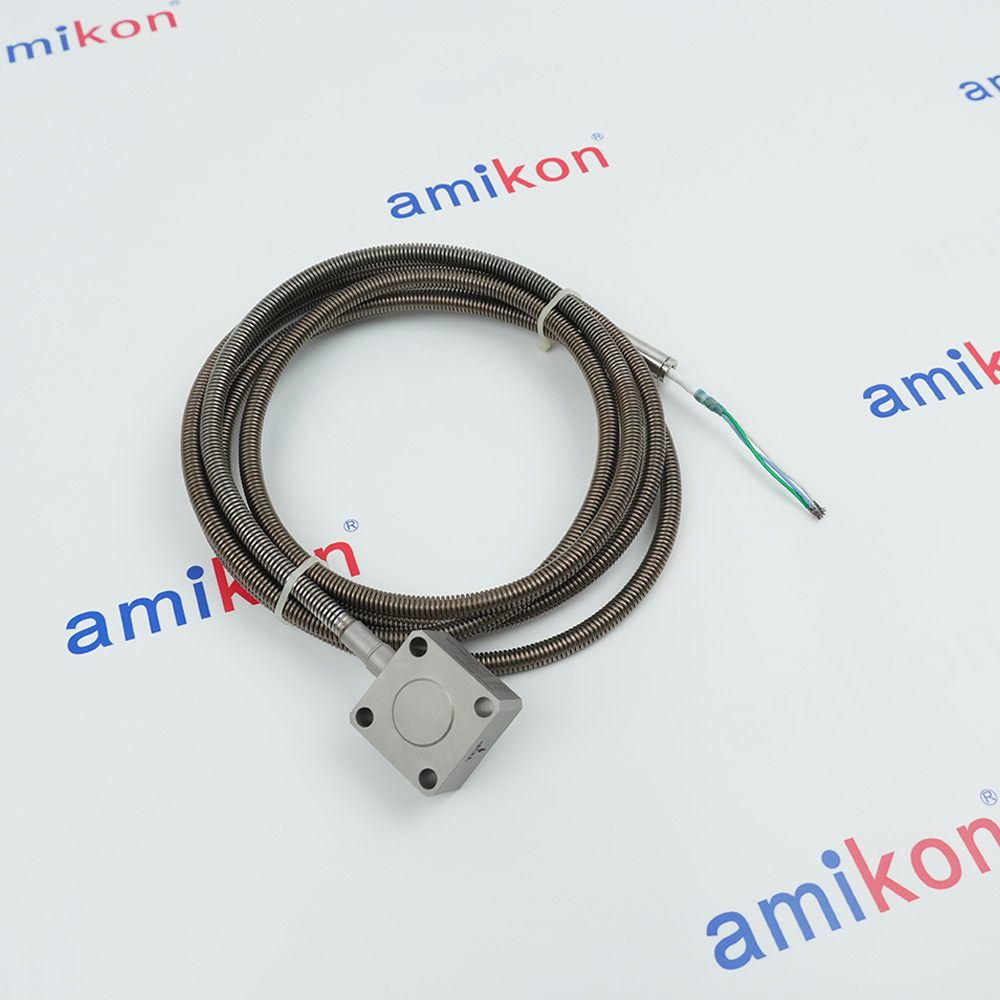

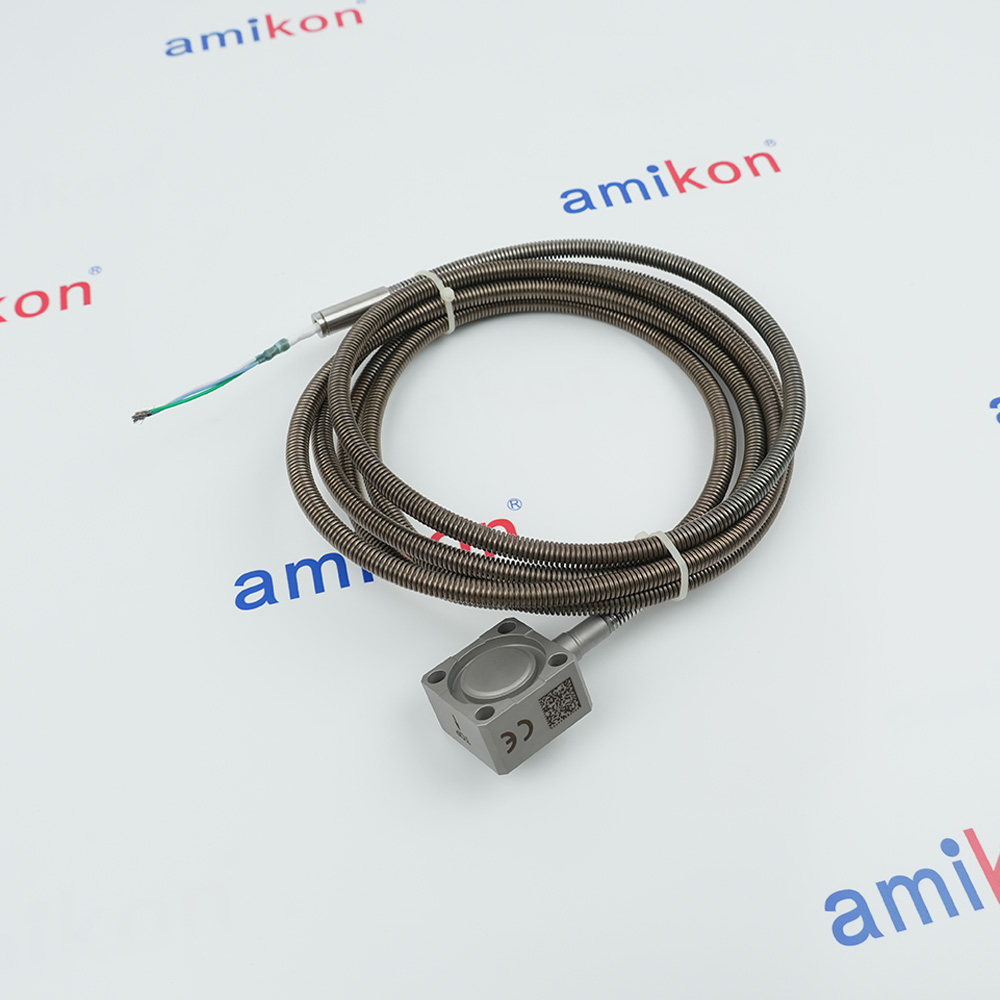

The CA202 is a piezoelectric accelerometer from Meggitt's vibro-meter® product line, designed for heavy-duty industrial vibration monitoring in harsh environments. The CA202 features a symmetrical shear-mode polycrystalline measuring element with internal case insulation, housed in an austenitic stainless-steel case that is hermetically welded to provide a sealed, leaktight assembly.
The CA202 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose, which is hermetically welded to the sensor to produce a sealed leaktight assembly impervious to 100% relative humidity (RH), water, steam, oil, and sea-salt atmospheres, as well as other potential contaminants such as dust, fungus, and sand. The CA202 is available in different versions for different industrial environments: Ex versions for installation in potentially explosive atmospheres (hazardous areas) and standard versions for use in non-hazardous areas.
The CA202 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose, which is hermetically welded to the sensor to produce a sealed leaktight assembly impervious to 100% relative humidity (RH), water, steam, oil, and sea-salt atmospheres, as well as other potential contaminants such as dust, fungus, and sand. The CA202 is available in different versions for different industrial environments: Ex versions for installation in potentially explosive atmospheres (hazardous areas) and standard versions for use in non-hazardous areas.
Alternative Names
CA202-144-202-000-205
CA202 144 202 000 205
CA202 I44-202-000-205
CA202 144-2O2-000-2O5
CA2O2 144-202-000-205
144-202-000-205 CA202
Information
Overview
Manuals
Application Notes
Product Applications
Cable Routing & Mechanical Strain Relief
Features:
- From the vibro-meter® product line
- High sensitivity: 100 pC/g
- Frequency response: 0.5 to 6000 Hz
- Temperature range: −55 to 260°C
- Symmetrical sensor with internal caseinsulation and differential output
- Integral cable
The 144-202-000-205 designation specifies the standard version with a 3 metre integral cable. The sensor operates on the piezoelectric principle, generating a charge output proportional to applied acceleration. As a passive device, it requires no input power. The charge output is processed by an external charge converter such as the IPC70x series signal conditioner, which converts the charge signal into a current or voltage signal compatible with monitoring and control systems.
Sensitivity is rated at 100 pC/g ± 5%, calibrated at 120 Hz with 5 g excitation at 23°C. The dynamic measurement range spans 0.01 to 400 g peak, with overload capacity up to 500 g peak for short-duration spikes. Linearity is ± 1% from 0.01 to 20 g peak and ± 2% from 20 to 400 g peak. Transverse sensitivity does not exceed 3%. The resonant frequency is above 22 kHz nominal.
The CA202 144-202-000-205 Vibro-Meter CA202 piezoelectricaccelerometer may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter CA202 144-202-000-205 CA202 piezoelectricaccelerometer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Mounting is performed using four M6 × 35 Allen screws and four M4 spring-lock washers at a nominal tightening torque of 15 N·m (11.1 lb-ft). Electrical insulation of the mounting surface is not required. An optional mounting adapter kit (MA133, part number 809-133-000-011) with Micaver® thermally isolating base is available for applications requiring thermal decoupling.
The CA202 144-202-000-205 carries CE marking, EAC marking for the Eurasian Customs Union, and complies with EN 61000-6-2 (immunity), EN 61000-6-4 (emission), and EN 61010-1 (electrical safety) standards. It is RoHS compliant per Directive 2011/65/EU. Ex versions certified for potentially explosive atmospheres are available under separate part numbers (144-202-000-1xx series).
- Power Generation Machinery:Long-term vibration: gas/steam turbines & generators
- Petrochemical & Oil Refining:Ex-certified sensors: compressors/pumps in flammable gas
- Aerospace & Aviation:Flight testing: engines, landing gear & structure (Airbus/Boeing)
- Industrial Manufacturing:Early fault detection for robots, conveyors & machine tools
- Extreme Environmental Monitoring:Rugged: 100% humidity, salt spray, steam, dust/sand
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Minimum Bend Radius: Never bend the flexible stainless-steel armored hose tighter than a radius of 50 mm.
Fixing Points: Rigidly clamp or clip the armored cable to the machine structural housing. The first anchoring clip must sit within 100 to 200 mm of the accelerometer body. Subsequent anchors should follow the same spacing to prevent whipping.
Avoid Torsional Stress: Ensure the hose is not twisted or under tension during routing. Leave a slight slack loop at joints that experience thermal expansion.
Technical notes
The CA202 offers a high sensitivity of 100 pC/g ±5% at 120 Hz with 5g, with a dynamic measurement range from 0.01 to 400g peak and overload capacity up to 500g peak. The CA202 maintains excellent linearity of ±1% from 0.01 to 20g peak and ±2% from 20 to 400g peak, with transverse sensitivity of ≤3% and a resonant frequency of >22 kHz nominal. The CA202 operates reliably across a wide temperature range, with continuous operation from −55 to +260°C (−67 to +500°F) for the sensor and −55 to +200°C (−67 to +392°F) for the integral cable, and short-term survival from −70 to +280°C (−94 to +536°F) for the sensor.
FAQs
-
What is the measuring principle of the CA202?
+It utilizes the piezoelectric effect. When the machine vibrates, the internal polycrystalline measuring element is stressed, generating an electrical charge proportional to the acceleration. -
Does it require external power?
+No. Because it is a charge-output type accelerometer, the sensor itself does not require power. Power is supplied to the external charge amplifier/signal conditioner it connects to. -
Can this sensor be used in explosive or hazardous atmospheres?
+Yes. The CA202 series is available in both standard and certified Ex versions specifically approved for use in potentially explosive or hazardous industrial environments. -
What is the purpose of the stainless-steel hose?
+The CA202 comes with an integral, hermetically welded, flexible stainless-steel hose. This creates a completely sealed assembly designed to resist 260 °C high-temperature steam, lubricating oil sprays, and salt spray corrosion in heavy-duty machinery.
