Technical specifications for CA202 144-202-000-215
-
Product ModelCA202 144-202-000-215
-
Spare Model144-202-000-215
-
Product ParametersPiezoelectricaccelerometer
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size23x23x4cm
-
ManufacturerVibro-Meter
-
Weight1.05 kg
-
Signal transmission2-pin system
-
Dynamic measurement range0.01 to 400 g peak
-
Overload capacityUp to 500 g peak
-
0.01 to 20 g (peak)±1%
-
20 to 400 g (peak)±2%
-
Transverse sensitivity≤3%
-
Resonant frequency>22 kHz nominal
Description

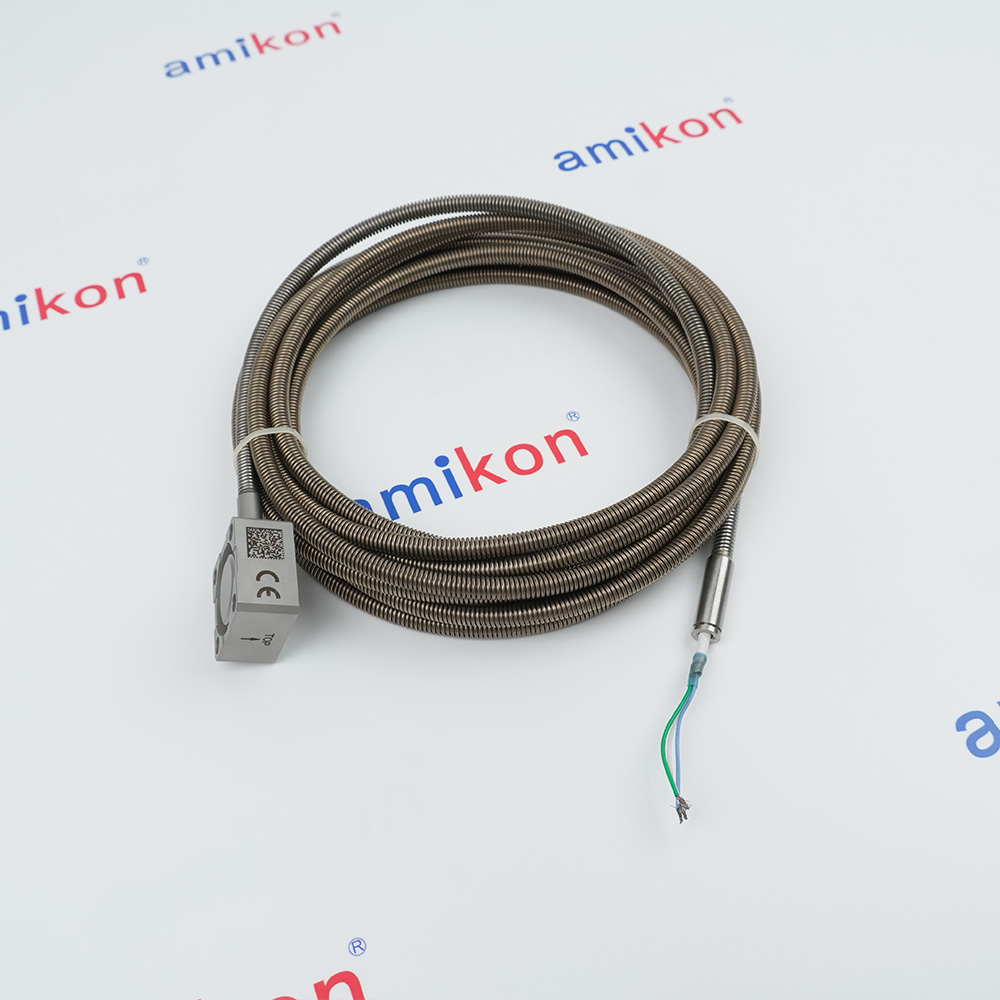

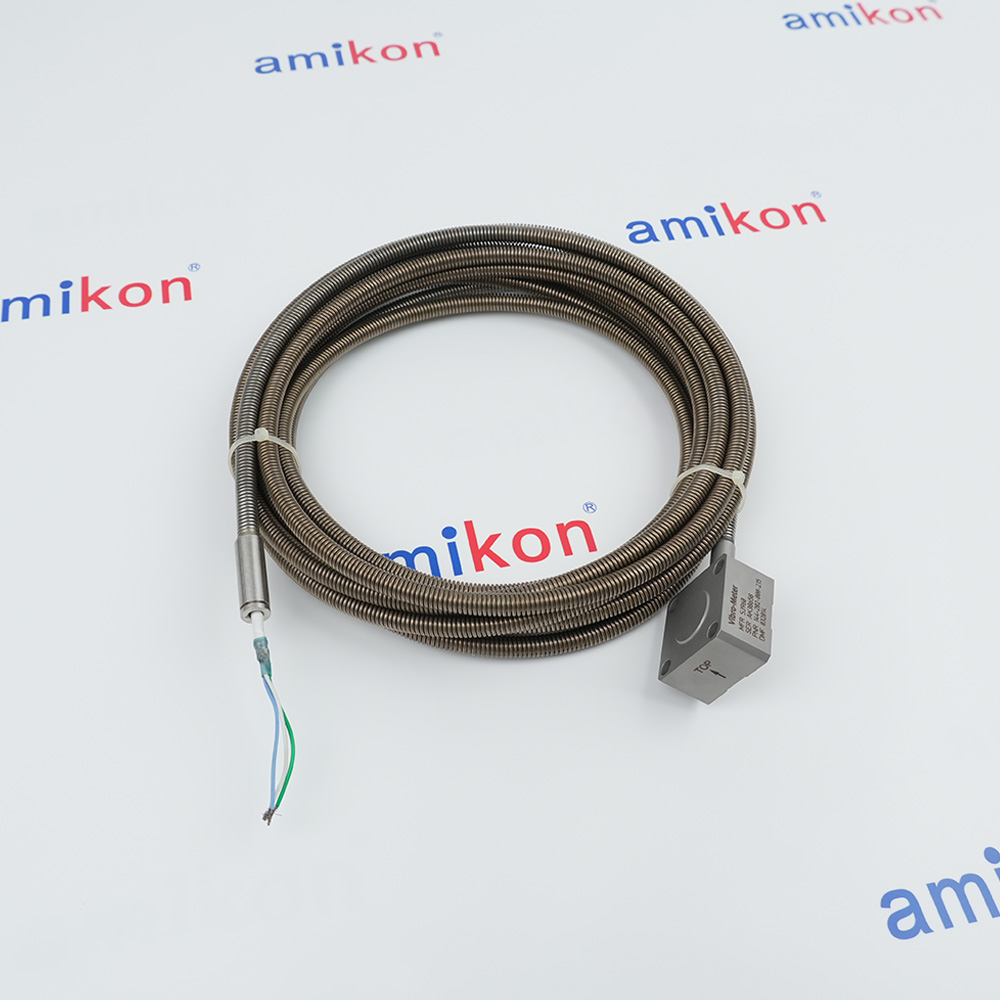

The CA202 is a piezoelectric accelerometer fromMeggitt’s vibro-meter® product line.The CA202 sensor features a symmetrical shearmode polycrystalline measuring element withinternal case insulation in an austenitic stainlesssteel case (housing).
The CA202 is fitted with an integral low-noisecable that is protected by a flexible stainless-steelprotection hose (leaktight) which is hermeticallywelded to the sensor to produce a sealedleaktight assembly.
The CA202 piezoelectric accelerometer isavailable in different versions for differentindustrial environments: Ex versions for installationin potentially explosive atmospheres (hazardousareas) and standard versions for use in nonhazardous areas.
The CA202 is fitted with an integral low-noisecable that is protected by a flexible stainless-steelprotection hose (leaktight) which is hermeticallywelded to the sensor to produce a sealedleaktight assembly.
The CA202 piezoelectric accelerometer isavailable in different versions for differentindustrial environments: Ex versions for installationin potentially explosive atmospheres (hazardousareas) and standard versions for use in nonhazardous areas.
Alternative Names
CA202 144-202-000-2I5
CA202 144-202-00O-215
CA202 144-202-O00-215
CA202 144-2O2-000-215
CA202 I44-202-000-215
CA2O2 144-202-000-215
CA202-144-202-000-215
CA202 144202000215
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Mechanical Mounting
Features:
- High sensitivity: 100 pC/g
- Wide Frequency Response (0.5 to 6000 Hz)
- Extended Temperature Range (-55°C to +260°C)
- Available in Standard and Ex Certified Versions
- Symmetrical Sensor with Internal Case Insulation and Differential Output
The Vibro-Meter CA202 144-202-000-215 delivers a high sensitivity of 100 pC/g ±5% at 120 Hz with 5g, enabling precise measurement of vibration signals. The CA202 features a wide dynamic measurement range from 0.01 to 400g peak with overload capacity up to 500g peak. The CA202 maintains excellent linearity of ±1% from 0.01 to 20g peak and ±2% from 20 to 400g peak, with transverse sensitivity of ≤3%.
The CA202 144-202-000-215 Vibro-Meter Piezoelectric accelerometer may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter CA202 144-202-000-215 Piezoelectric accelerometer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Vibro-Meter CA202 144-202-000-215 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose. The CA202 protection hose is hermetically welded to the sensor to produce a sealed leaktight assembly that is impervious to 100% relative humidity, water, steam, oil, and sea-salt atmospheres, in addition to other potential contaminants such as dust, fungus, and chemicals.
The Vibro-Meter CA202 144-202-000-215 is available in standard versions for non-hazardous areas and Ex versions certified for use in potentially explosive atmospheres. The CA202 carries CE marking, EAC marking for the Eurasian Customs Union, and complies with EN 61000-6-2 for immunity, EN 61000-6-4 for emissions, EN 61010-1 for electrical safety, and RoHS Directive 2011/65/EU.
- Power Generation: Long-term vibration monitoring on heavy-duty gas and steam turbines
- Oil & Gas: Deployed in hazardous refineries, pipeline facilities, and offshore platforms
- Nuclear/Energy: Continuous measurement in high-temperature and explosive atmospheres
- Heavy Manufacturing: Monitors industrial machinery, conveyors, and machine tools in harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Pattern: The sensor utilizes a 4-hole pattern and must be secured using four M6 × 35 Allen screws along with four M6 spring-lock washers.
Tightening Torque: Apply a uniform nominal tightening torque of 15 N⋅m (11.1 lb-ft) across all four screws.
Surface Requirements: Ensure the mounting surface is clean, flat, and free of paint or debris. Electrical insulation of the mounting surface is not required.
Technical notes
The Vibro-Meter CA202 144-202-000-215 operates over an extended temperature range with continuous operation from -55°C to +260°C (-67°F to +500°F) for the sensor, and -55°C to +200°C (-67°F to +392°F) for the integral cable. The CA202 has short-term survival temperatures from -70°C to +280°C (-94°F to +536°F) for the sensor, and -62°C to +250°C (-80°F to +482°F) for the integral cable. The CA202 exhibits temperature sensitivity error of 0.25%/°C from -55°C to +23°C and 0.1%/°C from +23°C to +260°C.
FAQs
-
What is the CA202 144-202-000-215?
+The Vibro-Meter CA202 144-202-000-215 is a high-temperature, differential-output piezoelectric accelerometer. -
Does the CA202 output a standard voltage or current signal?
+No. The CA202 is a charge-output device. It requires an external charge amplifier/converter (such as the Meggitt IPC707 signal conditioner) to convert the charge signal into a usable voltage or current. -
What is the difference between part number 144-202-000-215 and other CA202 models?
+The part number denotes specific build options. The 144-202-000-215 features a standard design with a 6-meter integral cable. For example, the 144-202-000-205 comes with a 3-meter cable, and the 144-202-000-226 features an 11-meter cable. -
Which signal conditioners are compatible?
+Because it outputs a raw charge (pC/g), it must be paired with an external charge amplifier/converter. It natively integrates with the Vibro-Meter IPC707 signal conditioner or the broader VM600 rack-based machinery protection system to convert the charge into a standard current or voltage signal.
