VM600 ABE042 204-042-100-011
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
ABE042
204-042-100-011
System racks
19 ″ system racks with a standard height of 6U
204-042-100-011
System racks
19 ″ system racks with a standard height of 6U
Specifications
-
Product ModelVM600 ABE042 204-042-100-011
-
Product Parameterssystem racks
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x19x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.4 kg
-
Maximum switching voltage± 30 VRMS / ± 42.4 VAC(PEAK) or 60VDC
-
Maximum switching current4 AAC , 3 ADC
-
Operating0 to 70 °C (32 to 158 °F)
-
Storage−40 to 85 °C (−40 to 185 °F)
-
Humidity0 to 90 %, non-condensing
-
Vibration10 to 55 Hz, 0.35 mm peak, 6 hours in each direction
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-

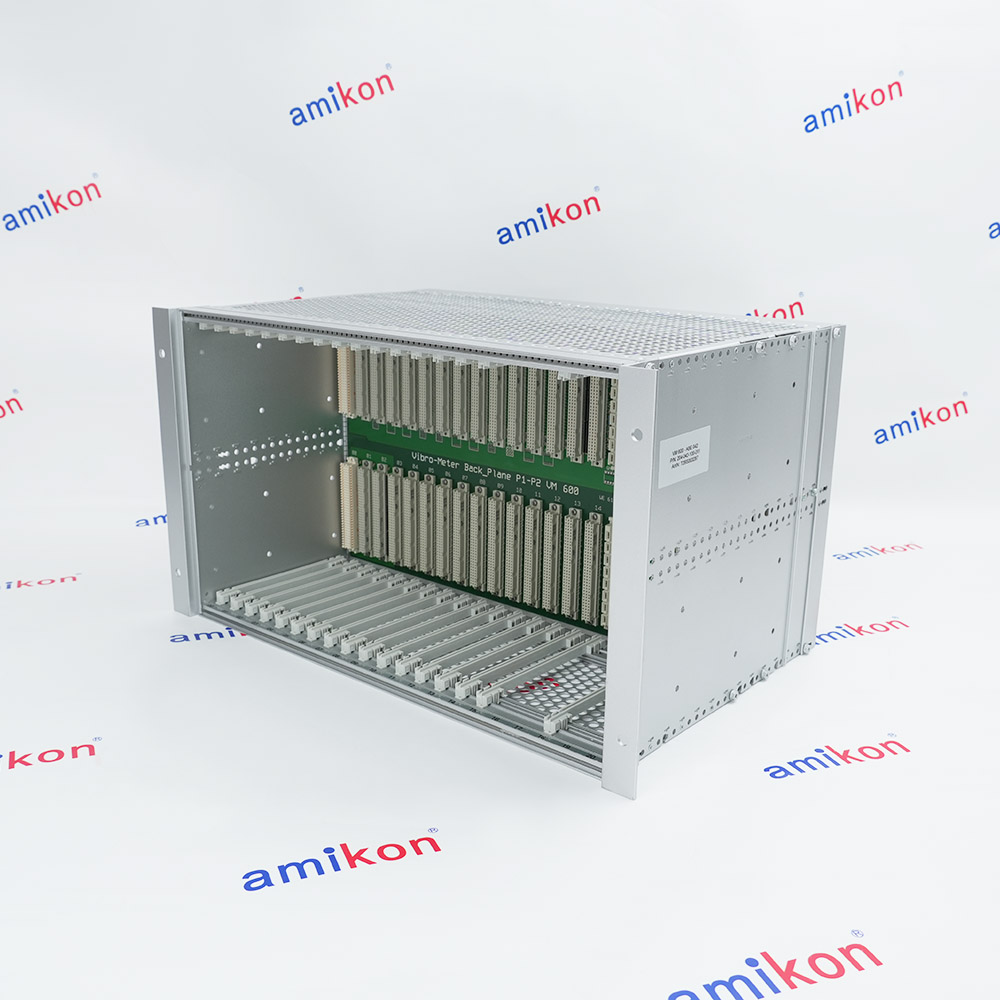

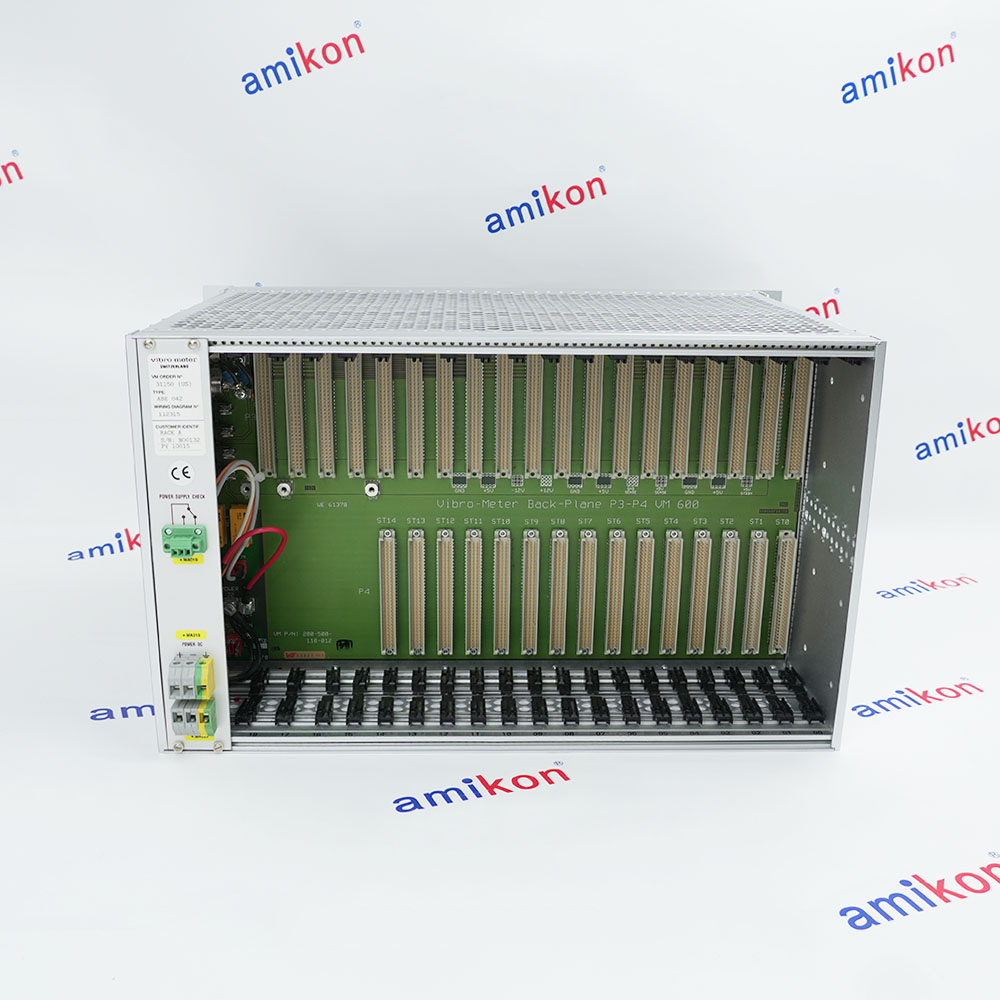

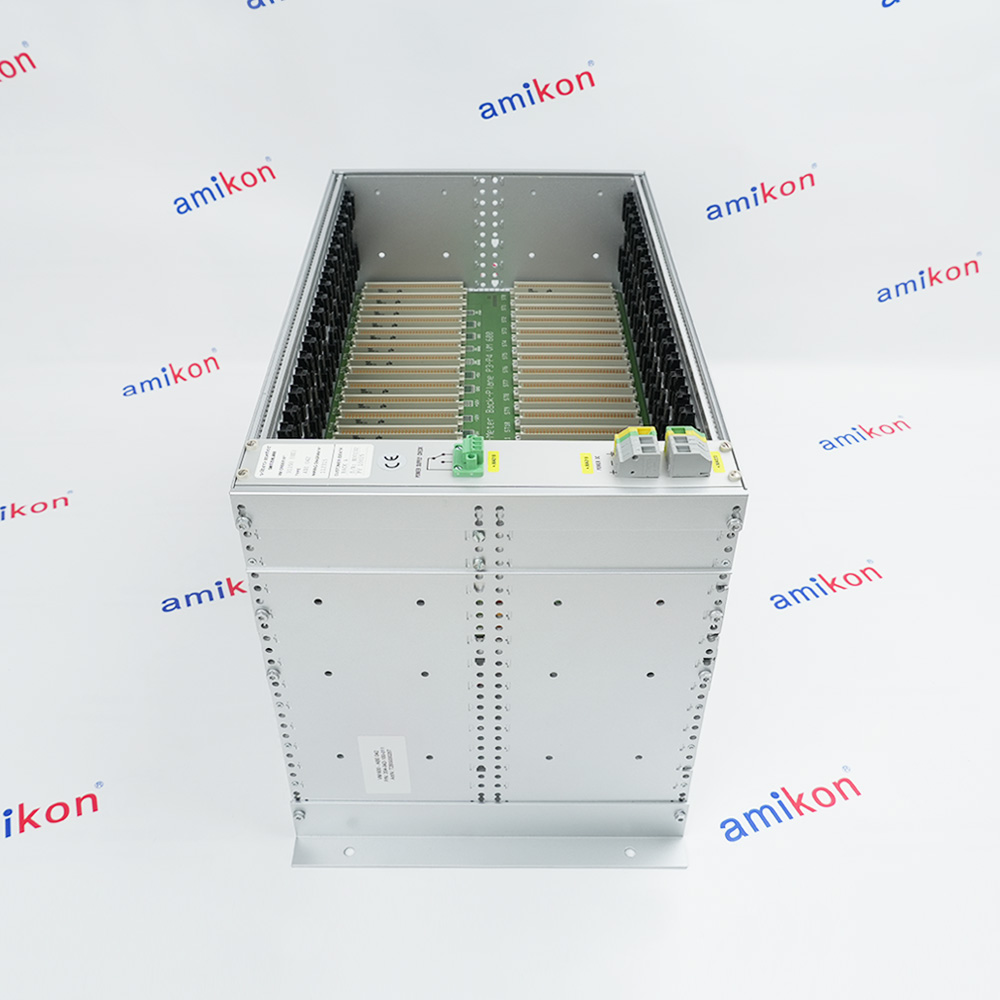

What is VM600 ABE042 204-042-100-011?+The Vibro-meter VM600 ABE042 (204-042-100-011) is a 6U, 19-inch rack designed to house up to 15 VM600 series protection and monitoring modules.
-
What is the difference between ABE040 and ABE042?+The ABE040 and ABE042 are very similar 6U, 19-inch racks. They differ only in the position of their mounting brackets, allowing for different installation requirements.
-
How many modules can the ABE042 hold?+The rack provides 15 slots for single-width VM600 cards or a combination of single and multiple-width modules.
-
What is the function of the rear connectors?+The backplane provides connections for the VM600 CPUx rack controller, power supply, and I/O cards for sensor inputs and signal processing.
-
Does the ABE042 support SIL-rated applications?+Yes: The VM600 ABE042 racks are suitable for use with SIL (Safety Integrity Level) approved modules (e.g., MPC4Mk2 + IOC4Mk2) for functional-safety contexts
Get a quick price fo VM600 ABE042 204-042-100-011
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- Product Applications
- Automation of production lines, process control and robot control
- Monitoring of gas, steam and turbine systems in power plants
- Monitoring of key large rotating machinery in oil and gas
- Automatic flow control and water quality monitoring in water treatment plants and sewage treatment plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Core Protection
Essential Hardware Setup
Features:
- From the vibro-meter ® product line
- 19 ″ system racks with a standard height of 6U
- Robust aluminium construction
- Modular concept allows specific cards to beadded for machinery protection and/orcondition monitoring
- Cabinet or panel mounting
- Power supply check relay
- Uses the VM600Mk2/ VM600 RPS6U rac
- Backplane supporting the VME bus, theVM600Mk2/ VM600 system’s Tacho, Raw andOpen collector (OC) buses, and power supplydistribution
The VM600 ABE042 204-042-100-011 Vibro-Meter System racks may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter VM600 ABE042 204-042-100-011 System racks Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The VM600Mk2/ VM600 ABE04x system rack has anintegrated VME backplane which provides theelectrical interconnections between the installedVM600Mk2/ VM600 modules (cards): power supply,signal processing, input /output, relay andCPUx “rack controller”. It also includes a powersupply check relay, available at the rear of the rack,which is used to indicate that the installed RPS6Urack power supplies are operating normally.Either one or two VM600Mk2/ VM600 RPS6U rackpower supplies can be installed in aVM600Mk2/ VM600 ABE04x system rack. A rack withone RPS6U power supply (330 W version) supportsthe power requirements for a full rack of modules(cards) in applications with operating temperaturesup to 50 °C (122 °F).
Dynamic Monitoring: Simultaneously monitors up to 4 dynamic signal inputs (acceleration, velocity, displacement/proximity) and 2 speed inputs.
Measurement Types: Supports absolute and relative vibration, Smax, thrust position, eccentricity, and housing expansion.
Card Pairs: Each processing module (front) must have a corresponding Input/Output card (rear), such as an IOC4T or IOC4Mk2, to interface with sensors and external control systems like a PLC/DCS.
Grounding: The rack must be permanently connected to Protective Earth (PE) to prevent electric shock and ensure signal integrity.
