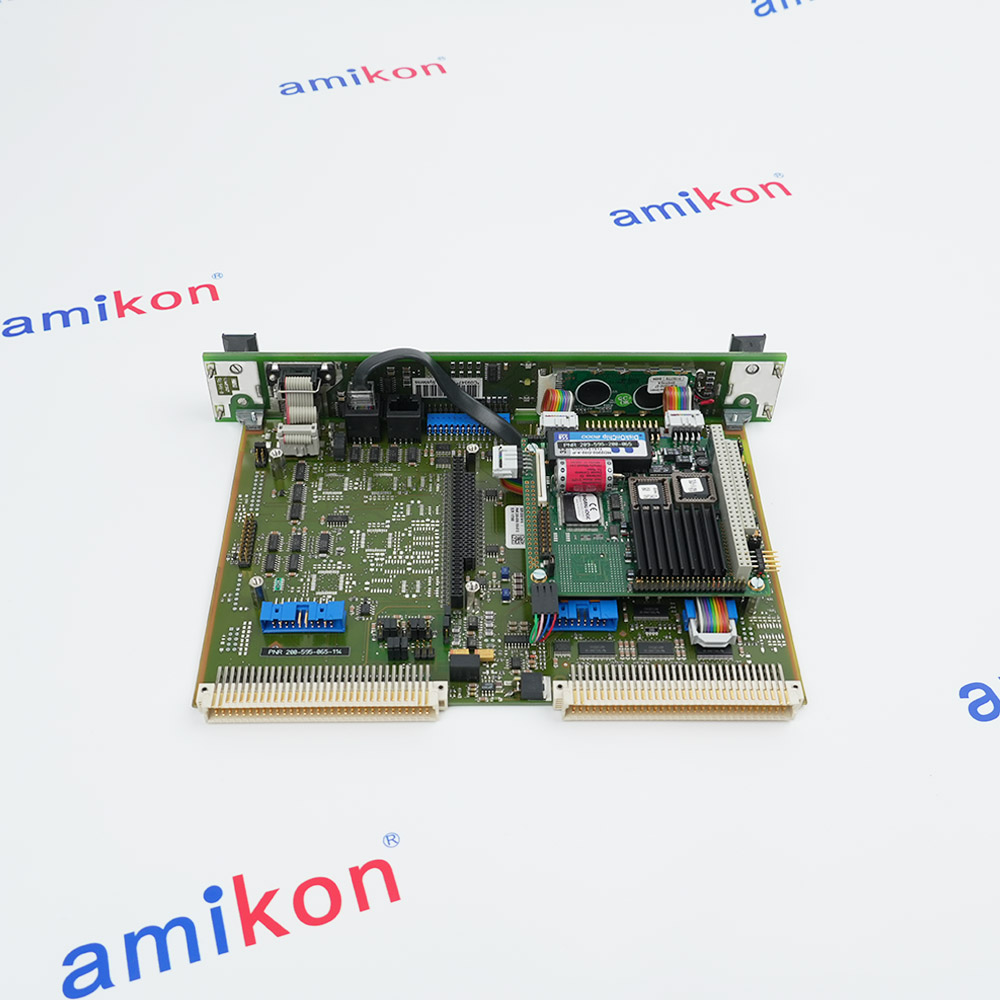

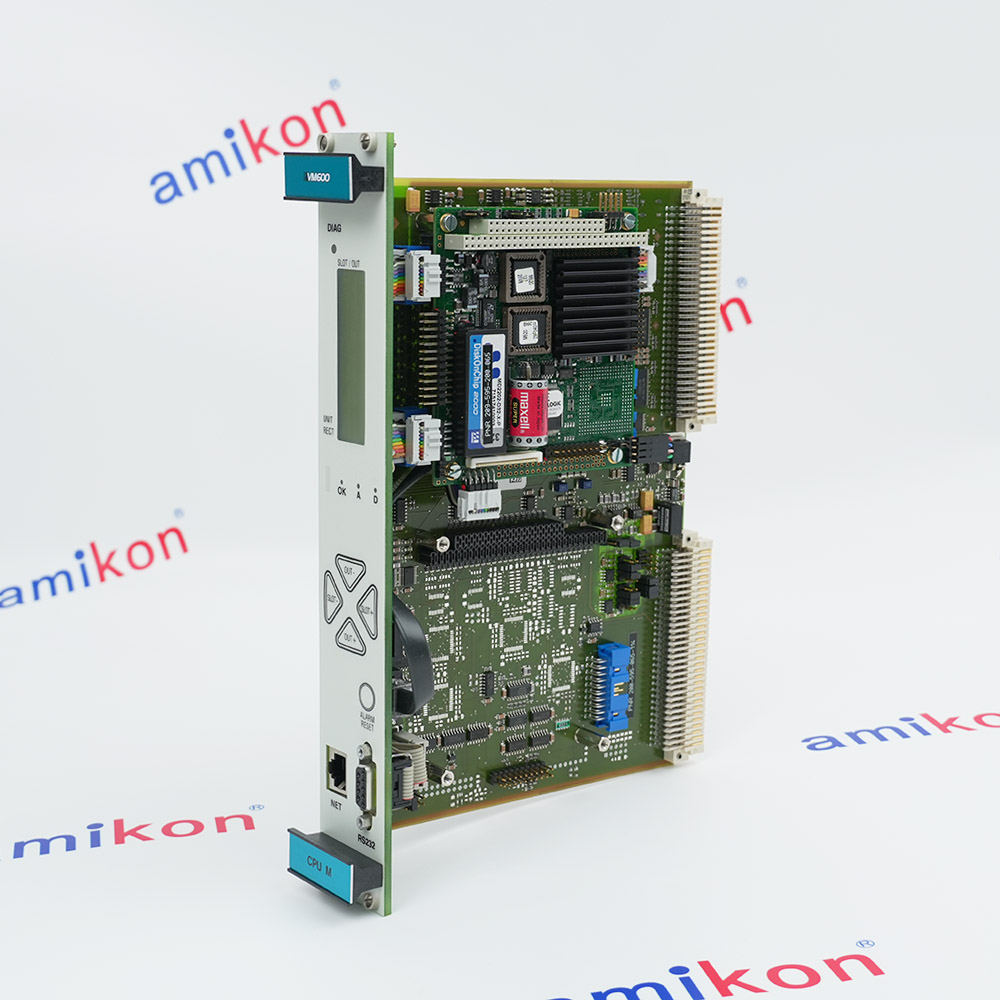

VM600 CPUM 200-595-065-114
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
VM600 CPUM
200-595-065-114
CENTRAL PROCESSING UNIT
CPU CARD
CPUM MK2 VM600
200-595-100-013
200-595-065-114
CENTRAL PROCESSING UNIT
CPU CARD
CPUM MK2 VM600
200-595-100-013
Specifications
-
Product ModelVM600 CPUM 200-595-065-114
-
Spare Model200-595-100-013
-
Product ParametersCPU card
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x18.7x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.52 kg
-
Module typePFM-541I or equivalent
-
Processor typeAMD Geode™ LX800
-
Processor Speed500 MHz
-
Memory256 MB DRAM
-
Power supply to module (input)5 VDC, <1.8 A
-
Operating systemQNX
-
Network interface10/100BASE-TX – Ethernet / Fast Ethernet
-
Data transfer rateUp to 100 Mbps
-
Isolation>100 VDC
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is VM600 CPUM (200-595-065-114)?+The Vibro-Meter VM600 CPUM (200-595-065-114) is a Mk1 rack controller and communications interface card for monitoring rotating machinery, offering Modbus RTU/TCP or PROFINET support with a front-panel display.
-
What is the function of the CPUM card?+It acts as the central processing unit for a VM600 rack, collecting data from monitoring cards , managing configurations via MPSx software, and communicating with external systems.
-
What protocols are supported?+The CPUM supports Modbus RTU/TCP or PROFINET, allowing for easy integration into DCS or SCADA systems.
-
What is the One-Shot configuration?+The CPUM allows "One-Shot" management of configuration files for MPC4 and AMC8 cards, ensuring rapid deployment and card replacement in the VM600 rack.
-
What is the associated input/output card?+The CPUM card is designed to work with the IOCN input/output card.
Get a quick price fo VM600 CPUM 200-595-065-114
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- What Happens Next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and Payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Installation
Features:
- VM600 system event and measurement eventlogs available via the VM600 MPSx software
- Supports live insertion and removal ofprotection cards (“hot-swapping”) withautomatic configuration
- Ethernet (100 Mbps) communication
- Front-panel status indicators (LEDs)
- Compatible with all VM600 ABE04xsystem racks
The CPUM/IOCN card pair is used with a VM600ABE04x system rack and a CPUM card can beused either alone or with an associated IOCNcard as a card pair, depending on theapplication/system requirements.The CPUM is a double-width card that occupiestwo VM600 rack slots (card positions) and theIOCN is a single-width card that occupies a singleVM600 slot. The CPUM is installed in the front of therack (slots 0 and 1) and an associated IOCN isinstalled in the rear of the rack in the slot directlybehind the CPUM (slot 0). Each card connectsdirectly to the rack’s backplane using twoconnectors.
The VM600 CPUM 200-595-065-114 Vibro-Meter CPU card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter VM600 CPUM 200-595-065-114 CPU card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The modular, highly versatile design of the CPUMmeans that all VM600 rack configuration, displayand communications interfacing can beperformed from a single card in a “networked”rack. The CPUM card acts as a “rack controller”and allows an Ethernet link to be establishedbetween the rack and a computer running oneof the VM600 MPSx software packages (MPS1 orMPS2).The CPUM front panel features an LCD displaythat shows information for the CPUM itself and forprotection cards in a VM600 rack. The SLOT andOUT (output) keys on the CPUM front panel areused to select which signal to display.As a fieldbus communications interface for aVM600 monitoring system, the CPUMcommunicates with MPC4 and AMC8 cards viathe VME bus and with XMx16/XIO16T card pairsvia an Ethernet link in order to obtainmeasurement data and then share thisinformation with third-party systems such as a DCSor PLC.
- Machinery Protection Systems: Central controller for protecting high-value rotating machinery
- Condition Monitoring Systems: Advanced vibration analysis for predictive maintenance
- Combustion Monitoring: Data sharing and management for combustion monitoring systems
- Communications Gateway: Bridges VM600 to DCS/PLC via Modbus or PROFINET
- Configuration Management: One-shot config for MPC4, AMC8; supports hot-swapping
- Large Turbines: Gas, steam, and hydro turbines
- Generators: Monitoring and protecting large power-generating units
- Smaller Machinery: Compressors, pumps, fans, motors, and propellers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Rack Placement: The CPUM is a double-width card that must be installed in the front of a VM600 ABE04x system rack, specifically occupying slots 0 and 1.
Associated IOCN Card: If using an Input/Output (IOCN) card, it must be installed in the rear of the rack in the slot directly behind the CPUM (typically slot 0).
Backplane Connection: Ensure the card is firmly seated so its two connectors interface directly with the rack's backplane.
Grounding: The VM600 rack must be permanently connected to Protective Earth (PE) before power is applied to prevent electric shock
