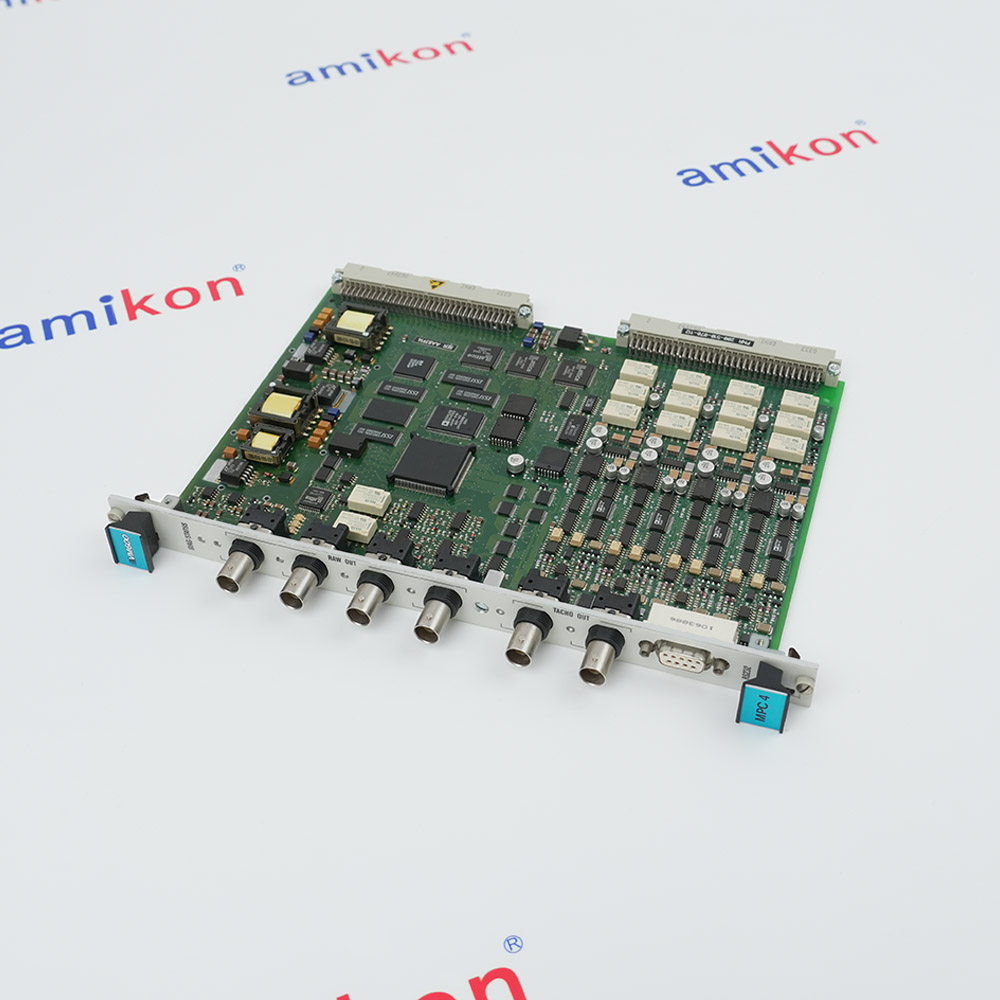

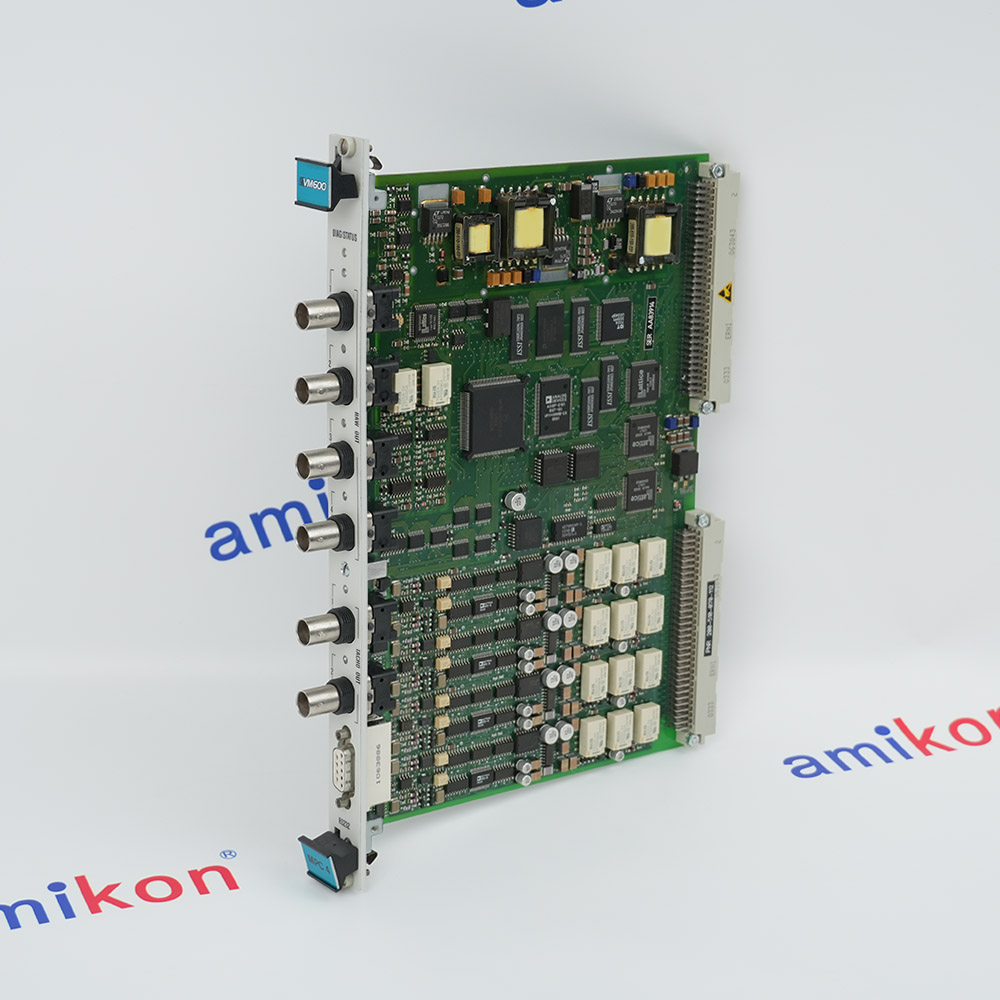

- VM600 MPC4 200-510-070-112
In Stock
Ships by Wednesday, July 29
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for VM600 MPC4 200-510-070-112
-
Product ModelVM600 MPC4 200-510-070-112
-
Spare Model200-510-070-112
-
Product ParametersMachinery protection card
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x19x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.4 kg
-
Number of inputs4 per MPC4 card
-
DC range0 to +20 V or 0 to −20 V
-
AC range±10 V max
-
Common mode voltage range−50 to +50 V
-
CMRR>60 dB at 50 Hz
-
Current Input Range (AC)Maximum ±8 mA
-
Input Impedance200 kΩ
-
Common Mode Voltage Range-50 V to +50 V
Description
The Vibro-Meter VM600 MPC4 200-510-070-112 Machinery Protection Card is a multifunctional monitoring module developed for the VM600 Machinery Protection System. It serves as the central processing unit for vibration and speed monitoring applications, providing continuous measurement and protection functions for critical rotating machinery.
The MPC4 supports four programmable dynamic input channels and two tachometer channels, allowing simultaneous monitoring of vibration, displacement, acceleration, velocity, and rotational speed signals. The card processes measurement data using digital signal processing methods and provides configurable alarm functions including Alert, Danger, and OK status monitoring.
Installed in a VM600 ABE04x rack with an IOC4T interface card, the MPC4 provides a complete machinery protection solution for industrial rotating equipment. It supports advanced functions such as broadband filtering, order tracking, adaptive alarm levels, sensor fault detection, and programmable protection logic.
The MPC4 supports four programmable dynamic input channels and two tachometer channels, allowing simultaneous monitoring of vibration, displacement, acceleration, velocity, and rotational speed signals. The card processes measurement data using digital signal processing methods and provides configurable alarm functions including Alert, Danger, and OK status monitoring.
Installed in a VM600 ABE04x rack with an IOC4T interface card, the MPC4 provides a complete machinery protection solution for industrial rotating equipment. It supports advanced functions such as broadband filtering, order tracking, adaptive alarm levels, sensor fault detection, and programmable protection logic.
Information
Overview
Manuals
Application Notes
Product Applications
Connections & Wiring
Features:
- From the Vibro-Meter product line
- Continuously online machinery protection card
- Real-time measurement and monitoring usingstate-of-the-art DSP techniques
- Programmable broad-band and narrow-bandfilters
The dynamic signal inputs are fully programmableand can accept signals representingacceleration, velocity and displacement(proximity), among others. On-board multichannel processing allows measurement ofvarious physical parameters, including relativeand absolute vibration, Smax, eccentricity, thrustposition, absolute and differential housingexpansion, displacement and dynamic pressure.
Digital processing includes digital filtering,integration or differentiation (if required),rectification (RMS, mean value, true peak or truepeak-to-peak), order tracking (amplitude andphase) and measurement of the sensor-targetgap.
The VM600 MPC4 200-510-070-112 Vibro-Meter Machinery protection card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter VM600 MPC4 200-510-070-112 Machinery protection card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The MPC4 includes an integrated power supply for Vibro-Meter front-end devices including ICP/IEPE accelerometers and proximity measurement systems. The card supports live insertion and removal (hot swapping) for maintenance without system shutdown.
Processed dynamic and speed signals are available as analog outputs (0–10 V or 4–20 mA). Digital outputs for alarm and control are provided through the companion IOC4T card, which offers relay outputs and programmable collector-open outputs for connection to external relay cards such as the RLC16 or IRC4.
- Power Generation: Monitors turbines and generators, protecting against shaft unbalance or misalignment
- Oil & Gas: Tracks compressors, turboexpanders, and pumps across upstream/midstream/downstream
- Chemical/Petrochemical: Secures mixers, blowers, and reactors prone to thermal/mechanical stress
- Heavy Manufacturing/BOP: Protects gearboxes, cooling fans, and induction motors as supplementary assets
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Field Wiring: All transmission cables (e.g., proximity probes, accelerometers) wire directly to the screw-terminal connectors (48 terminals) on the front panel of the IOC4T (which faces the rear of the VM600 rack).
Buffered Outputs: The front panel of the MPC4 card (facing the front of the rack) includes BNC connectors that provide buffered "raw" sensor signals for temporary testing or diagnostic equipment.
Software Configuration: The card pair is configured and managed using proprietary VM600 MPSx Software or modern VibroSight® Software, depending on the VM600 system generation.
Alternative Names
VM600 MPC4 200-510-070-1I2
VM600 MPC4 200-510-070-I12
VM600 MPC4 200-510-07O-112
VM600 MPC4 200-510-O70-112
VM600 MPC4 200-5I0-070-112
VM600 MPC4 200-51O-070-112
VM600 MPC4 Z00-510-070-112
VM6OO MPC4 200-510-070-112
VM6OO MPC4 200 510 070 112
VM600 MPC4 2OO 5IO O7O II2
Technical notes
Processed dynamic and speed signals are available as analog outputs (0–10 V or 4–20 mA). Digital outputs for alarm and control are provided through the companion IOC4T card, which offers relay outputs and programmable collector-open outputs for connection to external relay cards such as the RLC16 or IRC4.
FAQs
-
What is the VM600 MPC4 ？
+The Vibro-Meter VM600 MPC4 (Part Number: 200-510-070-112) is a highly reliable, continuously online machinery protection card used as the central component in the Vibro-Meter / Meggitt VM600 system. -
Which input/output card must be paired with the MPC4?
+The MPC4 mounts in the front of a VM600 rack and must be matched with an IOC4T input/output card installed directly behind it in the rear of the rack to form a functional module pair. -
What companion hardware is required to operate the MPC4?
+The MPC4 must be installed into a front slot of a standard 19-inch, 6U VM600 rack. To function as a complete card pair, it requires a matching IOC4T input/output card seated directly behind it in the rear panel. -
Which software is used to program the module parameters?
+Configuration parameters, filter setups, and alarm levels are managed using the proprietary VM600 MPSx Software Suite (specifically MPS1 or MPS2 packages) or via an RS-232 interface for standalone setups.
