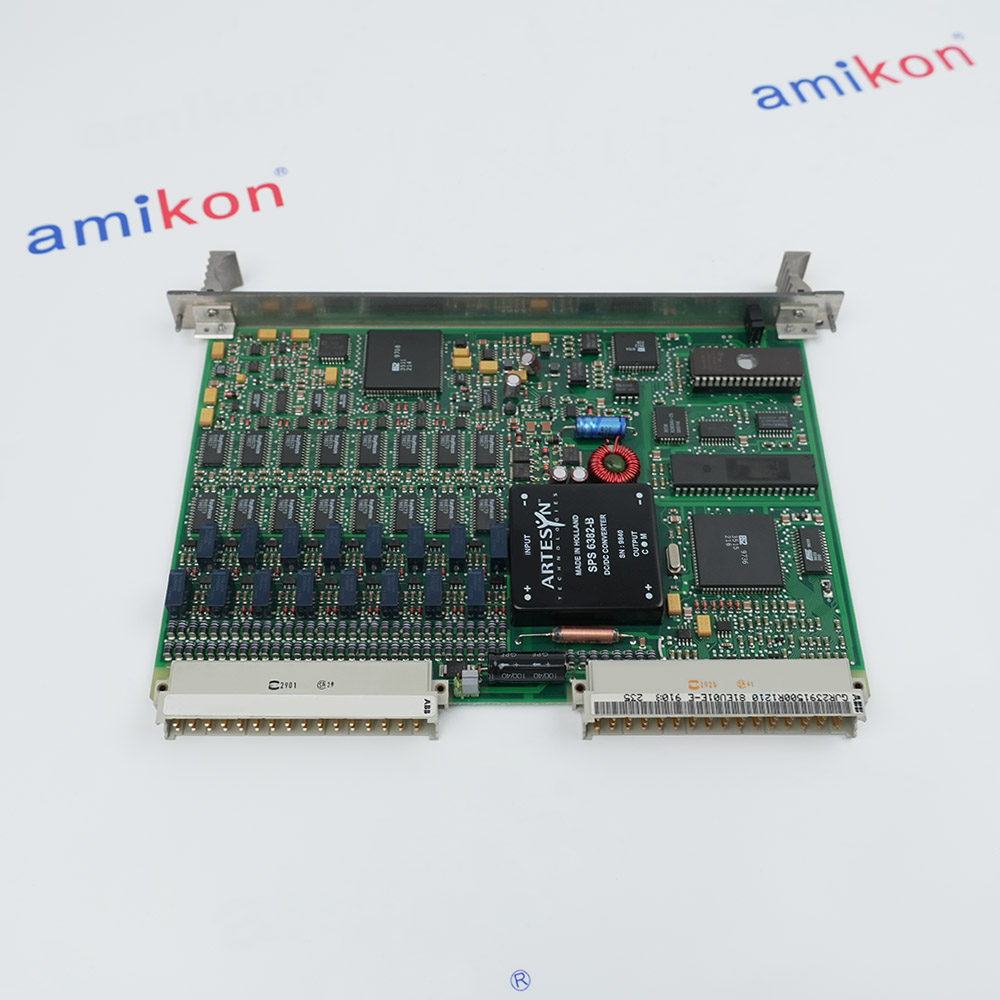

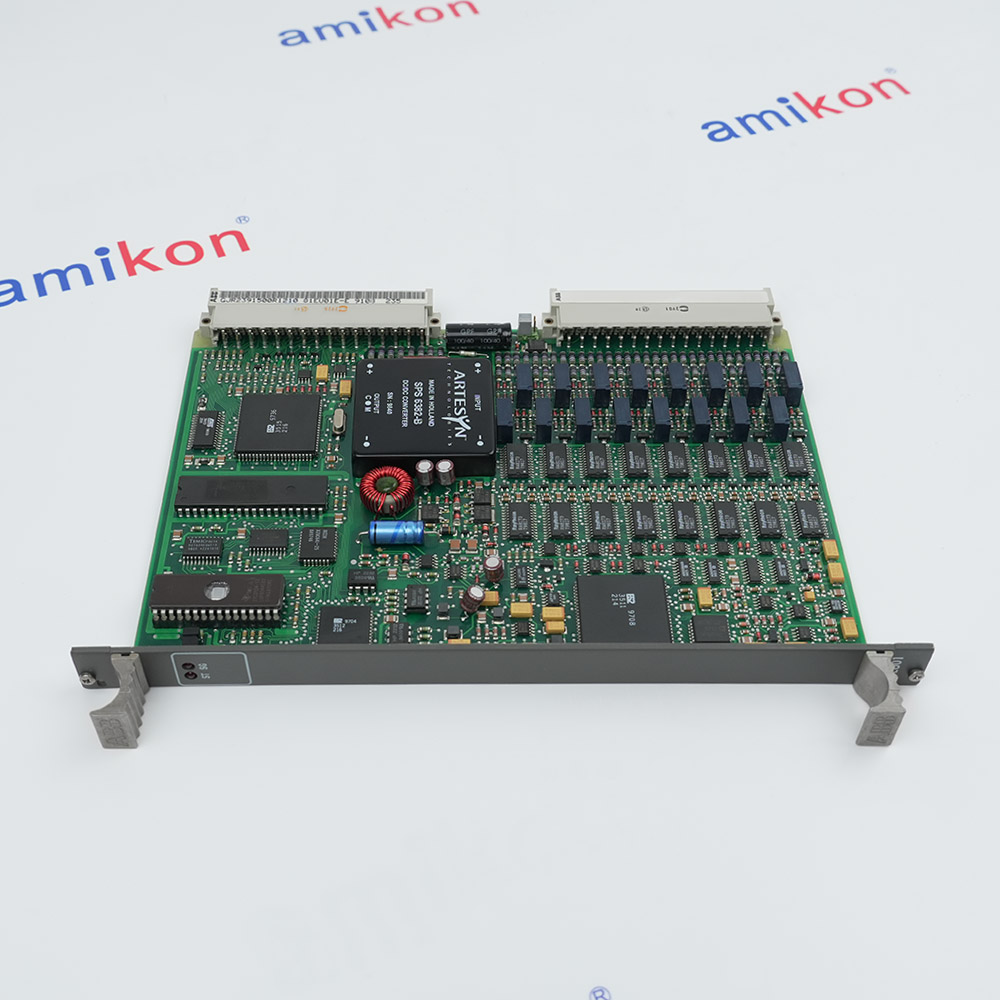

- GJR2391500R1210 81EU01E-E
In Stock
Ships by Sunday, August 9
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for GJR2391500R1210 81EU01E-E
-
Product ModelGJR2391500R1210 81EU01E-E
-
Spare Model81EU01
-
Product ParametersUniversal Inputfor Binary and Analog
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x19.8x26.1cm
-
ManufacturerABB
-
Weight0.45 kg
-
Operating voltage+24 V
-
Reference potential0 V
-
Power dissipation3.4 ... 11 W
-
0-signal without monitor0 ... 10.5 V
-
0-signal with monitor6 ... 10.5 V
-
1-signal14 ... 51 V
-
Response range of monitor0 ... 3 V
-
Destruction limit> 55 V
-
Output voltage48 V +/- 5 %
-
Output current max32 mA
-
Signal change at1.65 mA
-
Short-circuit alarm at≥ 6 mA
Description
The module can be plugged into any station of the PROCONTROL bus system. It incorporates a standard interface for the PROCONTROL station bus. The module transmits the input signals and/or converted inputsignals in telegrams via the station bus to the PROCONTROLbus system. Before transmission the telegrams are checkedand provided with parity bits. This ensures that the receivingmodule can check for fault-free transmission.
The module checks the telegrams received over the stationbus, e.g. those intended for corrective calculations, by theirparity bits for fault-free transmission.Provision is made to eliminate interference among the function units of the module and the station bus. A short-circuit-proof and monitored transmitter power sourceis available for each function unit, suitable for the variousapplications.
In case the internal monitoring circuits or the input signalmonitor respond, disturbance annunciation ST (general disturbance) will be indicated on the front panel of the module.Response of the internal monitoring circuits is indicated asdisturbance annunciation SG (module disturbance) on thefront panel of the module.
The module checks the telegrams received over the stationbus, e.g. those intended for corrective calculations, by theirparity bits for fault-free transmission.Provision is made to eliminate interference among the function units of the module and the station bus. A short-circuit-proof and monitored transmitter power sourceis available for each function unit, suitable for the variousapplications.
In case the internal monitoring circuits or the input signalmonitor respond, disturbance annunciation ST (general disturbance) will be indicated on the front panel of the module.Response of the internal monitoring circuits is indicated asdisturbance annunciation SG (module disturbance) on thefront panel of the module.
Information
Overview
Manuals
Application Notes
Product Applications
Limit signals
Features:
- 16 Configurable Function Units for Binary and Analog Inputs
- Comprehensive Binary Transmitter Support
- Analog Current Input Ranges: 0–20 mA, 4–20 mA, and 0–5 mA
- 12-Bit A/D Conversion with High-Precision Measuring Resistor
- Up to Four Programmable Limit Values per Analog Signal
voltage (–20 V to +20 V), current (–20 mA to +20 mA), and resistance (0 Ω to 2 kΩ). Analog inputs feature 16-bit resolution with ±0.5 % accuracy. Digital inputs support signal frequencies up to 50 Hz with response times under 1 ms. Galvanic isolation between channels and from the system bus effectively mitigates electrical noise and ground loop interferences.
The GJR2391500R1210 81EU01E-E ABB Universal Inputfor Binary and Analog may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2391500R1210 81EU01E-E Universal Inputfor Binary and Analog Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 81EU01E-E can be inserted into any PROCONTROL monitoring station with an external power supply device. It is equipped with a standard interface for the PROCONTROL bus system, and the converted input signal is sent to the PROCONTROL bus system in the form of messages to ensure error-free transmission. Communication options include AF100, PROFIBUS-DP, or direct connection.
The module operates on 24 V DC power supply with power consumption of less than 5 W. It mounts in a ProControl subrack, occupying 2 divisions. Operating temperature ranges from –20 °C to +60 °C, with storage temperatures from –40 °C to +85 °C.
- Power Generation: Primary home for Procontrol P14 in fossil/nuclear/hydro plants for boiler/turbine/auxiliary control
- Heavy Process Automation: Functions in petrochemical, chemical, and water treatment continuous infrastructure
- Heavy Extraction: Utilized in mining and metal refineries for material handling equipment
- Pulp/Paper: Applied in automated processing lines requiring consistent signaling and fault tolerance
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
When the module is used for analog signal input, max. 4 limitvalues can be programmed for each function unit. One out offour hysteresis values can be selected for each limit value.Programming is by means of the PDDS on the basis of thelimit value list. The limit value list is stored on the module inan EEPROM.The limit value list can be stored in a RAM if changes shall bemade. But these data will be lost in case of voltage failure. Inthat case, the module changes over to the list in theEEPROM immediately. If the limit value list is loaded both intoEEPROM and RAM, the list processing will be performed inthe mode defined by the PDDS, i.e. EEPROM/RAM.In the event mode, any violation of a limit value is immediately signalled to the station bus in the form of a limit signaltelegram. The same happens when the input signal monitoring feature responds, but in this case together with the associated analog value telegram. Then the disturbance bits of theanalog value and limit signals telegrams will be set. All limitvalues allocated to the analog value are set to “0”.
Alternative Names
GJR2391500R1210 81EU0IE-E
GJR2391500R1210 81EUO1E-E
GJR2391500R1210 8IEU01E-E
GJR2391500R1210 B1EU01E-E
GJR2391500R121O 81EU01E-E
GJR2391500R12I0 81EU01E-E
GJR2391500R1Z10 81EU01E-E
GJR2391500RI210 81EU01E-E
GJR23915OOR1210 81EU01E-E
GJR239I500R1210 81EU01E-E
GJRZ391500R1210 81EU01E-E
GJR2391500R1210 81EU01E E
GJR2391500R1210 81EU0IE E
GJR2391500R1210 81EUO1E E
GJR2391500R1210 8IEU01E E
GJR2391500R1210 B1EU01E E
GJR2391500R121O 81EU01E E
GJR2391500R12I0 81EU01E E
GJR2391500R1Z10 81EU01E E
GJR2391500RI210 81EU01E E
GJR23915OOR1210 81EU01E E
GJR239I500R1210 81EU01E E
Technical notes
Up to four limit values can be allocated to each analog signal on the 81EU01-E/R1210. Programming is done by means of the PDDS on the basis of the limit value list, which is stored in an EEPROM. The limit value range is -150% to +150% of the selected signal range. Four hysteresis values can be set for each limit value individually: HY1 = 0.39%, HY2 = 1.56% (standard setting), HY3 = 3.12%, and HY4 = 6.25%.
FAQs
-
What is the GJR2391500R1210?
+The ABB GJR2391500R1210 81EU01E-E is a 16-channel universal input module primarily used within ABB's distributed control systems, such as the Procontrol P14 -
What does Universal signify in this module?
+It means the module can be programmed to accept various signal types (such as analog, digital, and temperature signals) from different transmitters. This eliminates the need to purchase and maintain multiple specialized boards for different sensor types. -
Can this module operate without a central bus connection?
+Yes, the module supports both remote bus operation and a stand-alone mode, giving you significant flexibility in how your control station architecture is designed. -
How many channels does the module have?
+It is a 16-fold module, meaning it features 16 input channels. It can accommodate up to 16 individual sensors or switches simultaneously.
