PRODUCT DESCRIPTION

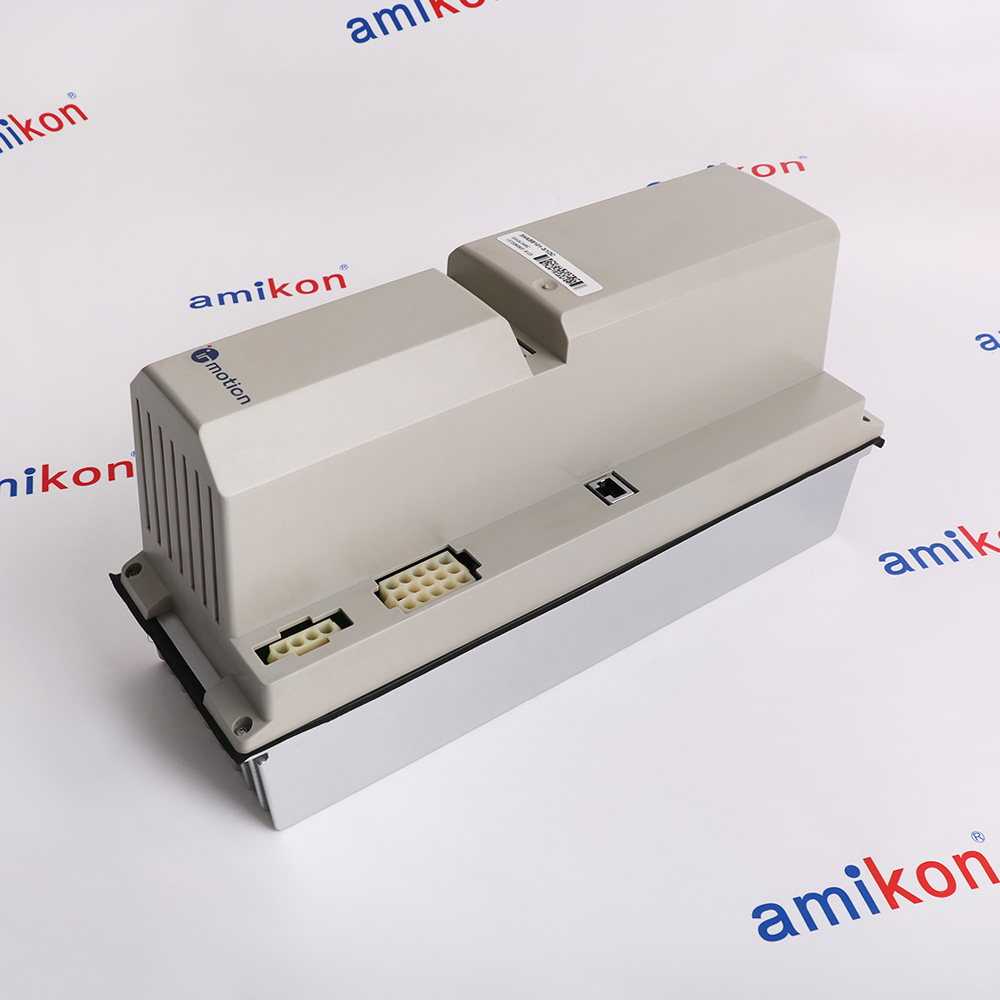

DSQC345C 3HAB8101-3 DC2 rectifier power module
ABB DSQC345C 3HAB8101-3 is the DC2 rectifier module used in documented S4C robot drive configurations. It forms the DC-link supply section feeding the separate axis drive units. ABB identifies DSQC345C, article 3HAB8101-3 and configuration DC2 together in the controller installation manual.
The documented rectifier ratings are 14.6 A rated current and 80 A maximum current, with a minimum DC-link voltage of 275 V. Maximum bleeder power is 15.3 kW, while rated bleeder power is 0.9 kW. These continuous and maximum values must be evaluated separately when checking the installed drive-system load.
The documented rectifier ratings are 14.6 A rated current and 80 A maximum current, with a minimum DC-link voltage of 275 V. Maximum bleeder power is 15.3 kW, while rated bleeder power is 0.9 kW. These continuous and maximum values must be evaluated separately when checking the installed drive-system load.
BEFORE YOU BUY
Confirm the complete DC2 rectifier power module
ACTUAL APPLICATIONS
Application context for DSQC345C 3HAB8101-3
Typical application areas for documented S4C robot systems include automotive production, metal fabrication and plastics manufacturing.
-
01 · AUTOMOTIVE
Vehicle Manufacturing and Automotive Component Production
Passenger Car ManufacturingCommercial Vehicle Manufacturing -
02 · METALS
Metal Processing and Fabricated Metal Product Manufacturing
Ferrous MetalworkingNonferrous Metal Processing -
03 · PLASTICS
Plastics Processing and Industrial Polymer Product Manufacturing
Technical Plastics ManufacturingConsumer Polymer Products
Technical specifications for DSQC345C 3HAB8101-3
-
Product ModelDSQC345C 3HAB8101-3
-
Product ParametersDC2 rectifier power module
-
In stock1 unit
-
ManufacturerABB
-
Maximum rectifier current80 A
-
Rated rectifier current14.6 A
-
Maximum bleeder power15.3 kW
-
Rated bleeder power0.9 kW
-
Minimum DC-link voltage275 V
View all additional
Alternative Names
DSQC345C 3HAB8101-3
ABB S4C DC2 rectifier
Robot drive DC-link supply DSQC345C
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate DSQC345C 3HAB8101-3 DC2 rectifier power module
The S4C drive system separates the DC-link rectifier from the axis drive units and the serial measurement board. DSQC345C supplies the DC-link section; the axis drive electronics perform motor-current regulation. A rectifier replacement therefore does not substitute for an individual axis drive module.
Use the controller configuration record to identify the DC-link type. ABB lists DSQC345C and 3HAB8101-3 against configuration DC2. The same table assigns other configuration identifiers to DSQC345A, DSQC345B and DSQC345D, so a shared 3HAB8101 prefix does not establish interchangeability.
Check the drive-system demand against 14.6 A rated current and 80 A maximum current. The bleeder likewise has separate rated and maximum limits of 0.9 kW and 15.3 kW. The DC2 minimum-voltage figure is 275 V; the DC3 value in the same table must not be substituted for it.
Features:
- DC2 identity tied to article 3HAB8101-3
- Separate rated and maximum current budgets
- Distinct continuous and peak bleeder limits
The DSQC345C 3HAB8101-3 DC2 rectifier power module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify DSQC345C 3HAB8101-3 DC2 rectifier power module

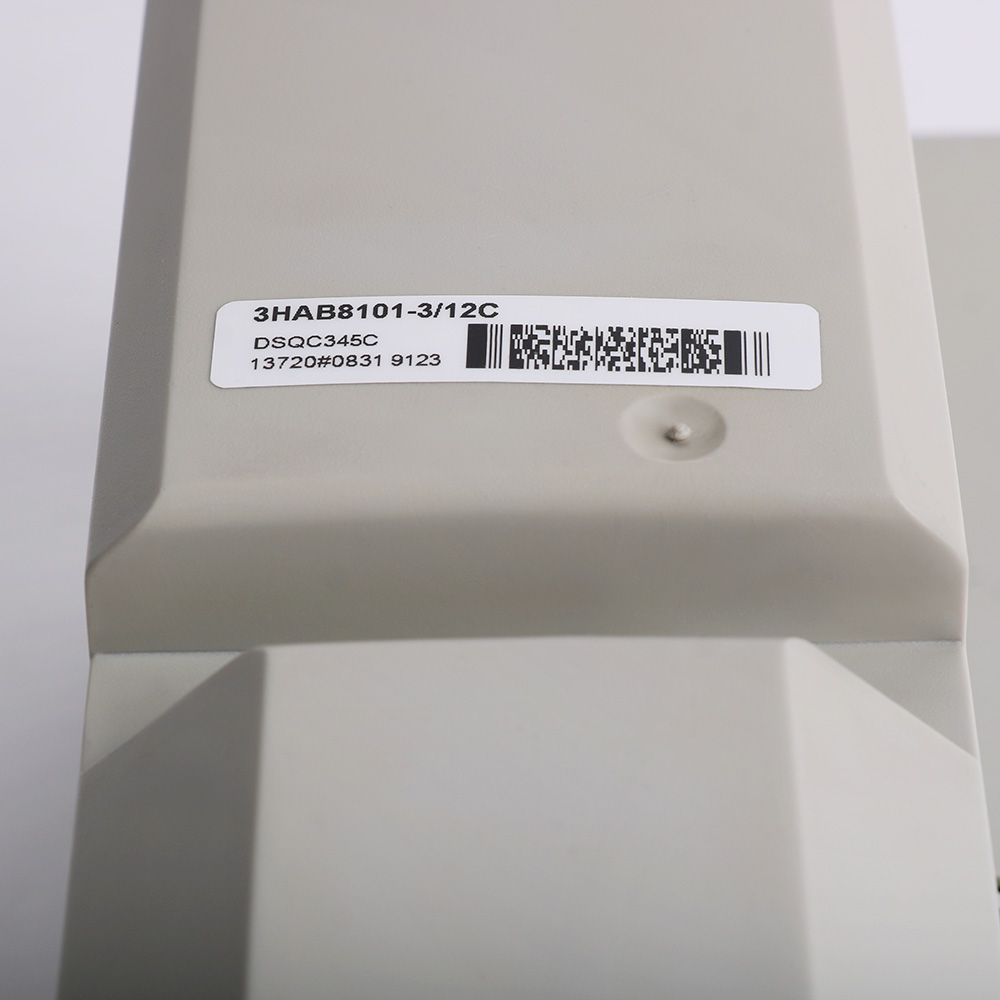

Record the complete 3HAB8101-3 label, DSQC345C designation and DC2 configuration before removal. Compare the existing power connections and cabinet arrangement with the installed controller documentation. The rectifier is a high-voltage assembly with stored capacitor energy; isolate the supply and verify that the DC link is discharged before handling.
ABB states that the drive system supervises internal errors and reports them through the controller to the teach pendant. Use the recorded fault information to distinguish a rectifier failure from a drive-unit, connection or supply problem. The manual directs replacement of a faulty rectifier rather than internal fault tracing in the operating environment.
After replacement, check the restored connections, retained DC2 configuration and controller fault indications before enabling motion. Where a control-program installation is also performed, the documented query-mode DC-link selection must match the actual unit. Keep the cabinet and external-axis drive arrangement consistent with the original system configuration.
Features:
- Stored-energy isolation before power connections are handled
- Teach-pendant fault records guide rectifier diagnosis
- DC-link configuration retained during controller restoration
The DSQC345C 3HAB8101-3 DC2 rectifier power module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- ABB rectifier identification and ratings pages included
- Electrical safety and drive fault-tracing extracts supplied
- S4C context retained around the selected DC2 data
Documentation for the DSQC345C 3HAB8101-3 DC2 rectifier power module must be checked for document applicability before installation or commissioning.
