- 1TGE120021R0010
In Stock
Ships by Sunday, June 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 1TGE120021R0010
-
Product Model1TGE120021R0010
-
Product ParametersMLink Communication Gateway
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size16.5x24.8x13.5cm
-
ManufacturerABB
-
Weight2.45 kg
-
Memory512MB DDR3, 4GB Flash
-
Power Supply24V DC (±10%)
-
Power Consumption8W (typical)
-
Message Throughput500 messages/sec
-
Protocol Conversion Delay<5ms
-
Data Buffer16MB
Description

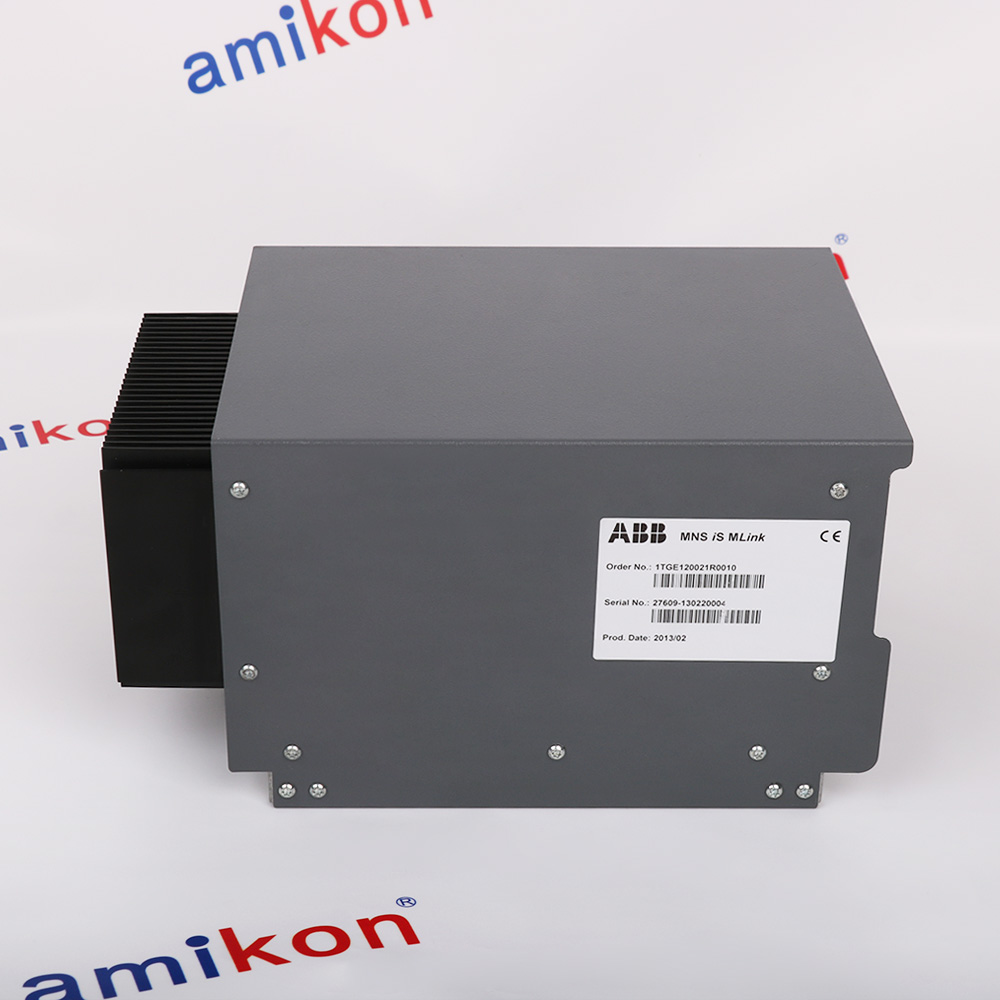

The ABB 1TGE120021R0010 is an MLink Communication Gateway. The ABB 1TGE120021R0010 is an industrial PC equipped with interface cards and ports required for communication. The ABB 1TGE120021R0010 communicates internally to MControl and externally to process control systems.
The ABB 1TGE120021R0010 can communicate internally with up to 60 MControl. If more than 60 MControl are required, additional MLinks must be used. The ABB 1TGE120021R0010 supports multiple fieldbus communication protocols to the DCS. The ABB 1TGE120021R0010 supports PROFIBUS DP (-V0) and PROFIBUS DP-V1. The ABB 1TGE120021R0010 supports Modbus RTU/TCP. The ABB 1TGE120021R0010 supports PROFINET IO. The PROFINET interface on the ABB 1TGE120021R0010 is supported for use with the ABB 800xA System only.
The ABB 1TGE120021R0010 can communicate internally with up to 60 MControl. If more than 60 MControl are required, additional MLinks must be used. The ABB 1TGE120021R0010 supports multiple fieldbus communication protocols to the DCS. The ABB 1TGE120021R0010 supports PROFIBUS DP (-V0) and PROFIBUS DP-V1. The ABB 1TGE120021R0010 supports Modbus RTU/TCP. The ABB 1TGE120021R0010 supports PROFINET IO. The PROFINET interface on the ABB 1TGE120021R0010 is supported for use with the ABB 800xA System only.
Alternative Names
1TGE120021R001O
ITGE120021R0010
ITGEI2002IR0010
1TGE12OO21ROO1O
ITGEI2OO2IROOIO
Information
Overview
Manuals
Application Notes
Product Applications
Redundancy Configuration Checklist
Features:
- Industrial PC-Based Communication Gateway for MNS iS
- Up to 60 MControl Internal Communication Capacity
- Multiple Fieldbus Protocol Support
- Dual Ethernet LAN Ports (LAN1 and LAN2)
- Embedded Software Modules
- 11 LED Status Indicators and Reset Buttons
The ABB 1TGE120021R0010 contains different software modules depending on initial configuration. The ABB 1TGE120021R0010 supports Web Server module. The ABB 1TGE120021R0010 supports OPC Server (DA & AE) module. The ABB 1TGE120021R0010 supports Fieldbus module. The ABB 1TGE120021R0010 supports Time Synchronization module. The ABB 1TGE120021R0010 supports Redundant Operation module.
The 1TGE120021R0010 ABB MLink Communication Gateway may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 1TGE120021R0010 MLink Communication Gateway Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB 1TGE120021R0010 is a communication gateway module known as the MLink. It serves as an industrial PC, protocol converter, and central data interface for the MNS iS (Low Voltage Motor Control Center) system.
Protocol Conversion: Bridges heterogeneous systems by converting internal switchgear bus protocols (e.g., ABB 800xA system) into standard fieldbus protocols like Modbus TCP/RTU, PROFIBUS DP, and PROFINET IO.Data Acquisition & Control: Collects real-time operational data, device health statuses, and diagnostics from up to 60 MControl modules simultaneously.
- Oil, Gas, and Petrochemicals:Refining, drilling, LNG & pipelines
- Mining, Minerals, and Metals :Crushing, conveyors, smelting & handling
- Power Generation and Utilities:Thermal, nuclear, wind & solar
- Chemical Manufacturing:Reactors, mixing, pumps & separation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Redundancy Link: Interconnect the two MLinks directly using an RS232 Null Modem cable.
Managed Switches: Both units must have their LAN2 ports wired into the same managed network switches to handle correct primary/backup handover logic.
Connector Verification: Ensure you use specific redundant-type switchgear bus connectors, as mixing them up with non-redundant connectors will cause network instability.
Technical notes

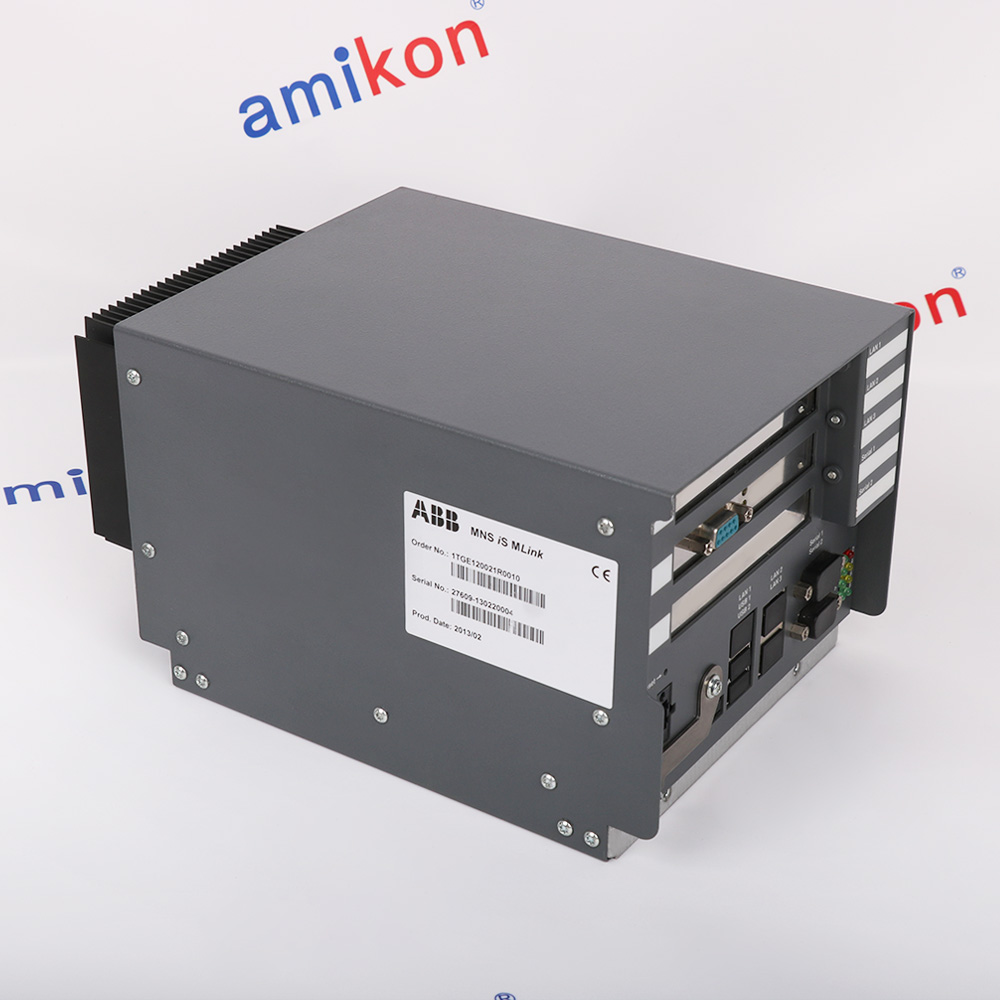

The ABB 1TGE120021R0010 has two Ethernet LAN ports. LAN1 on the ABB 1TGE120021R0010 is for Modbus TCP/Profinet communication. LAN2 on the ABB 1TGE120021R0010 is for network connection. The ABB 1TGE120021R0010 has a Serial 1 port for redundancy interface. The ABB 1TGE120021R0010 has a Serial 2 port for Modbus RTU interface. The ABB 1TGE120021R0010 has a PROFIBUS DP Slave interface. The ABB 1TGE120021R0010 has a Switchgear Bus interface.
FAQs
-
What is the 1TGE120021R0010？
+The ABB 1TGE120021R0010 is the hardware part number for the MLink Communication Gateway, used primarily in the MNS iS Motor Control Center (MCC). -
What protocols does the MLink gateway support?
+It supports multiple fieldbus and Ethernet-based protocols for integration with distributed control systems (DCS) and programmable logic controllers (PLCs), including Modbus RTU, Modbus TCP, Profibus DP, and Profinet IO. -
What is the primary function of this module?
+It serves as an integrated protocol translator, linking internal MControl motor modules to external plant control architectures -
How many downstream controllers can a single MLink handle?
+One MLink card can manage data mapping for up to 60 individual MControl modules via the internal switchgear bus
