SIMATIC DP
Electronic modules
for ET 200 PRO 8 DO 24 V DC
0.5 A Modulediagnostics
incl. bus module
Connection module
IO 6ES7194-4..00-0AA0 orderseparately
SIWAREX WP321
WEIGHING ELECTRONIC (1 CHANNEL)
FOR STRAIN GAUGE LOADCELLS
FULL BRIDGES (1-4 mV/V)
FOR SIMATIC ET200SP
FITS to BU-TYPE A0
RS485-INTERFACE FOR CONNECTION
OF SIWATOOL OR A REMOTE DISPLAY
SIPART PS2 smart electropneumatic positioner
VALVE POSITIONER
ELECTROPNEUMATIC
2/3/4WIRE
4-20MA
WITH HART INTERFACE
SINGLE ACTION
FOR LINEAR AND PART-TURN ACTUATORS
DIGITAL DISPLAY
OPERATOR INTERFACE
PANELVIEW PLUS 6 COMPACT
TOUCH SCREEN
PANELVIEW PLUS 600
5.7 INCH DISPLAY
320 X 240 PIXELS
COLOR DISPLAY
ETHERNET
RS-232 + USB
24 VDC INPUT
WINDOWS CE 6

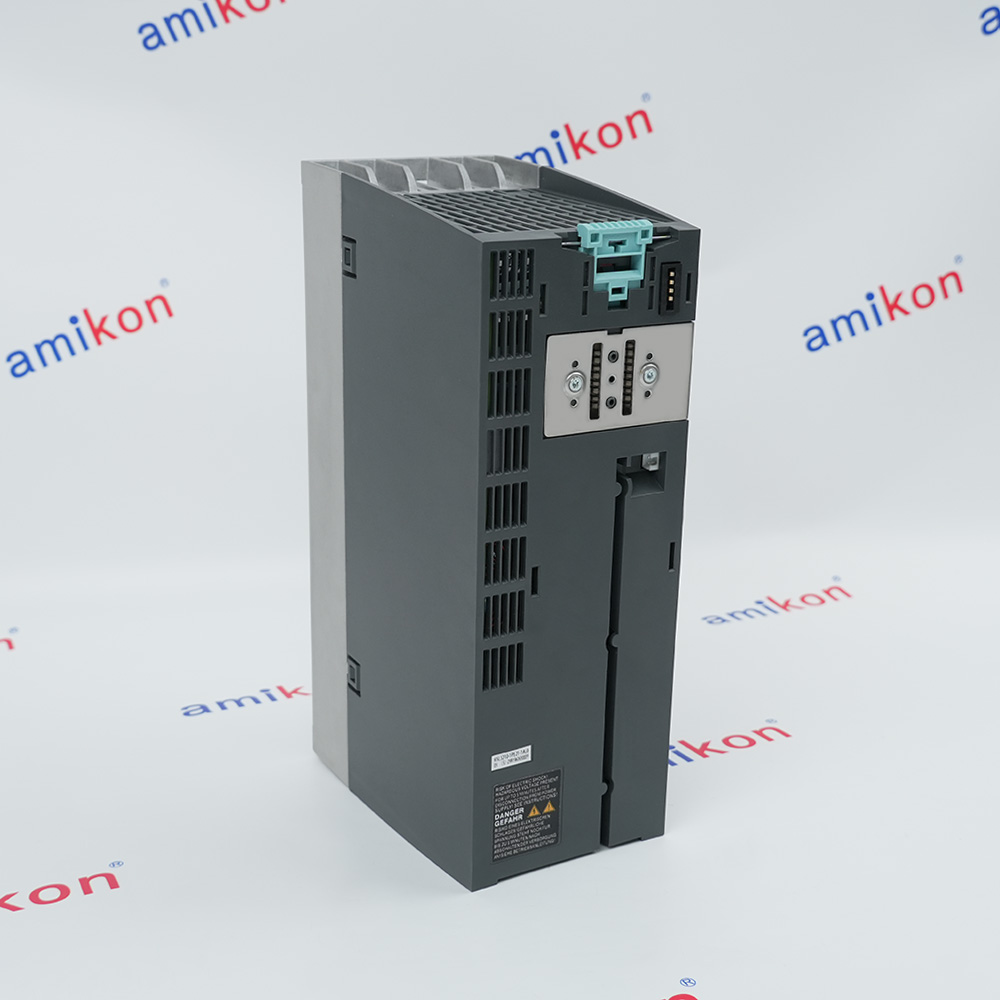

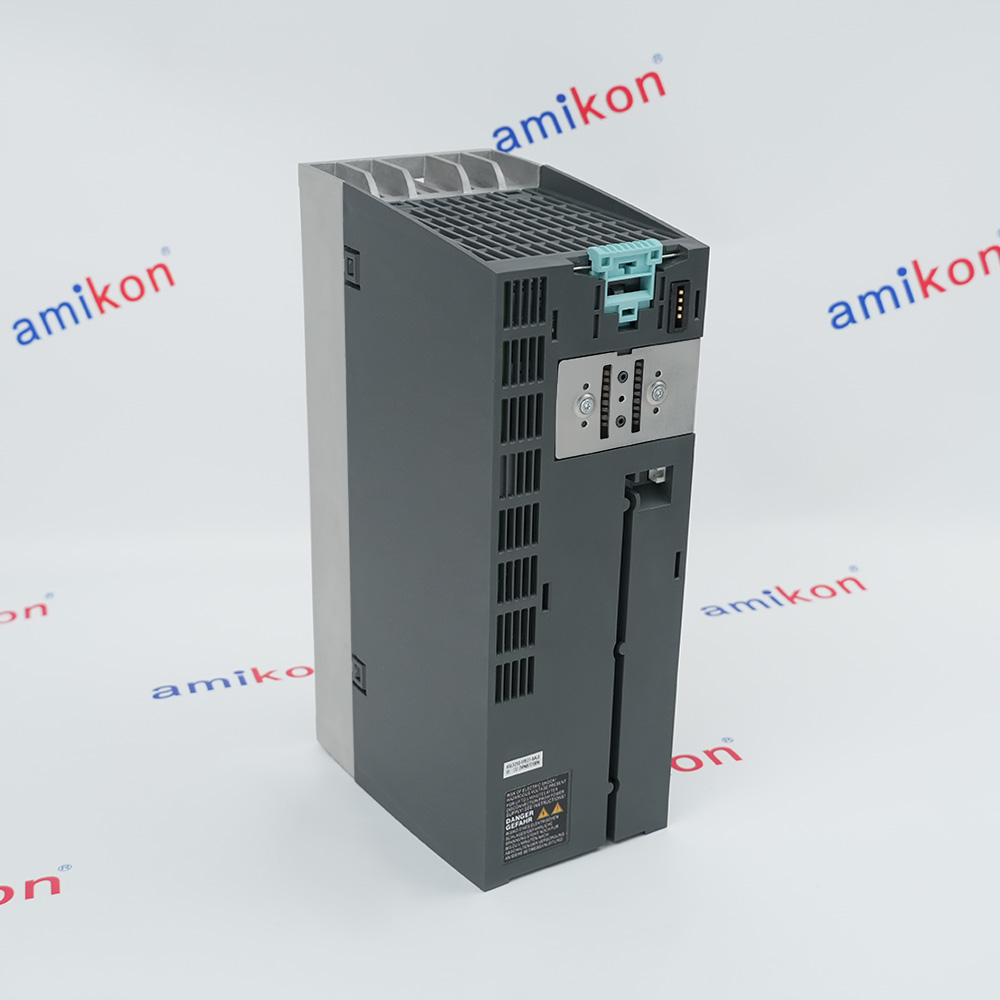

SINAMICS G120 PM 240 Power Module
unfiltered with integrated braking chopper
380-480 V 3 AC +10/-10% 47-63 Hz
power high overload: 0.55 kW at 200% 3 s
150% 57 s, 100% 240 s
ambient temperature -10 to +50 °C
FSA degree of protection IP20
without Control Unit and BOP
Product family : SIPART PS2
Ly module plug-in module
for analog current output signal
for SIPART PS2 electropneumatic positioner
position feedback
signal current 4-20 mA
simple to retrofit
with explosion protection: eexib
POWER MODULE
SIMATIC DP
PM-E F PROFISAFE
24 VDC
SUITABLE FOR UNGROUNDED SETUP RELAY
FOR SWITCHING THE VOLTAGE BUSES P1
AND P2 UP TO CATEGORY 3 (EN 954-1)
SIL2 (IEC61508)/PLD (ISO13849)
2 FAIL-SAFE DIG. OUTPUTS UP TO CATEGORY 4
Isolation tested with 500 V DC
Digital electronic module with four outputs
Output current 2 A per output
Rated load voltage 24 VDC
Short-circuit protection
Suitable for solenoid valves
DC contactors, and indicator lights
Extended temperature range
from 0 to 55° C with vertical installation
SIMATIC DP
ELECTRONIC MODULE FOR ET200S
2 AI STAND. I-4DMU 15 MM WIDE
+/-20MA; 13 BIT +SIGN,4 .. 20MA
12 BIT FOR 4-WIRE TRANSDUCER
CYCLE TIME65 MS/CHANNEL
WITH LED SF (GROUP FAULT)
SIMATIC DP
Electronics module for ET 200S
2 AI TC standard
15 mm width
15 bit+sign +/-80 mV
Characteristic linearization for
thermocouples of the types: B, E, J, K, L, N, R, S, T Cycle
time 65 ms/channel
with SF LED (group fault)
