Single Board Computer

Front Panel USB Ports
Front Access Reset Switch
15-Pin SVGA Port
Freescale (NXP) MPC7448 processor @ 1.0-1.7 GHz
DDR2 SDRAM: Up to 2GB
L2 Cache: Typically 1MB

E3 Plus Panel Mount Adaptor

193ECPM3
DISCONTINUED BY MANUFACTURER 2019-10-30
E3 PLUS PANEL MOUNT ADAPTOR
FOR DIN RAIL MOUNTING
FOR USE WITH 193-ECXE
ALLOWS OVERLOAD RELAY TO BE SEPARATELY MOUNTED DIRECTLY TOTHE PANEL OR TO TOP-HAT DIN RAIL EN 50 022-35

Universal Operator Panel

Model:UNIOP BKDC16‑T
CPU / Memory:400 MHz CPU; 64 MB
Display:5.6″ color STN LCD

Operator Control Panel Module

PQCCU02
QUALITY CONTROL SYSTEMS
PRESS FIT
AC110V

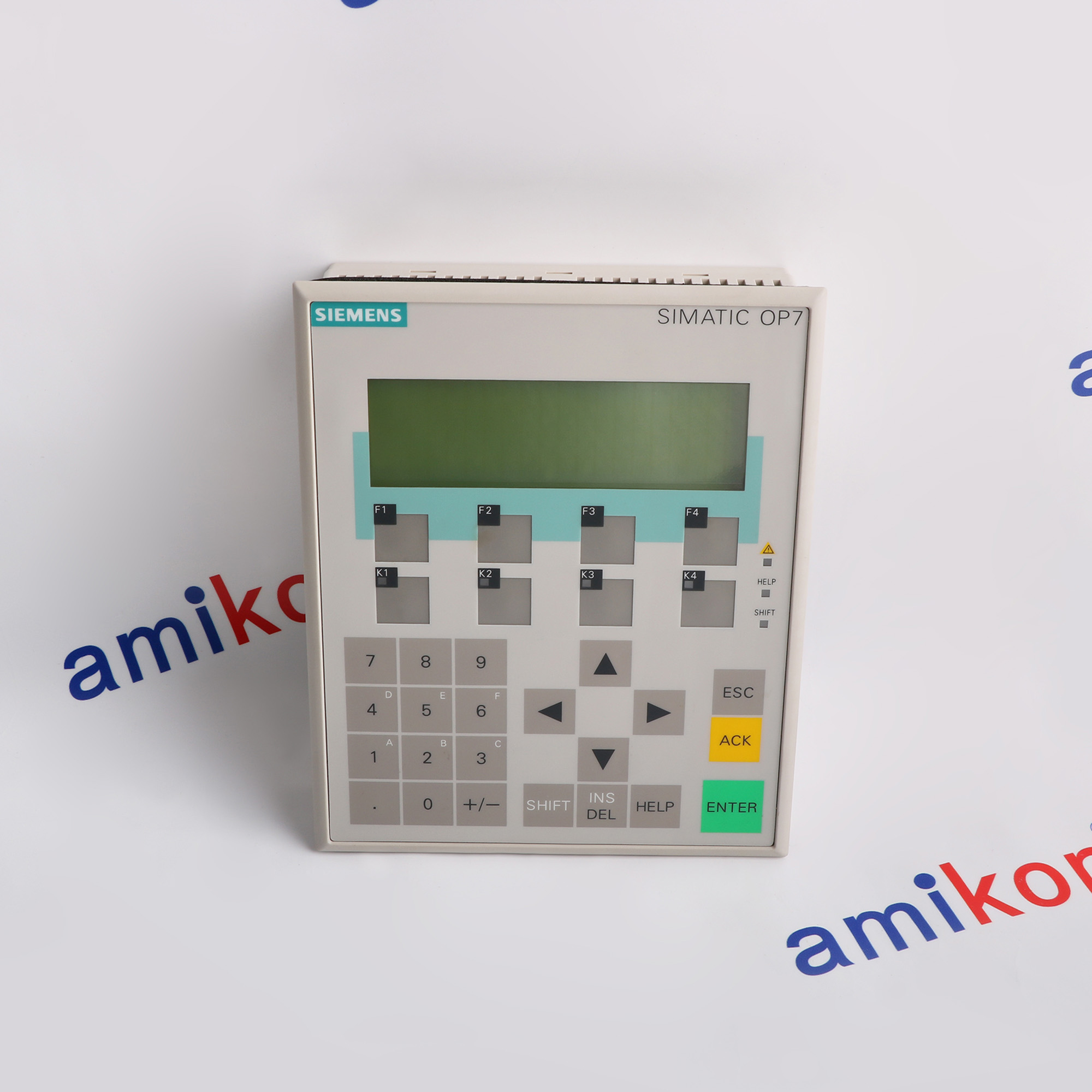

Operator Panel OP7

6AV36071JC200AX1
DISCONTINUED BY MANUFACTURER 01.10.2018
OPERATOR INTERFACE
SIMATIC S7
OP7/DP
20 CHARACTERS
8 MM CHARACTER HEIGHT
4 LINES
HIGH-CONTRAST LC DISPLAY
W/ LED BACK-LIGHTING
PROFIBUS-DP COMMUNICATIONS
0.24 AMP
24 VDC
Tariff Code: 8531200020
Country of Origin: Germany

Controller Module

Model:VCIB‑16A
Drive Type:AC servo / vector control
Output Current:16 A continuous
Input Voltage:200–240 VAC

BA4/30-50-310 Power Supply Unit

BA43050310
DISCONTINUED BY MANUFACTURER
POWER SUPPLY UNIT
DC
(024.7722.A)

SERVO CONTROL AMPLIFIER

SERVO CONTROL AMPLIFIER
3 CHANNEL
0-5V TERMINAL
ANALOG PARAMETER SWITCH

Digital Input Module

INPUT MODULE
FLEX I/O
DISCRETE
DC
8 POINTS 24VDC SINKING INPUT
OPEN STYLE
DIN MOUNT
IP20

FBM204
DISCONTINUED BY MANUFACTURER
I/O INTERFACE MODULE
I/A SERIES
CHANNEL ISOLATED
4INPIT / 4OUTPUT
0-20 MA

MX200 Processor Module w/ 512MB Card

MX213
PROCESSOR MODULE
CPU MODULE LX700 (266MHZ)
256MN DRAM / 512KB NVRAM
16MB FILE-FLASH
2X ETH100
1 X CAN/CANOPEN
1 X RS232
1 X RS232/422/485
1 X USB2.0
INTEGRATED POWER SIPPLY 17 WATT
CF SLOT
2GB CF CARD

Ultrasonic Level Measurement

Level instrument, continuous.
Measuring: ultrasonic.
Input: 1-channel Nivosonic sensor.
Configuration: push button + LC-display+
Rackbus
Envelope curve + signal analysis.
Fixed target suppression
High functional safety
Volume calculation / Linearization

ControlLogix FlexLogix Battery

1756BA1
BATTERY ASSEMBLY
CONTROLLOGIX
FLEXLOGIX
3 VDC
1800 MAH
LITHIUM
TEMPERATURE 0/60 +C (32/140 +F)

SLC 5/04 Processor

1747L541
CPU MODULE
16 K USER MEMORY
DH+ & RS-232 COMMUNICATION PORT
24 VDC
SLC5/04
Tariff Code: 8538903000
Country of Origin: United States, Singapore

Valve Positioner Personality Module

VALVE POSITIONER CONTROL MODULE
1X LIM/SLIM PORT
1X RS-232 SERIAL PORT
1.25 AMP
250 V

Moore 353 Process Automation Controller

353A4F1NNNTNNA4
CONTROLLER REMOVABLE CONFIGURATION BOARD
Tariff Code: 9032896075
Country of Origin: United States

Digital Input Termination Panel

Output Voltage: 24V DC
Output Channels: Typically 8 digital output channels
Nominal Voltage: 24V DC ± 20%
Power Consumption: Typically 2W
Channel-to-Channel Isolation: ≥250VAC
Field-to-System Isolation: ≥1500VAC

Relay Output Module G2R

RELAY OUTPUT BASE MODULE
16 CHANNEL
LOW POWERED
G2R RELAY PANEL

Temperature Controller

Voltage Rating: 120VAC
Current Rating: Up to 16A resistive load
Accuracy: ±1°F (±0.5°C).
POWER SUPPLY: AC24V 20%, 50/60Hz,2 VA
ANALOG OUTPUT:2 to 10Vdc OR4 to 20mA
DIGITAL OUTPUT:2A, 24Vac

Valve Positioner Electronics Module

1C31194G01
DISCONTINUED BY MANUFACTURER
VALVE POSITIONER CONTROL MODULE
OVATION
DELTA V

Termination Board

Wire Size: 12-24 AWG (0.5-2.5 mm²)
Isolation: 1500V AC (field-to-system)
Contact Resistance: <10 mΩ
Max. Voltage Rating: 300V AC/DC
Panel type:Commoned
Points :16
Maximum total current:16 amps

Digital Servo Drive

SERVO DRIVE
CONTROL DRIVE
230 VAC
24 VDC
RESOLVER INPUT
ENCODER INPUT
FIELDBUS
LIMIT SWITCH

Terminal Board

Model Number: 9753-110
Type: Termination Board/Baseplate
Terminal Type: Screw terminals
Wire Size: Accepts 12-24 AWG
Isolation: 1500V AC between field and system
Contact Resistance: <10mΩ

SERVO AMPLIFIER DIGITAL

DIGIFAS7202
DISCONTINUED BY MANUFACTURER
SERVO AMPLIFIER
STANDARD VERSION
DIGITAL
400 VAC
3 PHASE
2.8 AMP
1.7 KVA
IP20

SLC 5/01 Controller

1747L514
DISCONTINUED BY MANUFACTURER 10/21/2016
CPU MODULE
4K RAM MEMORY
DH-485
SLC5/01
