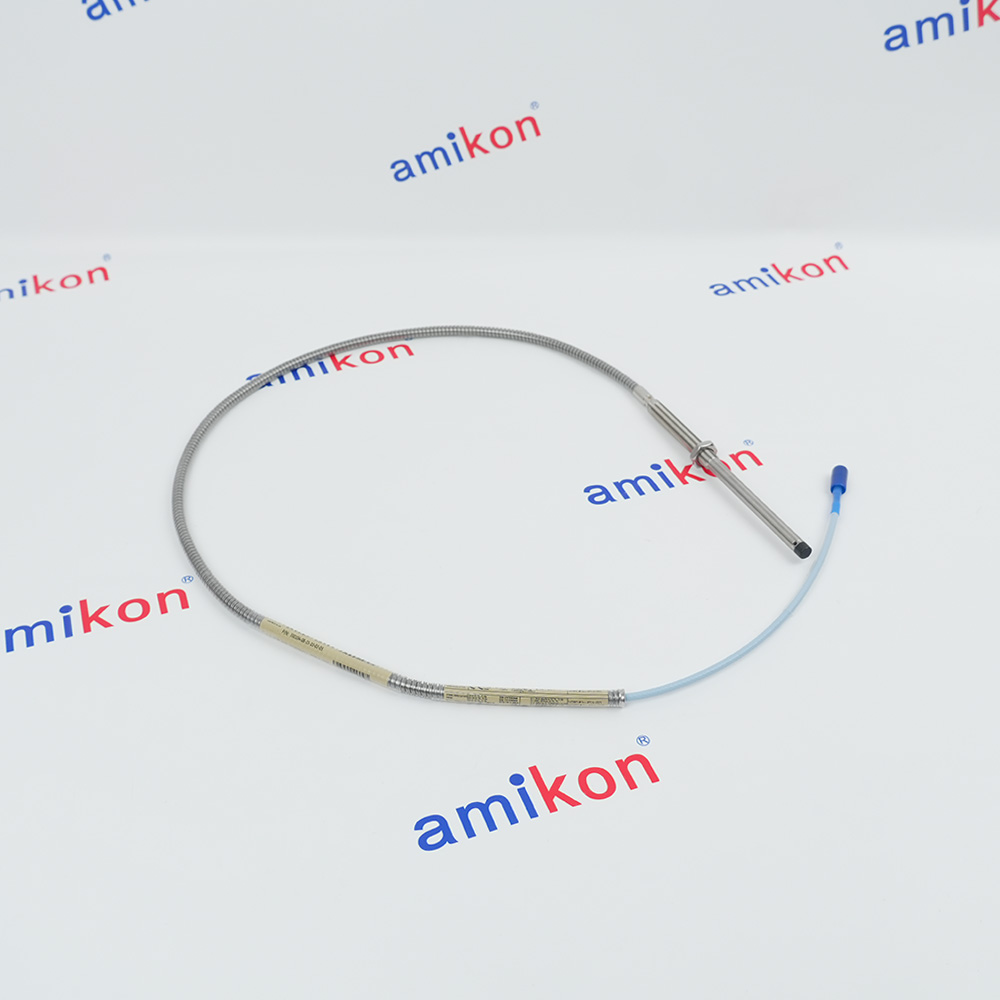

3300 XL 8 mm Probe
3/8-24 UNFthread, with armor
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector with
connectorprotector, standard cable
00 Not required
Power Consumption: 7.0 Watts, typical
External transducerPower+24 Vdc +4
-2 Vdc @ 1.8 AMinimum
Voltage +5 Vdc typica
Current 0.4 mA typical, 4 mA peak
OperatingTemperature:-30°C to +65°C
2 or 4 mm measurement range
−40 to 180 °C operating temperature
0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
Versions certified for use in potentially explosive atmospheres
Conforms to API 670 5th edition
8 mV/µm or 2.5 µA/µm (2 mm range)
4 mV/µm or 1.25 µA/µm (4 mm range)
−40 to 180 °C, Ø8.2 mm tip, reverse-mount
Voltage at min. GAP : −1.6 V
Voltage at max. GAP : −17.6 V
Dynamic range : 16 V
Output impedance : 500 Ω
Short-circuit current : 45 mA
Output capacitance : 1 nF
Output inductance : 100 µH
Operating : −35 to +85°C
Storage : −40 to +85°C
VM600 series
Humidity: 5% to 95% non-condensing
Vibration: 0.15 g²/Hz (5 to 500 Hz)
Shock: 15 g (11 ms half-sine)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
8 Signal Inputs
Enhanced Parallel Port for
Connecting to 208-P DAIUs
80 Mb Hard Disk Space
Up to 16 Channels
Real-Time Display Capability
Backwards Compatible with
Existing ADRE 3 Databases
Linear Range Option : 02= 50.8 mm (2.00 in)
Spring Option : 01 = With spring return
24765 dc LVDT Assembly Electrical Scale Factor
0.404 V/mm (10.25 V/in).
24765 dc LVDT Assembly Electrical Linear Range
50.8 mm (2.00 in).
24765 dc LVDT Assembly Electrical -3 dB Frequency
15 Hz.
3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
10 1.0 meter (3.3 feet)
11Miniature coaxial ClickLocconnector with connectorprotector
FluidLoc cable
00 Not required
3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
10 1.0 meter (3.3 feet)
11Miniature coaxial ClickLocconnector with connectorprotector
FluidLoc cable
00 Not required
Product Type : Interconnect Cable
16710 - Model: 3-conductor shielded 22 AWG (0.5 mm2)
armored cable with 3-socket plug at one end,
terminal lugs at the other end.
Minimum length of 3.0 ft (0.9 m)
maximum length of 99 ft (30m)
