ALL MANUFACTURERS

SERIAL COMMUNICATION MODULE

Interface:RS-422/RS-485
Communication function: Half-duplex
Synchronization method:Start-stop synchronization
Transmission code:binary
Character length:8 bits
Stop bit length:1/2 bits
Transmission distance:Maximum 15 m
Current consumption:0.5 A

REF542plus HMI Unit

Supply Voltage:24V DC (18-36V range)
Power Consumption:8W (typical)
Isolation :2kV AC
Display Type:5.7" TFT LCD (color)
Resolution:320 × 240 pixels
Touch Panel:Resistive (single-touch)
Backlight:LED (50,000h lifespan)
Ethernet:10/100 Mbps (IEC 61850 MMS)
Optical Port: IR interface for local config
USB:Type B

Multi flame detector - control unit

Power Supply:120-220 Vac +/- 20%,
45-65 Hz 24Vdc +/- 20%
AC input: 30 VA (6A / 5 ms inrush current)
DC input: 22 W (24A / 2 ms inrush current)
Operating: 0 - 60°C (32 - 140°F)
Storage: -25 - 85°C (-13 - 185°F)
Contact rating: 250 Vac 3 A 750 VA cosΦ 0.4
220 Vdc 300 mA 66 W

PCB Board

KJMP CARD
Operating Voltage:12V DC
Current Draw:500mA
Memory Capacity:512KB
Communication Interface:RS-485

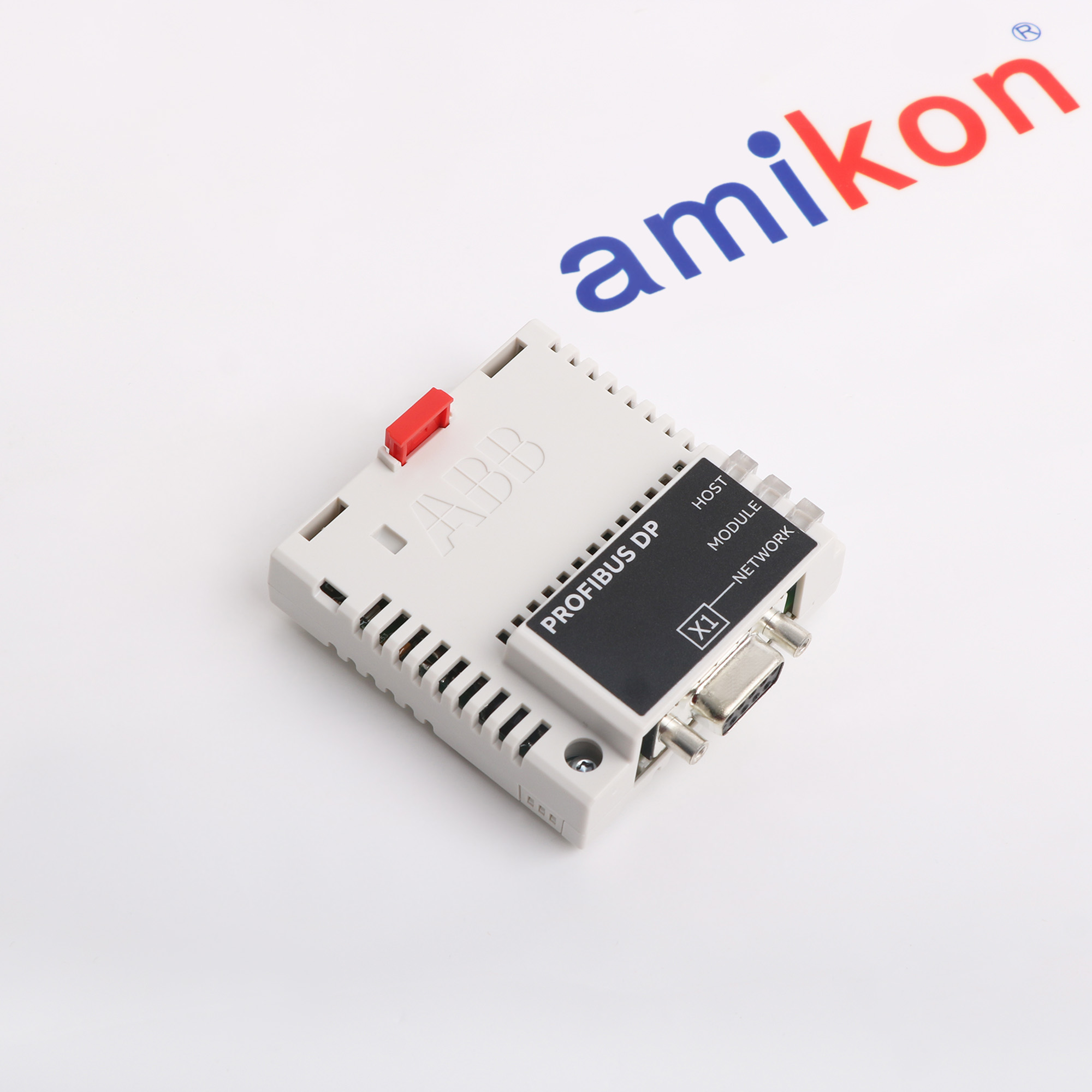

16 Bit Profibus DP Adapter Module

Up to 12 Mbps.
Auto-detection of baud rate
Address Range: Configurable from 0 to 126
Supply Voltage: 24 VDC ±10%.
Power Consumption: < 2 W
Operating Temperature: -10°C to +55°C.
Storage Temperature: -40°C to +70°C

CONTROL CIRCUIT BOARD

Input Voltage: +5V, +12V
Current Consumption: Typically under 2A
RS-232/RS-485
Operating Temperature: 0°C to 50°C.
Storage Temperature: -20°C to 70°C.
Relative Humidity: 5% to 85% (non-condensing)

Traction Voltage Sensors

Nominal primary voltage:2000V r.m.s
Measuring range:±3000
Primary turn number:20000
Secondary turn number:2000
Secondary current at UPN:50
Accuracy at UPN:≤±1
Offset current:≤±0.3
Linearity:≤±0.1
Thermal drift coefficient:-25 … +70°C ≤±5

POWER MODULE

Support for 10 Mbps Ethernet trunk Fieldbus
Support for DIN rail mounted FBMs
Optional redundancy
Compact, rugged design
Easy to install and configure

Analog Output 24V IOTA Module

Typically 24V DC or 12V DC
Output Type Source
Load Voltage 15 30 VDC Maximum
On-State Voltage 24 V (typ), load current @ 0.5A
Off-State Leak Current 5.0 µA (max)
Turn-On/Turn-Off Time 10 ms (max)

Serial Interface Card

Local Bus Power 12 VDC at 300 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985 Airborne
Contaminants Class G3

Power Supply Rack

Overvoltage:28V DC
Input Voltage:400-480V AC, 3-phase (±10%)
Output Voltage:24V DC regulated
Output Current:50A (continuous), 60A (peak)
Power Rating:1.2kW (per module)
Efficiency:>93% (at 50% load)
Power Factor:>0.95

70 AS 47b-E Module

Power Supply: 24V DC (±10%)
Power Consumption: 3.5W (typical)
Number of Channels: 8
Current Output Range: 4-20mA
Voltage Output Range: 0-10V
Resolution: 16-bit
Accuracy: ±0.1% of span
Current: ≤750Ω
Voltage: ≥1kΩ

Diode Module

Input Voltage:24V DC nominal
Input Current:3-8mA per channel
Isolation:1500V AC (field to logic)
Response Time:<1ms (ON/OFF)
Number of Channels:32
Voltage Rating:1600V (V_RRM)
Current Rating:300A (I_FAVM)
Surge Current:8kA (I_FSM, 10ms)
Forward Voltage:1.25V @ 300A (typical)

Ethernet Communication Module

Connection method Point-to-point
Connector RJ-45
Transmission method Half-duplex
Transmission speed 10 Mbps
Transmission route 100 ohm twisted-pair cable

Miniature Circuit Breaker

AC: 230/400 V
DC: 60 V
Rated Current (Iₙ): 42 A
Rated Insulation Voltage (Ui): 500 V
Rated Impulse Withstand Voltage (Uimp): 6 kV

Rotational ac motor M10

Rated Output:1.8 kW
Peak Torque:180 Nm (transient, 1 sec)
Rated Torque:60 Nm (continuous)
Rated Speed:1,500 rpm
Max Speed:3,000 rpm
Voltage Rating:400 V AC (3-phase)
Current Rating:4.2 A (RMS, continuous) / 12.5 A (peak)
Feedback Device:Resolver (multispeed, 1x/4x)

Power Supply Module

Input Voltage:85-264V AC (47-63Hz)
Output Voltage:24V DC ±1%
Output Current:10A continuous (12A peak for 5s)
Power Rating:240W
Efficiency:>92% @ 230V AC
Inrush Current:<25A @ 230V AC
