KJ3241X1-BA1 Redundant Serial Interface Card

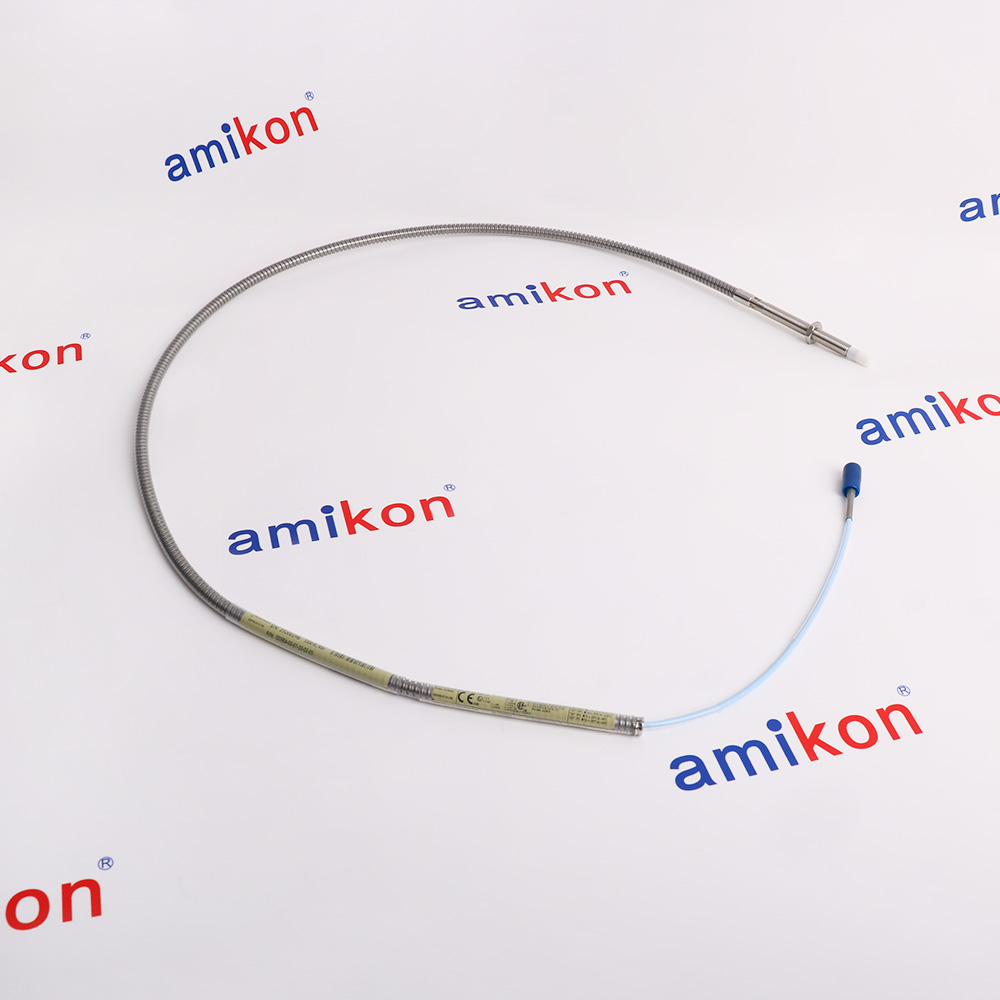

8mm Eddy Current sensor

Eddy Current sensor
8 MM EDDY CURRENT
2 MM RANGE
0.5 MM AIR GAP
25 MM SHAFT DIAMETER
1 M CABLE LENGTH
-35 TO +150 DEGREE C

I/O Module

135489-03
BARRIER SEISMIC I/O MODULE
4 CHANNELS
50MA
3500 SERIES
RELAY CONTACTS 5AMP MAX
250VAC MAX
TMR RELAY 2AMP MAX
30V MAXI.S.CIRCUITS

I/O Module

I/O Module with
Internal Barriers
internal terminations
4 x Prox/Accel

3300 NSv Reverse Mount Probe

330906-02-12-CC-DD-EE 3/8-24 UNF threads
05 0.5 meter (20 in)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

Process Variable Monitor

+/-10 Vdc I/O : -10 Vdc to +10 Vdc
4-20 mA Barrier I/O:4-20 mA DC
Voltage Compliance:13.66 V
Isolation:500 Volts
Power Consumption:7.0 Watts, typical
Accuracy:Within ±0.33% of full-scaletypical, ±1% maximum

Velocity Monitor

Impulse Acceleration
Acceleration 2
Recip Velocity
Low Frequency Recip Velocity
Signal:Accepts from 1 to 4 proximityprobe signals.
Special inhibit:Contact closure5 Vdc @ 390μA typical
Powerconsumption: 7.7 watts, nominal

3300 XL Proximitor Sensor

52 5.0 meters (16.4 feet) system length
no mounting hardware
05 CSA, ATEX, IECEx Approvals

PROXIMITOR INPUT MONITOR

FIELD MONITOR
PROXIMITOR INPUT MONITOR
FOR RADIAL VIBRATION AND THRUST POSITION
2 CHANNEL DEVICE
24 V DC

Velomitor Piezo-velocity Sensors

03 1/4-28 UNF
00 Not required
Velomitor Piezo-velocity Sensor

3300 XL 8 mm Reverse Mount Probes

330105-02-12-CC-DD-EE3/8-24 UNF threads
10 1.0 meter (3.3 feet)
02 Miniature ClickLoc coaxialconnector
00 Not required

3300 XL 11 mm Proximitor Sensor

50 5.0 meter(16.4 feet) systemlength
panel mount
05 Multiple approvals

Power Supply Unit
