Digital Output Module

HARMONY BLOCK DIGITAL OUTPUT MODULE
3 AMP
24VDC
240VAC
16 OUTPUTS
FUSING/ON BOARD ELECTROMECHANICAL RELAYS
SPDT

AIN-220 Analog Input Module

Series: Harmony/800xA System
Model No.: P-HB-AIN-2200C100
Type: High-Density Analog Input Module
Voltage: ±10V, 0-10V, 1-5V
Current: 0-20mA, 4-20mA
Resolution: 16-bit (0.0015% of span)
Common Mode Rejection: >120dB @ 50/60Hz
Normal Mode Rejection: >60dB @ 50/60Hz

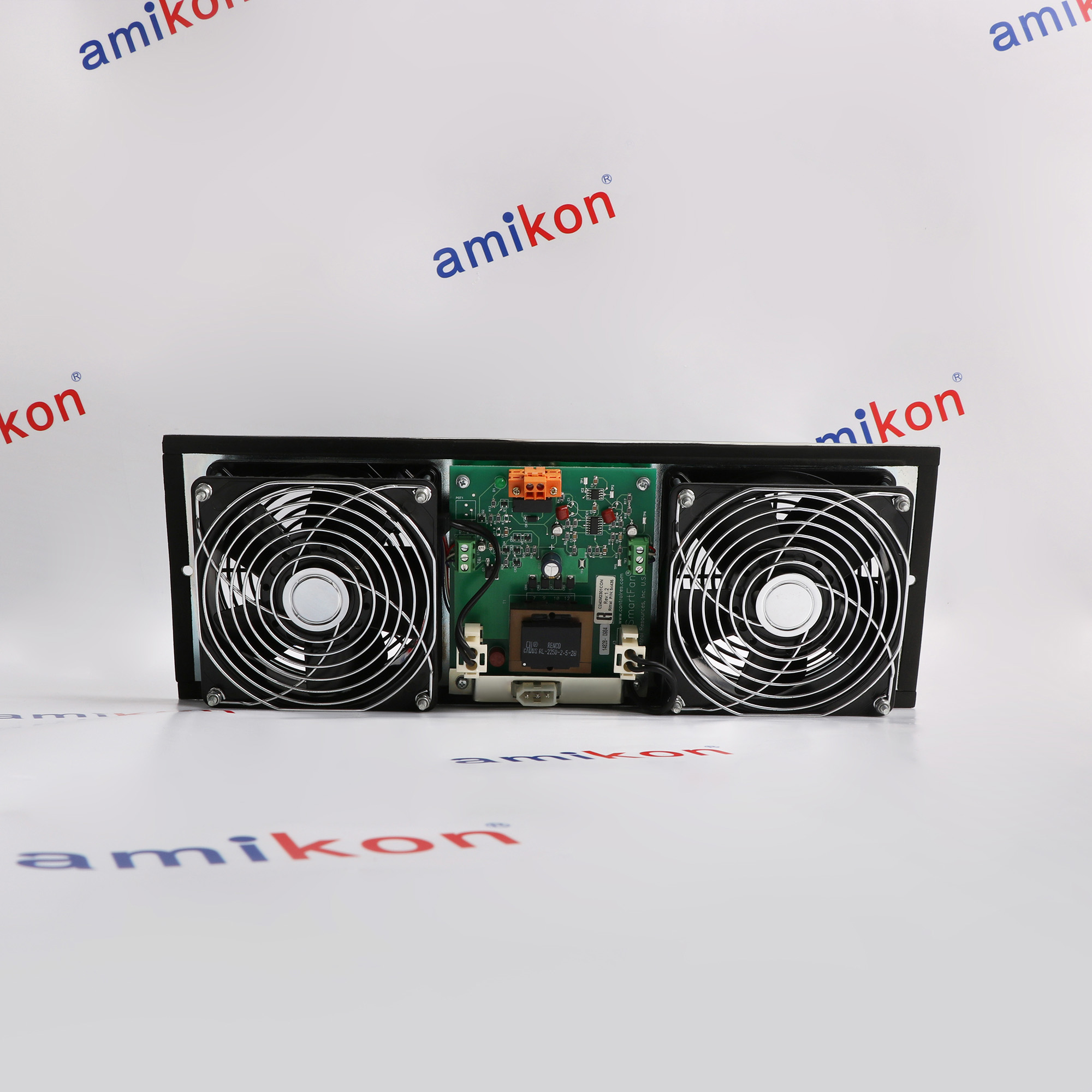

Fan unit 24 V DC with readback

Power Requirements: 24 VDC, 9.5W
Voltage Range: 12–29 VDC (Note: No reverse polarity protection)
Fuse Rating: 2 A slow-blow (5 x 20 mm)
Maximum Switched Voltage: 300 VDC / 240 VAC
Maximum Switched Current: 0.5 A
Maximum Switched Power: 10 W

Power Board

Input Voltage:24V DC (±10%) or 115/230V AC
Output Voltages:+5V, ±15V, +24V DC
Power Capacity:100W (max)
Inrush Current:15A (for 20ms at 230V AC)
Efficiency:>90% (at full load)
Fiber-Optic Signal Isolation :2500V AC

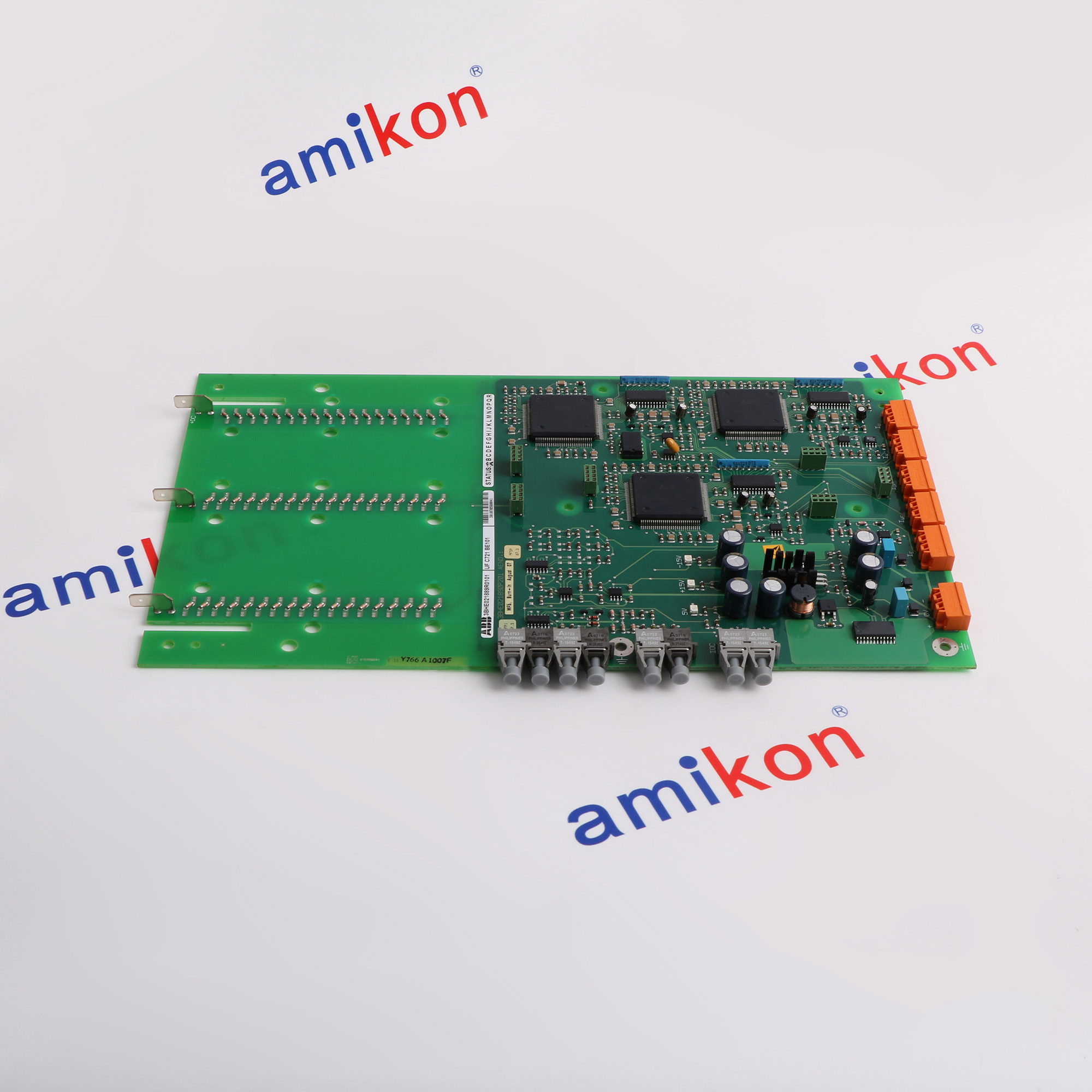

Drive Board +IGBT Module

Voltage Rating:1700V
Current Rating:450A (continuous)
Max Junction Temp.:150°C
Switching Frequency:Up to 5kHz
Gate Drive Voltage:+15V/-5V
Isolation Voltage:2500V RMS
Power Consumption:25W (typical)
Protection Response:<2μs (short-circuit)

Pulse Transformation Board

Power Supply:24 V DC
Differential: ±12 V.
Power consumption: < 5 W
Single-ended: 0–24 V
Output Voltage:
TTL: 0–5 V.
HTL: 0–24 V

Transceiver Control Module

Drive power board

Input Voltage:3-phase 380-480V AC (±10%)
Output Voltages:+24V DC (control)
Power Capacity:500W (continuous)
Switching Frequency:20kHz (PWM)
Efficiency:>92% (at full load)

DI 24/48VDC Single-Ended E-Mod

Control board

Input Voltage:24V DC (±10%)
Power Consumption;25W (typical)
Isolation :1500V AC (field to logic)
Vector control
Torque/speed regulation
PID controllers
Communication;Ports 2x Ethernet, 1x RS-485

Interface Board

Input Voltage:24V DC (±10%)
Power Consumption:8W (typical)
Isolation Voltage:1500V AC (channel-to-channel)
Communication Speed:Up to 1Mbps
Signal Channels:16 digital I/O

Analog Output Module

Product Type: Analog Output Module
Number of Channels: 8 or 16 analog output channels
Output Signal :4-20 mA or 0-10 V DC
Power Consumption: Low power consumption 5-10 watts
Operating Temperature : 0 ° C to+60 ° C

Interface Board

Input Voltage:24V DC (±10%)
Power Consumption:12W (max)
Isolation Voltage:2500V AC (channel-to-bus)
Input Current :5mA @ 24V DC
Voltage Range:0-30V DC

PCB Board

Input Voltage:24V DC (±10%)
Power Consumption:15W (typical), 20W (max)
Isolation:1500V AC
Processor:32-bit RISC
Clock Speed:800MHz
Memory:512MB DDR3 RAM, 1GB Flash
Real-Time Clock:Battery-backed (CR2032)
Communication Interfaces:2x Ethernet, 1x RS-485

AIR FLOW SENSOR

AIR FLOW SENSOR
0.04 AMP
24 V
