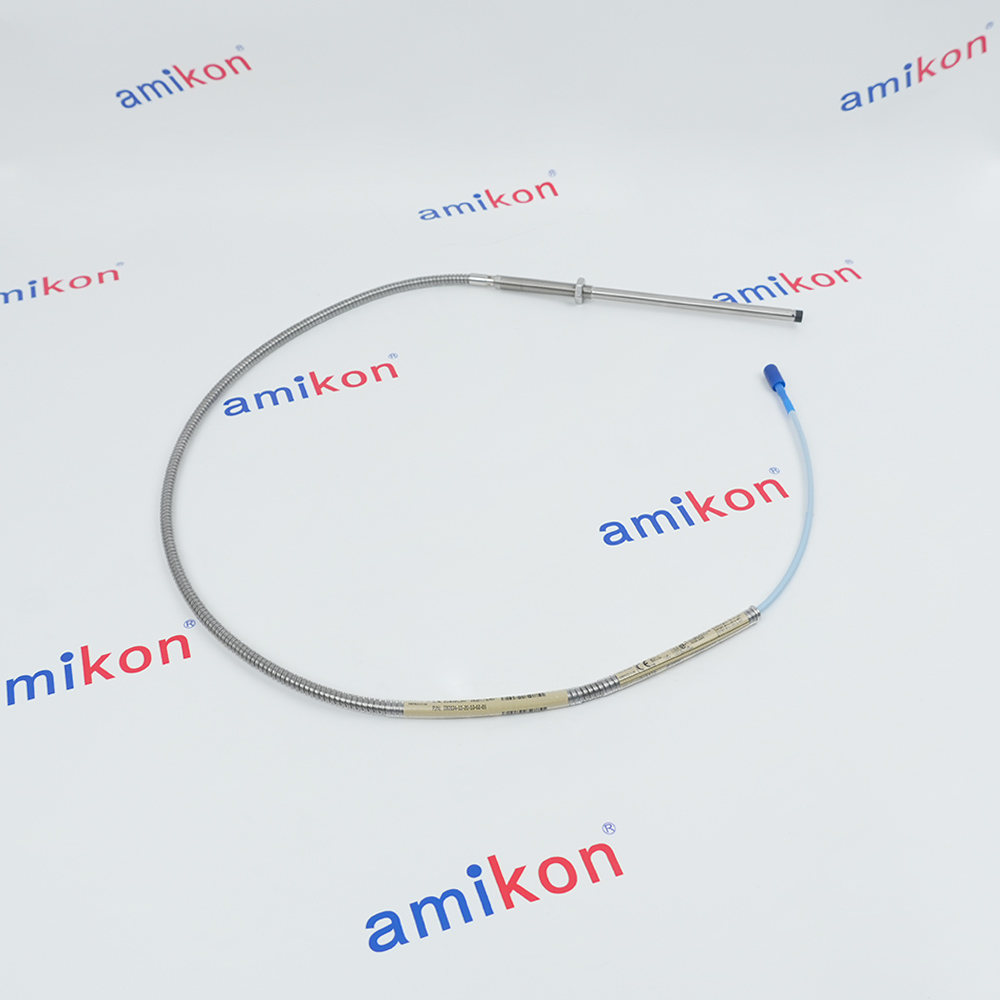

330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Minimum case length: 50 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
3300 XL Proximitor Sensor
90 9.0 meters (29.5 feet)
system length,panel mount
Gap Voltage Output:-2 V to -18 V DC
Vibration Output:±5 V AC peak
Dynamic Range:0–10 kHz
Linearity:±1% over full scale
Vibration Variables:±1% of full scale range
3-wire VoltageMode:10 kΩ
Bias Filter:0.09 Hz 1-pole low-pass
OK Filter: 2.4 kHz 1-pole low-pass
BiasVoltage:-24 V
