Inverter IGBT trigger board

Input Voltage:+24V DC
Turn-On Voltage: +15V ±0.5V
Turn-Off Voltage: -8V to -15V
Switching Frequency:Up to 10–20 kHz
Optical Isolation: ≤2500 V RMS
Operating Temperature: 0°C to +70°C
Storage Temperature: -40°C to +85°C

System PSU 115/230VAC 24Vdc 50A CC,UL508

Power requirements : 110-240 Vac
Power consumption at no load : 13 W
Input frequency range : 47-63 Hz
Storage temperature : –25°C—+85°C (–13°F—+185°F)
Operating temperature : –5°C—+70°C (23°F—+158°F)
Inrush current : < 15 A
Output voltage : 25 Vdc or 28 Vdc; dual overvoltage protection
Ripple and noise : < 40 mVpp
Hold-up time : 100 ms at full load
Output voltage setting : 25 Vdc
Efficiency at 230 Vac : >87%

CIRCUIT BOARD

Supply Voltage:24V DC (±10%)
Power Consumption:<10W (typical)
Processor:32-bit microcontroller
Memory Flash: 8MB+, RAM: 4MB+
Operating Temp.:-25°C to +70°C
Humidity:5–95% RH (non-condensing)

Processor Module

PROCESSOR MODULE
FOR AFV30S AFV30D AFV40S AFV40D
STANDARD TYPE
NO EXPLOSION PROTECTION
19 INCH RACK MOUNTABLE
REPLACES CP461-10 PROC MOD

Safe Digital Input FTA

Safe digital input FTA
24/48 V DC, NAMUR, 16 channels
Sixteen channels ,eight channels with a 250 mA fuse
canbe connected to the TSDI-16UNI module
via a system interconnection cable (SICC-0001/Lx)
SIC connector on the FTA module
connects to a (redundant pair of) SDIL-1608module(s)

DC/DC converter

CONVERTER
1 AMP
DC/DC converter
24 V DC to 30 V DC / 1 A converter
30 V DC / 1 A to other fieldtermination assemblies (FTAs)

Processor Module

SCP46151
PROCESSOR MODULE
ENHANCED RFI
ISA STANDARD G3
FOR SSC60S
SSC60D

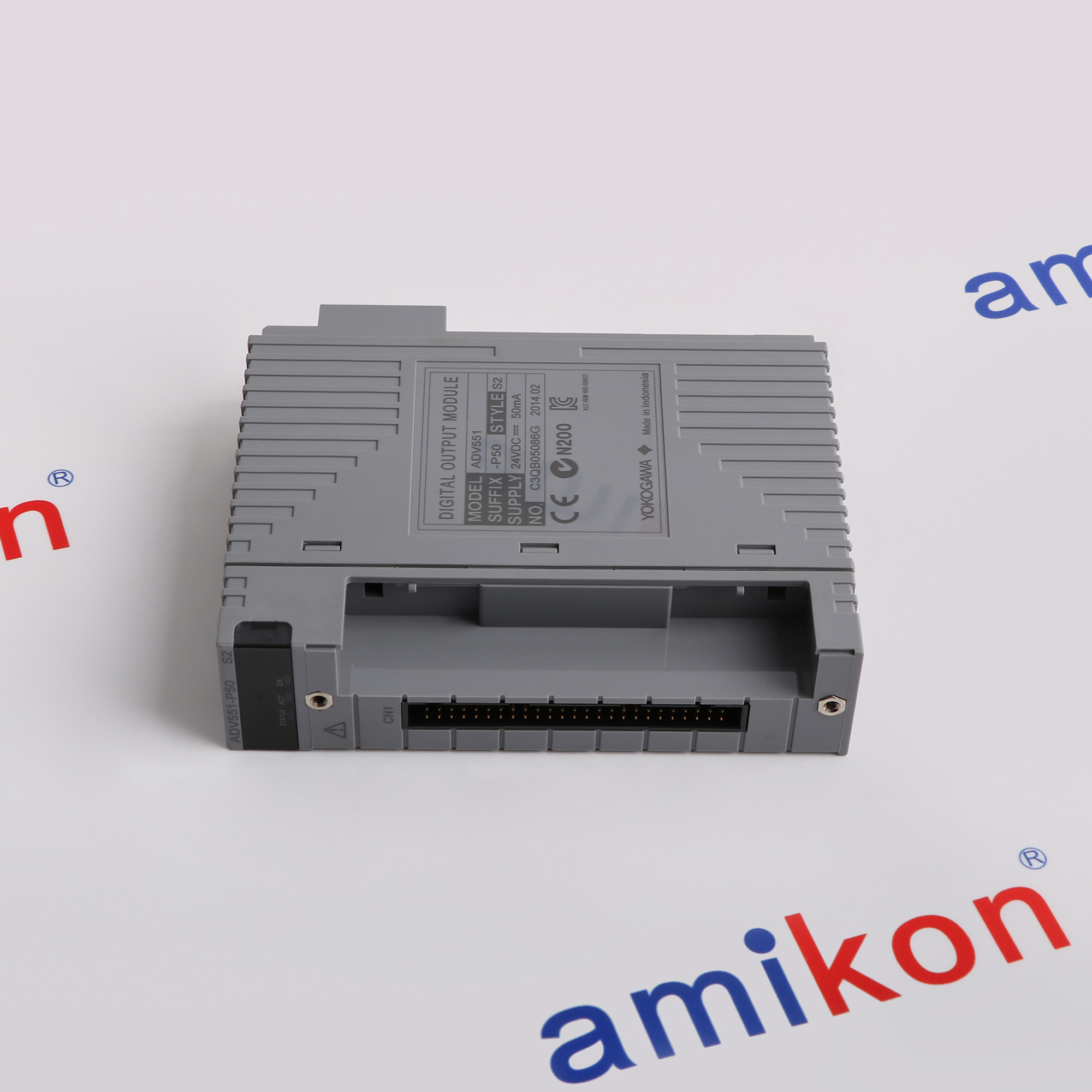

Digital Output Module

Number of outputs 16-channel, module isolation
Output voltage 24 V DC
Output voltage drop 1 V maximum
External power supply rating 24 V DC, 3.4 A minimum
Maximum leak current at output off status 1.6 mA
Output format Current source
Maximum load current 0.2 A/output line
Minimum load current 35 mA
Load resistance range 120 to 685 Ω
Output response time 30 ms maximum

Current Input Module

Number of input channels:16, isolated
Input signal:4 to 20 mA
Allowable input current:24 mA
Accuracy:±16 µA
Data update period:10 ms
Drift due to ambient temperature change:±16 µA/10 ˚C
Maximum current consumption:230 mA (5 V DC), 540 mA (24 V DC)

ESB Bus Coupler Module

Function: ESB bus master interface function
Number of connectable units: 9 units maximum
Transmission speed: 128 Mbps
(I/O module data transmission)
Transmission distance: 10 m maximum
Current consumption: 0.5 A

Processor module

Display Type:LCD
Communication Interface:Serial/FBP/Ethernet
Memory Size:9728 kB
Memory Size User Data:5632 2 kB
Memory Size User Program:4096 2 kB
Memory Type User Data:RAM
Controller Processing Time:0.000002 ms
Degree of Protection:IP20
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

Trusted Communication Interface Adapter

Allows easy access for external systems
to communicate with a Trusted System
Easy installation i.e. connects directly to the back of the Trusted Communication Interface.
Two 10/100BaseT connections.
Four RS422/485 connections.
Two RS232 connections

INPUT MODULE

Trusted CCoat TMR 24V 40Ch DI Module
INPUT MODULE
24 VDC
40 CHANNEL
DIGITAL

Gate Unit Power

3BHB005243R0105
GATE UNIT POWER SUPPLY
(KUC755 AE105)
