51 5.0 meters (16.4 feet) system length
DIN mount
Input Power:-24 V DC (±10%),
Gap Voltage: -2 to -18 V DC
AC Vibration: 0–22 V pk-pk
Channels:1 channel per module
Frequency Response:0.5 Hz to 12 kHz (±3 dB)
LED Indicators: Power (Green)
Terminals:Screw-clamp terminals (2.5 mm²)

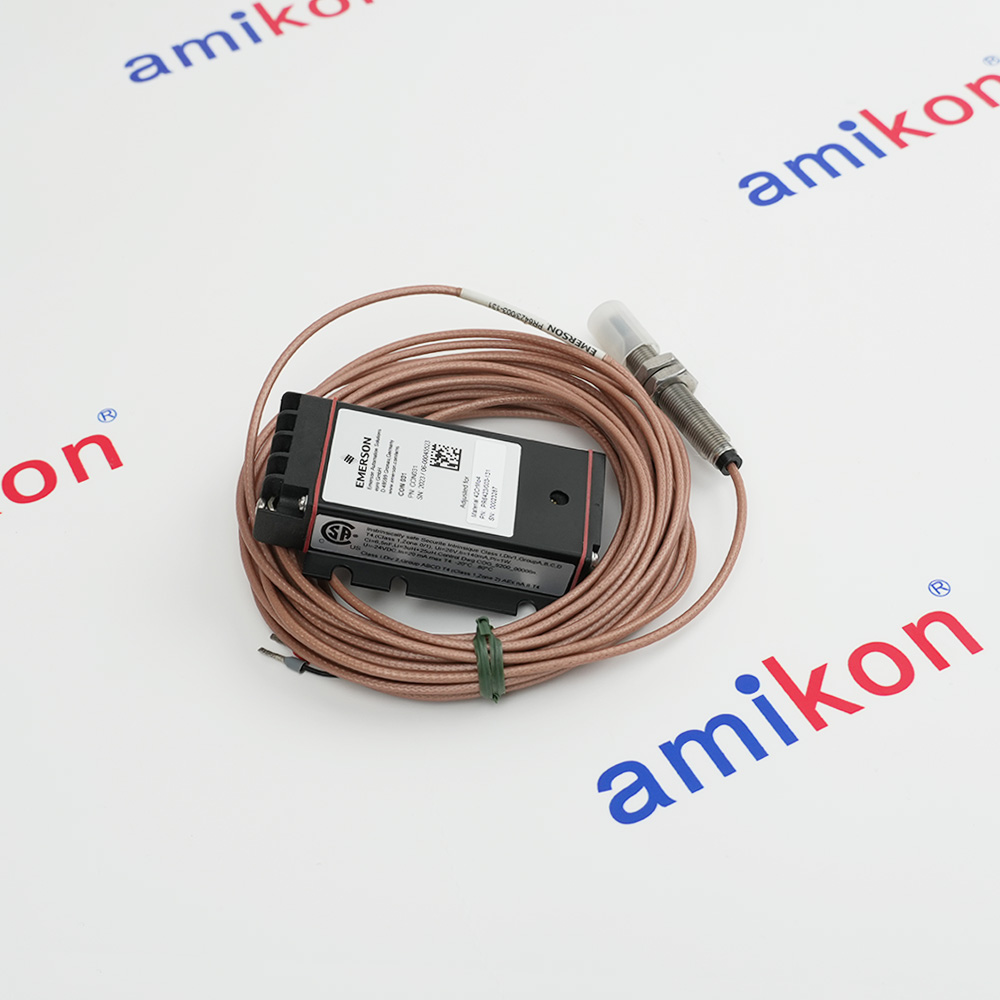

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 50 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
5 0 5.0 metres (16.4 feet)
system length,panel mount
0 0 No Approvals
Probe Diameter:25 mm (0.98 in)
System Length:5.0 m (16.4 ft)
Output Signal:-4 to -20 V DC
Sensitivity:8.0 V/mm (200 mV/mil) ± 2%
3-wire VoltageMode10 kΩ
Bias Voltage -24 V
Vibration Variables ±1% of full scale range
Minimum Switched Current 12Vdc/100mA
Current Source 3.3 mA ± 5%
Open Circuit Voltage21 to 24 Vdc
330104-06-06-90-02-05
DISCONTINUED BY MANUFACTURER
PROXIMITY PROBE
3300 XL 8 MM
5.0 INCH OVERALL CASE LENGTH
1.0 M (3.3 FT) TOTAL LENGTH
3/8-24 UNF THREAD
WITH ARMOR
0 5 0-5 mils pp (0-125 μm pp)
0 1 35 mm DIN rail clips
0 0 Not required
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
