ALL MANUFACTURERS

Micromaster 440

Power Module

SITOP PSU8200 Power Supply

SITOP PSU8200
24 V/20 ASITOP PSU8200
24 V/20 A STABILIZED POWER SUPPLY
INPUT:3 400-500 V AC
OUTPUT: 24 V/20 A DC

Velomitor XA Piezo-Velocity Sensor

Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
VelocityRange:1270 mm/s (50 in/s) peak
Transverse Sensitivity:Less than 5% of sensitivity
Amplitude Linearity:±2% to 152 mm/s (6 in/s) peak
MountingTorque:45 N-m (33 ft-lb) maximum

SIWAREX MS Weighing Module

3300 XL 8 mm Proximity Probes

Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 02 = 20mm
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : 00 = Not required
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST)

IM151-8F PN/DP Interface Processor

SINAMICS G120C PN 2,2KW UNFIL

SITOP PSU8200 Power Supply

SITOP PSU8200
24 V/40 A stabilized
power supply input: 120/230 V
AC output: 24V DC/40 A

Digital Relay Output Module

3636T
DIGITAL RELAY OUTPUT MODULE
32 POINT
2 AMP
125 VAC/DC
1900 VDC POINT ISOLATION
NON-TRIPLICATED

CONVERTER BOARD

IO BOARD
CONVERTER BOARD

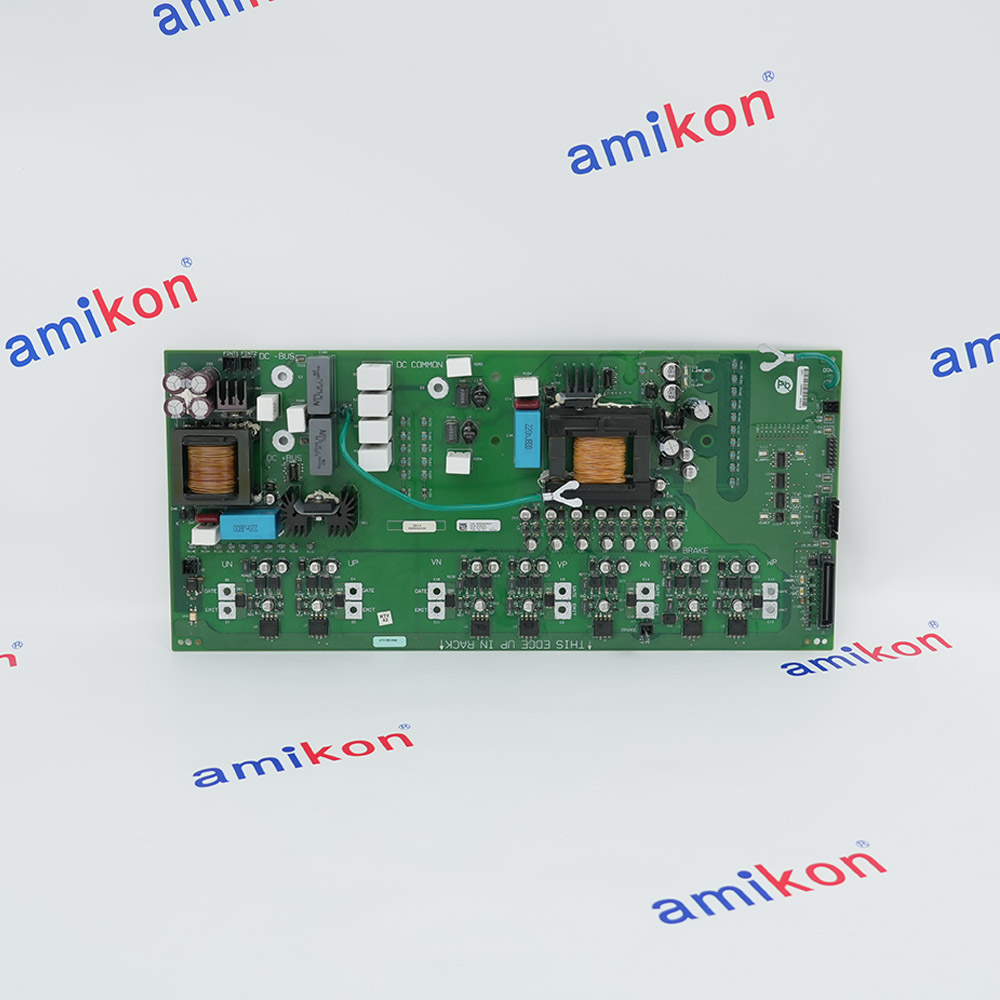

DRIVE BOARD
Input Voltage Range: 200 V – 600 V DC
Output Voltages & Currents:
+15 V DC ± 5% at up to 3 A
+5 V DC ± 5% at up to 1 A
Isolation Voltage: ≥ 3 kVrms (input to outputs)
Conversion Efficiency: ≥ 85% typical at full load
Ripple & Noise: ≤ 100 mVp‑p on 15 V rail

Digital Output Module
