24 AUX Relay

Coil Voltage:24V DC
Operate Voltage:80% of nominal voltage
Release Voltage:10% of nominal voltage
Coil Power Consumption:1.8 W (typical)
Contact Configuration:4 Changeover
Contact Material:Fine Silver Alloy (AgCdO)
Operate Time:< 15 ms
Release Time:< 10 ms

I/O Module

I/O Type
Digital or Analog Inputs/Outputs
Input Voltage Range
Typically 24 VDC or 120/240 VAC
Max Switching Current Typically 8 A
Mounting Type DIN rail or panel mount
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity 5% to 95% non-condensing

3-Input Auctioneer

Input Channels:3 (isolated)
Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC
Output Load:0–850 Ω
Power Supply:24V DC
Power Consumption:< 3W

3-Input Auctioneer

Input Channels:3
Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC
Output Load:0–750 Ω
Power Supply:24V DC (±10%)
Power Consumption:< 2.8W

Square Root Extractor

Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC
Output Load:0–850 Ω
Power Supply:24V DC (±10%)
Power Consumption:< 1.8W

Rate Limted Follower

Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC
Output Load:0–850 Ω
Power Supply:24V DC (±10%)
Power Consumption:< 2.0W

Derivative

Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC
Output Load:0–850 Ω
Power Supply:24V DC (±10%)
Power Consumption:< 1.8W

Multiplier Error

Input Channels:3 (X, Y, Reference)
Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC (Error = (X*Y) - Reference)
Output Load:0–850 Ω
Power Supply:24V DC (±10%)
Power Consumption:< 2.5W

D.C Signal Generator

Current Output:0-20 mA, 4-20 mA
Voltage Output:0-10V, ±10V
Output Resolution:16-bit
Current Accuracy:±0.05% of reading
Output Load Current: 0–850 Ω
Power Supply:100-240V AC

Summer Bias Inverter

Input Channels:2 or 3
Input Signal:4-20 mA DC
Input Impedance:250 Ω
Output Signal:4-20 mA DC
Output Load:0–850 Ω
Power Supply:24V DC (±10%)
Power Consumption:< 2.2W

Termination Unit

Wire Size (Field Side):0.5 - 2.5 mm²
Contact Resistance:< 2 mΩ
Dielectric Strength:> 2.5 kV
Insulation Resistance :> 100 MΩ
Current Rating:10-12 A per terminal
Voltage Rating:300-400 V

FIP Interface

Supply Voltage:+5V DC
Power Consumption:500 mA
Isolation:1500 V AC
FIPIO Port:9-pin D-sub
Data Rate:31.25 kbit/s (Fixed)
Bus Topology:Bus with trunk and drops

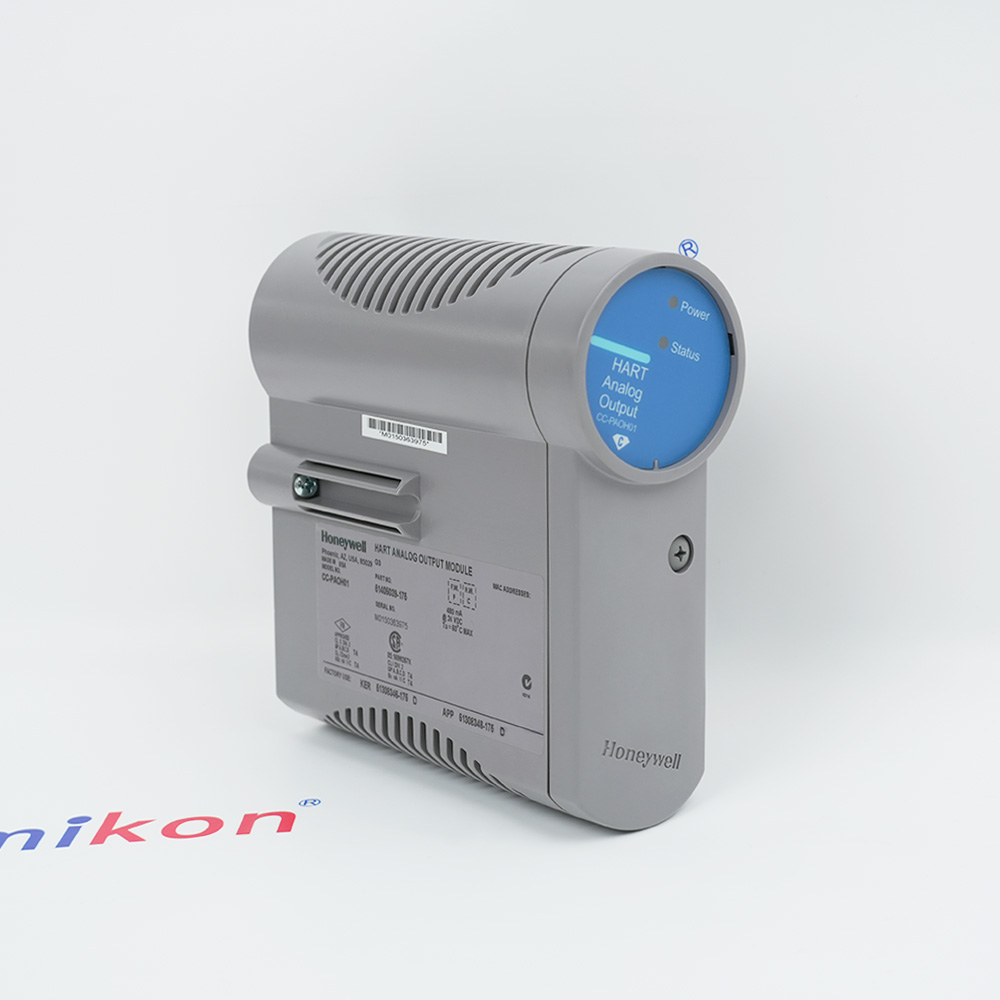

Analog Output Module

Analog Output
Output Channels:16
Output Signal:4-20 mA
Resolution:16-bit
Accuracy:±0.05% of span
Load Impedance:≤ 850 Ω (at 20 mA)
Max Output Compliance:20 V

MCS Graphic Card Elographics

E27160MKIIA
CONTROL BOARD
Supply Voltage:+5 VDC and +24 VDC
Power Consumption:5 W (typical)
Microprocessor:16-bit or 32-bit
Serial Communication:RS-232

Touchscreen Control Module

TOUCHSCREEN CONTROL MODULE
FOR 90 SYSTEM IOS
Supply Voltage:Typically +24 V DC
Power Consumption:5 - 10 W
Screen Size:5.7 inches
Resolution:320 x 240 pixels

17" Color Monitor V80

E20FFA-BC1
17-inch Industrial Color Monitor
Supply Voltage:24 V DC
Power Consumption:35 W
Input Signals:VGA (D-Sub 15)
Screen Size:17 inches
Aspect Ratio:5:4 or 4:3

16" Industrial Color Monitor

INTECOLOR E01942-20F
COLOR MONITOR
Supply Voltage:24 V DC (±10%)
Power Consumption:30 W
Input Signals:VGA (D-Sub 15-pin)
Screen Size:16 inches (diagonal)
Native Resolution:1280x1024 (SXGA)
Aspect Ratio:5:4
Panel Technology:TFT LCD

16" Industrial Color Monitor

INTECOLOR E01941-20F
COLOR MONITOR
Power Supply:24 V DC (±10%)
Power Consumption:35 W (typical), <1 W (standby)
Input Voltage Range:20-30 V DC
Video Inputs:VGA (D-Sub 15-pin), DVI-D
Communication:USB for touch interface (if equipped)
Inrush Current:<20 A (at 24 V DC)

Digital Slave Input Module

DSI01
Digital Slave Input Module
Input Channels:16 points
Input Voltage:24 V DC (nominal)
Operating Range:19.2-30 V DC
ON Voltage:≥15 V DC
OFF Voltage:≤5 V DC
Input Current:≤3 mA per point (typical)
Input Impedance:7 kΩ

Digital Output Module

DO-02-16
Digital Output Module
Output Channels:16 points
Output Type:Transistor output (sink or source)
Rated Voltage:24 V DC
Operating Voltage:20-30 V DC
Max Load Current:0.5 A per channel
Max Inrush Current:2 A (100 ms)

Command Loop Controller

CLC04
Command Loop Controller
CONTROLLER LOOP COMMAND
24VDC
14 W 120/220VAC

Loop Command Controller

LOOP CONTROLLER
NET 90
LOOP COMMAND MODULE
20W
120/220 VAC
50/60 HZ

Controller Loop Command

LOOP CONTROLLER
NET 90
CONTROLLER LOOP COMMAND
24VDC 120VAC
220VAC 28W

Command Series Loop Bypass Module

COMMAND SERIES LOOP BYPASS STATION
100 MA AT 24 VDC
2.4 WATTS
INSTRUCTIONS: E92-500-5
I-E92-500-5

Standard Single Monitor Auxiliary Terminal

C-I-CV42C
C-I-CV42C-100T00000
Standard Single Monitor Auxiliary Terminal
Input Signal:4-20 mA (standard)
Output Signal:4-20 mA or voltage output
Power Supply:24 V DCor 100-230 V AC
Power Consumption:2-4 W
Isolation :1500 V AC input/output/power
Accuracy:±0.1% of span
