PRODUCT DESCRIPTION

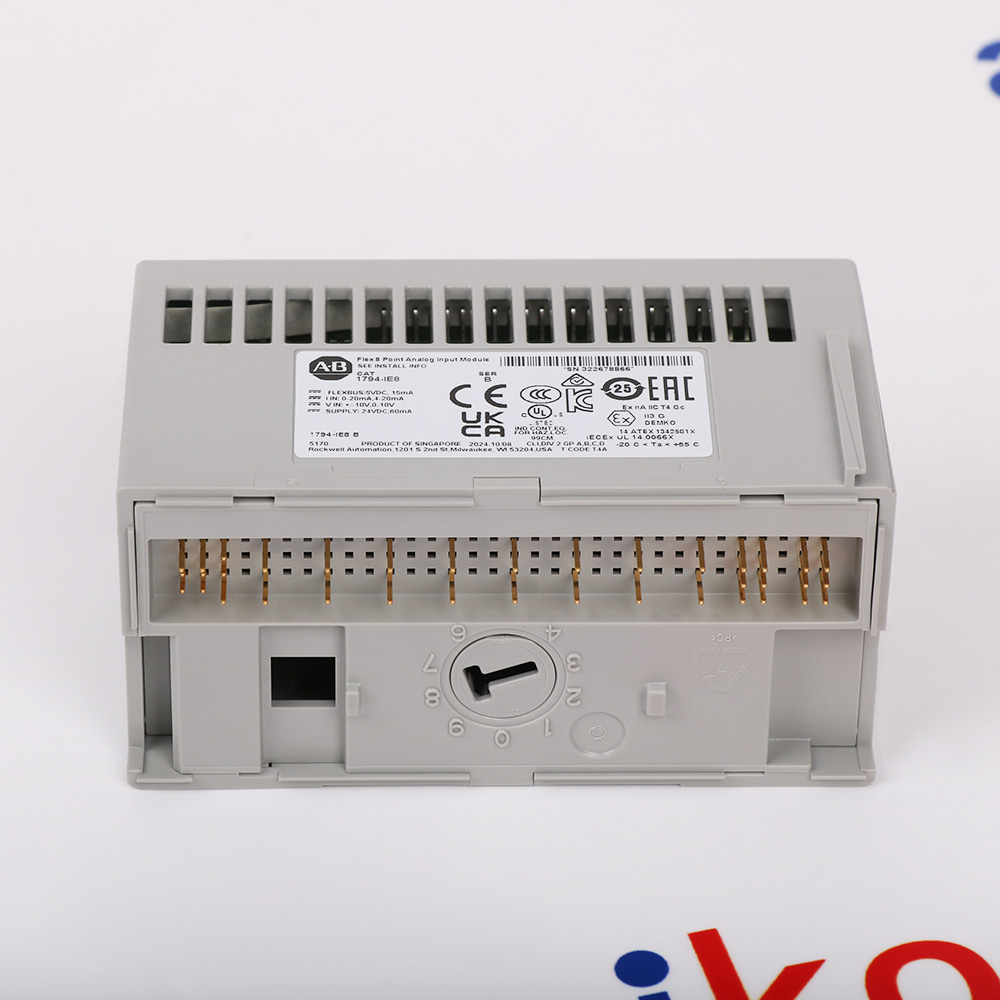

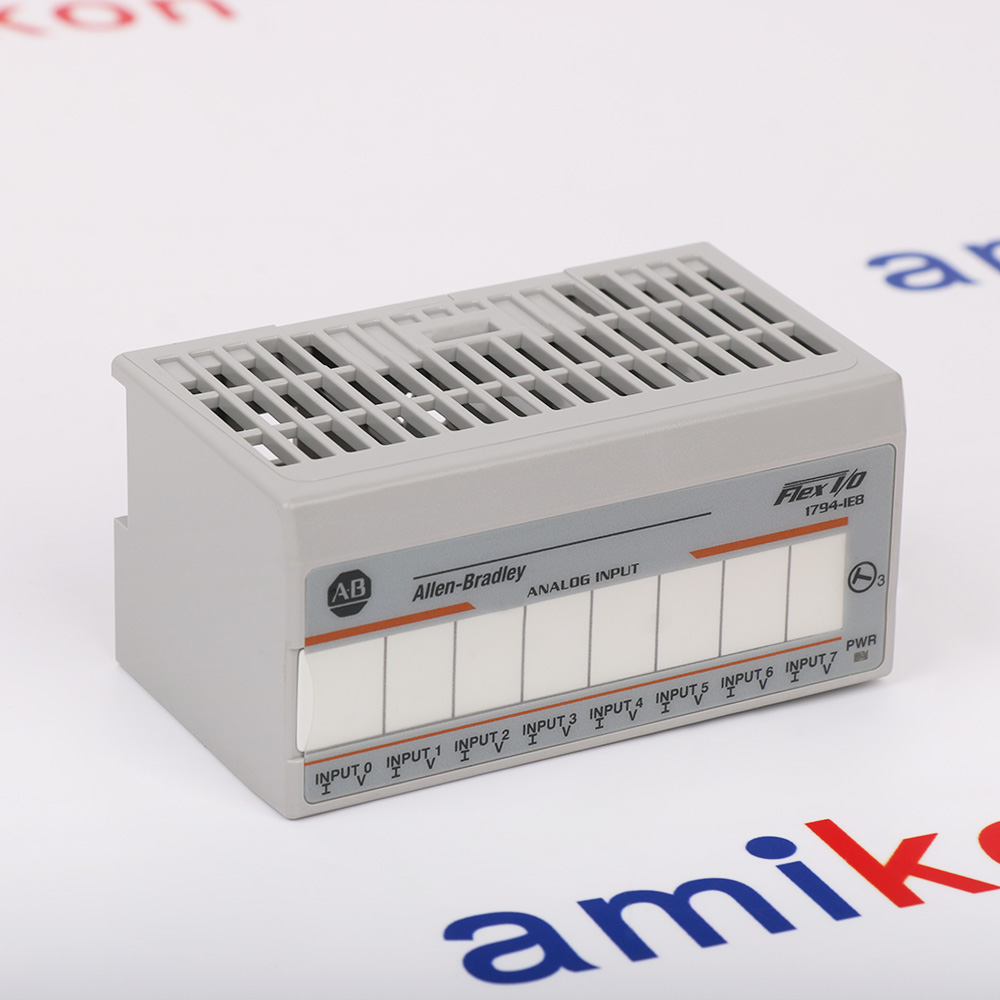

1794-IE8 Eight-channel analog input module
Allen-Bradley 1794-IE8 is a eight-channel analog input module for the FLEX I/O analog system. Confirm the exact model, connected equipment and application requirements before ordering.
BEFORE YOU BUY
Check the complete system
ACTUAL APPLICATIONS
Application context for 1794-IE8
Manufacturer documentation places the Allen-Bradley Eight-Channel Analog Input Module in practical automation applications. The three cases below describe different operating tasks in which 1794-IE8 performs its documented product-family role with the configured companion equipment.
- 01 · AUTOMOTIVE
Supervise body transfer with Allen Bradley process control
At the control layer of the skid conveyors and lift stations, 1794-IE8 serves its documented function as a Allen-Bradley Eight-Channel Analog Input Module. During model change, the system uses this function to coordinate motion requests and station interlocks, helping it keep the assembly takt moving. - 02 · WATER & WASTEWATER
Coordinate filtration backwash with Allen Bradley
As part of the filter cells and backwash valves, 1794-IE8 handles its designated signal or control duty as a Allen-Bradley Eight-Channel Analog Input Module. During filter loading, the system uses this function to sequence isolation, drain and rinse paths, helping it return the filter to production in a known state. - 03 · GENERAL MANUFACTURING
Balance automated storage during buffer release
At the control layer of the stacker cranes and storage positions, 1794-IE8 operates in its approved product-family role as a Allen-Bradley Eight-Channel Analog Input Module. During buffer release, the system uses this function to release material according to downstream availability, helping it prevent overfilling the next buffer.
Technical specifications for 1794-IE8
-
Product Model1794-IE8
-
Product ParametersEight-channel analog input module
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Input Channels8 single-ended nonisolated inputs
-
Selectable Current Ranges4–20 mA or 0–20 mA
-
Selectable Voltage Ranges±10 V or 0–10 V
-
Current Resolution5.13 µA per count
-
Voltage Resolution2.56 mV unipolar; 5.13 mV bipolar
-
Data Format16-bit two’s complement, left justified
-
Conversion MethodSuccessive approximation
-
Full-Channel Conversion256 µs for all channels
-
Voltage Input Impedance100 kΩ nominal
-
Current Input Impedance238 Ω nominal
-
Absolute Accuracy0.20% full scale at 25 °C
-
Voltage Step Response9.4 ms to 63%
-
Current Step Response18.2 ms to 63%
-
Maximum Single-Channel Overload30 V or 32 mA continuous
-
External Power Range10.5–31.2 V DC with ripple
View all additional
Alternative Names
1794 IE8
FLEX I/O analog system
Eight-channel analog input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
FLEX I/O ANALOG INTEGRATION
Match the terminal base, keyswitch and channel ranges
Allen-Bradley 1794-IE8 provides eight single-ended analog inputs for a FLEX I/O station, with each channel configured for current or voltage measurement.
Integration requires a listed terminal base, keyswitch position 3, 24 V DC external power and controller configuration that agrees with every field signal range.
Confirm common-potential and shield practices because the input channels are not isolated from one another; then validate raw counts and engineering-unit scaling.
Features:
- 8 single-ended analog inputs
- 0–20 mA, 4–20 mA, 0–10 V or ±10 V
- 256 µs conversion for all channels
The Allen-Bradley 1794-IE8 requires its terminal base, power, grounding and channel configuration to be confirmed before system integration.
ANALOG MODULE INTERCHANGEABILITY
Verify the Series letter and FLEX I/O configuration
Replace 1794-IE8 only after confirming the complete catalog number, Series marking, terminal base and controller profile used by the installed FLEX I/O adapter.
Record all eight channel ranges, scaling values, alarms, field-wire positions, shields and the keyswitch setting before extracting the existing module.
Do not substitute 1794-IE8H, 1794-IE8XT or another analog module from appearance alone; electrical, environmental and configuration characteristics differ.
Features:
- Match exact 1794-IE8 identity and Series
- Retain terminal-base key position 3
- Restore eight channel ranges and scaling
The 1794-IE8 requires replacement verification against its terminal base, Series, field wiring and saved controller configuration.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Available documents must be matched to the complete 3401 identity, installed system and applicable revision.Features:
- 1794-IE8 technical values checked against Rockwell publications
- Terminal-base and keyswitch requirements included
- Official FLEX I/O installation and user-manual pages supplied
Documentation for Allen-Bradley 1794-IE8 must match the installed FLEX I/O adapter, terminal base and Series; confirm manual applicability before service.
