- 3300 XL 8mm Proximity Transducer
- 330101-20-45-05-02-05
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-20-45-05-02-05
-
Product Model330101-20-45-05-02-05
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor s
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.6x1.3x112cm
-
ManufacturerBently Nevada
-
Weight0.08 kg
-
Unthreaded Length Option2.0 in
-
Overall Case Length Option4.5 in
-
Total Length Option0.5 meter (1.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

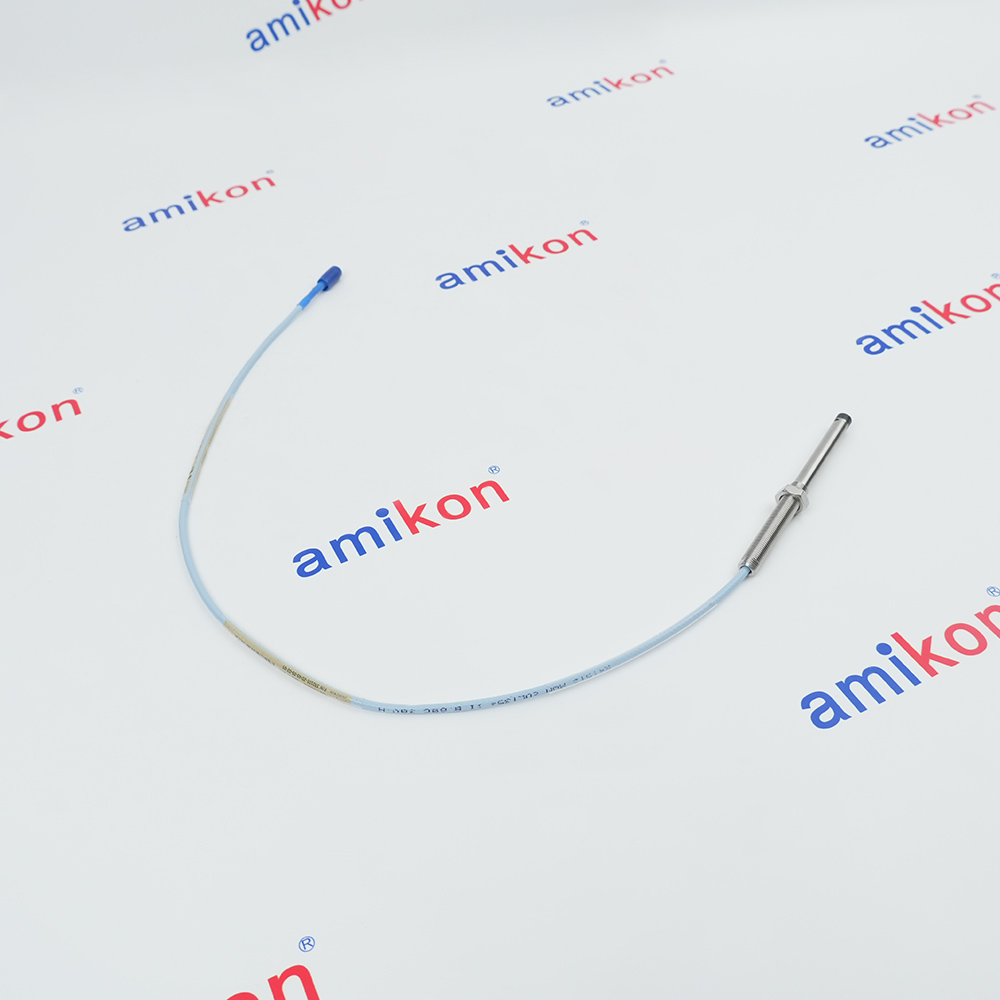

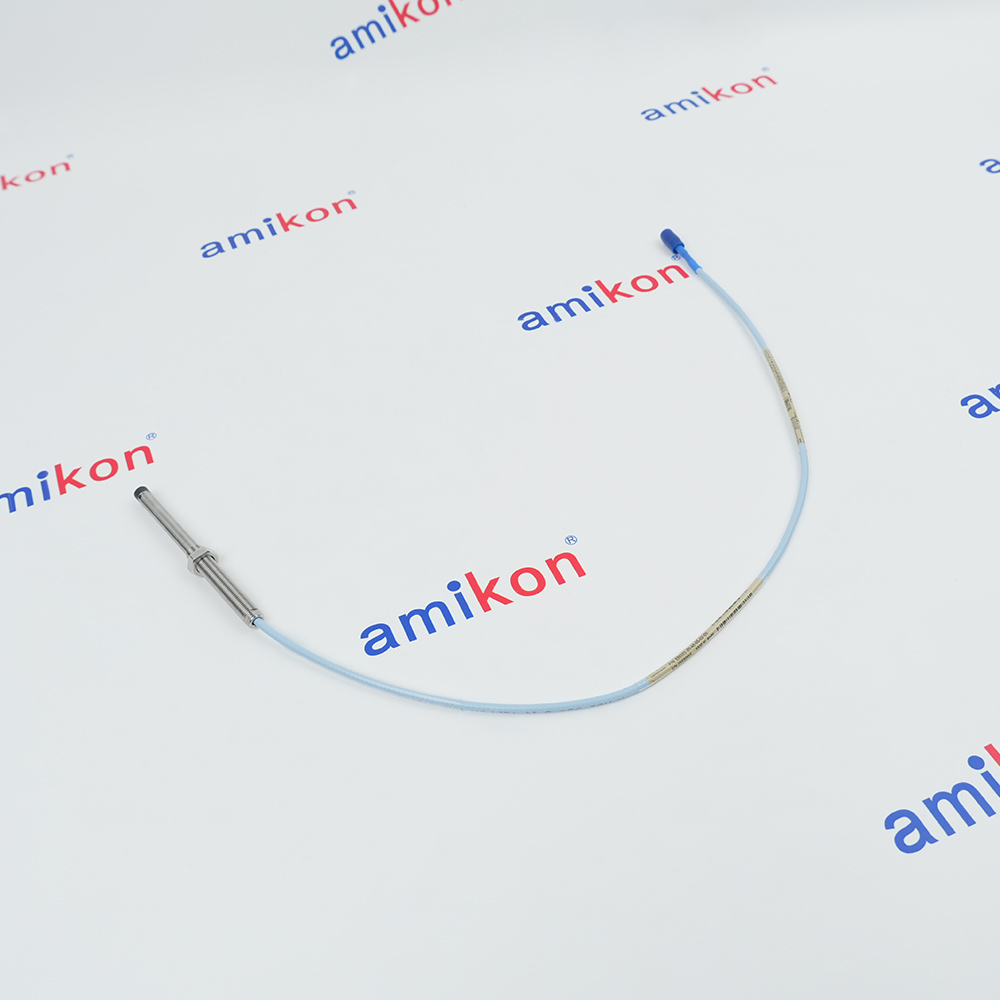

The Bently Nevada 330101-20-45-05-02-05 is a 3300 XL 8mm proximity probe with 3/8-24 UNF thread and without armor. The Bently Nevada 330101-20-45-05-02-05 is part of the 3300XL 8mm Proximity Transducer System. The Bently Nevada 330101-20-45-05-02-05 measures absolute vibration and position by providing an output voltage directly proportional to the distance between the probe tip and the observed conductive surface.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Alternative Names
330101 20 45 05 02 05
33O1O1-2O-45-O5-O2-O5
330I0I-20-45-05-02-05
330101-20-45-05-02-00
330101-20-45-05-02-CN
330101-20-45-05-02-BR
330101-20-45-05-02-RU
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mechanical Mounting
Features:
- 3/8-24 UNF Thread without Armor
- Patented TipLoc Molding Method
- Corrosion-Resistant Gold-Plated ClickLoc Connectors
The Bently Nevada 330101-20-45-05-02-05 is available with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable's internal conductor. The Bently Nevada 330101-20-45-05-02-05 with FluidLoc cable is suitable for submerged or oil-filled bearing applications.
The Bently Nevada 330101-20-45-05-02-05 operates over a temperature range of −52 °C to +177 °C (−62 °F to +350 °F). This temperature range covers the majority of industrial rotating machinery applications, including turbines, compressors, pumps, and motors.
The 330101-20-45-05-02-05 Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-20-45-05-02-05 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented TipLoc molding method provides amore robust bond between the probe tip andthe probe body. The probe’s cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.You can also order 3300 XL 8 mm probes andextension cables with an optional FluidLoccable option. This option prevents oil and otherliquids from leaking out of the machine throughthe cable’s interior.
- Steam and Gas Turbines: Monitors shaft vibration, axial (thrust) position, and differential expansion
- Centrifugal Compressors: Identifies shaft eccentricity, misalignment, and internal looseness
- Hydro Turbines: Tracks rotor position and movement within large-scale power generation units
- High-Criticality Pumps: Used in petrochemical and process industries where seal or bearing failure could lead to hazardous leaks
- Chemical & Petrochemical Factories:Cost-effective vibration trend for pumps & reciprocating equipment.
- Water & Wastewater Treatment:Monitors effluent pumps & aeration blowers to prevent downtime
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Gap Setting: The standard recommended gap for an 8mm probe is 1.27 mm (50 mils). This places the probe at the center of its 2.0 mm (80 mils) linear range.Mounting Thread: This specific model features a 3/8-24 UNF thread and a 2.0-inch unthreaded case length.Clearance: Ensure at least 8.9 mm (0.35 in) of radial side clearance from any surrounding metal other than the target surface to prevent signal interference (crosstalk).Target Material: The system is factory-calibrated for AISI 4140 steel. Using other materials will require a custom scale factor.
Technical notes
backward compatible and interchangeable 4 with other nonXL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space
FAQs
-
What is 330101-20-45-05-02-05?
+The Bently Nevada 330101-20-45-05-02-05 is a 3300 XL 8 mm proximity probe used for non-contact vibration and position measurement on rotating machinery. -
What does the probe measure?
+It measures both static (position) and dynamic (vibration) values. It uses the eddy-current principle to determine the precise distance between the probe tip and a conductive target. -
What is the standard target material?
+The standard factory calibration is set for AISI 4140 steel. If your machinery uses a different target material, alternative calibrations are available upon request. -
How do I connect the probe securely?
+The probe features a ClickLoc™ connector. Simply tighten it with your fingers until you hear an audible -
Is this probe compliant with industry standards?
+Yes. When used as part of a standard 5-meter system, it complies with the American Petroleum Institute (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
