- 3300 XL 8mm Proximity Transducer
- 330101-48-71-20-02-CN

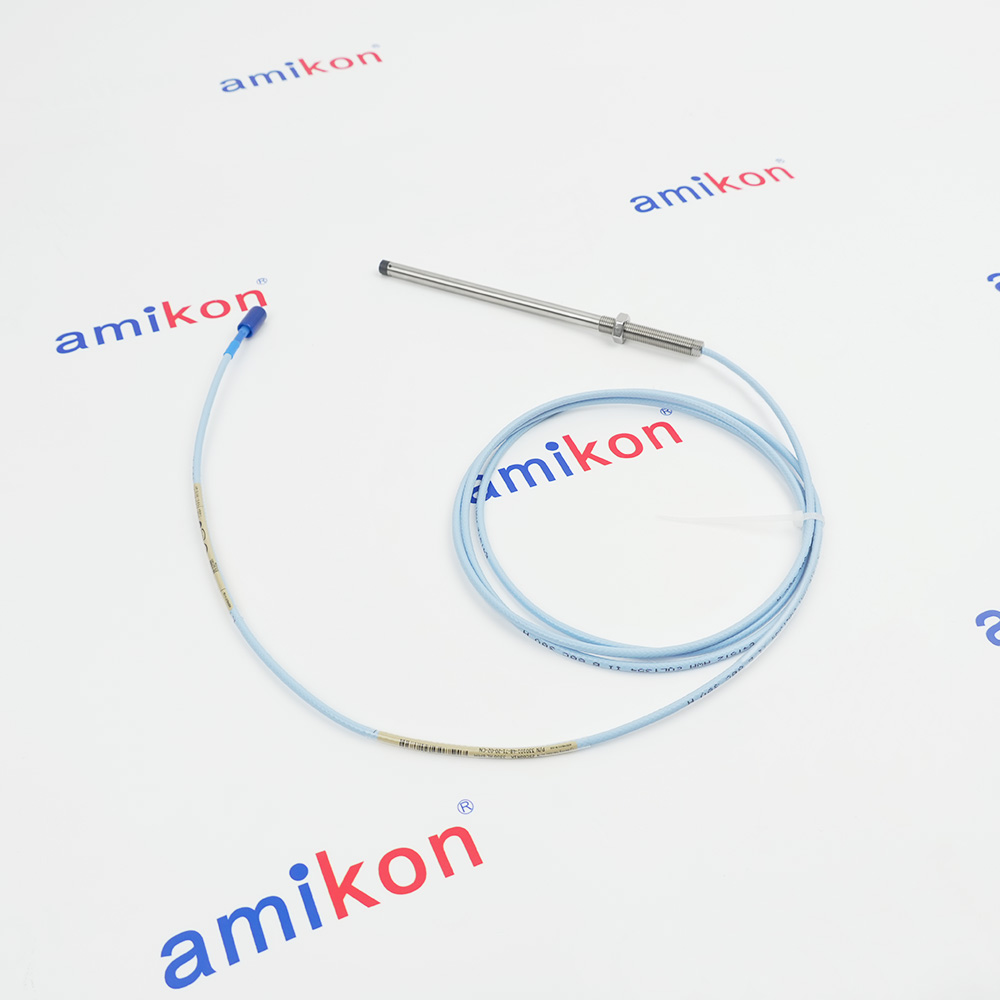

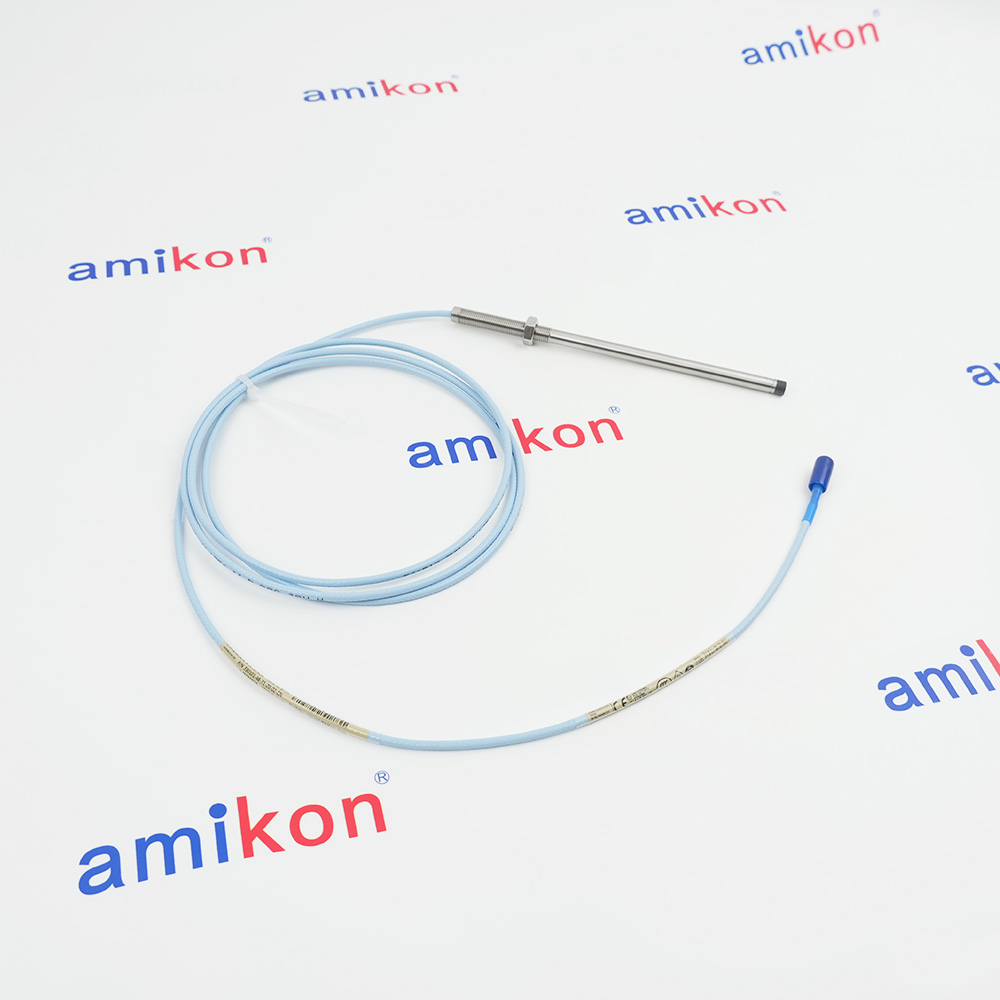

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-48-71-20-02-CN
-
Product Model330101-48-71-20-02-CN
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size24x17x2cm
-
ManufacturerBently Nevada
-
Weight0.15 kg
-
Unthreaded Length Option4.8 in
-
Overall Case Length Option7.1 in
-
Total Length Option2.0 meters (6.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description
330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 4.8 in
Minimum case length: 7.1 in
20 2.0 meters (6.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable
CN CSA, ATEX, IECEx Approvals
3/8-24 UNFthread, without armor
Minimum unthreaded length: 4.8 in
Minimum case length: 7.1 in
20 2.0 meters (6.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable
CN CSA, ATEX, IECEx Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Key Installation Instructions
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 330101-48-71-20-02-CN Bently Nevada 3300 XL 8mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-48-71-20-02-CN 3300 XL 8mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too largefor the available mounting space
- Vibration Monitoring: Measures shaft vibration on large rotating machinery (radial vibration)
- Position Measurement: Monitors axial position (thrust) and differential expansion
- Rotational Speed: Measures key phase and rotational speed
- Industrial Environments: Petrochemical, electric power, energy, metallurgy, and chemical industries
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Gap Setting: The most critical step is setting the "air gap" between the probe tip and the target (e.g., a motor shaft). This is typically calibrated using a voltmeter to achieve a specific DC bias voltage (often -10 VDC for a mid-range setting).
Mounting: Ensure the probe is mounted rigidly to prevent false vibration readings. Use the provided locknuts to secure the probe once the gap is set.
Cable Handling: Do not kink or sharply bend the coaxial cables. Use a matching 3300 XL Extension Cable and Proximitor Sensor to ensure signal integrity.
FAQs
-
What is 330101-48-71-20-02-CN？
+The Bently Nevada 330101-48-71-20-02-CN is a specific model of Bently Nevada 3300 XL Series Proximity Probe, designed for non-contact vibration and position monitoring of rotating machinery, using eddy current principles to measure shaft displacement (like radial vibration, axial position), working with Bently's Proximitor modules for detailed fault diagnosis, and generally offering robust, reliable performance for critical equipment monitoring. -
What is it and what does it do?
+It's a proximity transducer probe (often an 8mm probe) that measures relative shaft motion (vibration, position) in turbines, pumps, compressors, etc., preventing failures through early fault detection. -
What is the 330101-48-71-20-02-CN primary use of this probe?
+It is used for non-contact, high-precision measurement of vibration and displacement in industrial machinery like steam turbines, compressors, pumps, and motors. It acts as an eddy current sensor to monitor shaft position (static) and vibration (dynamic). -
Can the 330101-00-20-20-02-CN withstand high temperatures and harsh environments?
+Yes. The 3300 XL probe can operate in extreme temperatures, with a typical operating temperature range of -52°C to +177°C. The 3300 XL 8 mm probe incorporates TipLoc technology, enhancing its resistance to severe mechanical shock and high-vibration environments. -
How does the
+The "02" designation indicates a Miniature ClickLoc coaxial connector, which is designed for fast, secure installation without special tools.
