- 3500/05-01-02-00-00-00
In Stock
Ships by Saturday, June 20
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3500/05-01-02-00-00-00
-
Product Model3500/05-01-02-00-00-00
-
Spare Model3500/05
-
Product Parameters19-inch Rack (14 module slots)
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size48.2x26.5x26.5cm
-
ManufacturerBently Nevada
-
Weight6.15 kg
-
Rack Size01 19-inch Rack (14 module slots)
-
Mounting Options02 Rack Mount Option, Full-Size Rack (mounts to19-inch EIA Rack)
-
Agency Approval Option00 None
-
Reserved00 None
-
Operating Temperature−20°C to +65°C (−4°F to +149°F)
-
Extended Operating Temperature−30°C to +65°C (−22°F to +150°F)
-
Storage Temperature−40°C to +85°C (−40°F to +185°F)
-
Relative Humidity5% to 95% RH (non-condensing)
Description

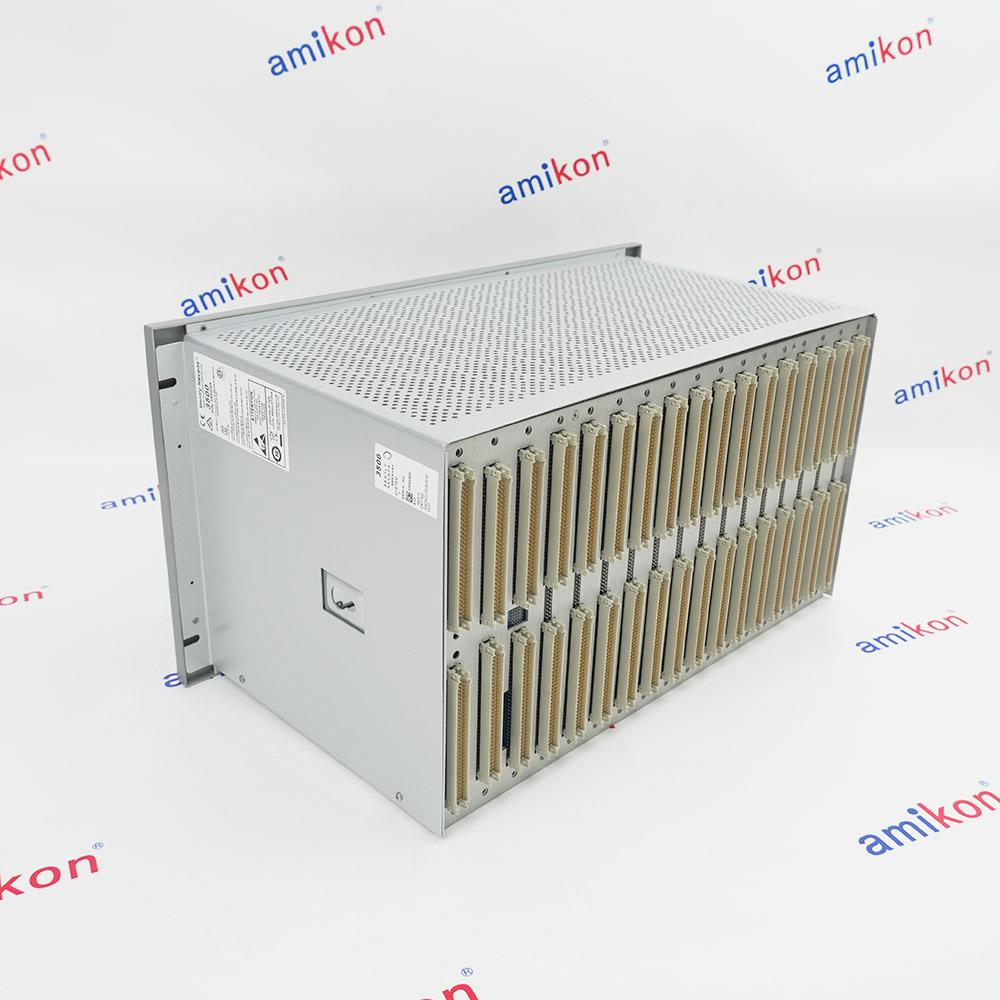

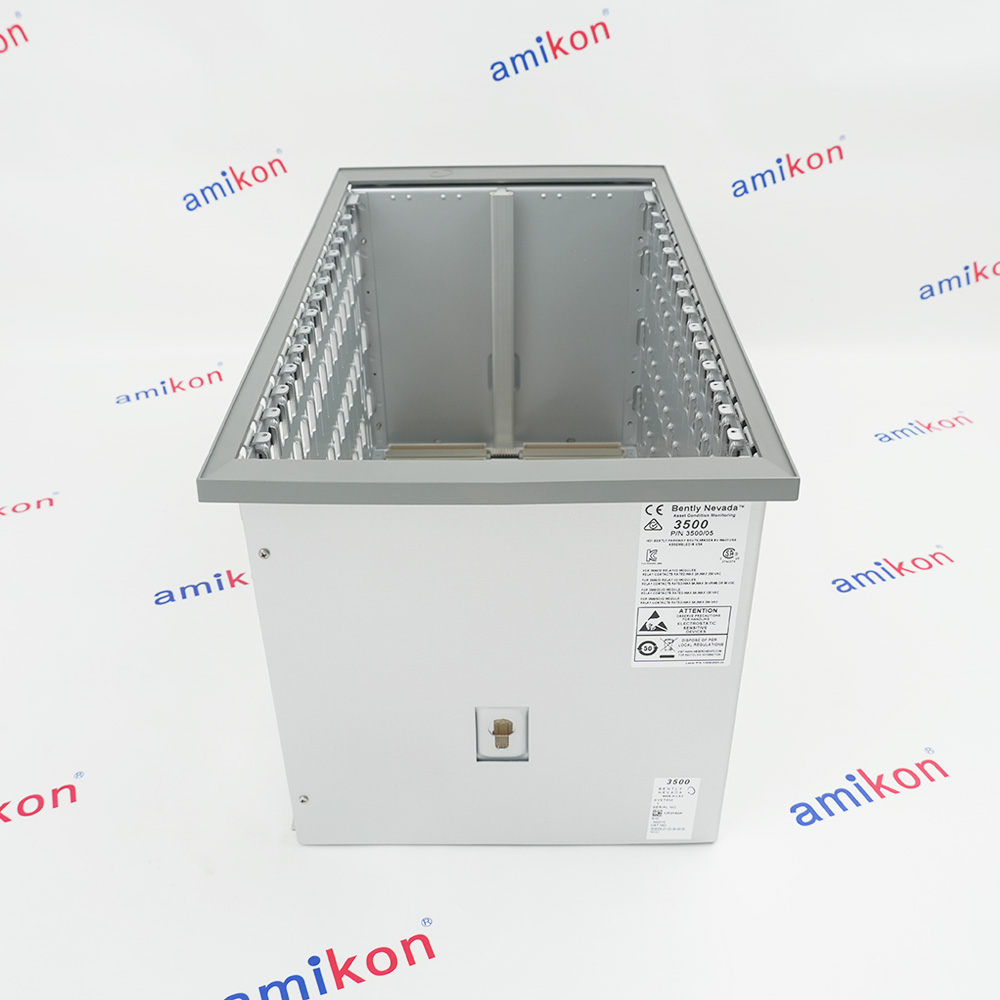

The Bently Nevada 3500/05-01-02-00-00-00 is a full-size 19-inch System Rack designed for the Bently Nevada 3500 Machinery Protection System. The rack serves as the central platform for installing monitor modules, power supplies, communication modules, and rack interface modules used in continuous machinery condition monitoring and protection applications. It provides the backplane infrastructure necessary for module communication and power distribution throughout the system.
This configuration features a 19-inch EIA rack format with 14 available module slots and a rack-mount installation option, making it suitable for control rooms, equipment monitoring cabinets, and industrial automation systems. The rack is widely used in power generation, oil and gas, petrochemical, mining, and process industries where critical rotating equipment requires continuous monitoring and protection.
This configuration features a 19-inch EIA rack format with 14 available module slots and a rack-mount installation option, making it suitable for control rooms, equipment monitoring cabinets, and industrial automation systems. The rack is widely used in power generation, oil and gas, petrochemical, mining, and process industries where critical rotating equipment requires continuous monitoring and protection.
Alternative Names
3500-05-01-02-00-00-00
3500 05 01 02 00 00 00
3500/05
3500/05-01
3500-05-01
Information
Overview
Manuals
Application Notes
Product Applications
Critical Handling & ESD Protection
Features:
- Holds All 3500 Monitor Modules and Rack Power Supplies
- Manufactured in (2) Sizes: Full-Size Rack and Mini-Rack
- Manufactured in (3) Formats: Panel Mount, Rack Mount, and Bulkhead Mount
- 7 or 14 Rack Postitions
Use the 3500 System rack to mount all 3500 monitor modulesand power supplies. The rack allows you to place 3500modules near one another, enabling them to easilycommunicate, and to mount power supplies necessary todistribute power to each module.The power supplies and rack interface module must occupythe far-left rack positions. The remaining 14 rack positions(seven rack positions for the mini-rack) are available for anycombination of modules.
The 3500/05-01-02-00-00-00 Bently Nevada System Rack may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/05-01-02-00-00-00 System Rack Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Panel mount. This rack format mounts to rectangular cutouts in panels, and secures to the panel using clampssupplied with the rack. Wiring connections and I/O modulesare accessible from the rear of the rack.
Rack mount. This rack format mounts the 3500 Rack on 19-inch EIA rails. Wiring connections and I/O modules areaccessible from the rear of the rack.
Bulkhead mount. This rack format mounts the rack against awall or panel when it is not possible to access the rear of therack. Wiring connections and I/O modules are accessiblefrom the front of the rack.The 3500/05 Mini-Rack is notavailable in this format.
The power supplies and rack interface module must occupythe far-left rack positions. The remaining 14 rack positions(seven rack positions for the mini-rack) are available for anycombination of modules.
The power supplies and rack interface module must occupythe far-left rack positions. The remaining 14 rack positions(seven rack positions for the mini-rack) are available for anycombination of modules.
- Manufacturing: Pulp and paper, steel, and cement production
- Chemical Processing: Monitoring large-scale reactors and processing machinery
- Power Generation: Nuclear, fossil fuel, and renewable energy plants
- Oil & Gas: Production, refining, and pipeline monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Grounding: Personnel must use a grounded wrist strap (e.g., 3M Velostat No. 2060) before touching any module or printed circuit board.
Storage: Always transport or store modules in electrically conductive bags or foil.
Environment: Exercise extra caution if relative humidity is below 30%, as static accumulation increases in dry air.
Technical notes
The rack conforms to the 19-inch EIA standard and provides a total of 17 positions. The three leftmost positions are reserved exclusively for system infrastructure modules: two power supply slots and one rack interface module (RIM) slot. The remaining 14 positions accommodate any combination of monitor modules, relay modules, Keyphasor modules, display interfaces, and communications gateway modules. All modules plug into the rack's backplane, which carries both the regulated DC power bus and the proprietary TDI (Transducer Data Interface) high-speed communication bus that enables real-time data sharing and coordinated protection actions across all installed modules.
FAQs
-
What is the 3500/05-01-02-00-00-00？
+It is a 19-inch (or 12-inch) rack designed by Bently Nevada to house and provide power to 3500 series monitoring modules and rack power supplies, facilitating communication between them for machinery protection. -
How do I get the price of 3500/05-01-02-00-00-00 ?
+Please contact our sales director Ms. Sandy for a discount exclusive quote, Email info@amikon.cn Mob/Whatsapp: +86-18020776786. -
Do you offer global delivery?
+Yes. We delivery the 3500/05-01-02-00-00-00 to the worldwide. and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account. -
What is the power distribution capability of the rack?
+The rack is designed to house one or two 3500 rack power supplies, which accept standard line power and distribute it to all modules within the rack. -
What is the operating temperature range?
+The System Rack operates within a temperature range of -20°C to +65°C (-4°F to +150°F)
