990-05-XX-01-05 MOD:165335-01
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
05 0-5 mils pp (0-125 μm pp)
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
01 35 mm DIN rail clips
05CSA Division 2, ATEX Zone 0
ATEXZone 2 and includes
ABSmaritime approval
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
01 35 mm DIN rail clips
05CSA Division 2, ATEX Zone 0
ATEXZone 2 and includes
ABSmaritime approval
Specifications
-

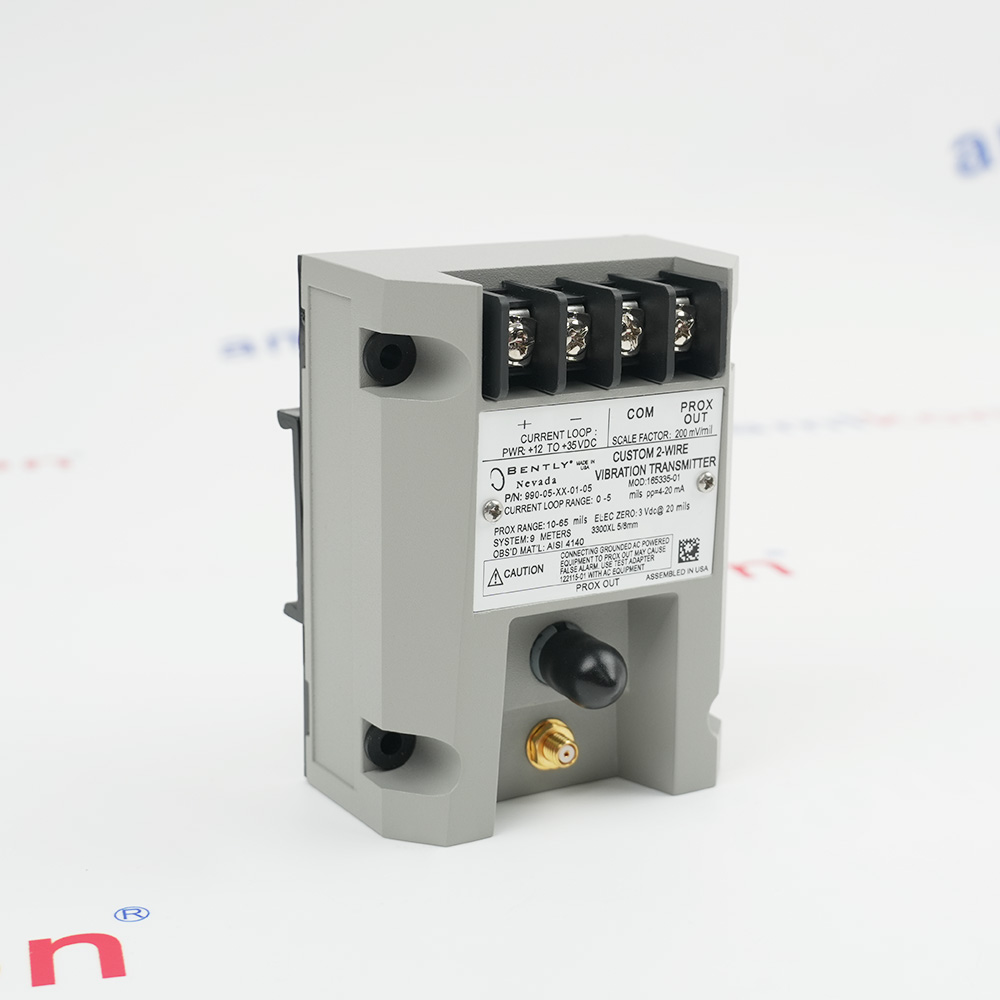

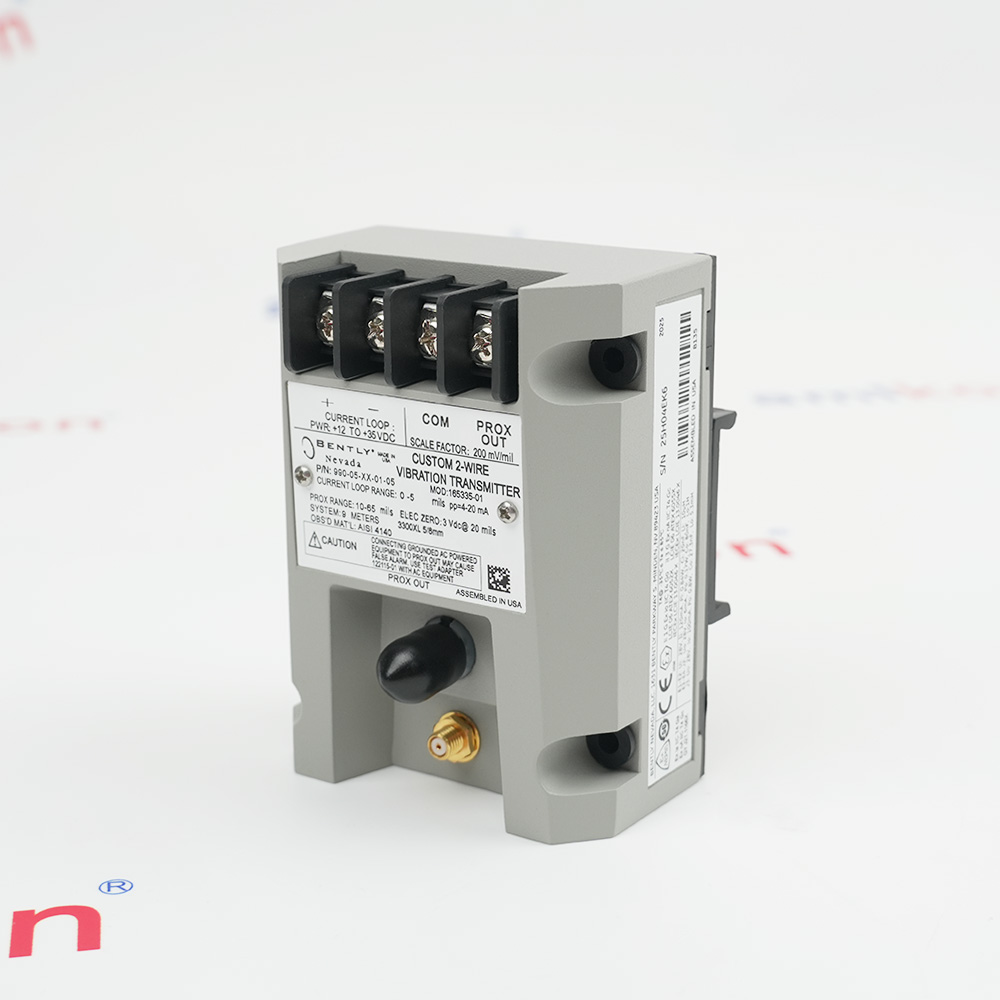

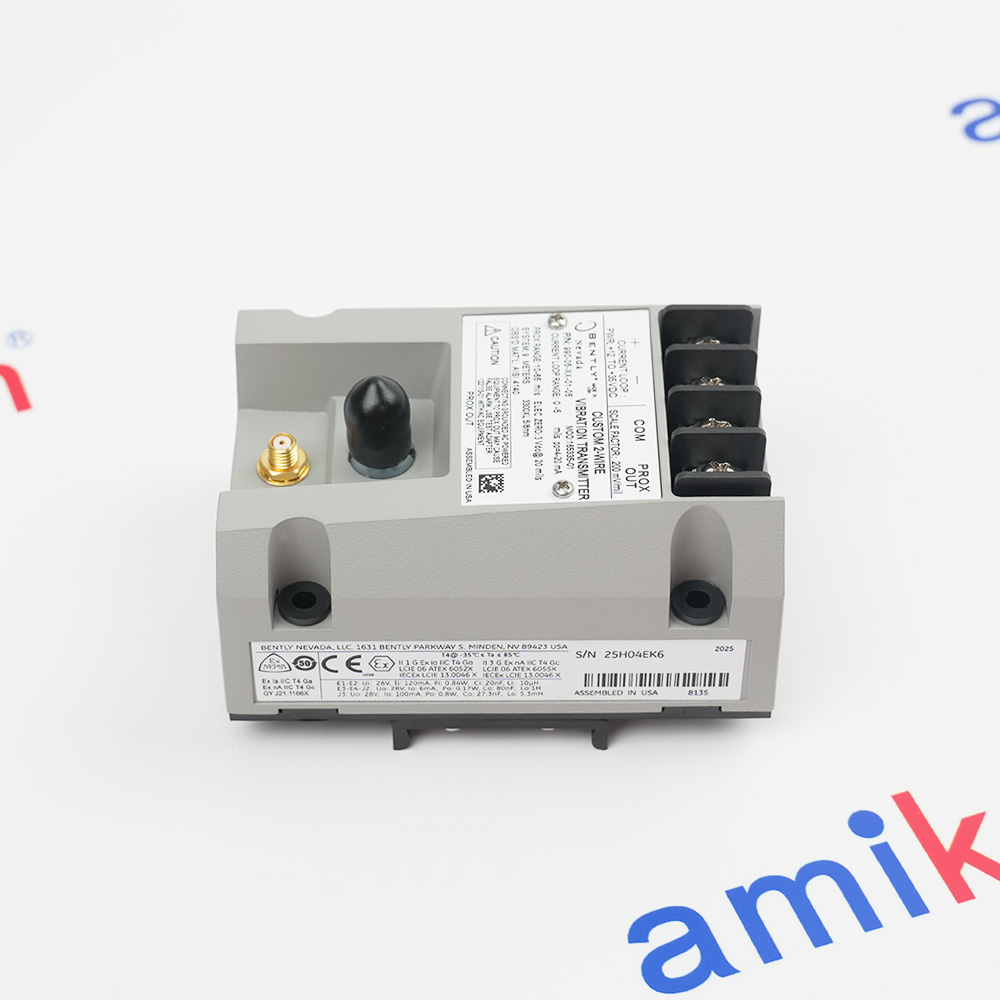

Product Model990-05-XX-01-05 MOD:165335-01
-
Product Parameters990 Vibration Transmitter
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.3x5x10cm
-
ManufacturerBently Nevada
-
weight0.44 kg
-
InputAccepts 1 non-contacting 3300NSv Proximity Probe andextension cable.
-
PowerRequires +12 to +35 Vdc input atthe transmitter termina
-
Maximum loop resistance1,000 Ω including cable at 35 Vdc
-
Current limiting23 mA typical
-
Zero and spanNon-interacting externaladjustments
-
Frequency response5 Hz to 6,000 Hz +0, 3 dB
-
Operating temperature-35°C to +85°C(-31°F to +185°F)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 990-05-XX-01-05?+The Bently Nevada 990-05-XX-01-05 is a 2-wire vibration transmitter featuring an integrated Proximitor sensor for measuring radial vibration on centrifugal air compressors.
-
What is the 990-05-XX-01-05 primary application of the 990 transmitter?+It is designed for OEMs of centrifugel air compressors, small fans, and motors to provide a 4-20 mA signal directly to a PLC or control system for machinery protection.
-
Does it require an external Proximitor?+No, the 990 transmitter has an integrated Proximitor, reducing the need for external components and simplifying installation.
-
What is the output of the 990-05-XX-01-05?+The main output is a 4-20 mA loop-powered signal proportional to the vibration level. It also features a non-isolated "PROX OUT" coax connector for raw dynamic signal analysis.
-
What probe type is compatible?+The 990 transmitter is designed for use with the 3300 NSv proximity probe and its matching extension cable (5m or 7m system lengths).
Get a quick price fo 990-05-XX-01-05 MOD:165335-01
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- Product Applications
-
-
Industrial automation systems
-
Packaging machinery control
-
Material handling equipment control
-
Solutions for aluminium smelters
-
Hot rolling & Cold rolling
-
Iron- and steelmaking
-
Paint solutions
-
- What happens next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Need more info
Features:
- Integrated Proximitor Sensor requires no external unit
- Non-isolated PROX OUT and COM terminals plus acoaxial connector to provide a dynamic vibration andgap voltage signal output for diagnostics
- Test Input pin for quick verification of loop signal output,using a function generator as the input
- A Not OK/Signal Defeat circuit prevents high outputs orfalse alarms due to a faulty proximity probe or looseconnection
- Choice of DIN-rail clips or bulkhead mounting screwsas standard options simplifies mounting
The 990-05-XX-01-05 MOD:165335-01 Bently Nevada 990 Vibration Transmitter may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 990-05-XX-01-05 MOD:165335-01 990 Vibration Transmitter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The transmitter is a two-wire, loop-powered device thataccepts input from our 3300 NSv proximity probe and itsmatching extension cable (available in 5 m and 7 m systemlength options).The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and providesthis value as a proportional 4 to 20 mA industry-standardsignal as the input to the control system where machineryprotection alarming and logic occurs†
