PRODUCT DESCRIPTION

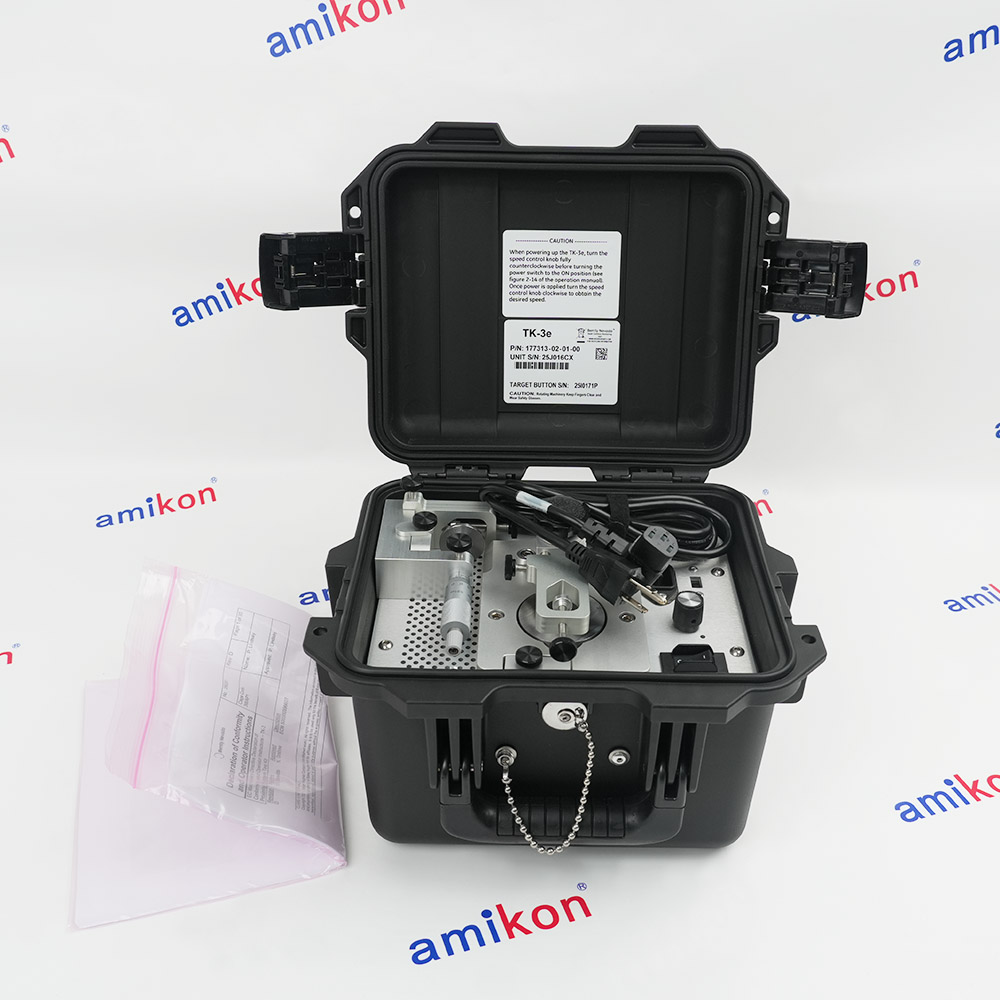

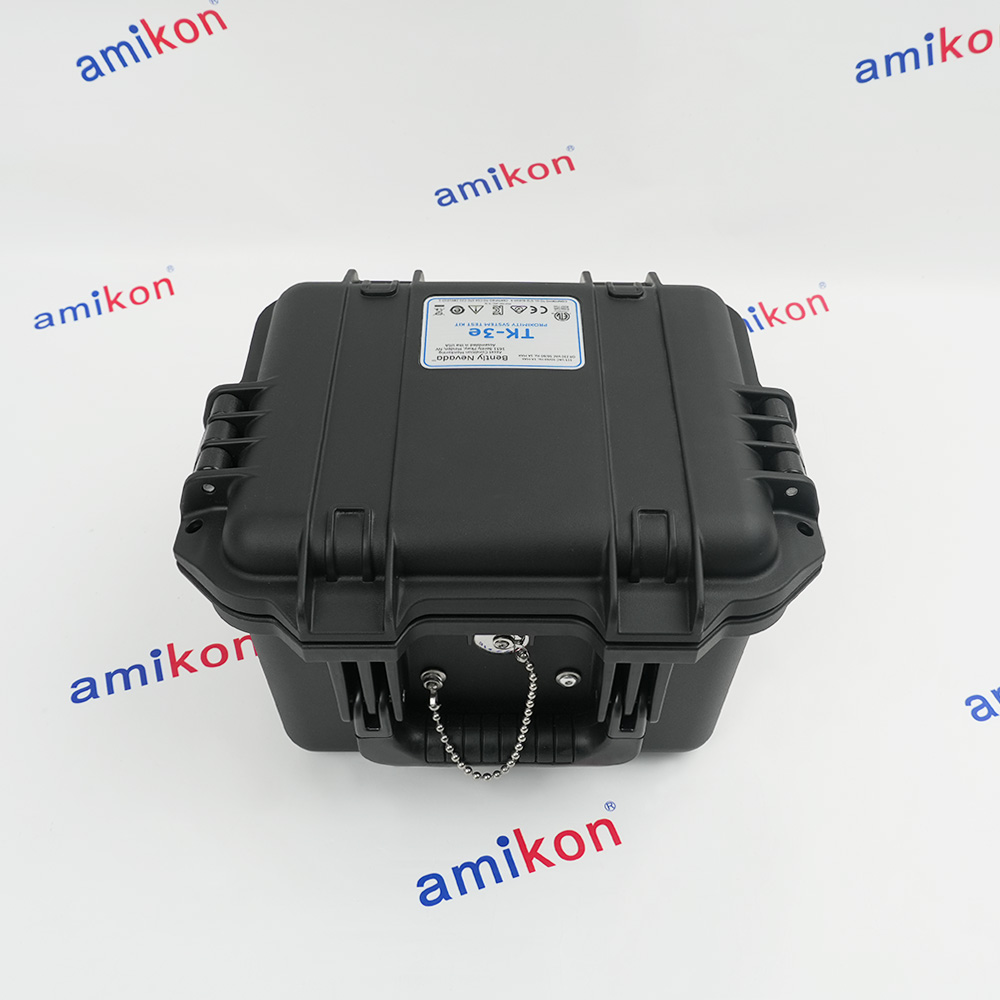

Electric proximity calibration kit
Bently Nevada TK-3E 177313-02-01-00 is a electric proximity test kit. The kit simulates target position and shaft vibration for checking proximity systems and monitors. Its micrometer supports static calibration, while the motor-driven wobble plate provides a dynamic reference. Correct probe mounting and safe clearance from rotating parts are essential.
The supplied 177313-02-01-00 identifier selects metric scale units and an american power cord. Its 00 agency approval option selects none. Confirm the actual input-power setting, compatible probe and complete measuring chain before operating the test kit.
The supplied 177313-02-01-00 identifier selects metric scale units and an american power cord. Its 00 agency approval option selects none. Confirm the actual input-power setting, compatible probe and complete measuring chain before operating the test kit.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where TK-3E 177313-02-01-00 Fits Across Industrial Application Areas
Industrial uses span production and utility equipment, subject to verified product compatibility, installation requirements and operating conditions.
-
01 · OIL & GAS
Oil Production, Gas Processing and Petroleum Refining
Turbines and compressors serving liquefied natural gas production facilities.Refinery compressors and process pumps serving downstream petroleum production. -
02 · MINING & MINERALS
Mining Operations and Mineral Processing
Ore crushers and grinding mills at mineral processing plants.Process pumps and conveyors serving mineral processing plant operations. -
03 · METALS & MINING
Steel Production and Metallurgical Plant Utility Equipment
Rolling mills and extraction fans in steel production plants.Coke oven compressors and combustion blowers serving steel plants.
Technical specifications for TK-3E 177313-02-01-00
-
Product ModelTK-3E 177313-02-01-00
-
Spare ModelTK-3E
-
Product ParametersElectric proximity calibration kit
-
In stock9 units
-
ManufacturerBently Nevada
-
Scale unitsMetric
-
Power-cord typeAmerican
-
Drive typeElectric
-
Accepted probe diameter5-19 mm
-
Simulated vibration range50-254 micrometre peak-to-peak
-
Spindle micrometer travel0-25.4 mm
-
Target and wobble plateAISI 4140 alloy steel
-
Electrical supply ranges95-125 or 190-250 Vac, 50/60 Hz, 1 A minimum; verify unit setting
-
Nominal speed range0-5000 cpm +/-1000 cpm
-
Use environmentIndoor only, maximum altitude 2000 m
-
Operating temperature0-50 deg C; maximum 40 deg C for extended continuous use
-
Storage temperature-18 to +65 deg C
-
Humidity limit95%, noncondensing
-
Closed-case protectionDesigned to meet IP54
-
Agency approval optionNone requested
View all additional
Revisions
Revision Part #
Also known as
Alternative Names
TK 3E 177313 02 01 00
TK-3E 177313-02-01-00 electric proximity test kit
Bently Nevada TK-3E 177313-02-01-00
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ELECTRIC PROXIMITY CALIBRATION KIT
Integrating TK-3E 177313-02-01-00
The kit simulates target position and shaft vibration for checking proximity systems and monitors. Its micrometer supports static calibration, while the motor-driven wobble plate provides a dynamic reference. Correct probe mounting and safe clearance from rotating parts are essential.
The universal probe mount accepts probe diameters from 5 to 19 mm. Use the compatible probe, cable, Proximitor Sensor and monitor as a complete measuring chain. The standard AISI 4140 target must not be assumed equivalent to every machine target material.
Secure mounting screws and guards, wear safety glasses and keep clear of rotating parts. Avoid loose clothing or objects near the wobble plate. Confirm the electrical supply and use the kit indoors; the published IP54 description applies with the case closed.
Features:
- Match scale units, input voltage, power cord, target material and the matched transducer system
- Follow the applicable installation instructions
- Confirm unverified configuration details
The TK-3E 177313-02-01-00 electric proximity test kit requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of TK-3E 177313-02-01-00 requires comparing scale units, input voltage, power cord, target material and the matched transducer system. Matching the product family alone does not confirm the correct power and measurement configuration.
The universal probe mount accepts probe diameters from 5 to 19 mm. Use the compatible probe, cable, Proximitor Sensor and monitor as a complete measuring chain. The standard AISI 4140 target must not be assumed equivalent to every machine target material.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The TK-3E 177313-02-01-00 electric proximity test kit requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the TK-3E 177313-02-01-00 electric proximity test kit must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size30x25x20cm
-
Shipping weight5.1 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about TK-3E 177313-02-01-00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is TK-3E 177313-02-01-00 identified?
The supplied 177313-02-01-00 identifier selects metric scale units and an american power cord. Its 00 agency approval option selects none. Confirm the actual input-power setting, compatible probe and complete measuring chain before operating the test kit. -
What is the function of this component?
The kit simulates target position and shaft vibration for checking proximity systems and monitors. Its micrometer supports static calibration, while the motor-driven wobble plate provides a dynamic reference. Correct probe mounting and safe clearance from rotating parts are essential. -
Which installed equipment must be matched?
The universal probe mount accepts probe diameters from 5 to 19 mm. Use the compatible probe, cable, Proximitor Sensor and monitor as a complete measuring chain. The standard AISI 4140 target must not be assumed equivalent to every machine target material. -
Where is this component used?
The removable micrometer moves a known target toward or away from the probe while the Proximitor output is observed. This checks the relationship between target position and the monitored signal. -
What must be checked during installation?
Secure mounting screws and guards, wear safety glasses and keep clear of rotating parts. Avoid loose clothing or objects near the wobble plate. Confirm the electrical supply and use the kit indoors; the published IP54 description applies with the case closed. -
Is an oscilloscope mandatory for the described test?
The manufacturer states that the described method does not require an oscilloscope. Use the probe scale factor and appropriate multimeter measurements with the prescribed mechanical setup. -
Can the kit operate continuously at 50 C?
The general operating range reaches 50 deg C, but the manufacturer limits extended continuous use to 40 deg C. Observe the separate storage range and maintain clearance from the rotating assembly.
