PRODUCT DESCRIPTION

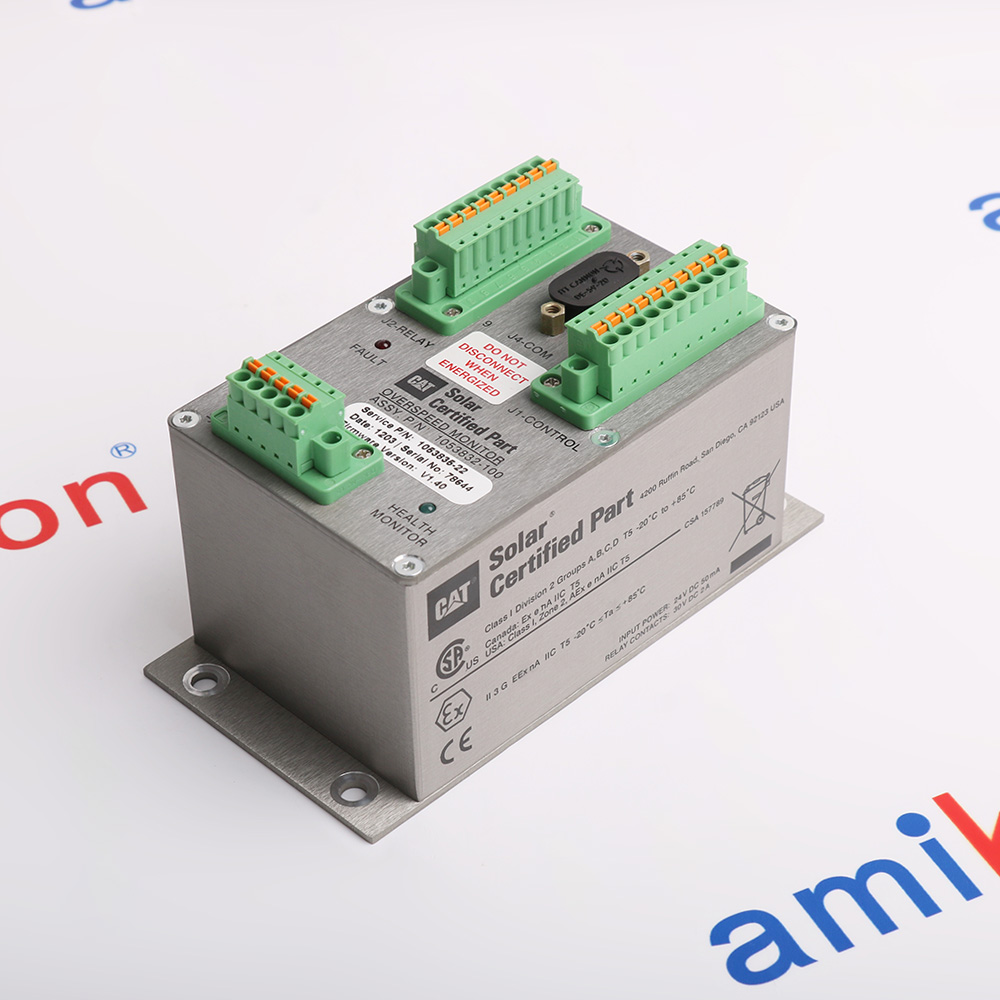

1053832-100 1053835-22 Electronic turbine overspeed monitor
Caterpillar / Solar Turbines 1053832-100 is an electronic overspeed monitor identified by sales part number 1053835-22. It belongs to the Solar Turbines overspeed-monitor product family and provides independent rotational-speed supervision for compatible industrial turbine packages used in power generation and gas compression.
The monitor uses a frequency signal input, a 4–20 mA speed output and separate overspeed, lowspeed and health relay connections. Cage-clamp terminal groups separate control, relay and signal wiring, while an RS-232 interface provides configuration and diagnostic access. The supplied unit is marked 24 V DC, 50 mA, with relay contacts rated 36 V DC and 2 A; stored settings and approved temperature ratings must match the installation.
The monitor uses a frequency signal input, a 4–20 mA speed output and separate overspeed, lowspeed and health relay connections. Cage-clamp terminal groups separate control, relay and signal wiring, while an RS-232 interface provides configuration and diagnostic access. The supplied unit is marked 24 V DC, 50 mA, with relay contacts rated 36 V DC and 2 A; stored settings and approved temperature ratings must match the installation.
BEFORE YOU BUY
Confirm the complete electronic turbine overspeed monitor
ACTUAL APPLICATIONS
Application context for 1053832-100 1053835-22
1053832-100 1053835-22 is a electronic turbine overspeed monitor in the Solar Turbines overspeed monitoring. It supports oil and gas, power generation, industrial manufacturing where the documented electrical limits, connected signals and equipment configuration are satisfied.
-
01 · OIL & GAS
Oil Production and Natural Gas Pipeline Transportation
Oil and Gas ProductionNatural Gas Pipeline Transportation -
02 · POWER GENERATION
Electric Power and Turbine Energy Production
Industrial Electric Power GenerationGas Turbine Power Generation -
03 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Combined Heat Production
Industrial Heat and PowerProcess Steam Production
Technical specifications for 1053832-100
-
Product Model1053832-100
-
Spare Model1053835-22
-
Product ParametersElectronic turbine overspeed monitor
-
In stock5 units
-
ManufacturerCATERPILLAR CAT
-
Nominal supply voltage24 V DC
-
Nameplate supply current50 mA
-
Relay contact rating36 V DC, 2 A
-
Measurement frequency range153 Hz–25 kHz
-
Minimum input signal600 mV peak-to-peak
-
Input impedance10 kΩ, resistive
-
Maximum overspeed response6 ms processing + 6 ms relay
-
Analog speed output4–20 mA
-
Probe excitation voltage9 V DC
-
Serial interface and rateRS-232, 19200 bps
-
Serial data format8 data bits, no parity, 1 stop bit
-
Control connectorJ1, 10-pin cage clamp
-
Relay connectorJ2, 9-pin cage clamp
-
Signal input connectorJ3, 5-pin cage clamp
-
Marked ambient classificationsT5: −20 to +70 ℃; T4: −20 to +85 ℃
View all additional
Alternative Names
1053832-100
1053835-22
Solar Turbines overspeed monitor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 1053832-100 1053835-22 electronic turbine overspeed monitor
Caterpillar / Solar Turbines 1053832-100 is an electronic overspeed monitor identified by sales part number 1053835-22. It belongs to the Solar Turbines overspeed-monitor product family and provides independent rotational-speed supervision for compatible industrial turbine packages used in power generation and gas compression.
Match the 24 V DC supply, 50 mA nameplate current, sensor frequency signal and 4–20 mA output to the installed turbine package. Follow the J1 control, J2 relay, J3 signal and J4 serial pin assignments in the applicable Solar guide.
Retain the approved overspeed and lowspeed settings before connection. Commission the signal path and trip function using the turbine manufacturer procedure; do not modify trip limits solely from a replacement label.
Features:
- Nominal supply voltage: 24 V DC
- Nameplate supply current: 50 mA
- Relay contact rating: 36 V DC, 2 A
The 1053832-100 1053835-22 electronic turbine overspeed monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 1053832-100 1053835-22 electronic turbine overspeed monitor
Match service part 1053832-100 and sales part 1053835-22 to the supplied overspeed-monitor label. Verify the installed turbine package, connector arrangement and marked temperature classification before an exchange.
Archive the current speed-frequency scaling, trip limits and diagnostic records. Isolate the required circuits and record the control, relay and signal wiring before removing the existing monitor.
Restore the controlled settings and complete the documented speed-signal and overspeed-trip checks. Retain the functional-test results and final settings with the equipment acceptance record.
Features:
- Nominal supply voltage: 24 V DC
- Nameplate supply current: 50 mA
- Relay contact rating: 36 V DC, 2 A
The 1053832-100 1053835-22 electronic turbine overspeed monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 1053832-100 1053835-22 electronic turbine overspeed monitor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size13.30 × 6.80 × 7.70 cm
-
Shipping weight0.70kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 1053832-100
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How do the service and sales part numbers differ?
The supplied monitor label identifies service part 1053832-100 and sales part 1053835-22. Compare both identifiers with the ordered assembly rather than treating them as two unrelated monitors. -
Which electrical ratings are printed on this monitor?
The photographed 1053832-100 / 1053835-22 label specifies 24 V DC and 50 mA. Its relay-contact rating is 36 V DC, 2 A; the contacts are not specified as a 230 V mains switching circuit. -
What speed signal range does the Solar OSM guide specify?
The applicable overspeed-monitor guide specifies a 153 Hz to 25 kHz measurement range, a 600 mV peak-to-peak input and 10 kΩ resistive input impedance. -
How is turbine speed represented by the analog output?
The Solar overspeed monitor provides a 4–20 mA output. The guide maps 4 mA to zero frequency and 20 mA to 120 percent of the configured frequency corresponding to full speed. -
Which serial settings are required for diagnostic access?
The documented RS-232 setup uses 19200 bps, eight data bits, no parity and one stop bit, with no flow control. Use the applicable connector pin assignment and site-approved diagnostic equipment. -
Why are two temperature classes marked on the enclosure?
The photographed monitor identifies T5 operation from −20 to +70 ℃ and T4 operation from −20 to +85 ℃. Apply the classification appropriate to the actual hazardous-area installation. -
What information identifies the required overspeed-monitor article?
Provide both 1053832-100 and 1053835-22, the complete label photograph, turbine-package identification and existing trip settings for an article and configuration comparison. -
What incoming checks apply to the supplied Solar monitor?
Inspect the service and sales part labels, the three cage-clamp connector groups and the serial connector. Retain the approved settings record and nameplate inspection with the acceptance documents.
