DeltaV

Serial Interface Module

SERIAL INTERFACE CARD
12 VDC
300 MA
2 PORT
D4 TERMINAL BLOCK KEY POSITION
Simplex SIC (Serial Interface Card),
LocalBus Power Rating 12 VDC 300mA
Ambient Temperature -40 to 70 degrees C

Power Controller 2 Wide Carrier

Input :30 VDC at 8 A (max)
Ambient Temperature :-40 to 70o C
Shock 10g ½ Sinewave for 11 msec
Vibration 1mm Peak to Peak from 5 to 16Hz
0.5g from 16 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20Rating

SYSTEM DC POWER SUPPLY M-SERIES

Input Rating :12 VDC at 13.8 A 24 VDC at 4.5 A
Output Rating:5.1 VDC at 2.0 A 3.4 VDC at 2.0 A
(40°C to +60°C):12 VDC at 13 A (12 VDC input)
Output Power:10.2 W (total from +5.1 VDC and+3.4 VDC)
Alarm ContactRating:30 VDC at 2.0 A
AmbientTemperature:-40°C to +60°C...+70°C
Shock :10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz

AI 8 CH 4-20mA HART CARDSERIES 2

Local Bus Power:12 VDC at 150 mA
Bussed Field Power:24 VDC at 300 mA
Field Circuit: 24 VDC at 30 mA/Ch.
Ambient Temperature -40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing

DI CARD 24V DRY CONTACT SERIES 2

Local Bus Power:12 VDC at 150 mA
Bussed Field Power:24 VDC at 100 mA
Field Circuit:24 VDC at 5 mA/Ch
Ambient Temperature -40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing

Serial Interface Card

PROFIBUS DP CARD
SERIES 2 PLUS M-SERIES
Local Bus Power 12 VDC at 300 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity Position5 to 95% Non-Condensing
Terminal Block key D4

Profibus DP Interface Card

PROFIBUS DP CARD
SERIES 2 PLUS M-SERIES
Local Bus Power 12 VDC at 600 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing

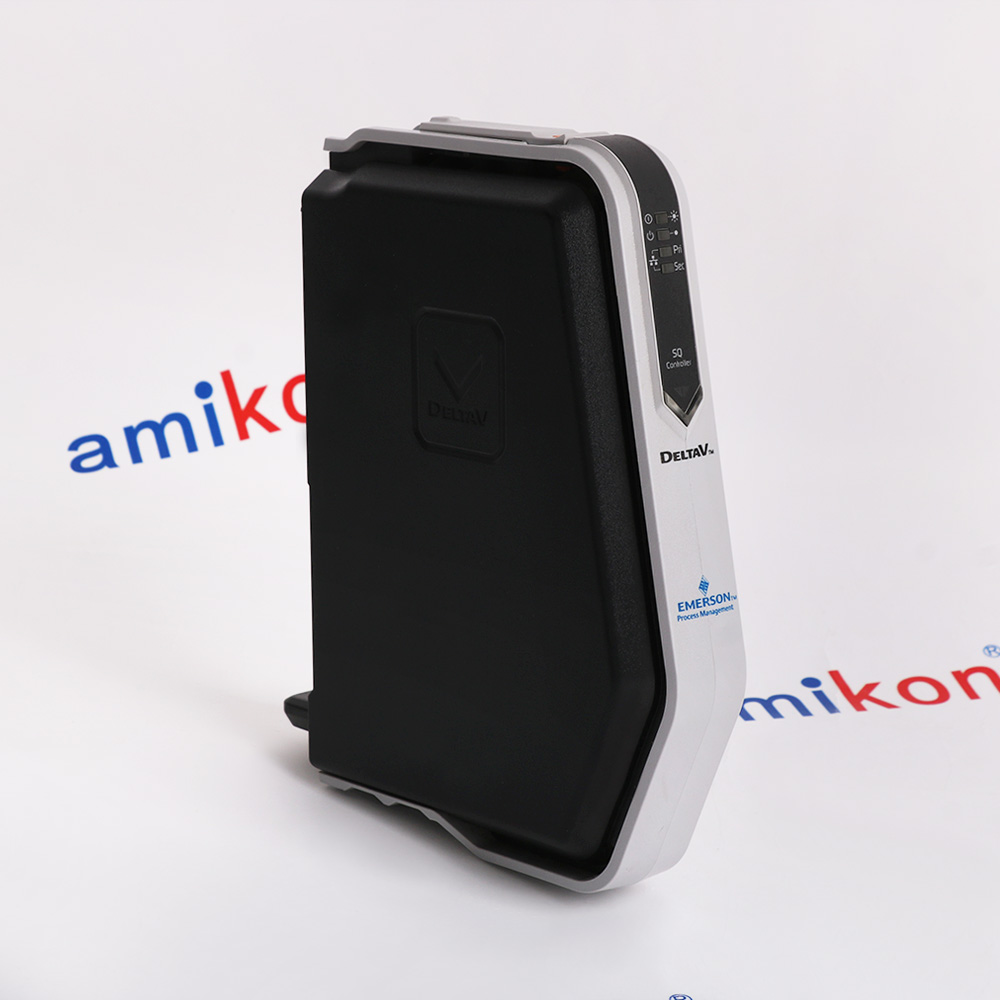

SQ Controller

Local Bus Power +5 VDC at 1.4 A
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3

Extender Cable

8-Wide I/O
Interface Carrier
with Carrier Shield Bar
Operating temperature-40 to 70°C (-40 to 158°F)
Storage temperature-40 to 85°C (-40 to 185°F)
Relative humidity5 to 95%, non-condensing

Extender Cable

8-Wide I/O
Interface Carrier with
Carrier Shield Bar
Single Enhanced
Carrier Extender Cable
and Redundant SISNet Coax Cables
Cables are 1.2m

Extender Cable

8-Wide I/O
Interface Carrier
with Carrier Shield Bar and Single
EnhancedCarrier Extender Cable.
Cable is 1.2m

Terminal Block

Redundant M-series
H1 I/O Interface Card and Terminal Block
(includes 2 Interface Cards and a redundant Terminal Block)
KJ3242X1-BA1 Fieldbus Module
KJ3242X1-FA1  Redundant H1 Terminal Block

Interface Card

Redundant M-series Serial
Interface Card,
2-ports
Data Bits 7 or 8
Stop Bits 1 or 2
Retry Count 0 – 255

Termination Block

Redundant Standard I/O
Termination Block
8 Channels
24Vdc
Dry Contact

Fused I/O Termination Block

Redundant Standard I/O
Termination Block
8 Channels
24Vdc
Dry Contact

Interface Card

M-series H1 I/O Interface Card
and Terminal Block
MODULE
FIELDBUS
H1 CARD SERIES
2.2 PORTS

Terminal Block

I/O TERMINAL BLOCK
24 VDC
2 AMP
Rated Voltage: 250 V AC/DC
Rated Current: 10 A
Solid wire: 0.2 to 4 mm²
Stranded wire: 0.2 to 4 mm²

RTD / Resistance Input Card

Local Bus Power 12 VDC at 160 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –
1985 AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20 Rating
Terminal Block keyPosition C3

16-CH AI Terminal Block

Input Power Rating 30 VDC @ 100m A
AmbientTemperature-40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration
1 mm peak to peak from 2 to 13.2 Hz;
0.7 g from 13.2 to 150 Hz
AirborneContaminants
ISA-S71.04 –1985 Airborne
Contaminants Class G3
Relative Humidity 5 to 95% non-condensing

I.S. DO 45 mA CHARM

CHARM Bus power rating +6.3 VDC at 0 mA
Field circuit power rating+24 VDC at 78 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to13.2Hz;
0.7g from 13.2 to 150Hz
Airborne Contaminants
ISA-S71.04 –1985 Airborne
Contaminants Class G3

IS module power supply carrier

IS module power supply carrier 8724-CA-PS
Accommodates one 8920 PSU module
DIN rail or panel mounting
printed wiring board
rugged polycarbonate moulding
32- and 64-slot address capable
CARRIER MOUNTING MODULE:
System Power Supply module: 8920-PS-DC

DC power supply

PAC8000 I/O
Power Module-Field Input24VDC In
5A@12VDC Out;
Power for 2/1 (IS) modules
Use2/1 (IS) modules power
with support for load sharing redundancy
PAC8000 Intrinsically Safe module
DC power supply (8 modules)

KJ2201X1-BA1 Logic Solver - SLS 1508
