General Electric

CABLE KIT FOR HIGH DENSITY I/O MODULES

Series:Series 90-30
Part Number:IC693CBK001
Type:Cable Kit
Function:High density cables
Compatibility:32-point I/O modules
Connector:Fujitsu FCN-365S024-AU
Amperage rating:1.2 Amps on each conductor
Length:10 feet (3 meters)

MODULE CARRIER

64-slot address bus
eight SafetyNet and/or standard I/O modules
DIN-rail or panel mounting
Carries control signals and data on Railbus
Distributes System Power to modules
Distributes Bussed Field Power to modules
Isolated earthing bar for cable screens/shields

SAFETY DISCRETE INPUT / OUTPUT MODULE

SAFETY DISCRETE INPUT / OUTPUT MODULE
MTL 800 SERIES
8 CHANNEL
12 VDC
100 MA
GE FANUC DAC SYSTEMS

SafetyNet ANALOGUE INPUT MODULE

SAFETY ANALOG INPUT
8 CHANNEL
SINGLE ENDED
4-20 MA
FOR USE WITH FB-8800
SAFETY LOGIC SOLVER

SafetyNet Controller

SAFETYNET CONTROLLER
12 VDC
FOR USE IN SIL2 SAFETY APPLICATIONS
COMMUNICATES UP TO 64 I/O MODULES

9 slot plus power supply

Series:Series 90-70
Product Description:9-slot , rear mount, rack
Part Number:IC697CHS790
Voltage:5 Volts DC
Mounting:Panel mounting
Current:20 Amperes
VME System:VME standard C.1
Product lifecycle:Discontinued
Rear mounting:10" (255 mm) enclosure
Rack extension:Supported
Standard:VME
Front Mounting:19" Standard rack
Supported:Two (2)
Number of Slots:9
Current Required from I/O Bus:0.5 amps
Enclosure Depth:10 inches

Input module, analog 16 point single ended/8 channel differential, voltage.

Discontinued Part. Check with GE IP on migration path.

Discrete output module

Series:Series 90-70
Manufacturer:GE Fanuc; Emerson Automation (Current)
Part Number:IC697MDL750
Rated voltage:24 to 48 Volts DC
No of Channels:Thirty-Two (32)
No. of output groups:Four (4)
Channels per group:Eight (8)
Current draw:0.25 A
Required current:0.25 Amps
Wiring configuration:Positive Logic
Output voltage range:20-60 VDC
Number of outputs:32
On response time, maximum:1 ms
Off response time, maximum:1 ms
Output signal range:20 - 60 VDC
Isolation voltage:1500 Volts

Motion Controller Module

Series:RX3i PacSystem
Part Number:IC695PMM335
Catalog:IC695
No. of Axes:4
No of Master axes:1
Backplane Support:Universal Support
Motion Path Planning:1ms
Number of Slots:1 (single slot)
Position Loop Update Rate:500μs
Controlled Axes/Module:4
FSSB Velocity Loop Update Rate:125μs
Motion Path Planning:1 ms
FSSB Torque Loop Update Rate:62.5μs
Power Consumption at 5 V:0.45 A
Servo Command Interface:Fiber Optic
Power Consumption at 3.3 V:1.1 A
Floating Point:Yes

Redundant fault-tolerant control system

Input Voltage: 24V DC
Current Consumption: 1.5A typical
Isolation: 1500V AC channel-to-channel
Trip Contact Ratings:5A @ 30V DC resistive
Analog Inputs: 8 channels
Relay Outputs: 8 channels
Communication Ports: 2x Ethernet for diagnostics

Resistance Temperature Device

RTD INPUT MODULE
8 CHANNEL
14-BIT
15 OHMS MAX.
2 ETHERNET PORTS
FOR MARK VI TURBINE CONTROL SYSTEM

Thermocouple Input Module

IO PACK
THERMOCOUPLE
2 ETHERNET PORTS
AMBIENT TEMPERATURE RATING:
-30 TO + 65°C (-22 TO +149 °F)

Discrete Contact Input I/O Module

Power Supply:28VDC
Functional Revision 1:A
Mark VI Series Grouping:Group 1
Number of Channels:16 (isolated)
Input Type:Dry contact (volt-free) or wet contact (24–125V DC)
Voltage Range:24–125V DC (configurable)
Input Current :2–20mA per channel
On-State Voltage:≤3V DC (for dry contact)
Off-State Leakage:<1mA

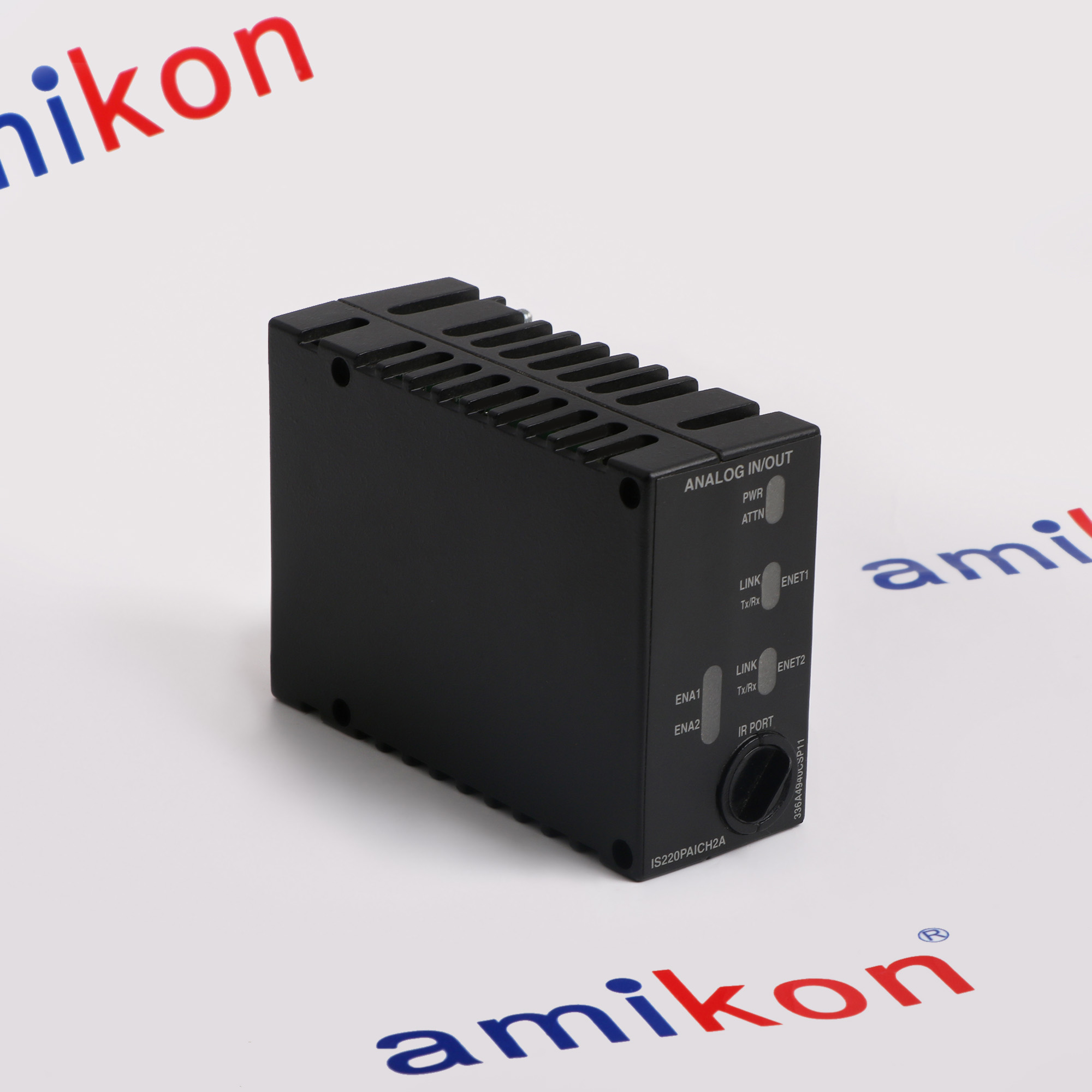

Analog I/O Module

CARD
INPUT/OUTPUT PACK
ANALOG IN/OUT
200 MA TYPE
FOR MARK VIE TURBINE CONTROL SYSTEM

INPUT MODULE 24 VDC 16 POINT POS/NEG LOGIC 1 MSEC FILTER
