Technical specifications for IC693ALG442
-
Product ModelIC693ALG442
-
Product ParametersAnalog Current/Voltage Combination Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.38 kg
-
Input Range-0-10 Volts, -10 to 10 Volts
-
Output Current Range0-20 mA, 4-20 mA
-
Resolution at 4-20 mA0.5 microamps
-
Resolution at 0-20 mA0.625 microamps
-
Product DescriptionAnalog Current/Voltage Combination Module
-
External Supply Voltage Range20 to 30 VDC (24 VDC typically)
Description

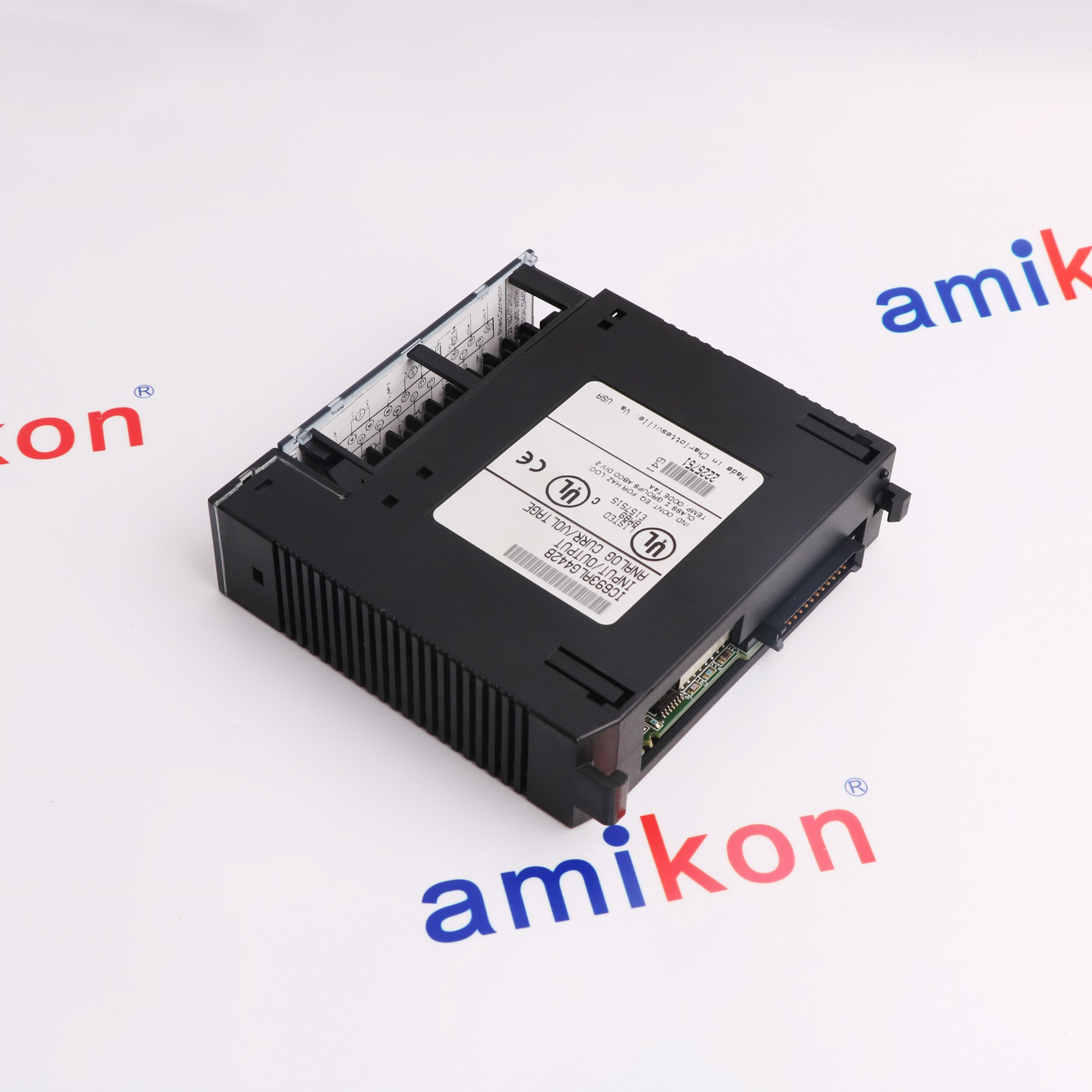

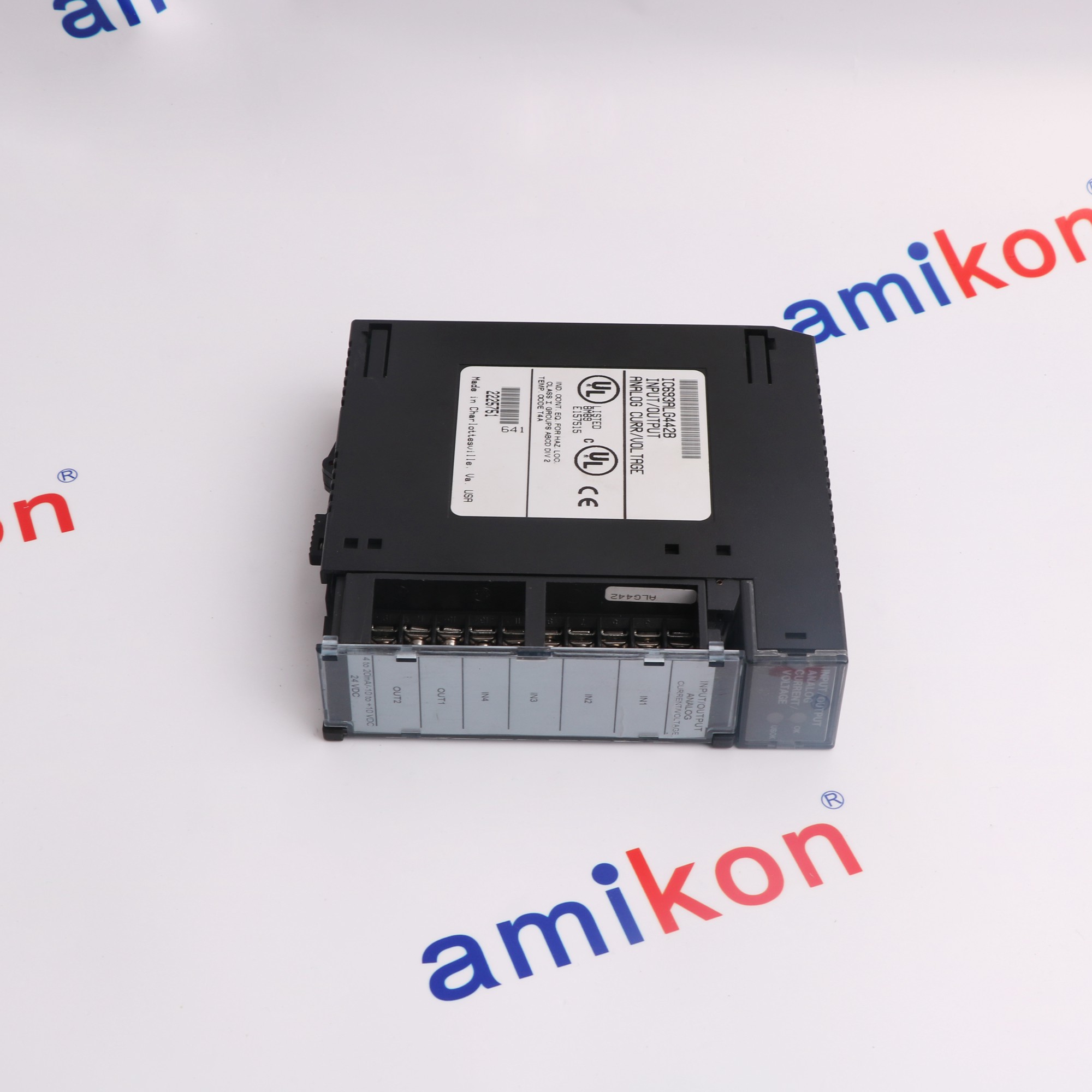

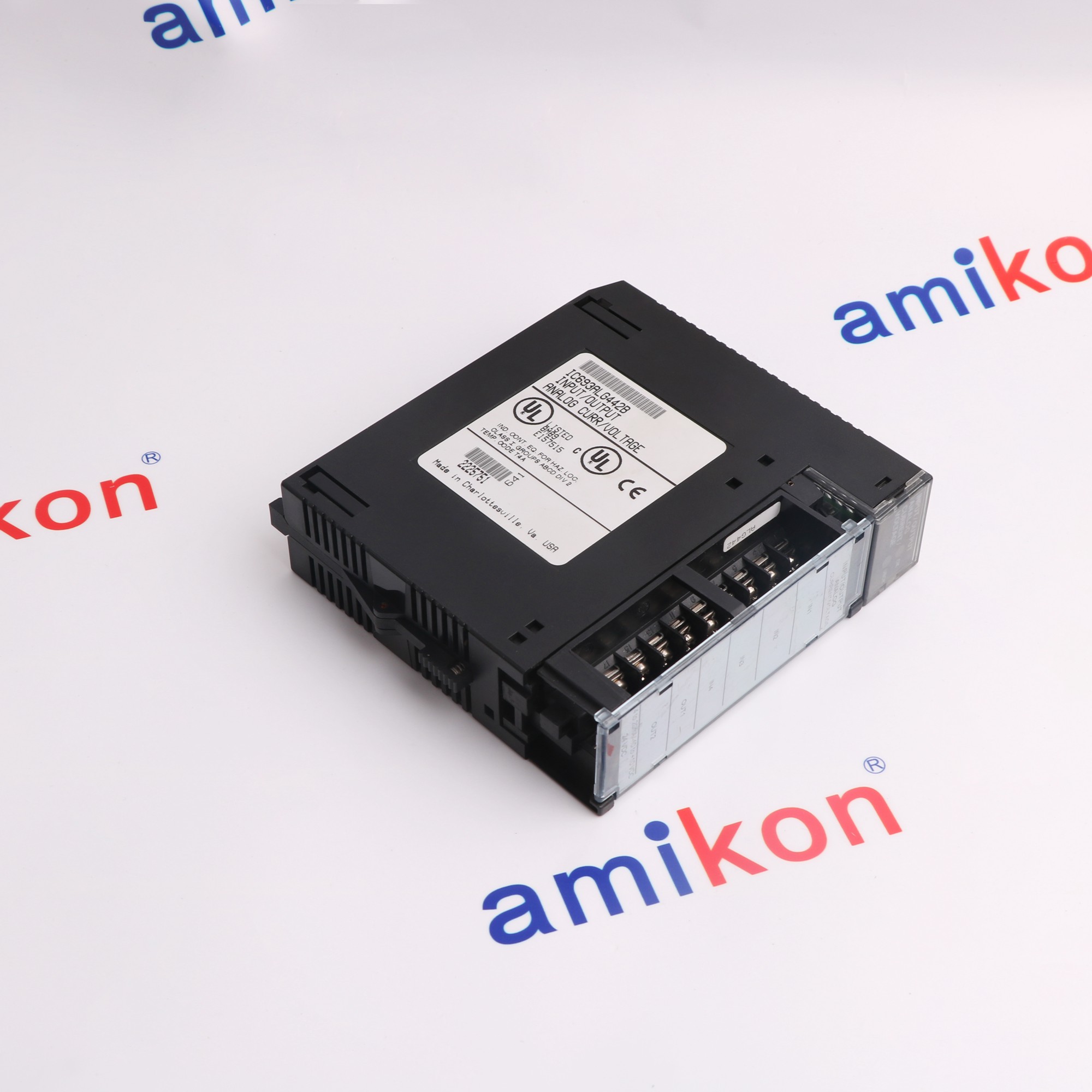

IC693ALG442
ANALOG CURRENT/VOLTAGE COMBINATION MODULE
GE SERIES 90-30
4 INPUT/2 OUTPUT CHANNELS
2 SINGLE-ENDED OUTPUT CHANNELS
OUTPUT CURRENT RANGES: 0-20MA AND 4-20MA
ANALOG CURRENT/VOLTAGE COMBINATION MODULE
GE SERIES 90-30
4 INPUT/2 OUTPUT CHANNELS
2 SINGLE-ENDED OUTPUT CHANNELS
OUTPUT CURRENT RANGES: 0-20MA AND 4-20MA
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Key Features and Configuration
Installation Requirements
Features:
- GE Series 90-30 Programmable Logic Control
- Analog Current/Voltage Combination Module
- 2 SINGLE-ENDED OUTPUT CHANNELS
- 4 INPUT/2 OUTPUT CHANNELS
The IC693ALG442 GE Analog Current/Voltage Combination Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693ALG442 Analog Current/Voltage Combination Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693ALG442 is a combination module from GE Fanuc’s Series 90-30 Programmable Logic Control (PLC) platform. Being a combination module, this module is designed with Four (4) input channels compatible with 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced input signals and Two (2) analog outputs providing 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA output signals.
The input channels supports differential inputs with each channel exhibiting an update rate of 8 ms. Individual input type resolution includes 5 µA (1 LSB = 5 µA) for 0-20 mA; 5 µA (1 LSB = 5 µA) for 4-20 mA and 5 µA (1 LSB = 5 µA) for 4-20 mA, enhanced with absolute accuracy of ± 0.25% of full scale @25°C (77°F) and ± 0.5% of full scale over specified operating temperature range.
- Boiler/Chiller Management: Monitoring flow rates and pressure while controlling modulating valves.
- Plastic Injection Molding: Monitoring melt pressure and controlling hydraulic proportional valves.
- Storage & Terminal Automation: Managing fuel loading systems and monitoring tank farm telemetry.
- Refining Processes: Monitoring pressure transducers and controlling proportional valves.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The GE Fanuc IC693ALG442 is an analog combination module for the Series 90-30 PLC, featuring 4 differential input channels and 2 single-ended output channels. It supports both current (0-20mA, 4-20mA) and voltage (±10V, 0-10V) signals, which can be configured individually per channel.
Enhanced 4-20 mA Input: Offers a specialized range where 0 mA corresponds to a count of -8000, allowing for advanced open-wire fault detection.
Alarm Limits: Users can set high and low alarm limits for all input channels.
Never connect or disconnect the module from the baseplate while the PLC power is on, as this may damage the system components.
The module must be installed in a metal enclosure with appropriate external wiring to meet industrial standards.
FAQs
-
What is IC693ALG442?
+The GE Fanuc/Emerson IC693ALG442 is a 12-bit resolution, combination analog input/output module for the Series 90-30 PLC system -
What are the IC693ALG442 key features?
+It features 8ms input update rates, 4ms output update rates, and supports "Ramp Mode" for outputs. -
Does IC693ALG442 require an external power supply?
+Yes. While it draws some power (95mA) from the +5V bus on the PLC backplane, an external +24VDC power supply (consuming approximately 129mA) is required for the analog circuitry to function properly. -
What is the wiring method for IC693ALG442?
+This module uses 20-terminal detachable terminals for easy field wiring and easy replacement without disconnecting individual wires. -
What are the supported input signals of the IC693ALG442?
+Compatible input signals are 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced input signals.
