IC693CBL300
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
I/O BUS EXPANSION CABLES
1 METER
SHIELDED
SERIES 90-30
USED TO EXTEND THE I/O BUS TO EXPANSION OR
REMOTE BASEPLATES IN A SERIES 90-30 I/O SYSTEM
1 METER
SHIELDED
SERIES 90-30
USED TO EXTEND THE I/O BUS TO EXPANSION OR
REMOTE BASEPLATES IN A SERIES 90-30 I/O SYSTEM
Technical specifications for IC693CBL300
-
Product ModelIC693CBL300
-
Product ParametersI/O BUS EXPANSION CABLES
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size114x8x1.7cm
-
ManufacturerGeneral Electric
-
Weight0.24 kg
-
Connector 1st end25-pin D connector (male)
-
Maximum number in a systemDepending on the CPU
-
PurposeBus expansion
-
StructureContinuous shield
-
Length1 meter
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is IC693CBL300 ?+The GE IC693CBL300 is a 1-meter (approx. 3.3 ft) shielded I/O Bus Expansion Cable designed for the GE Fanuc Series 90-30 PLC system.
-
What is the purpose of the IC693CBL300?+It connects multiple baseplates in a Series 90-30 PLC system when additional I/O slots are required. It acts as a daisy-chain cable, featuring a dual-connector (male/female) on one end and a single male connector on the other, allowing it to connect between racks.
-
Is it compatible with PACSystems RX3i?+Yes, via the IC695LRE001 Serial Bus Transmitter module, which allows RX3i systems to communicate with Series 90-30 expansion backplanes.
-
What is the cable length?+The standard IC693CBL300 is 1 meter (approximately 3 feet) long
-
Is it compatible with the Series 90-70?+No, this cable is specifically designed for the Series 90-30 systems.
Get a quick price fo IC693CBL300
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Installation & Usage Instructions
Features:
- 25-pin D connector
- Building Custom Length I/O Bus Expansion Cables
- length of 1 meter
The IC693CBL300 cable is a bus expansion cable that has been designed and manufactured by GE Fanuc Automation to operate with the Series 90-30 high-density I/O modules. This cable comes with all the specifications required for it to connect a module with different equipment safely and maintain proper connections during operations. This specific cable comes with a length of 1 meter. When there is more than 1 rack, this specific cable can be connected in a “daisy-chain” arrangement from one rack to another. This is possible since this GE Fanuc Automation cable comes with a dual connector on one of its ends. One of the dual ends of the cable can be plugged into a base plate connector, and the second one can provide a socket for connecting the next cable. This cable has been designed to enable users build their own application schemes.
The IC693CBL300 GE Bus expansion cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693CBL300 Bus expansion cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

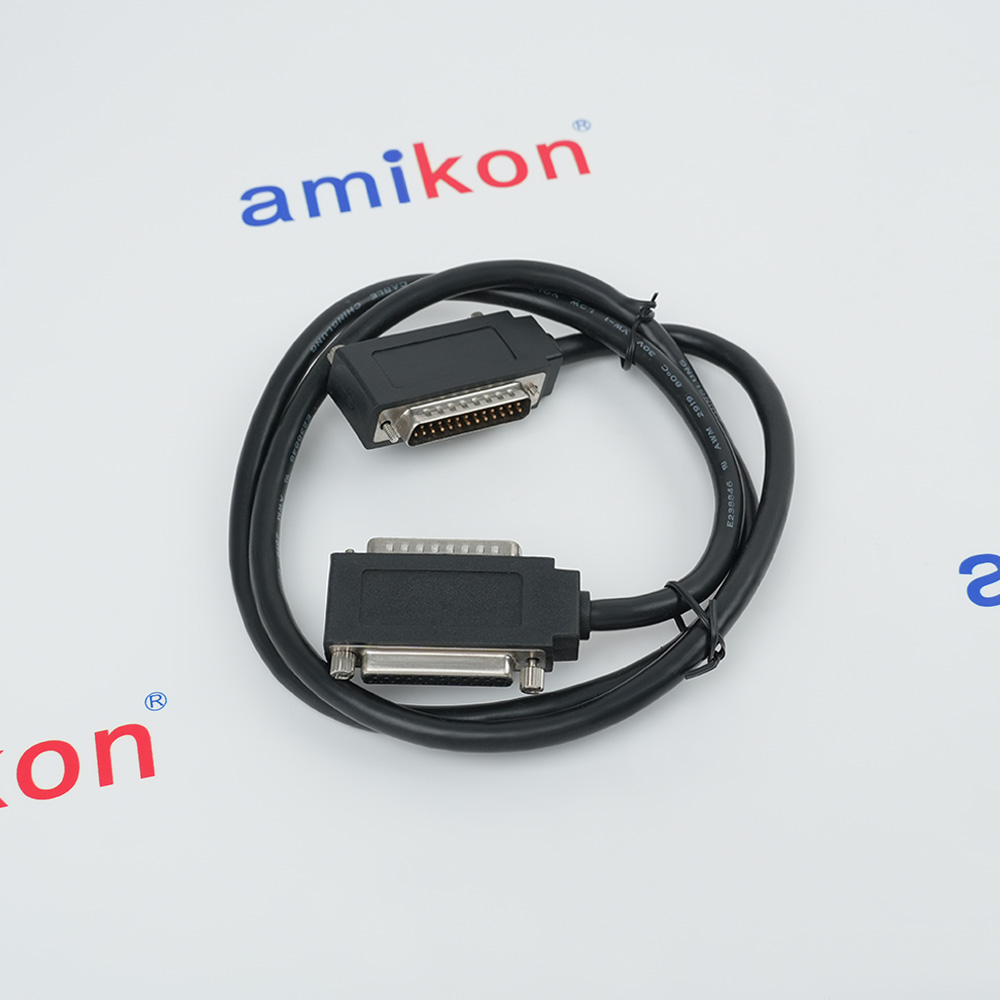

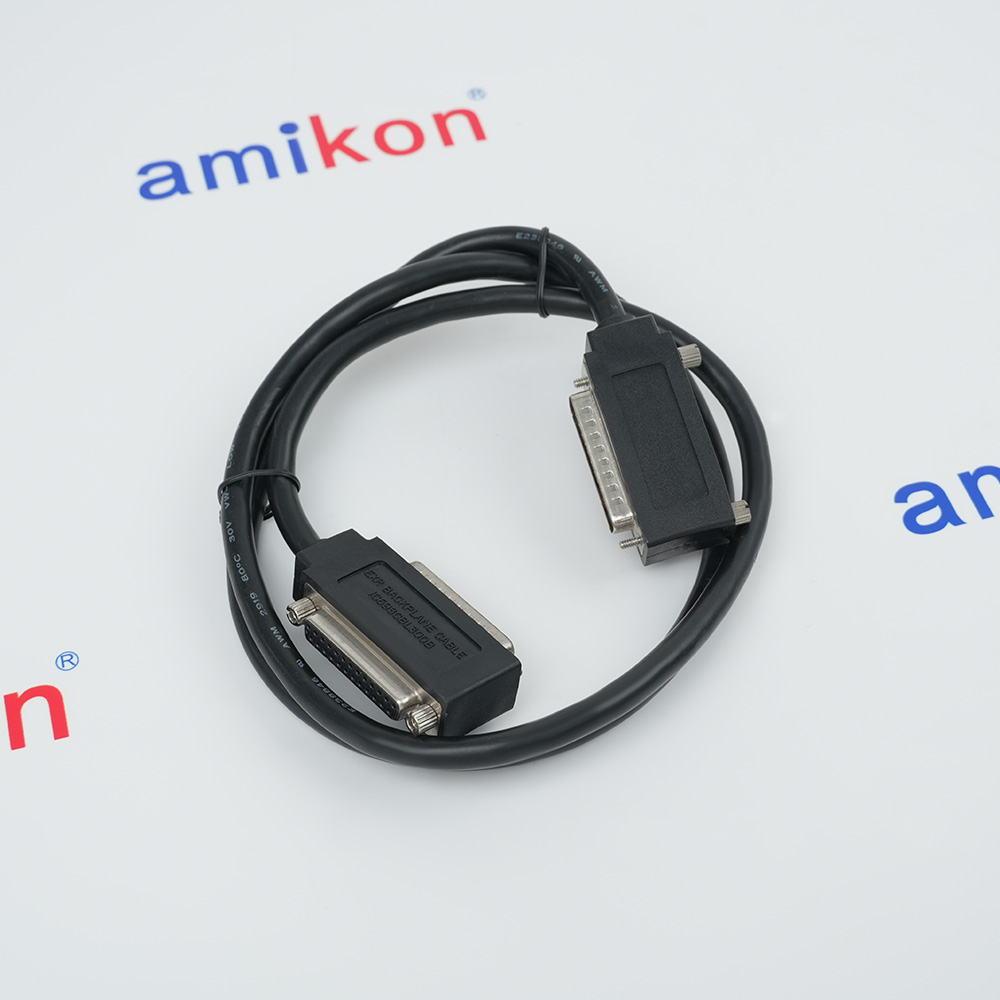

The GE IC693CBL300 bus expansion cable can be used as a Wye adapter between custom-built cables and remote racks. This cable comes with a male 25-pin D connector on one end and the 2-headed 25-pin D connector on the other end that supports the "daisy-chain" connections. This end has one male connector and one female connector. Prior to using “daisy-chain” cables, the module requires a prewired cable that is 1 meter long to simplify the custom cable assembly associated with this chain setup. The GE IC693CBL300 bus expansion cable has the ability to interconnect baseplate expansion ports, CPUs, and remote racks. It has been manufactured to ensure that the signal is delivered properly by minimizing the interference level across the whole system. This cable is shielded and it can be used to build a whole cable and wiring circuitry system.
- Automotive Plants:Robot position feedback & bolting torque monitoring
- Food and Beverage Facilities:Flow, tank level & conveyor speed monitoring
- Chemical and Pharmaceutical Factories:Batch processing with precise temp/pressure voltage inputs
- Water Treatment Plants:Pressure, tank level & valve position monitoring
- Power Generation Plants:Turbine speed, fuel flow & cooling temp monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Safety First: Never connect or disconnect I/O bus expansion cables while power is applied to the baseplates; doing so can cause unexpected PLC operation.
Connection Steps:
Plug the single male end into the CPU baseplate or the preceding baseplate in the chain.
Plug one head of the "Wye" end into the expansion baseplate's expansion port.
Use the remaining head to either continue the chain to another baseplate or to install an I/O Bus Terminator plug if it is the last cable in the system.
