Technical specifications for IC697MDL740
-
Product ModelIC697MDL740
-

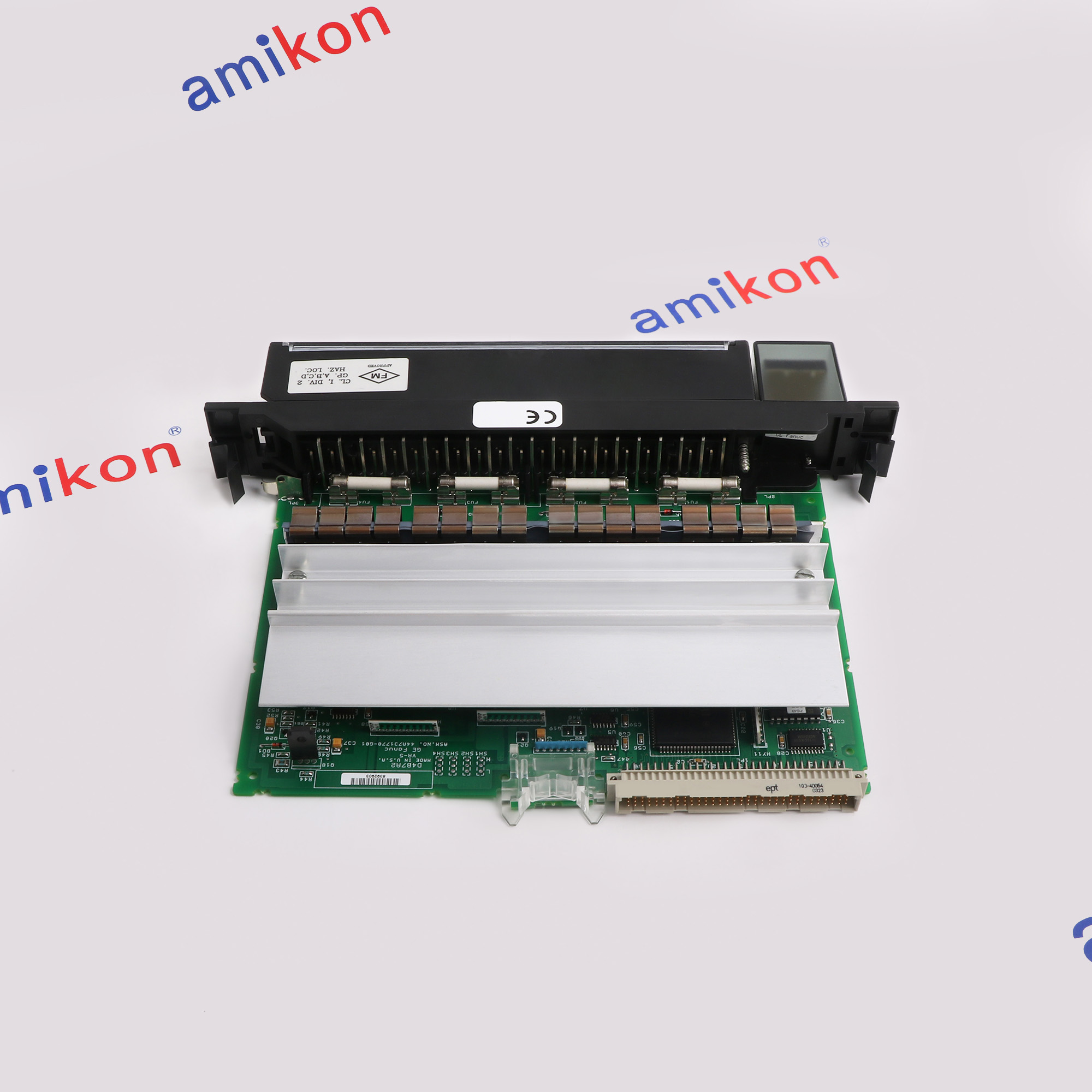

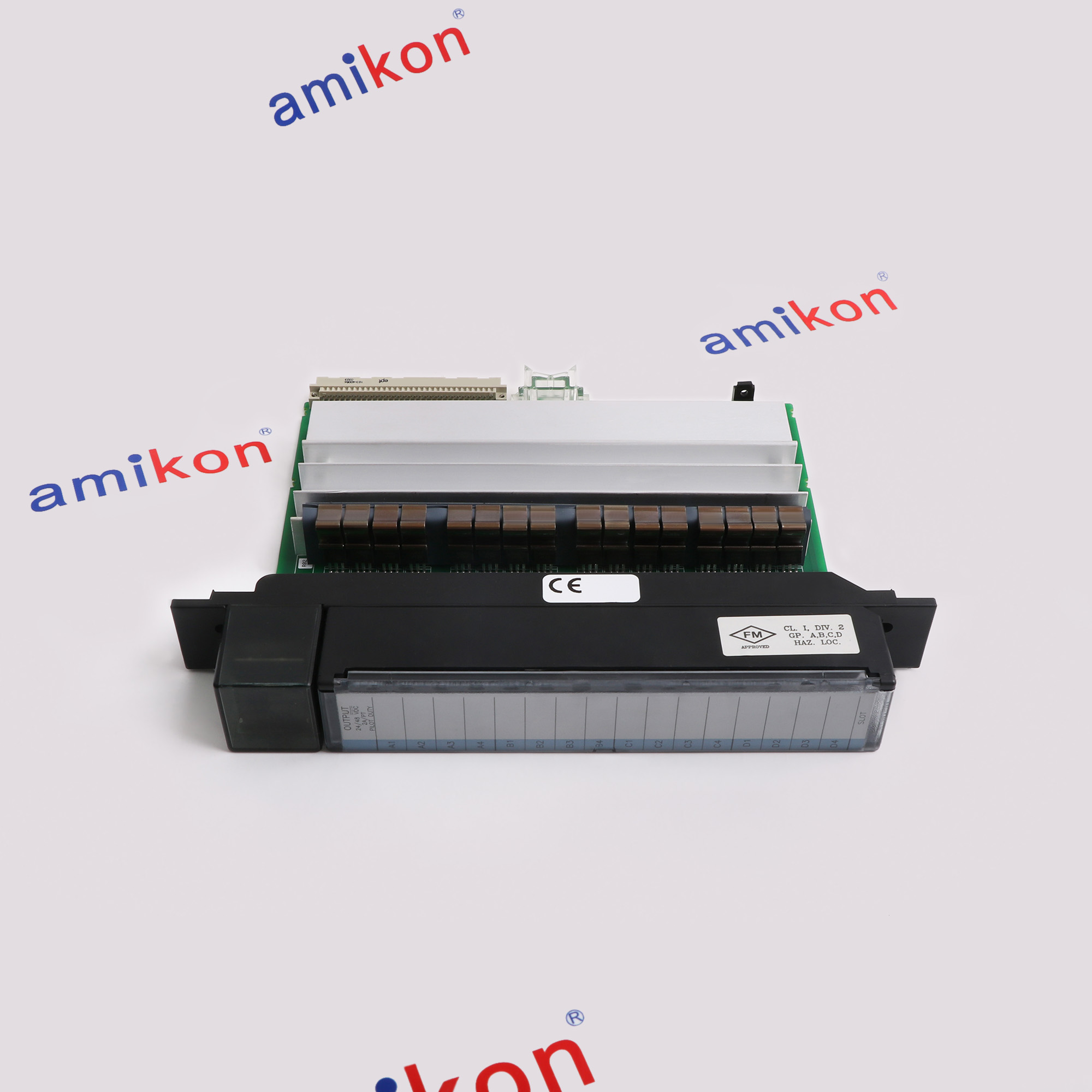

Product ParametersDISCRETE OUTPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x22x29.1cm
-
ManufacturerGeneral Electric
-
Weight0.88 kg
-
Output current2 Amps per point, 4 Amps per group
-
Output voltage range20 to 60 Volts DC
-
Inrush current20 Amps (maximum) for 20 milliseconds
-
Response time-off2 milliseconds (maximum)
-
Output voltage drop0.8 Volts/0.4 Ohms (maximum)
-
SeriesSeries 90-70
-
Required current0.15 Amps
-
Number of outputs16
-
Isolation voltage1500 Volts
-
Rated voltage24 to 48 Volts DC
Description
IC697MDL740
DISCRETE OUTPUT MODULE
90-70 SERIES
2 AMP
24-48 VDC
16 OUTPUT POINTS
POSITIVE LOGIC
DISCRETE OUTPUT MODULE
90-70 SERIES
2 AMP
24-48 VDC
16 OUTPUT POINTS
POSITIVE LOGIC
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Field Wiring Instructions
Features:
- 16 Points – Four isolated groups of four pointseach
- 3 Amps capacity per point
- High inrush capacity (10x rated current)
The 24/48 Volt DC 2 Amp Output Module provides 16output points in four isolated groups of four points each.This allows each group of four points to be used ondifferent phases of the AC supply. Each group of fouroutputs is individually fused with a 10-amp fuse.The module provides a high degree of inrush currentcapacity, which makes the outputs suitable for a widerange of inductive and incandescent loads. These outputswill pick up most size-4 contactors.
The IC697MDL740 GE Discrete output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC697MDL740 Discrete output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
LED indicators at the top of the module provide theON/OFF status of each point on the logic side of thecircuit. The LED labeling (e.g. A1, B1, C1, D1, etc.)corresponds to the circuit labeling on the back of thehinged door, seen in the adjacent figure. Only the topfour rows of LEDs are used on this module since it is a16-point module. An additional LED indicator, labeled“FUSE,” illuminates if an internal fuse opens.The module is mechanically keyed to ensure correctreplacement with a similar type in the field.I/O references are user-configurable without the use ofDIP switches or jumpers on the module. Configuration isperformed using the configuration function of the PLCprogramming software.
- Automotive Assembly Plants:Robot coordination, conveyors & high-speed production lines
- Power Generation Facilities:Turbine control, grid sync & load balancing for hydro/thermal/renewable
- Oil and Gas Refineries:Drilling monitoring & ESD management in hazardous environments
- Paper and Pulp Mills:Controls digesters, coaters & large-scale paper machines
- Water Treatment Plants:Manages valves, pumps & chemical systems for municipal water
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Accessing Terminals: Open the hinged door on the front of the module to reach the jackscrew. Turn it counter-clockwise to detach the board for easier wiring.
Wire Specifications: The board accepts wire sizes from AWG #22 to AWG #14. If using AWG #14, ensure the insulation diameter does not exceed 0.135 inches.
Grouping: The 16 points are divided into four isolated groups (4 points each). Each group is individually protected by a 10-amp fuse.
Securing Wires: After connecting, secure the wire bundle with cable ties using the cleats at the bottom of the board.
